空间目标视星等曲线仿真

刘燕 汶德胜 易红伟 殷勤业

刘燕, 汶德胜, 易红伟, 殷勤业. 空间目标视星等曲线仿真[J]. 空间科学学报, 2022, 42(3): 485-491. doi: 10.11728/cjss2022.03.210721079
引用本文: 刘燕, 汶德胜, 易红伟, 殷勤业. 空间目标视星等曲线仿真[J]. 空间科学学报, 2022, 42(3): 485-491. doi: 10.11728/cjss2022.03.210721079
LIU Yan, WEN Desheng, YI Hongwei, YIN Qinye. Simulation of Apparent Magnitude Curves of Space Objects (in Chinese). Chinese Journal of Space Science, 2022, 42(3): 485-491. DOI: 10.11728/cjss2022.03.210721079
Citation: LIU Yan, WEN Desheng, YI Hongwei, YIN Qinye. Simulation of Apparent Magnitude Curves of Space Objects (in Chinese). Chinese Journal of Space Science, 2022, 42(3): 485-491. DOI: 10.11728/cjss2022.03.210721079

空间目标视星等曲线仿真

doi: 10.11728/cjss2022.03.210721079
基金项目: 国家自然科学基金项目(61427811)和中国科学院青年创新促进会基金项目(1188000111)共同资助
详细信息
    作者简介:

    刘燕:E-mail:liuyan2015@opt.cn

  • 中图分类号: V19, V556.5

Simulation of Apparent Magnitude Curves of Space Objects

  • 摘要: 人类航天活动日益频繁,空间目标种类和数量不断增多,识别未知空间目标的关键特征具有重要的科学价值。本文通过辅助图形软件建模分割,获取球体、圆锥体和圆柱体带法向量的面元坐标;基于卫星仿真工具包,得到了目标轨道及位置参数,并结合双向反射分布函数各向异性Phong 模型和四元数姿态更新模型,完成了地基观测条件下4种形状空间目标的视星等仿真。仿真结果表明,目标受空间位置、形状和姿态的影响程度不同,其光度曲线具有各自特点。球体由于形状完全中心对称,光度曲线主要受空间位置的影响;圆锥体、正方体、圆柱体光度曲线的波形受形状影响较大,曲线走向受位置影响较大,波动频率受姿态角速率影响较大。通过统计分析相关数据,可为后续空间目标位置、姿态和形状的反演提供先验模型。

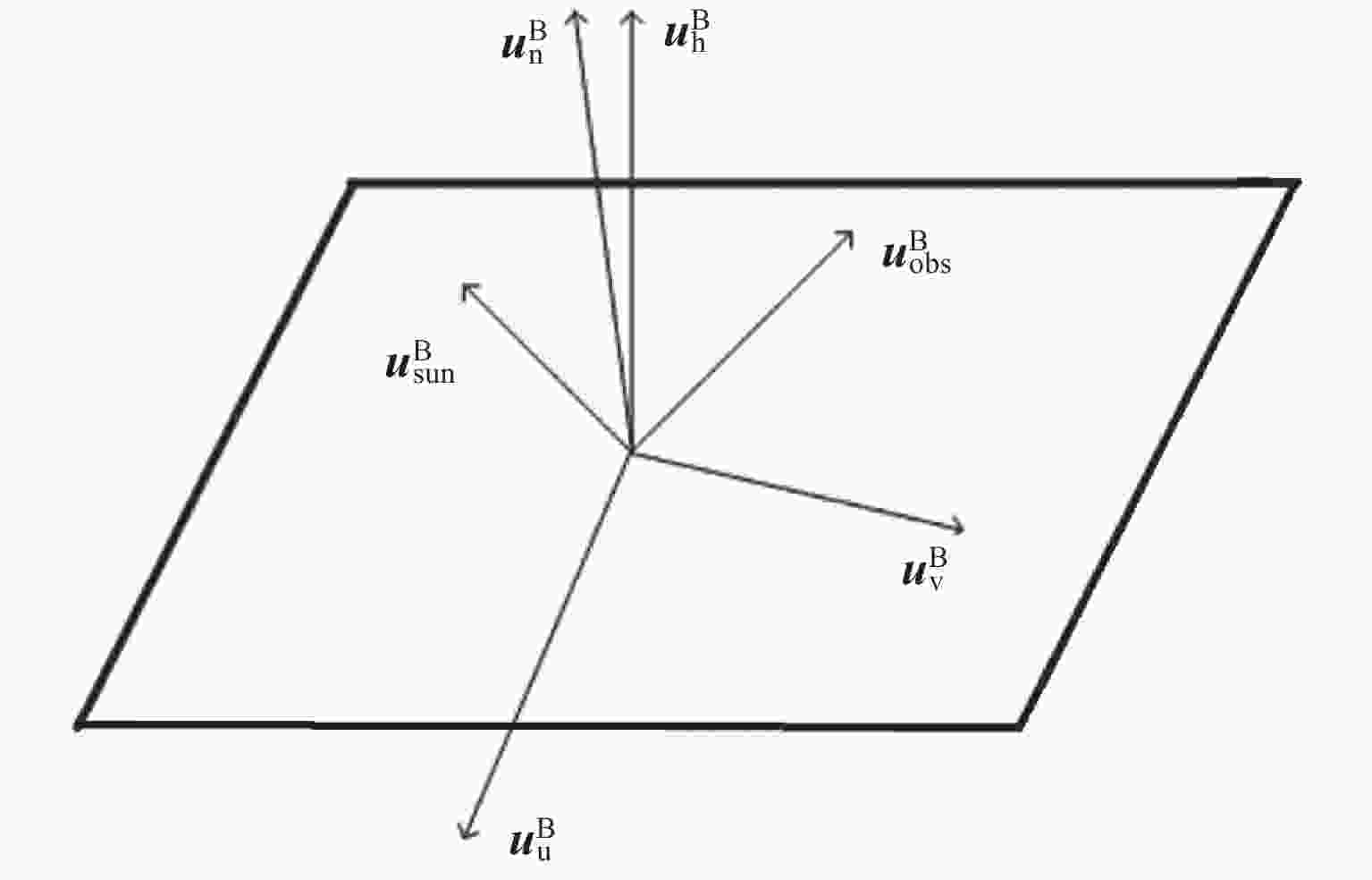

  • 图  1  形状反射模型

    Figure  1.  Shape reflection geometry

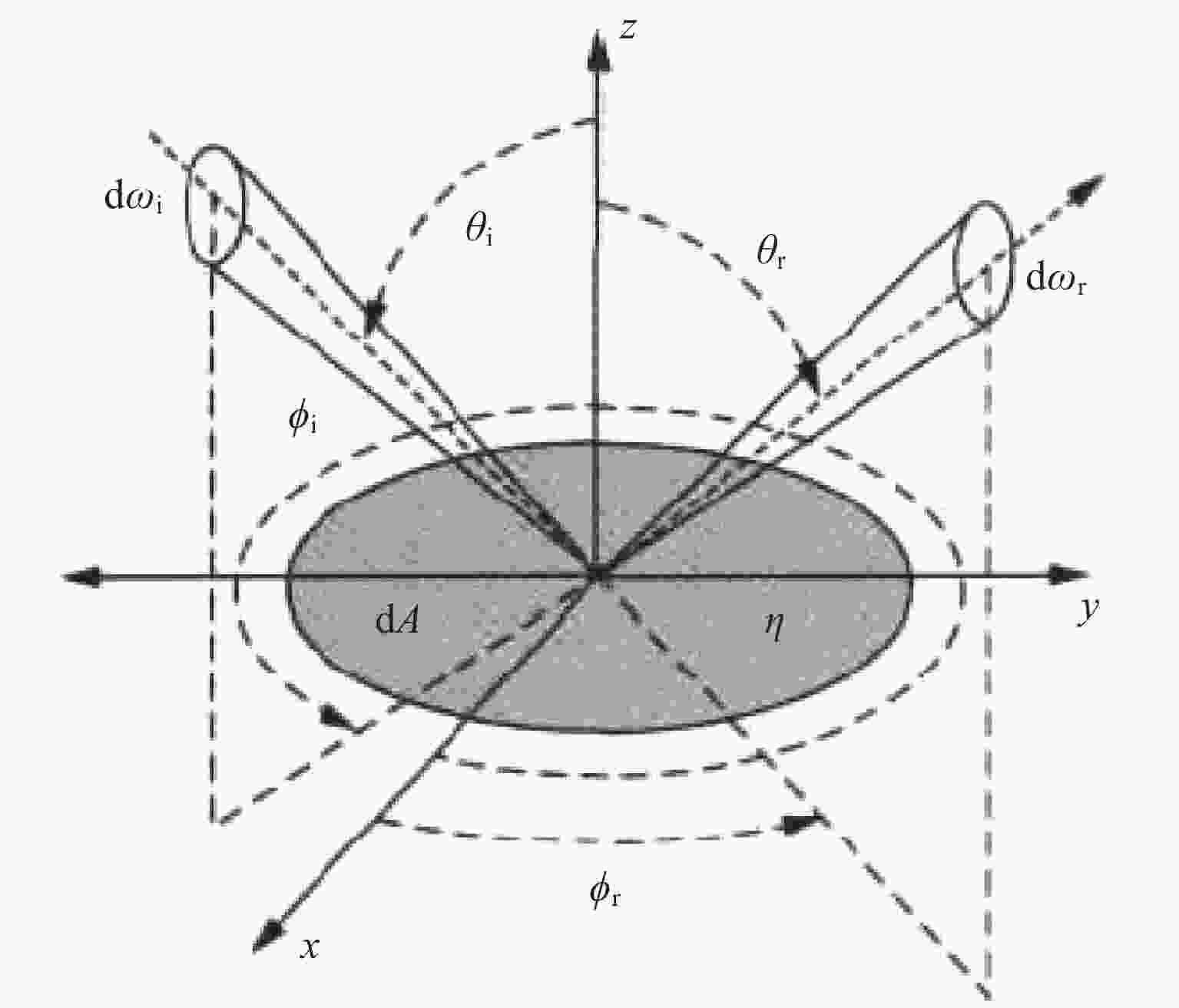

    图  2  BRDF几何关系

    Figure  2.  BRDF geometric diagram

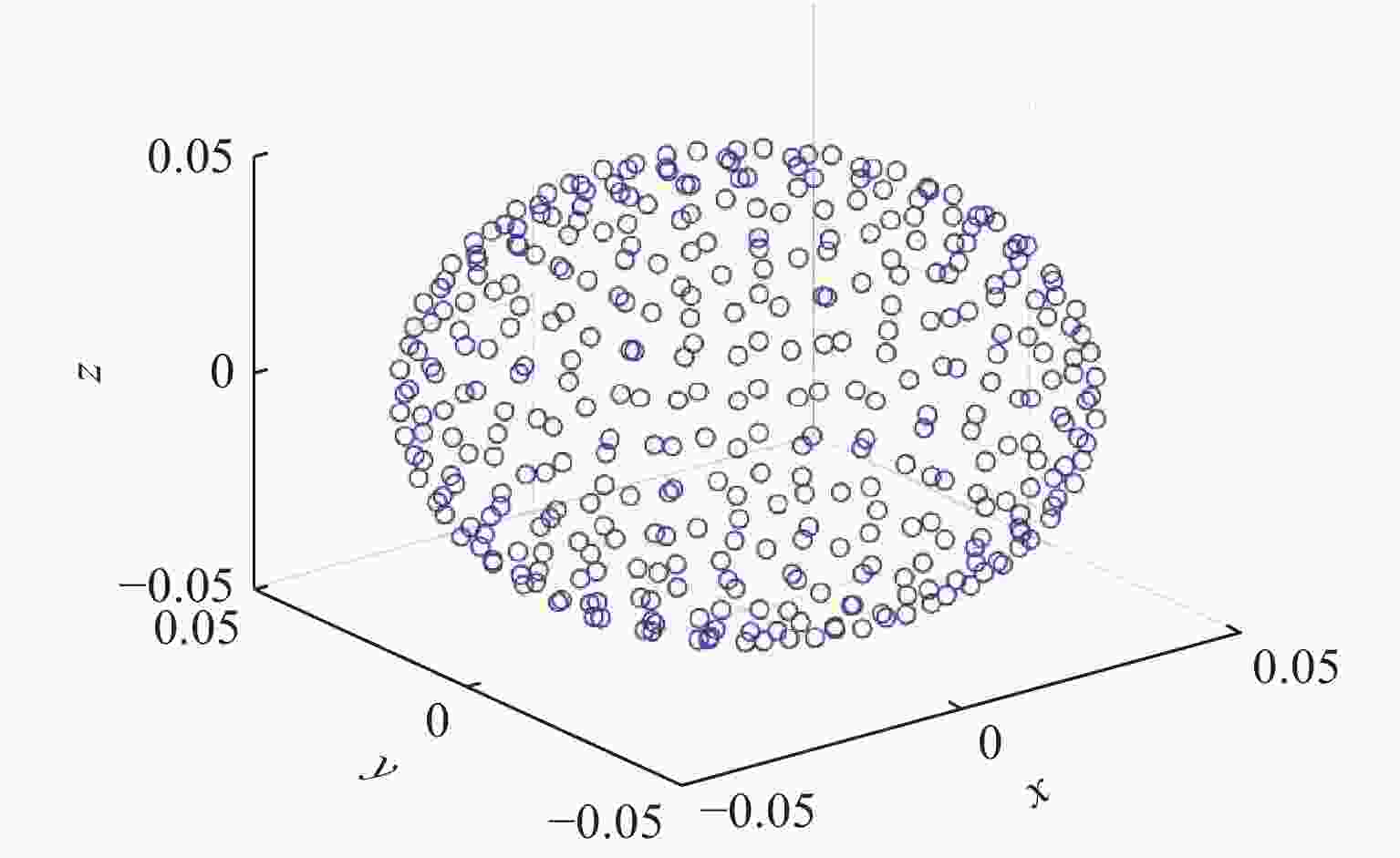

    图  3  球形面元分割

    Figure  3.  Spherical element segmentation

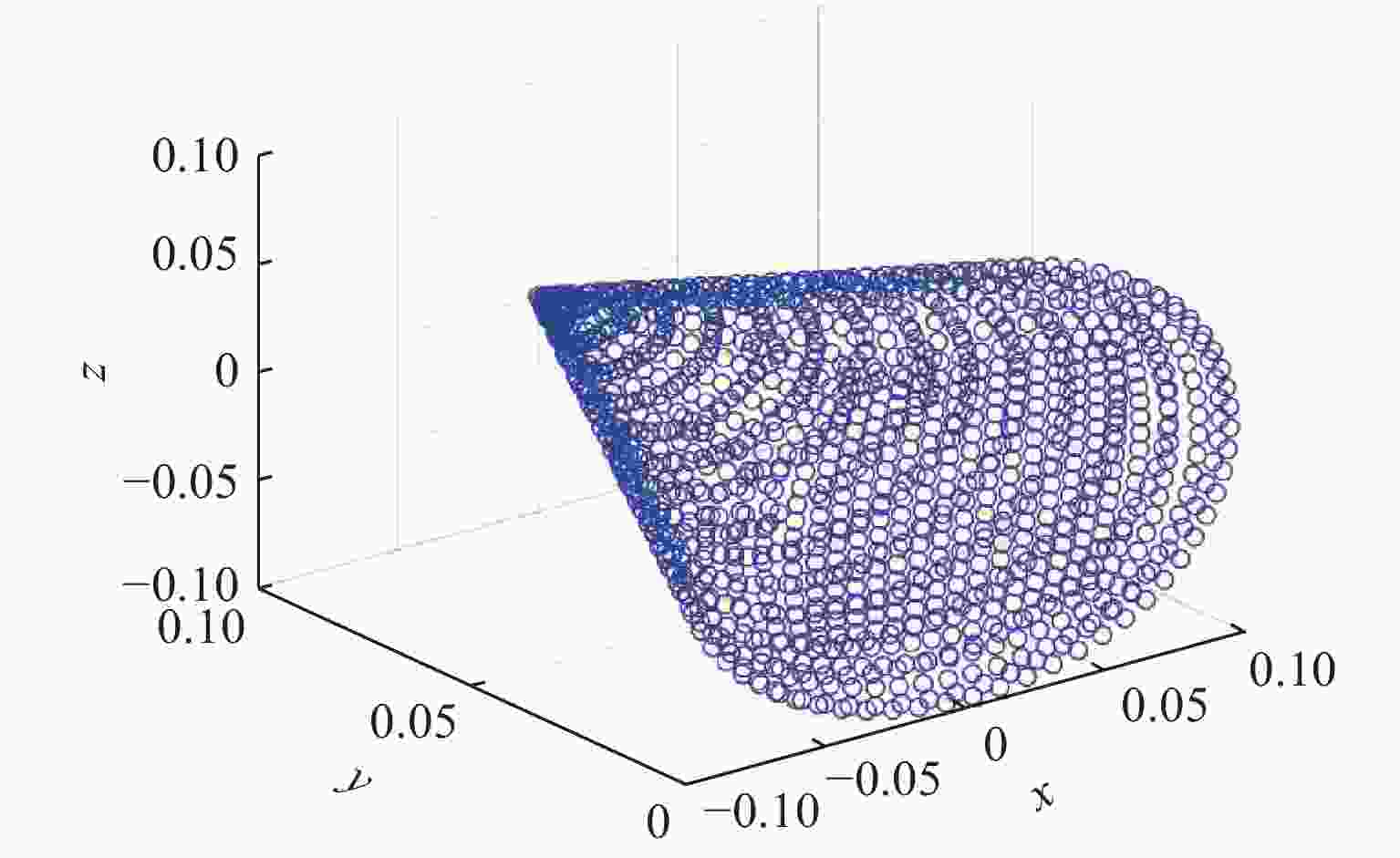

    图  4  圆锥形面元分割

    Figure  4.  Conical element segmentation

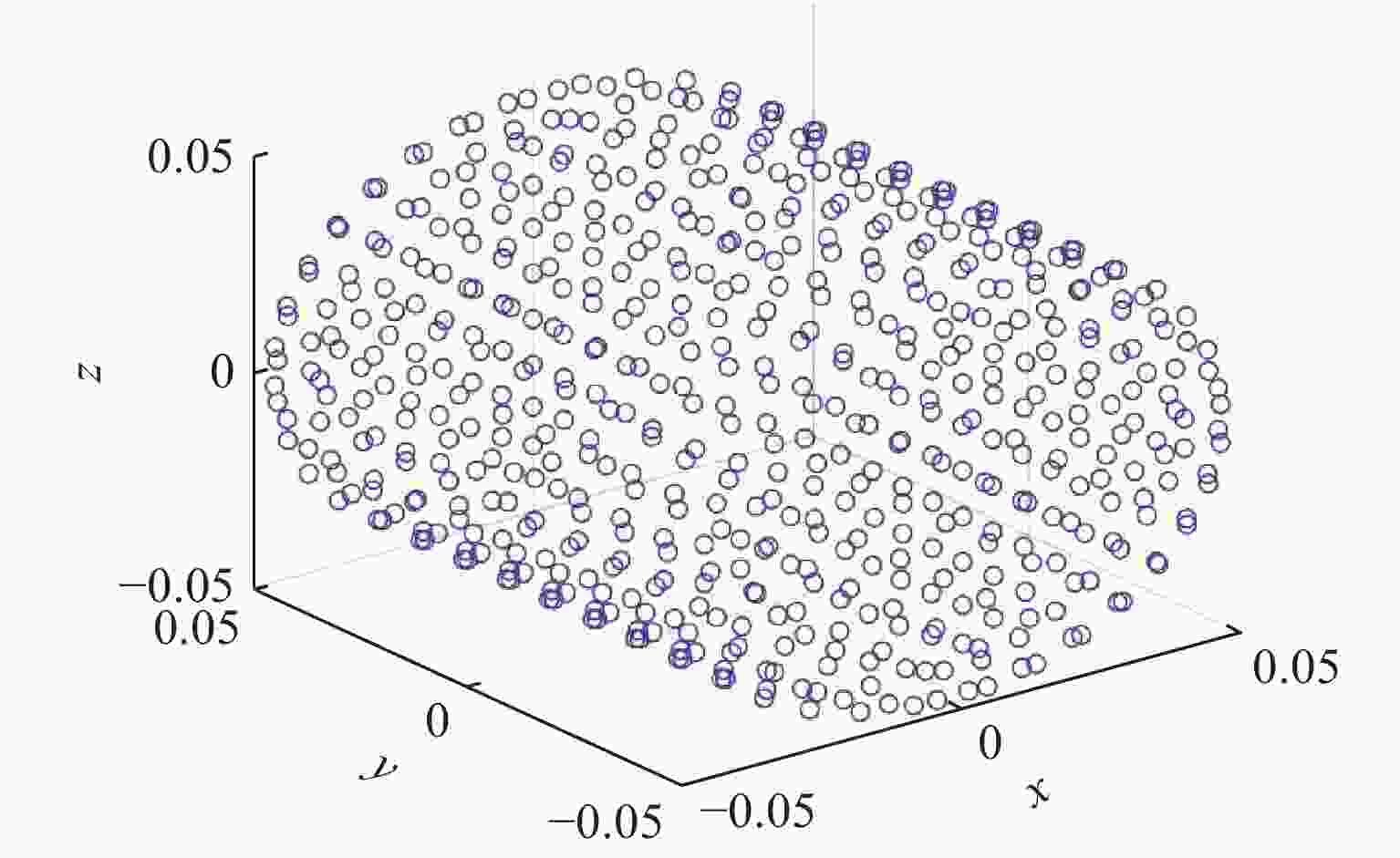

    图  5  圆柱形面元分割

    Figure  5.  Cylindricall element segmentation

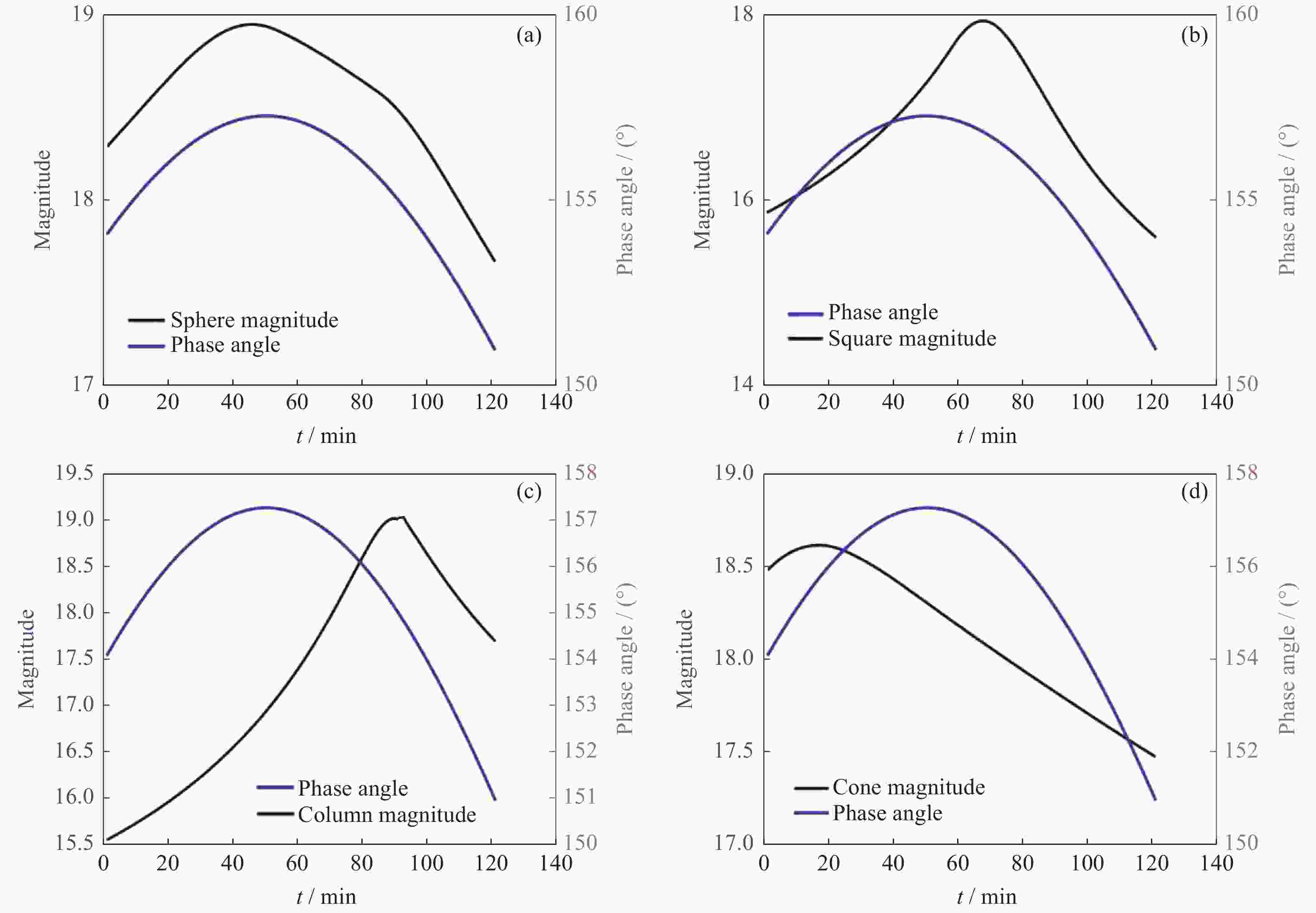

    图  6  相位角与视星等的关系曲线

    Figure  6.  Relation curve between phase angle and apparent magnitude

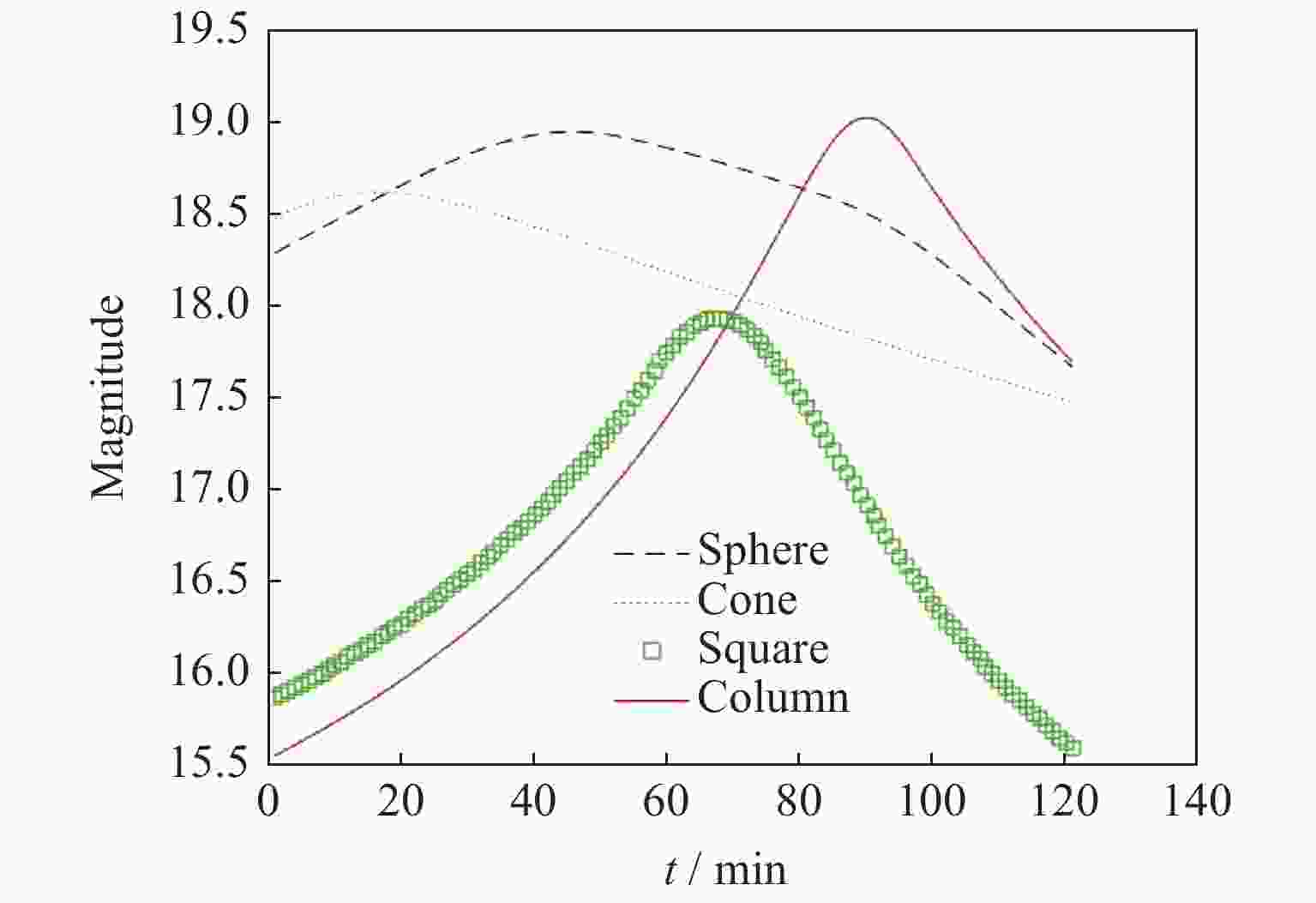

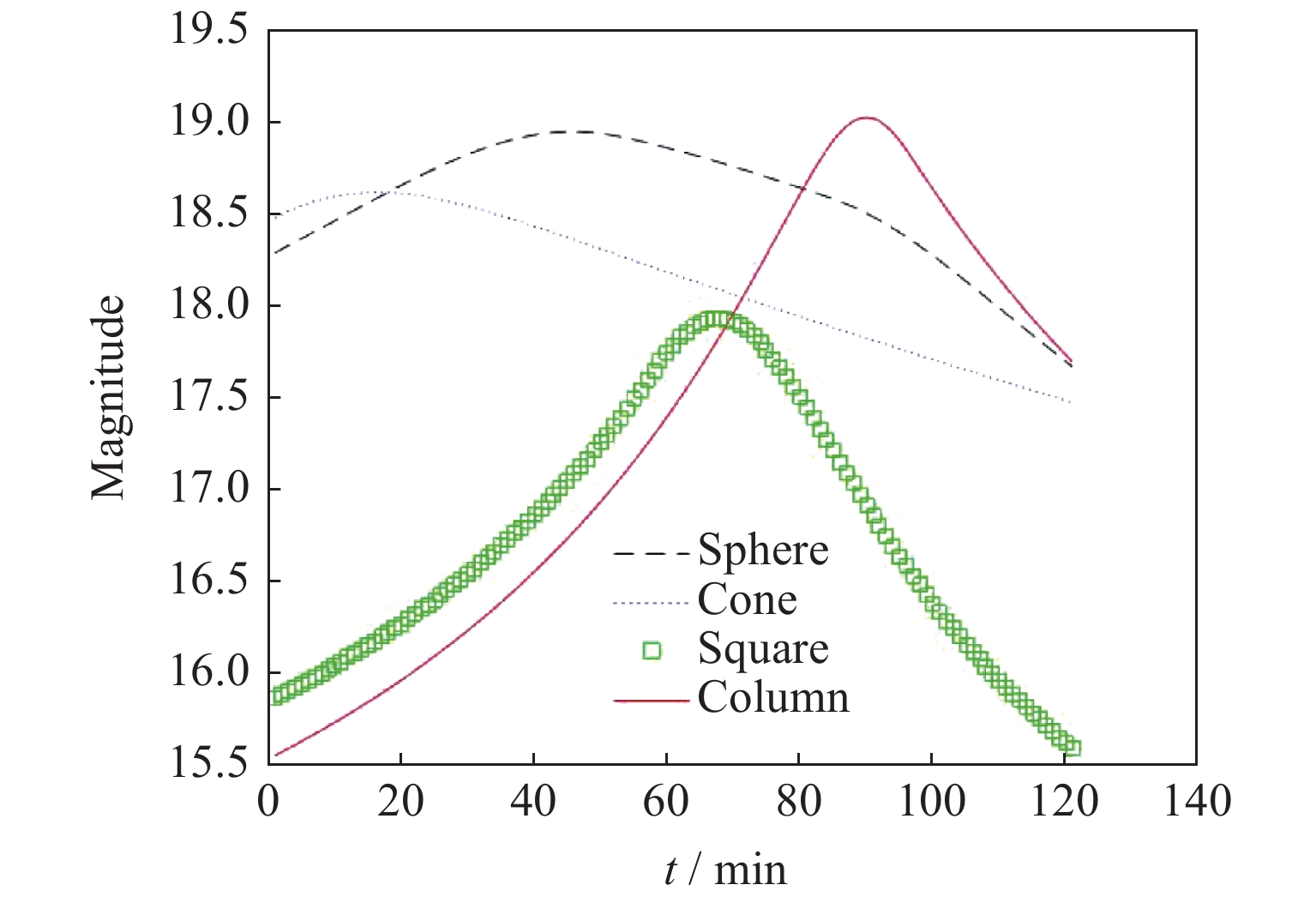

    图  7  视星等曲线

    Figure  7.  Apparent magnitude curve

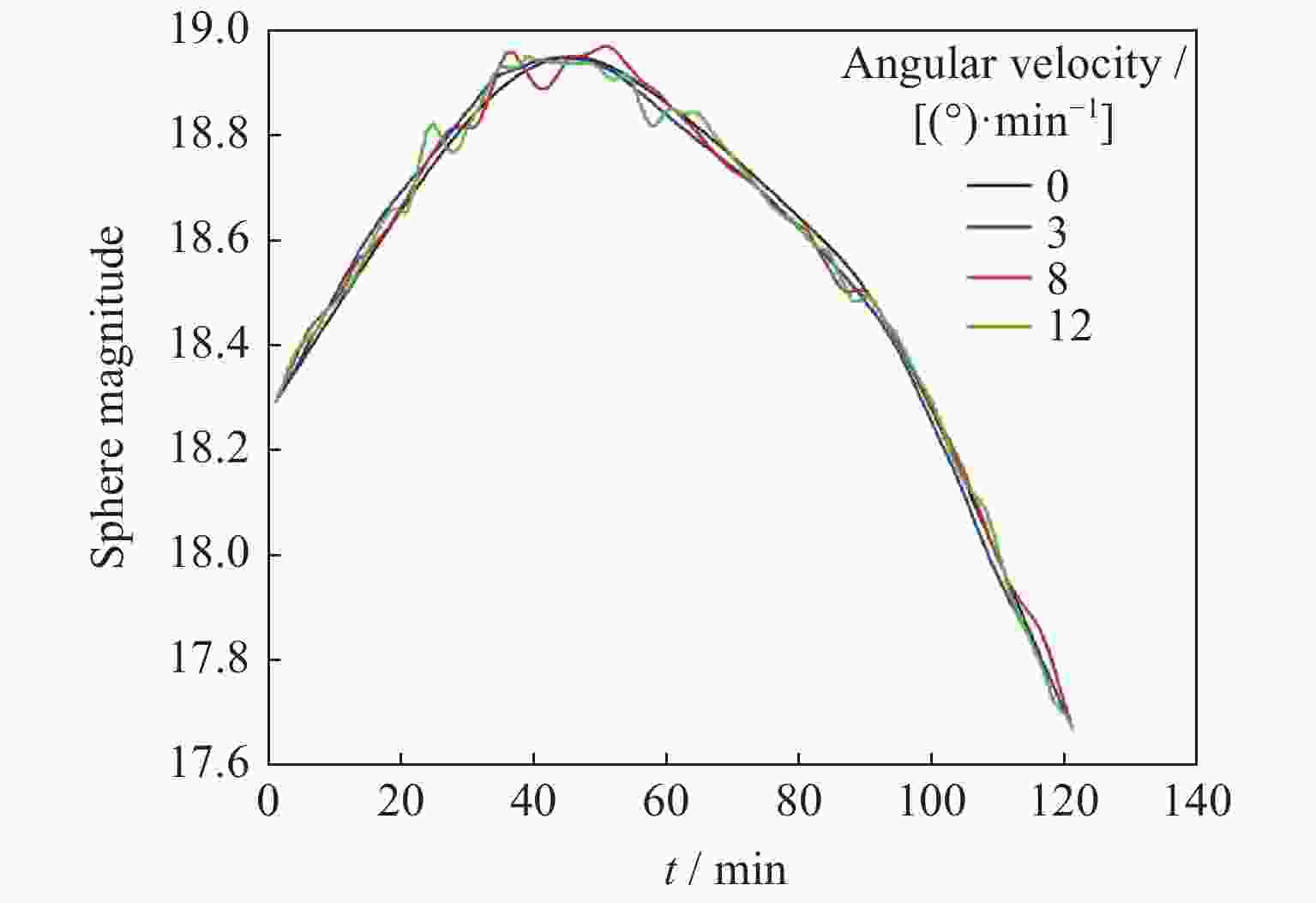

    图  8  球体不同角速度下的视星等

    Figure  8.  Apparent magnitude of the sphere at different angular velocities

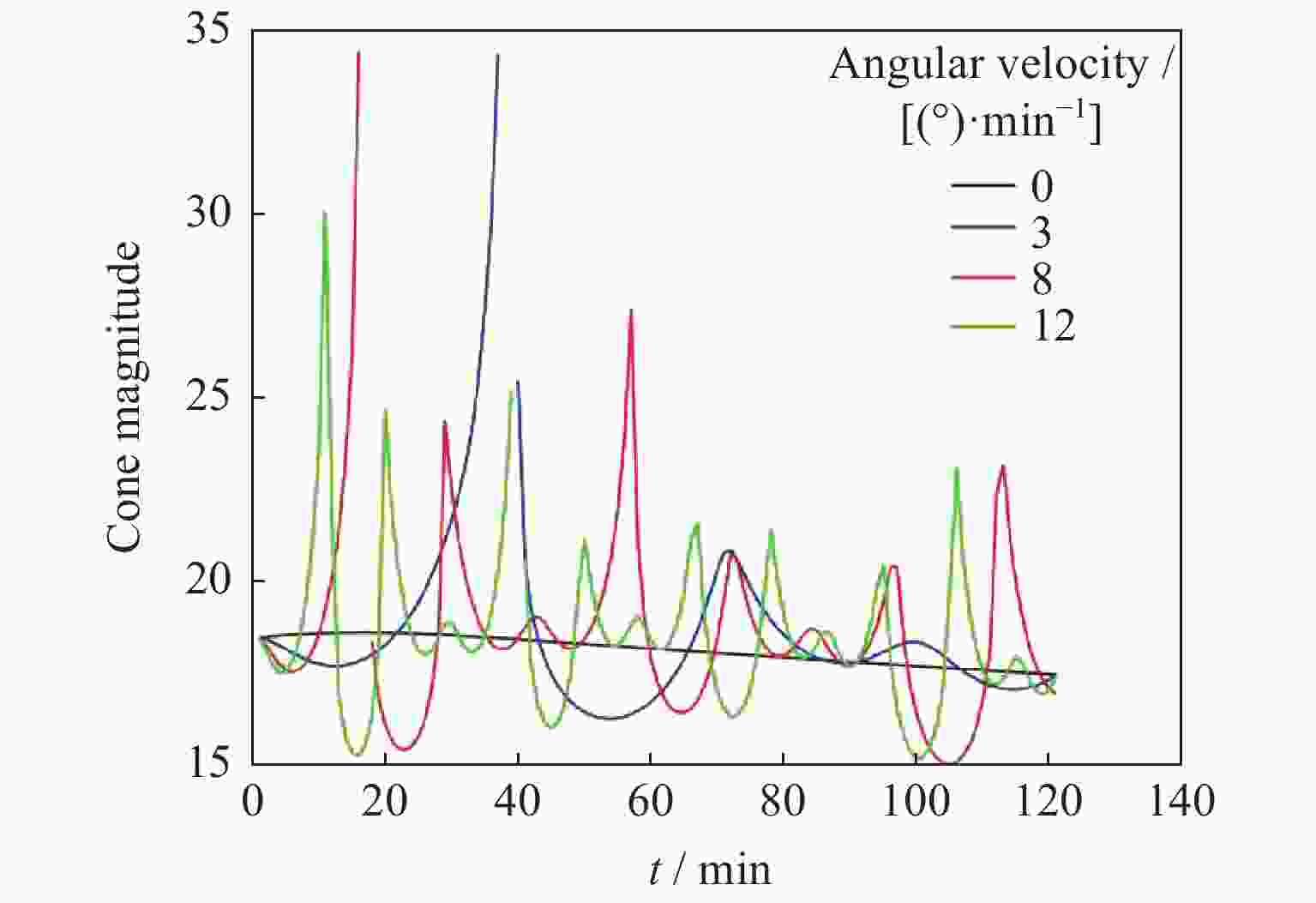

    图  9  圆锥体不同角速度下的视星等

    Figure  9.  Apparent magnitude of the cone at different angular velocities

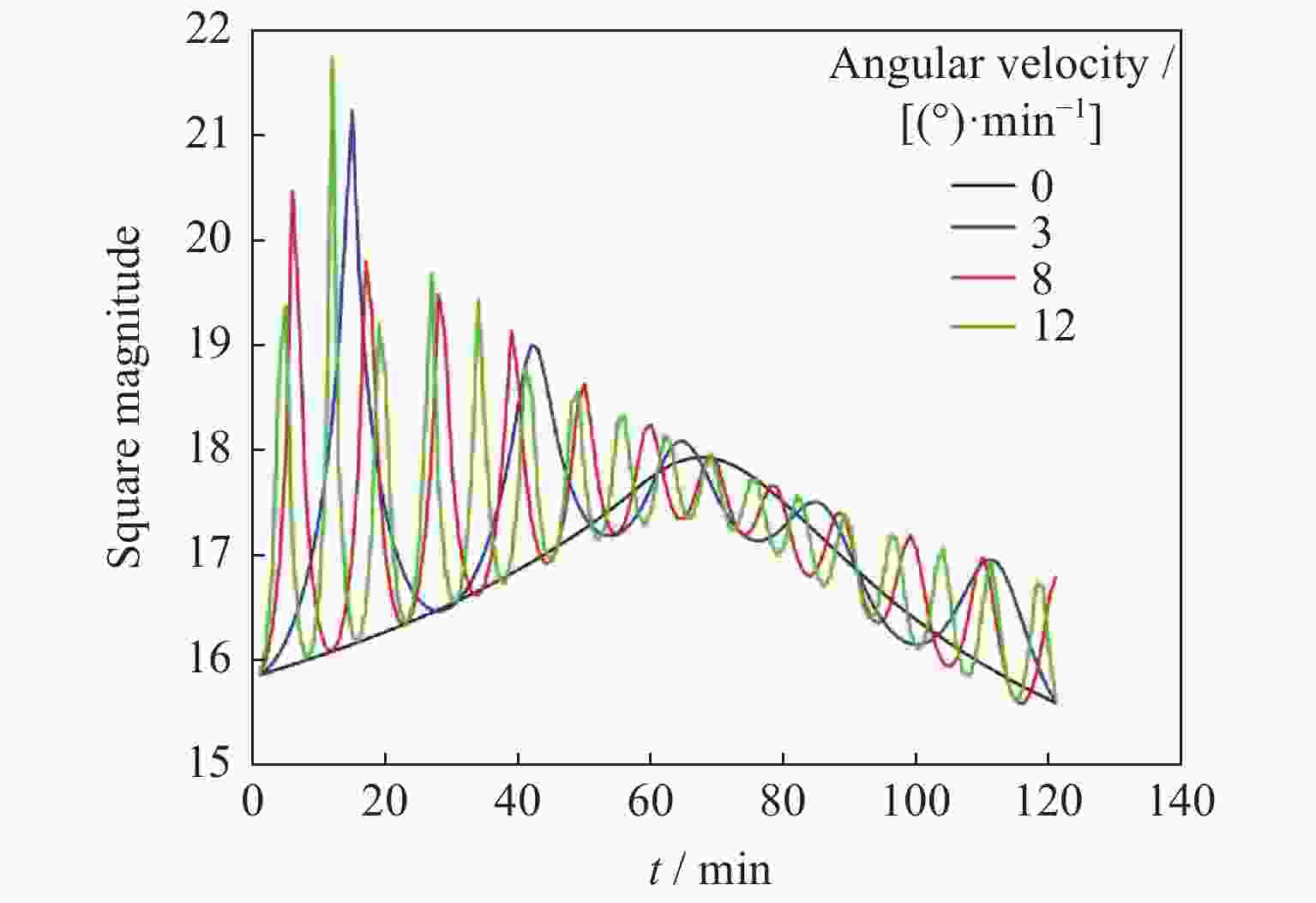

    图  10  正方体不同角速度下的视星等

    Figure  10.  Apparent magnitude of the cube at different angular velocities

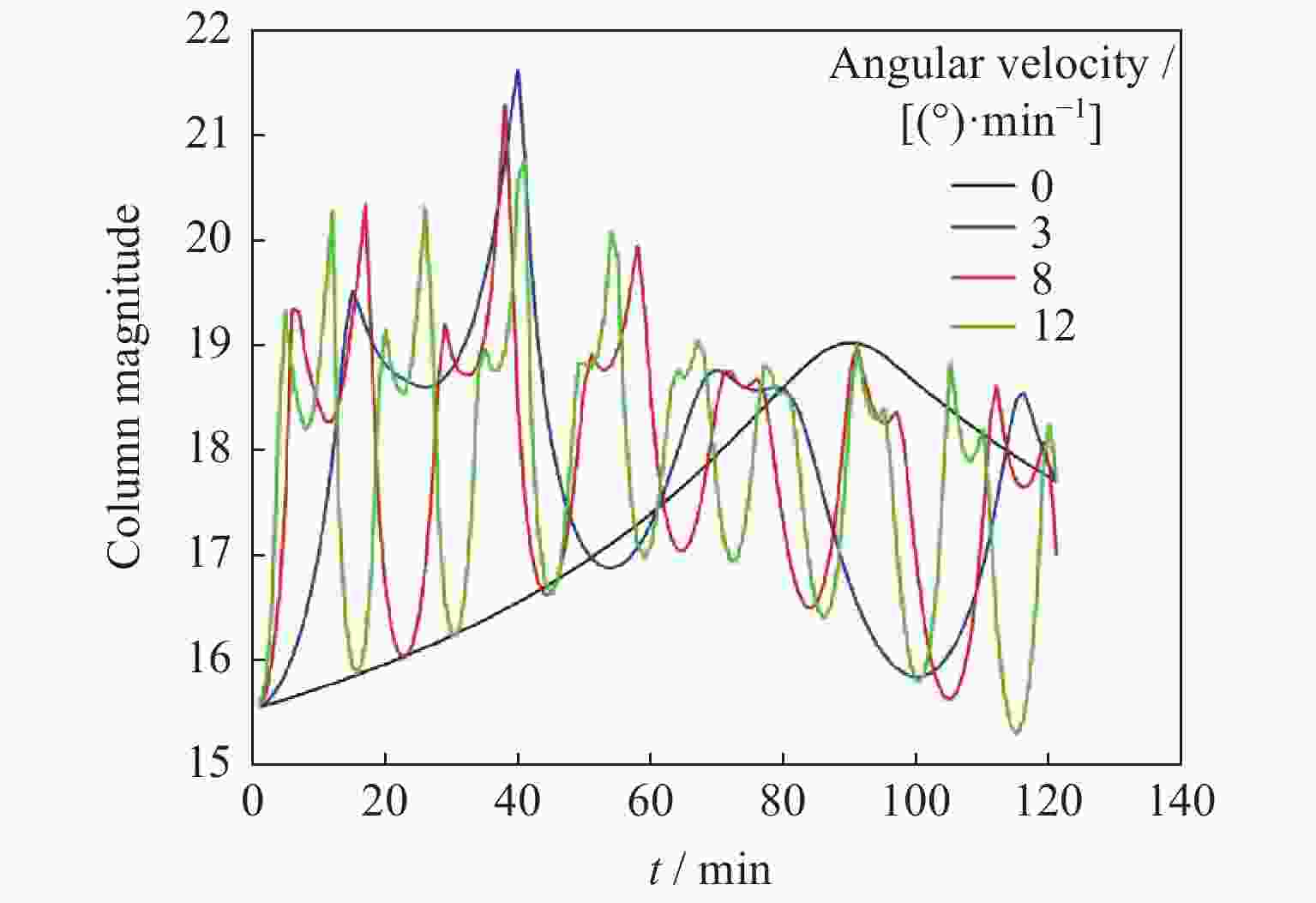

    图  11  圆柱体不同角速度下的视星等

    Figure  11.  Apparent magnitude of the cylinder at different angular velocities

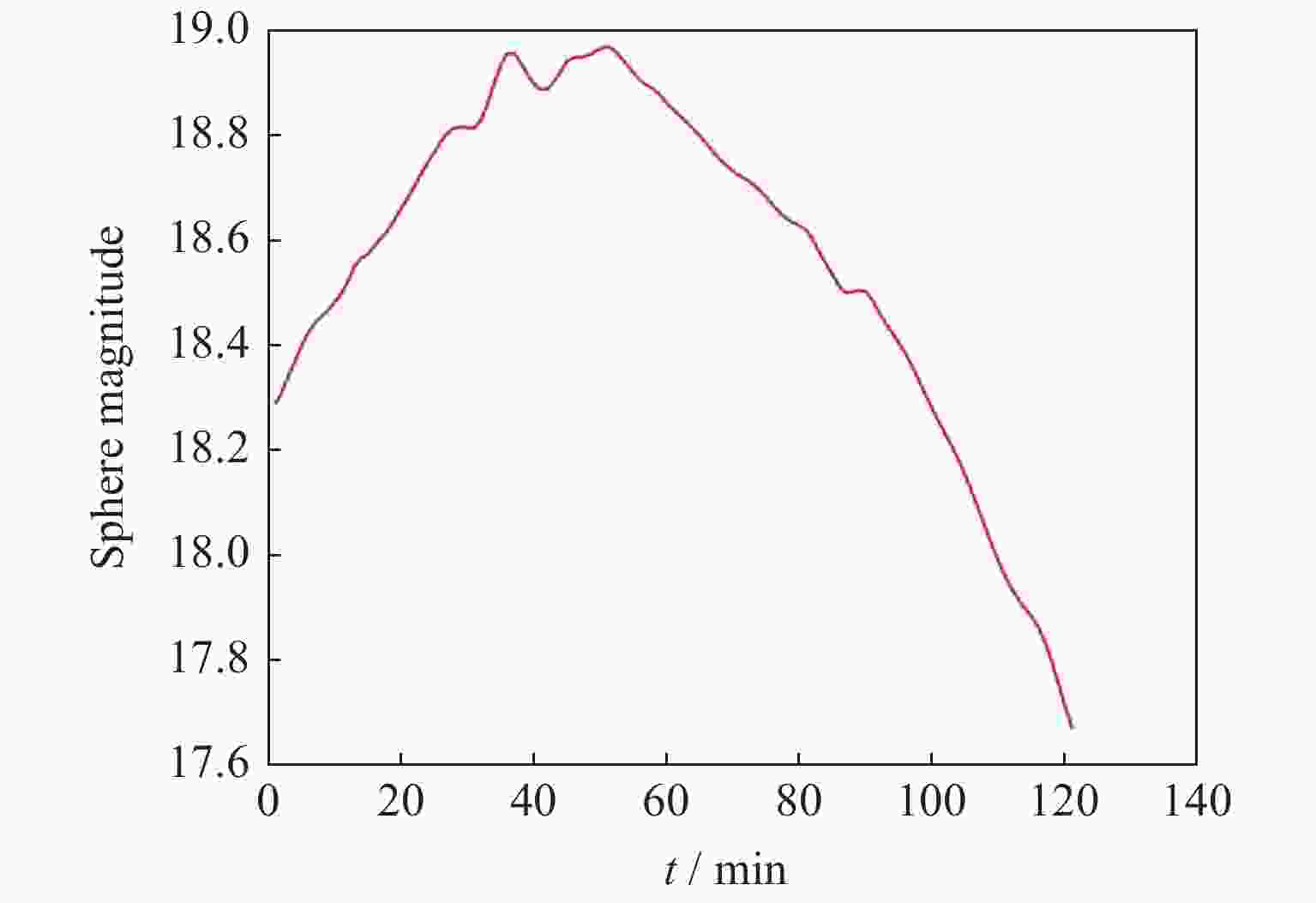

    图  12  球体视星等波形曲线

    Figure  12.  Apparent magnitude curve of the sphere

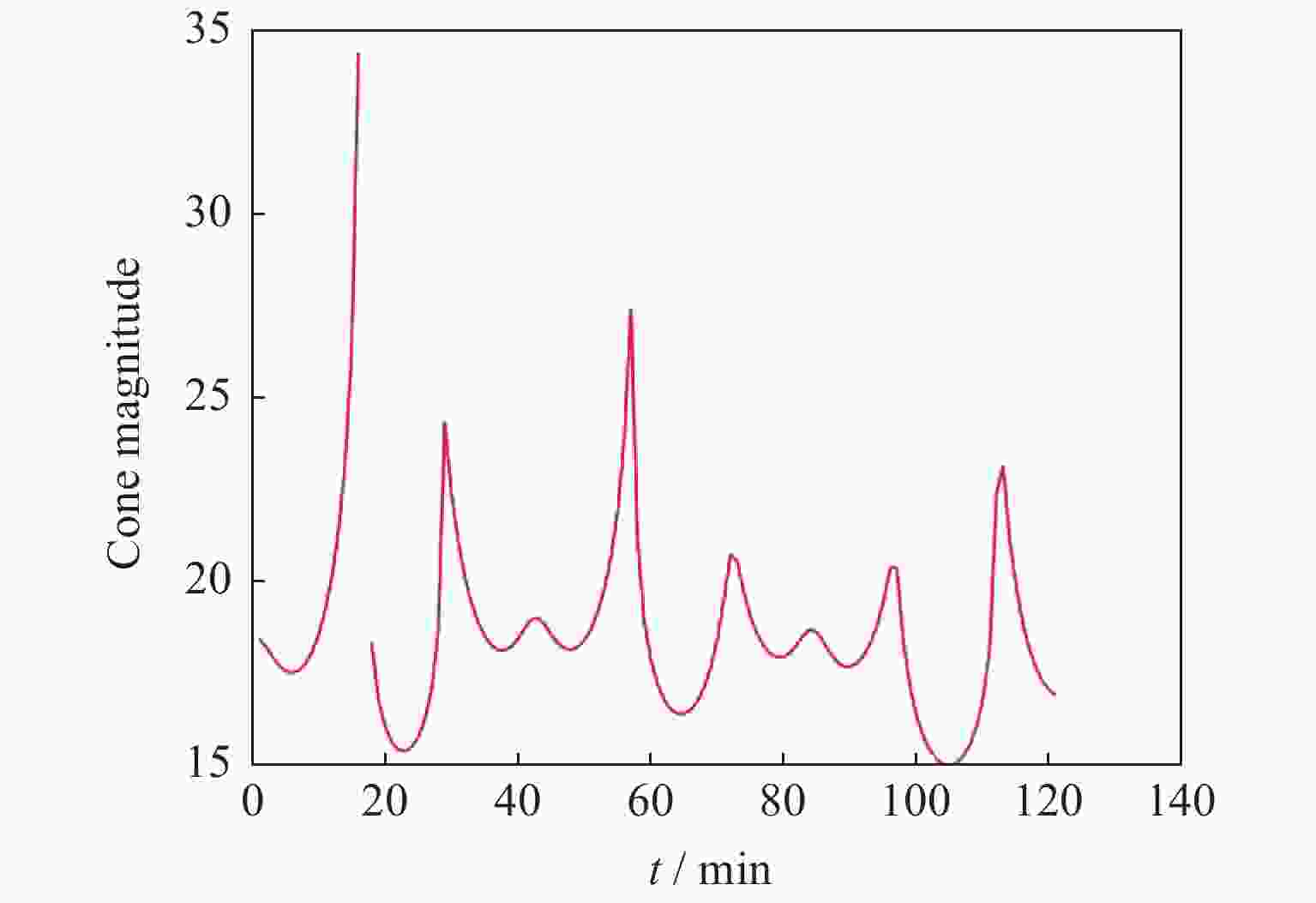

    图  13  圆锥体视星等波形曲线

    Figure  13.  Apparent magnitude curve of the cone

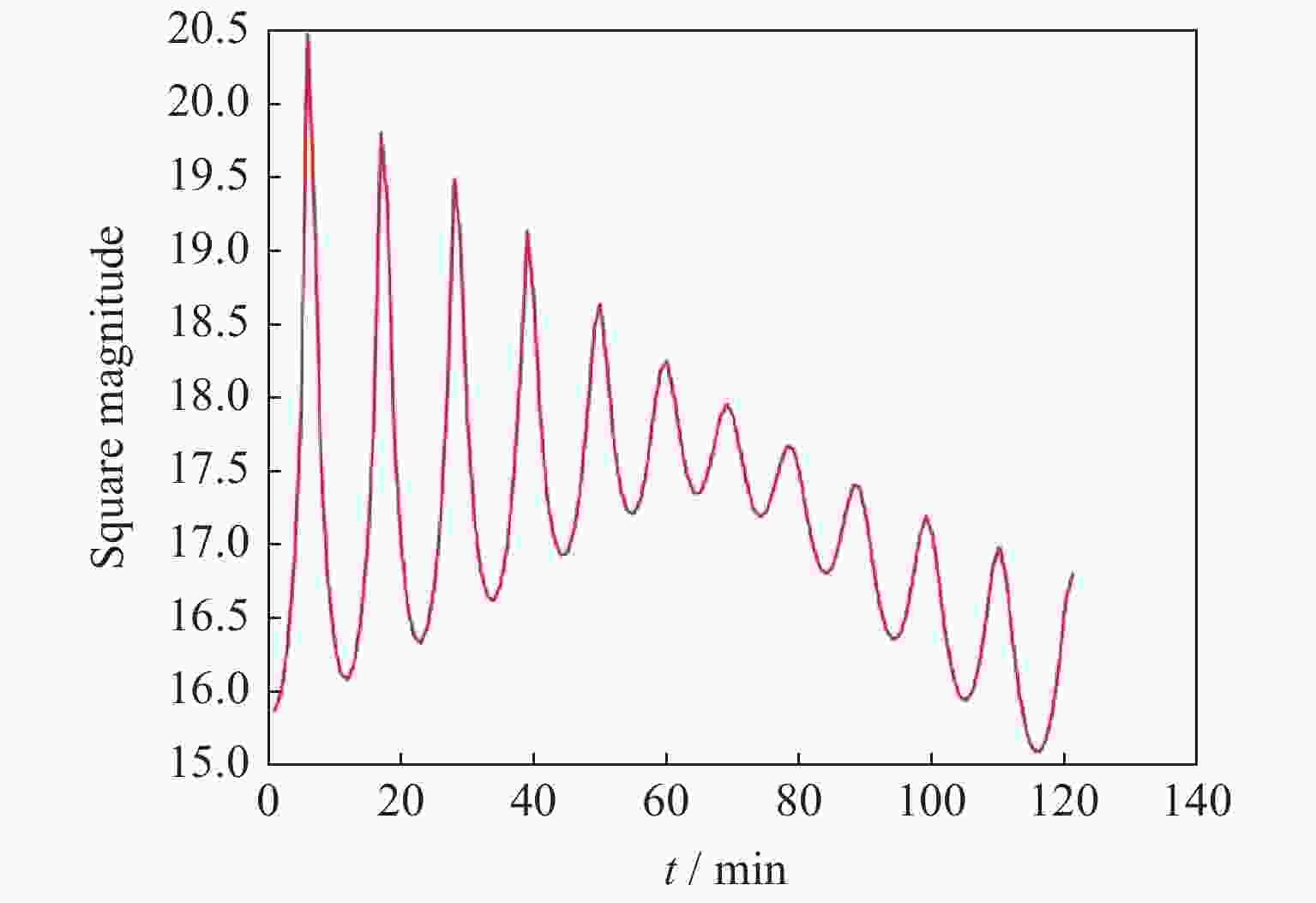

    图  14  正方体视星等波形曲线

    Figure  14.  Apparent magnitude curve of the cube

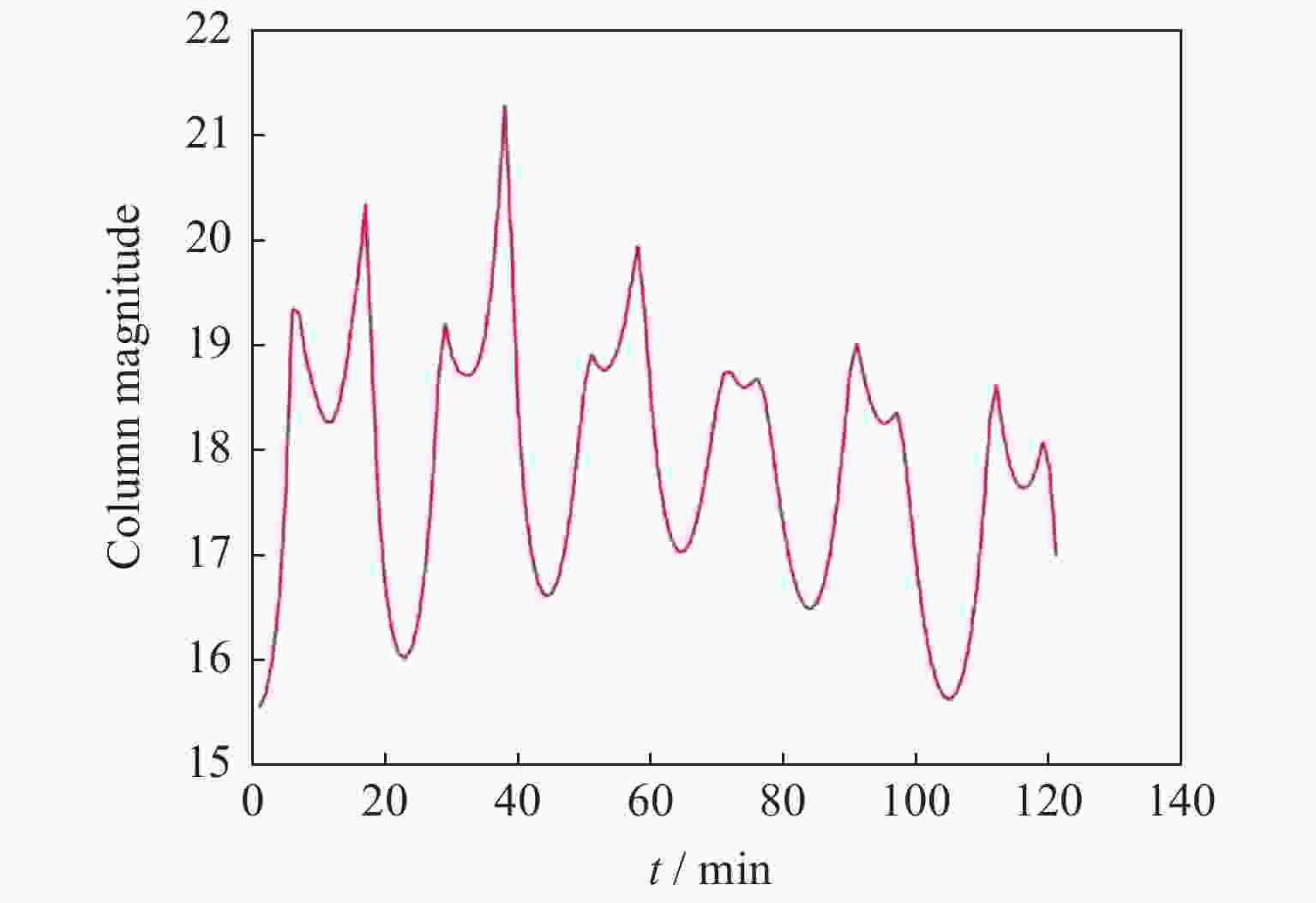

    图  15  圆柱体视星等波形曲线

    Figure  15.  Apparent magnitude curve of the cylinder

  • [1] GENG Wendong, DU Xiaoping, LI Zhi, et al. Introduction to Space Situational Awareness[M]. Beijing: National Defense Industry Press, 2015
    [2] LIU D, WANG X D, LI Y H, et al. Space target detection in optical image sequences for wide-field surveillance[J]. International Journal of Remote Sensing, 2020, 41(20): 7846-7867 doi: 10.1080/01431161.2020.1782508
    [3] 单斌, 梁勇奇, 李恒年. 基于光度观测的空间目标姿态与角速度估计[J]. 光学学报, 2017, 37(5): 0512002 doi: 10.3788/AOS201737.0512002

    SHAN Bin, LIANG Yongqi, LI Hengnian. Attitude and angular speed estimation of spacial objects based on photometric observation[J]. Acta Optica Sinica, 2017, 37(5): 0512002 doi: 10.3788/AOS201737.0512002
    [4] 刘浩, 杜小平, 苟瑞新. 基于Phong模型的地球同步轨道目标视星等仿真研究[J]. 激光与光电子学进展, 2016, 53(4): 041502

    LIU Hao, DU Xiaoping, GOU Ruixin. Apparent magnitude measurement of geosynchronous orbit space object based on Phong model[J]. Laser & Optoelectronics Progress, 2016, 53(4): 041502
    [5] 孙成明, 张伟, 王治乐. 双向反射分布函数在空间目标可见光反射特性建模中的应用[J]. 光学技术, 2008, 34(5): 750-753,757 doi: 10.3321/j.issn:1002-1582.2008.05.032

    SUN Chengming, ZHANG Wei, WANG Zhile. Application of BRDF for modeling on the visible reflection characteristics of spatial targets[J]. Optical Technique, 2008, 34(5): 750-753,757 doi: 10.3321/j.issn:1002-1582.2008.05.032
    [6] 周叶剑, 马岩, 张磊, 等. 空间目标在轨状态雷达成像估计技术综述[J]. 雷达学报, 2021, 10(4): 607-621 doi: 10.12000/JR21086

    ZHOU Yejian, MA Yan, ZHANG Lei, et al. Review of on-orbit state estimation of space targets with radar imagery[J]. Journal of Radars, 2021, 10(4): 607-621 doi: 10.12000/JR21086
    [7] 牟忠凯. 卫星姿态确定的非线性滤波方法研究[D]. 郑州: 解放军信息工程大学, 2010: 8-18

    MOU Zhongkai. Research on Nonlinear Filtering of Satellite Attitude Determination[D]. Zhengzhou: Information Engineering University, 2010: 8-18
    [8] 章仁为. 卫星轨道姿态动力学与控制[M]. 北京: 北京航空航天大学出版社, 1998: 185-207

    ZHANNG Renwei. Satellite Orbital Attitude Dynamics and Control[M]. Beijing: Beihang University Press, 1998: 185-207
    [9] 谈斌, 姚东升, 向春生, 等. 类柱体空间目标的星等计算模型研究[J]. 光电工程, 2008, 35(7): 33-37

    TAN Bin, YAO Dongsheng, XIANG Chunsheng, et al. Star magnitude computing model of space targets like prism[J]. Opto-Electronic Engineering, 2008, 35(7): 33-37
    [10] 胡淼, 徐国蕊, 张慧, 等. 地球同步轨道立方体目标的视星等测算[J]. 光电工程, 2013, 40(6): 6-10

    HU Miao, XU Guorui, ZHANG Hui, et al. Star magnitude measurement of geosynchronous orbit cube target[J]. Opto-Electronic Engineering, 2013, 40(6): 6-10
    [11] ASHIKHMIN M, SHIRLEY P. An anisotropic Phong BRDF model[J]. Journal of Graphics Tools, 2000, 5(2): 25 doi: 10.1080/10867651.2000.10487522
    [12] CAI Xingfu, ZHANG Xiongmei, GAO Jing. Analysis and Recognition of Space Target Characteristics[M]. Xi ’an: Northwestern Polytechnical University Press, 2015: 13-14
    [13] LINARES R, CRASSIDIS J L, JAH M K, et al. Astrometric and photometric data fusion for resident space object orbit, attitude, and shape determination via multiple-model adaptive estimation[C]//Proceedings of AIAA Guidance, Navigation, and Control Conference. Toronto, Canada: AIAA, 2010
