基于多特征输入深度学习的浅海水下地形SAR卫星遥感
doi: 10.11728/cjss2025.02.2024-0158 cstr: 32142.14.cjss.2024-0158
-
崔宜德 男, 2001年12月出生于山东省德州市, 现为中国科学院空天信息创新研究院在读博士研究生, 主要研究方向为基于SAR观测的浅海水下地形研究. E-mail: cuiyide23@mails.ucas.ac.cn -
于暘 女, 1982年12月出生于上海市, 现为中国科学院空天信息创新研究院遥感与数字地球重点实验室助理研究员, 主要研究方向为海洋动力环境遥感反演、海洋中尺度现象遥感检测与反演等. E-mail: yuyang@aircas.ac.cn
作者简介:
通讯作者:
Shallow-water Bathymetry Mapping from Satellite SAR Imagery Using Deep Learning with Multiple Feature Inputs
-

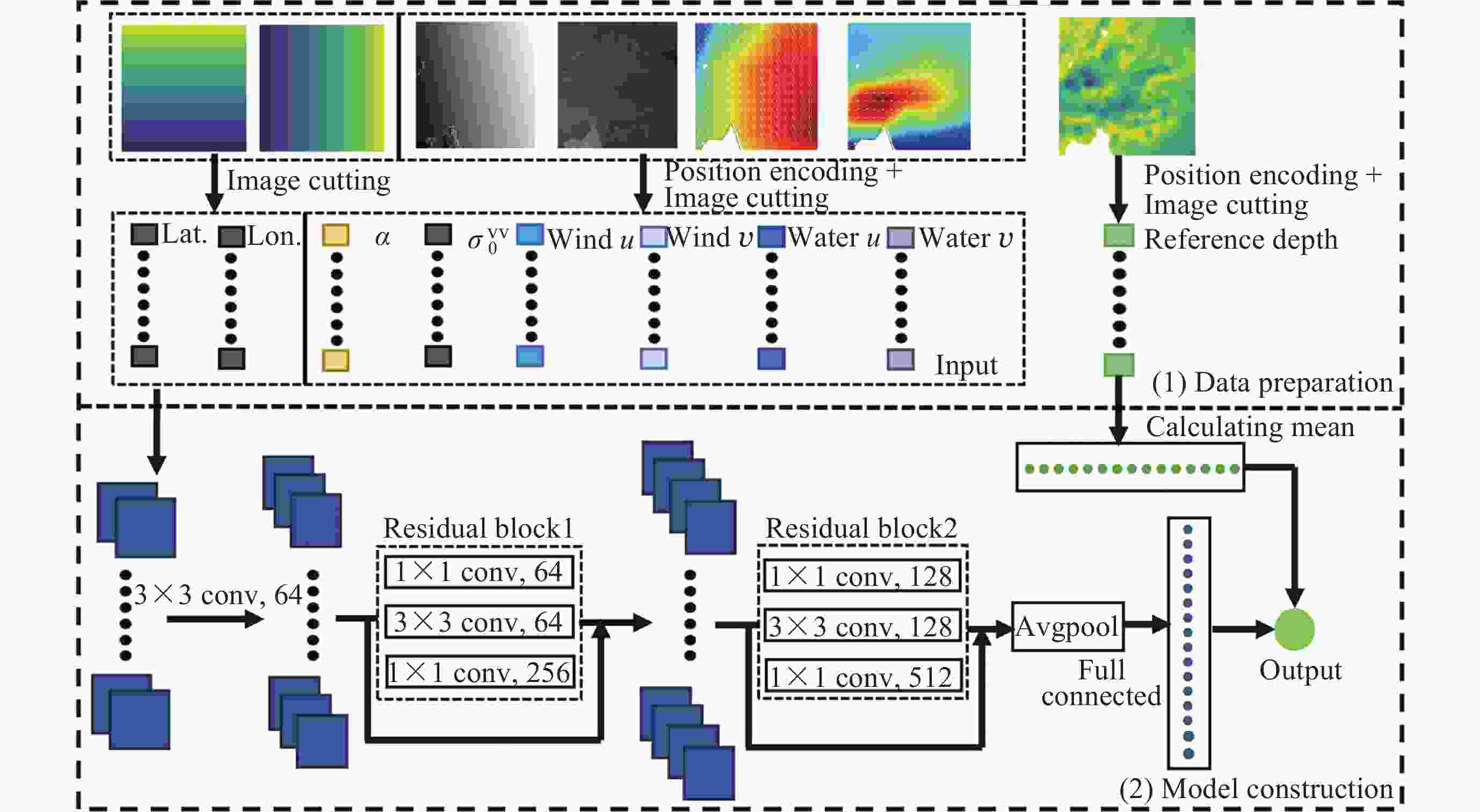

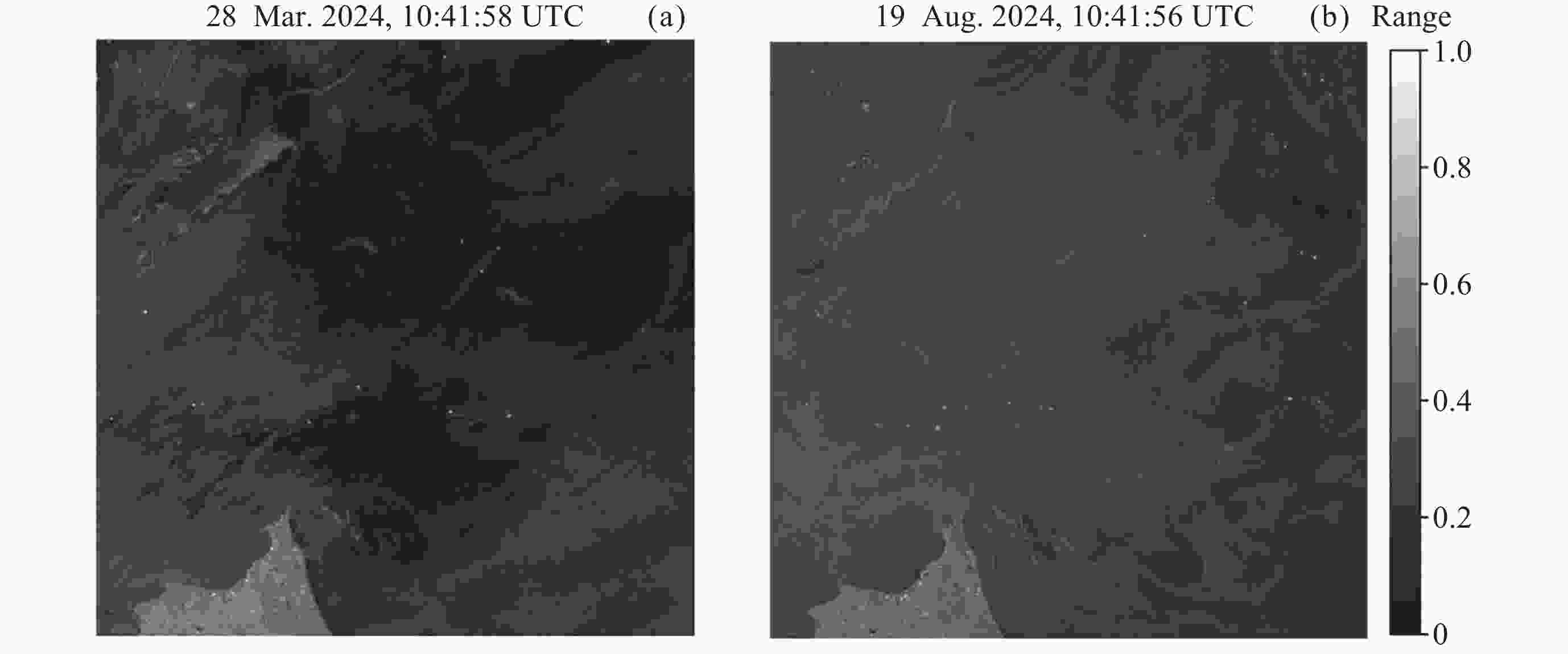

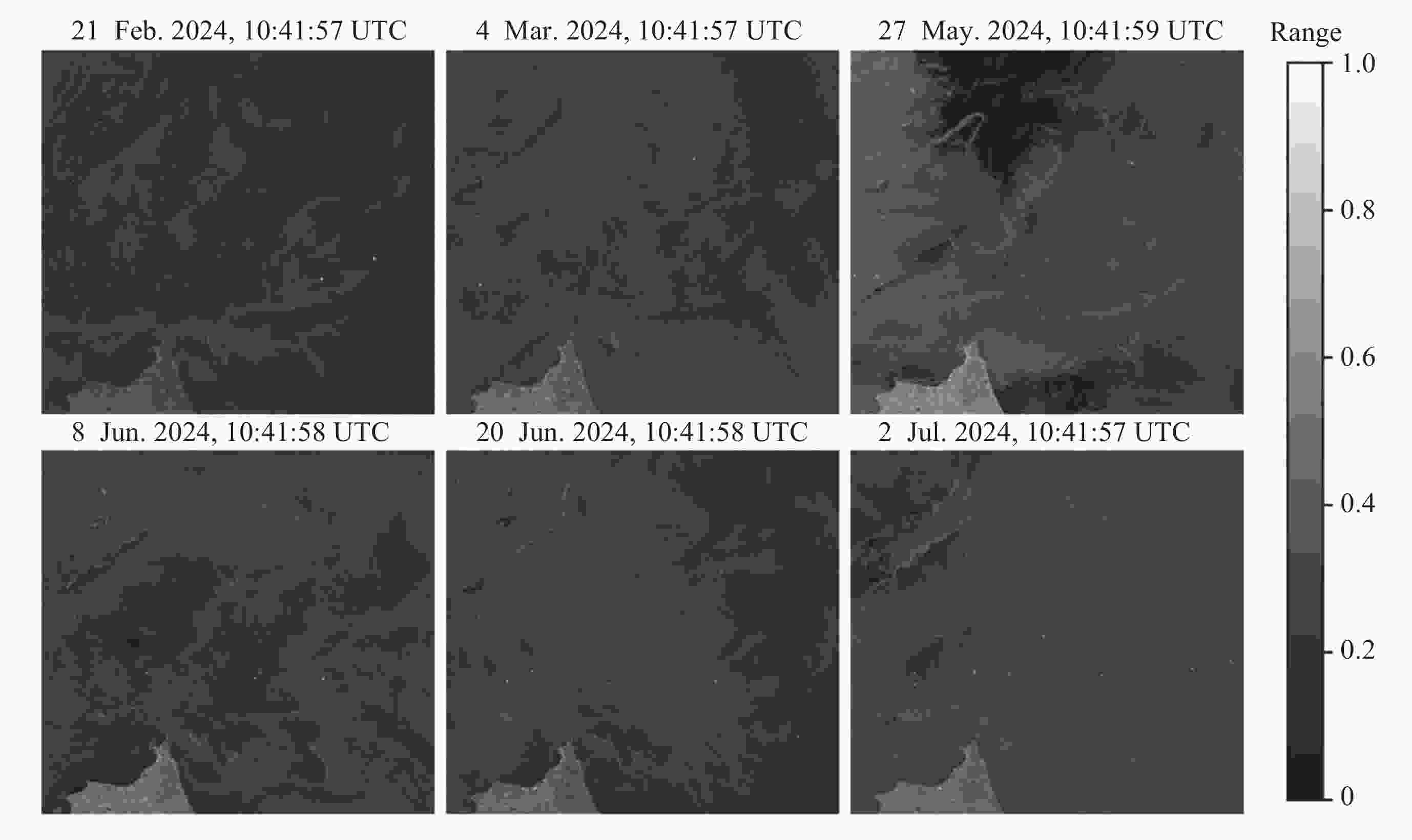

摘要: 面向浅海地形高精度反演需求, 改善光学遥感手段普遍存在的水质依赖性强和测深范围有限的问题, 研究以Sentinel-1卫星合成孔径雷达 (SAR)遥感影像为数据, 提出了一种多特征输入的深度学习浅海地形反演模型. 研究数据包括2024年中国海南岛东北部海域的6景SAR影像, 其中4景用于模型训练, 2景用于模型测试, 参考真值为ETOPO的Ice surface elevation geotiff数据. 反演模型由1个卷积层、2个BottleNeck模块和1个全连接层构成. 实验结果表明, 模型在训练集上的均方根误差和平均绝对百分比误差分别为1.57 m和6.56%, 在测试集上为1.95 m和11.55%, 水深最大探测范围为49.05 m. 此外, 对于2景不同海况条件下的影像, 其水深反演结果接近, 表明本文模型具有较好的鲁棒性, 可为浅海水下地形遥感探测提供新技术支持.Abstract: In response to the demand for high-precision shallow sea topography inversion and to improve the limitations of optical remote sensing, this study proposes a deep-learning model utilizing multiple feature inputs to inverse shallow sea topography from spaceborne Synthetic Aperture Radar (SAR) images. For the data acquisition and dataset construction, six high-resolution Sentinel-1 dual-polarization SAR images covering the waters northeast of Hainan Island of China in 2024 under different phases and sea conditions were collected, among which six images were used for model training, while the rest were used for testing. The reference depth was obtained from ETOPO. In dataset creation, SAR images are segmented into 8×8 sub-images. The model input is designed to consist of 8 feature variables, which involve the VV polarization backscattering coefficient $ {\mathrm{\sigma }}_{0}^{\mathrm{V}\mathrm{V}} $, radar incidence angle $ \theta $, geography information (latitude and longitude), and marine dynamic environmental parameters. The model output is reference depth from ETOPO with spatial consistency. The deep learning network comprises a convolutional layer, two BottleNeck modules from ResNet, and a fully connected layer. The final model performances in retrieving shallow water depth are shown as follows: For the training set, the model achieved a Root Mean Square Error (RMSE) of 1.57 m, and the average absolute percentage error is 6.56%, with the maximum detectable water depth reaching 49.05 m. The model presented with an RMSE of 1.95 m, and the average absolute percentage error is 11.55% for the testing dataset. Additionally, there is little difference between the two scenes with different temporal and sea conditions, indicating that the model is stable and robust. Thus, the proposed model was based on the brightness patterns observed in SAR imagery, which can detect shallow-water depths up to 50 m with high precision.
-
图 1 研究区域位置信息. (a)区域概况, (b) 2024年6月8日拍摄的研究区的一景Sentinel-1 SAR影像
Figure 1. Location of the study area. (a) Optical image of the area, (b) Sentinel-1 SAR image of the study area taken on 8 June 2024
图 3 研究区域2024年6月8日的风场(a)和流场(b)数据 (白色箭头表示风向或流向)

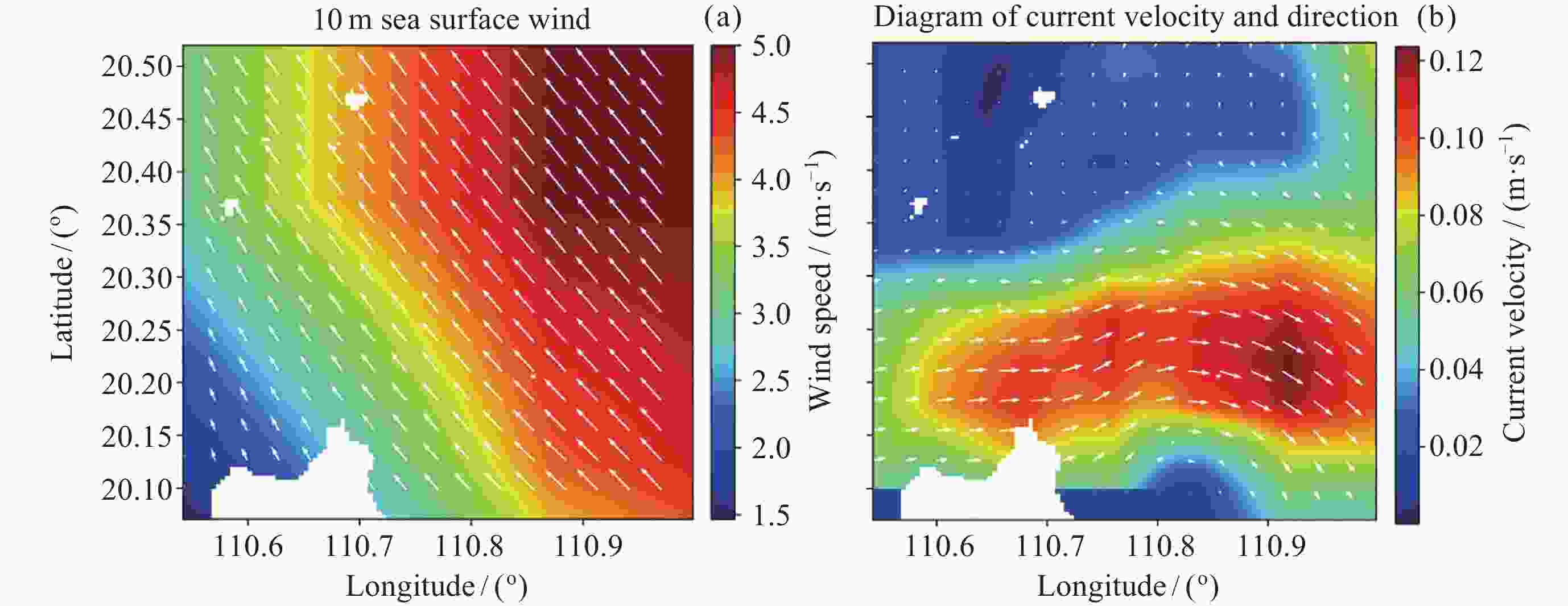

Figure 3. Wind field (a) and current field (b) information of the study area on 8 June 2024 (white arrows representing wind direction or current direction information)
图 4 水深参考真值. (a)试验区ETOPO水深插值结果, (b)对应的水深分布直方图统计结果

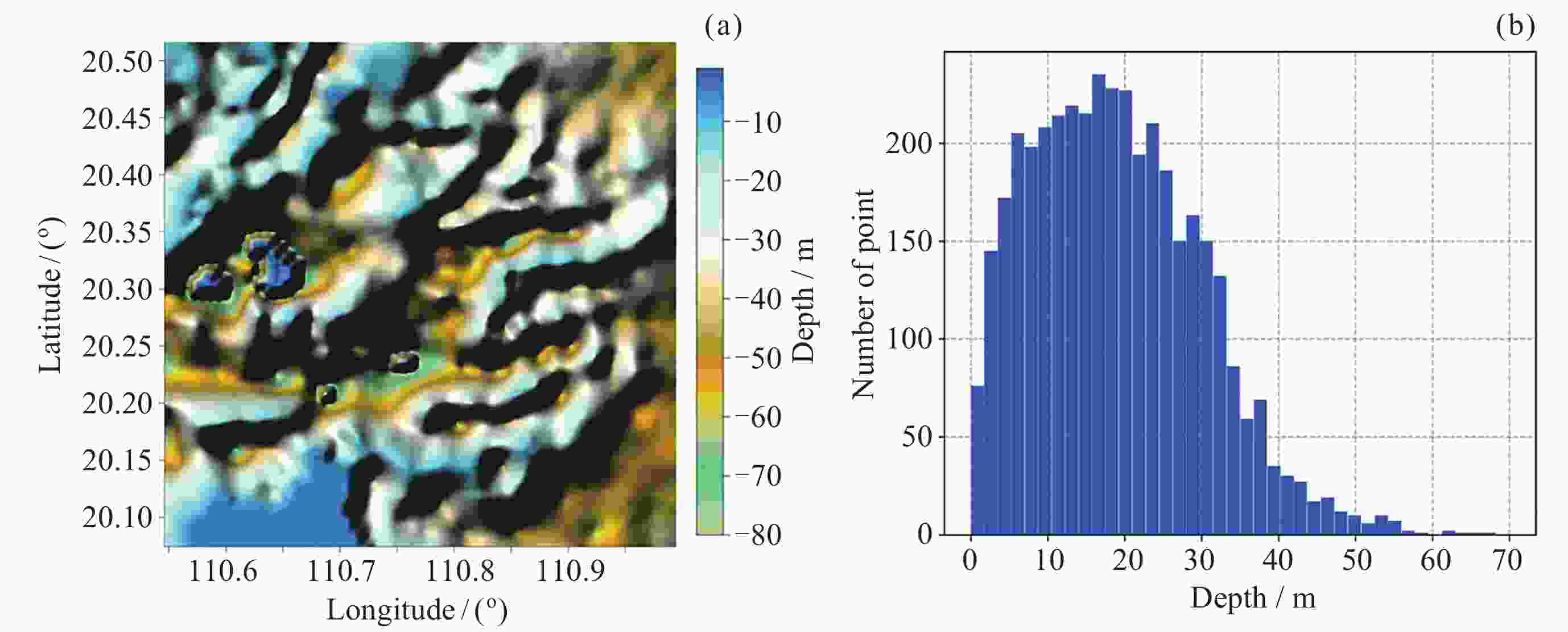

Figure 4. Reference water depth. (a) Interpolation result of ETOPO water depth in the test area, (b) the statistical result of the corresponding water depth distribution histogram
图 6 MR-WDI模型的测试结果. (a) 2024年7月2日SAR的水深探测结果, (b) 2024年6月8日SAR的水深探测结果

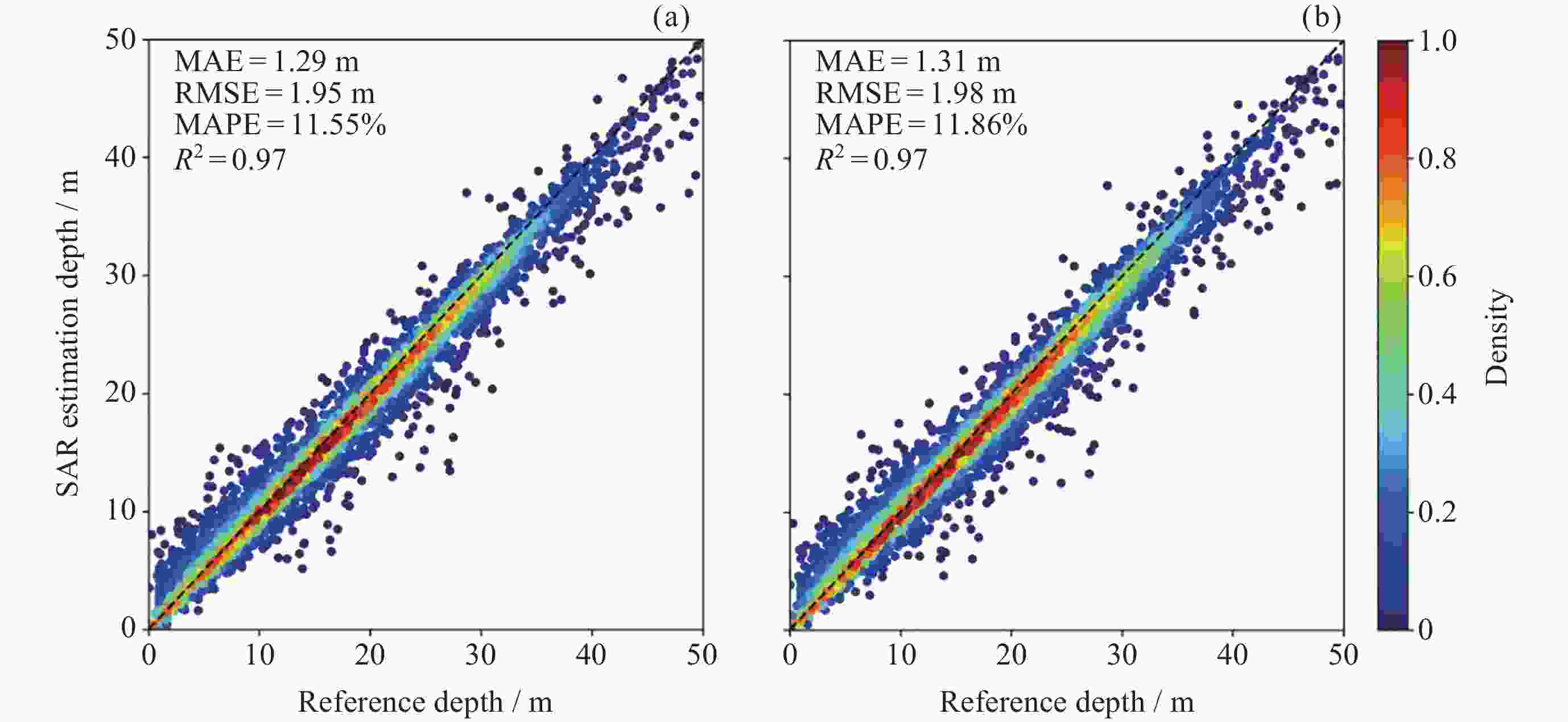

Figure 6. Test results of the MR-WDI model, the color represents the depth point density. Depth detection results of the SAR on 2 July 2024 (a) and on 8 June 2024 (b)
图 7 研究区的三维水下地形分布. (a) 4×4预测结果, (b) 8×8预测结果, (c) 16×16预测结果, (d)参考水深数据
Figure 7. Three-dimensional topography of the study area. (a) 4×4 prediction, (b) 8×8 prediction, (c) 16×16 prediction, (d) reference water depth data
表 1 不同子图大小对2024年6月8日SAR数据的预测结果
Table 1. Predictions of different subimage sizes for SAR data on 8 June 2024
子图大小 MAE/m MAPE/(%) RMSE/m $ {R}^{2} $ 4×4 1.42 12.31 2.26 0.96 8×8 1.31 11.86 1.98 0.97 16×16 1.26 10.97 2.05 0.98
下载: 导出CSV
表 2 不同子图大小对2024年7月2日SAR数据的预测结果
Table 2. Predictions of different subimage sizes for SAR data on 2 July 2024
子图大小 MAE/m MAPE/(%) RMSE/m $ {R}^{2} $ 4×4 1.41 11.81 2.12 0.96 8×8 1.29 11.55 1.95 0.97 16×16 1.25 10.84 1.97 0.97
下载: 导出CSV

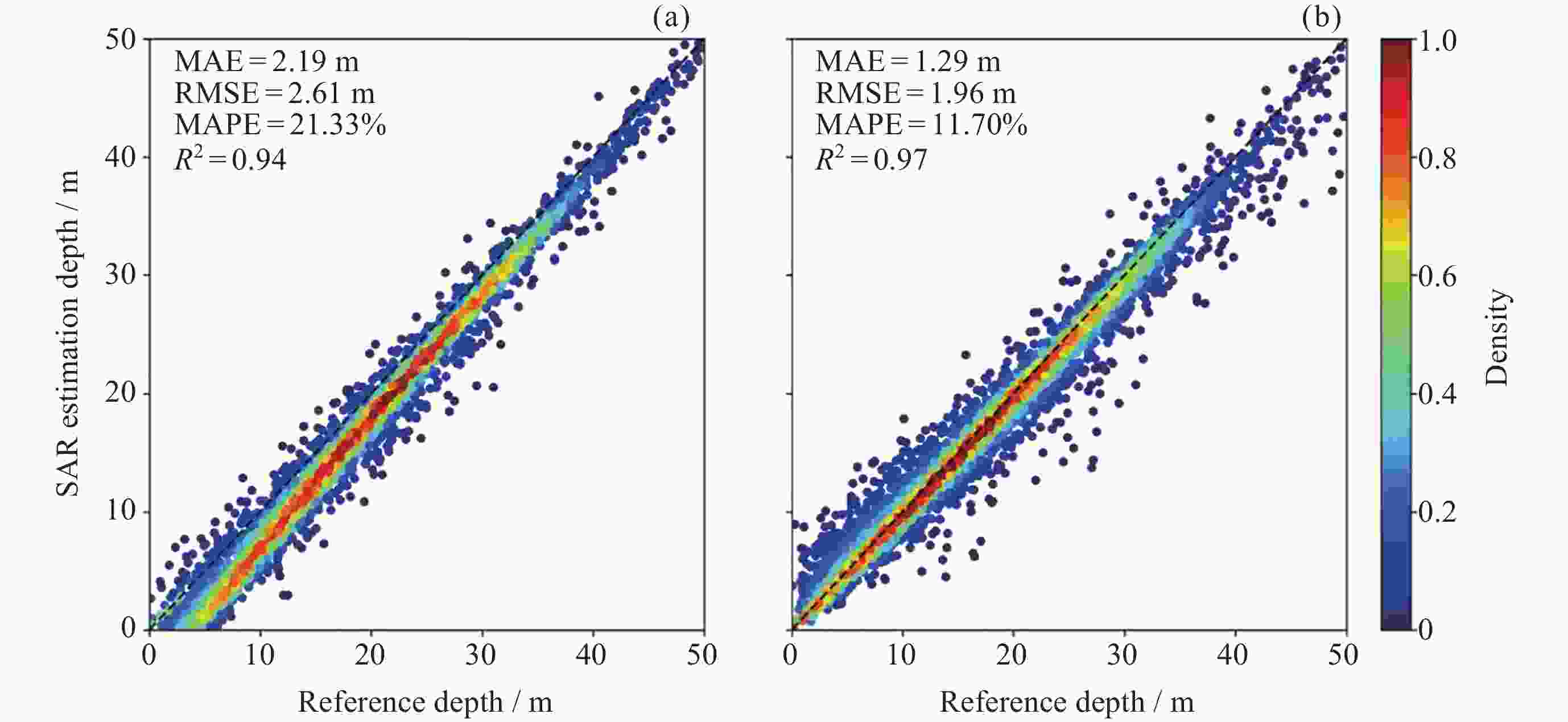

表 3 不同子图大小对2024年8月19日SAR数据的预测结果
Table 3. Predictions of different subimage sizes for SAR data on 19 August 2024
子图大小 MAE/m MAPE/(%) RMSE/m $ {R}^{2} $ 4×4 1.39 12.42 2.32 0.96 8×8 1.29 11.70 1.96 0.97 16×16 1.24 11.02 2.07 0.97
下载: 导出CSV
-
