低纬电离层等离子体块相关等离子体泡演化期间的虚高变化

王铮 史建魁 王国军 王霄 尚社平 程征伟

王铮, 史建魁, 王国军, 王霄, 尚社平, 程征伟. 低纬电离层等离子体块相关等离子体泡演化期间的虚高变化[J]. 空间科学学报, 2022, 42(1): 65-72. doi: 10.11728/cjss2022.01.210316032
引用本文: 王铮, 史建魁, 王国军, 王霄, 尚社平, 程征伟. 低纬电离层等离子体块相关等离子体泡演化期间的虚高变化[J]. 空间科学学报, 2022, 42(1): 65-72. doi: 10.11728/cjss2022.01.210316032
WANG Zheng, SHI Jiankui, WANG Guojun, WANG Xiao, SHANG Sheping, CHENG Zhengwei. Virtual Height Variation during Plasma Bubble Evolution Associated with Plasma Blob in Low Latitude Ionosphere (in Chinese). Chinese Journal of Space Science,  2022, 42(1): 65-72.  DOI: 10.11728/cjss2022.01.210316032
Citation: WANG Zheng, SHI Jiankui, WANG Guojun, WANG Xiao, SHANG Sheping, CHENG Zhengwei. Virtual Height Variation during Plasma Bubble Evolution Associated with Plasma Blob in Low Latitude Ionosphere (in Chinese). Chinese Journal of Space Science,  2022, 42(1): 65-72.  DOI: 10.11728/cjss2022.01.210316032

低纬电离层等离子体块相关等离子体泡演化期间的虚高变化

doi: 10.11728/cjss2022.01.210316032
基金项目: 国家自然科学基金项目 (42074201,41874172,41604137),中国科学院国家空间科学中心“攀登计划”和国家重点实验室专项基金项目(E1262 LA2)共同资助
详细信息
    作者简介:

    王铮:E-mail: zwang@swl.ac.cn

  • 中图分类号: P352

Virtual Height Variation during Plasma Bubble Evolution Associated with Plasma Blob in Low Latitude Ionosphere

  • 摘要:

    针对东亚地区地磁低纬度南北半球Vanimo台站(地理2.7°S,141.3°E;地磁 11.2°S,146.2°W)和海南台站(地理19.5°N,109.1°E;地磁9.1°N,179.1°W)上空的3个电离层等离子体块与等离子体泡相关联的事件,利用地面台站的电离层测高仪连续观测数据,研究等离子体泡演化期间的电离层虚高变化。结果表明:以往提出的等离子体块出现约2 h之前等离子体垂直漂移速度从向上(东向电场)转为向下(西向电场)的观点,本文的3个事例均与之不符,或者距反转时间很远(约6 h),或者由向下转为向上。在等离子体块形成时间点前的1 h内,均有突发的等离子体堆积的运动趋势,或是下降运动速度突然变慢,或是从下降转为向上运动,或是上升运动速度突然加快。这一堆积现象与等离子体块现象相关性更好,也不仅限于漂移速度从向上转变为向下。

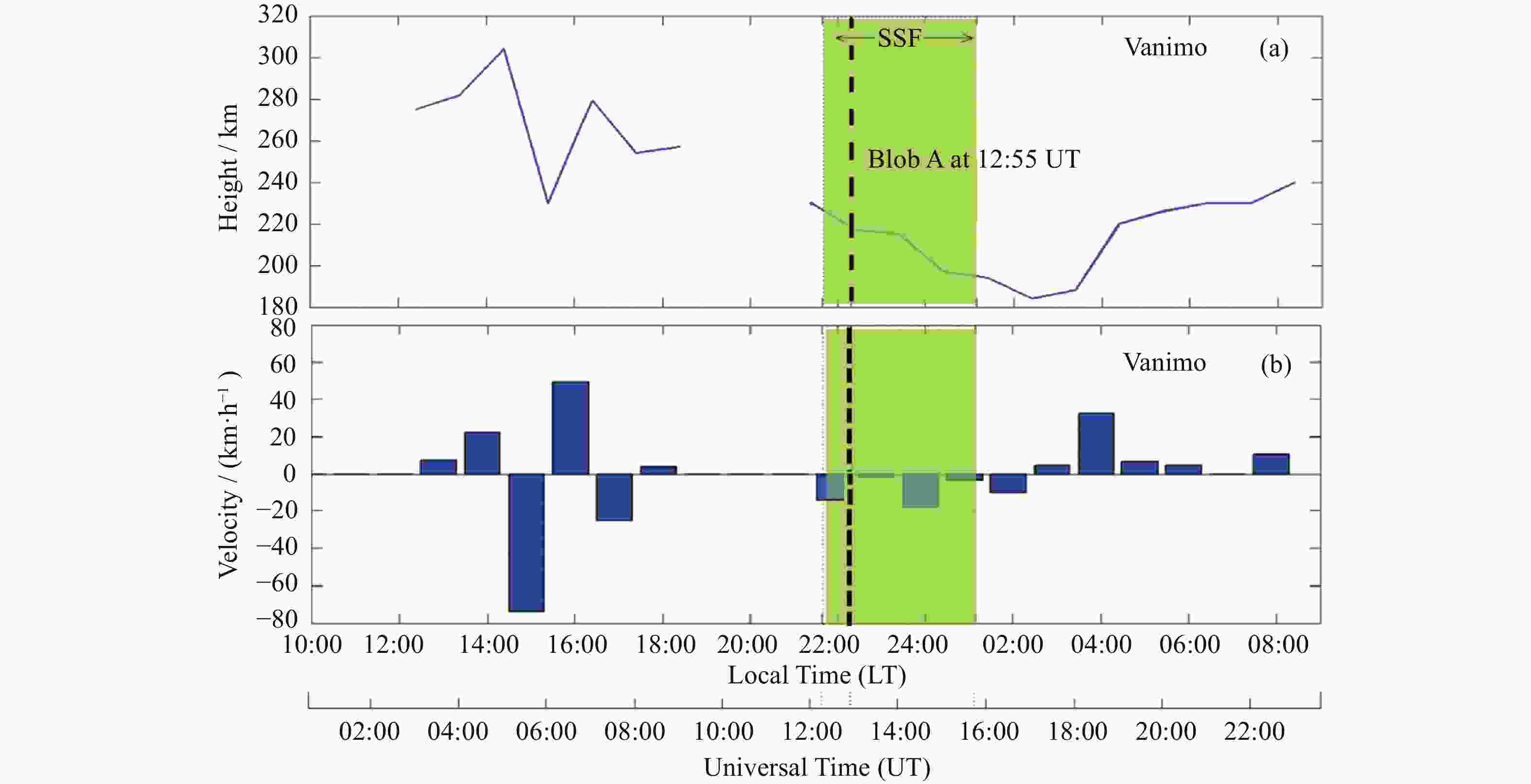

  • 图  1  2003年6月1日Vanimo台站的观测结果。(a) 电离层F层底部虚高,(b) F层底部垂直运动速度

    Figure  1.  Observations of Vanimo on 1 June 2003. (a) Virtual height of ionospheric F bottom, (b) vertical drift velocity at F bottom

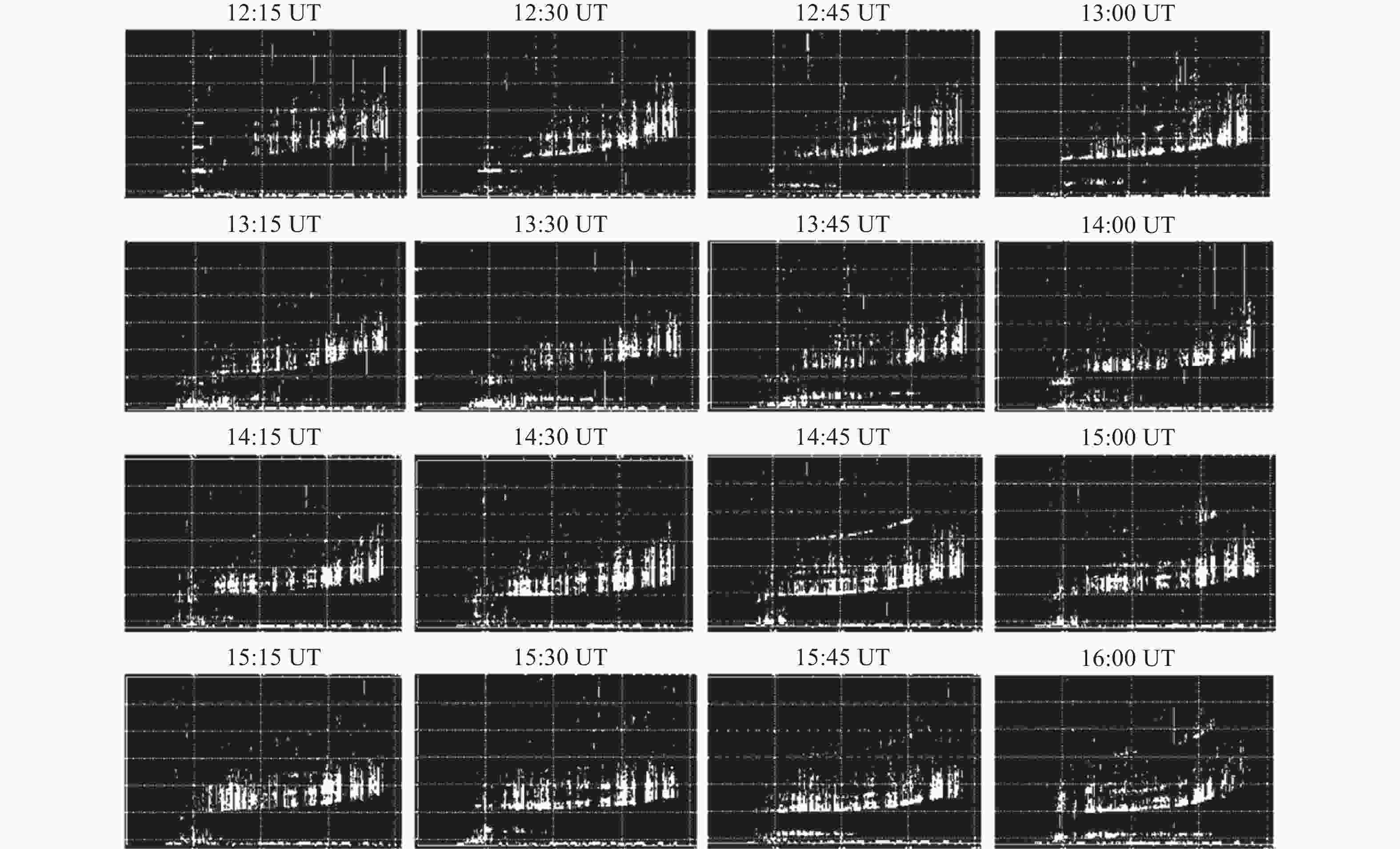

    图  2  2003年6月1日Vanimo台站测高仪频高图及其中的扩展F现象(对应于图1绿色方块所指代时间范围)

    Figure  2.  Ionograms with Spread F obtained by ionosonde at Vanimo on 1 June 2003 (Corresponding to the time range marked by green box in Fig. 1)

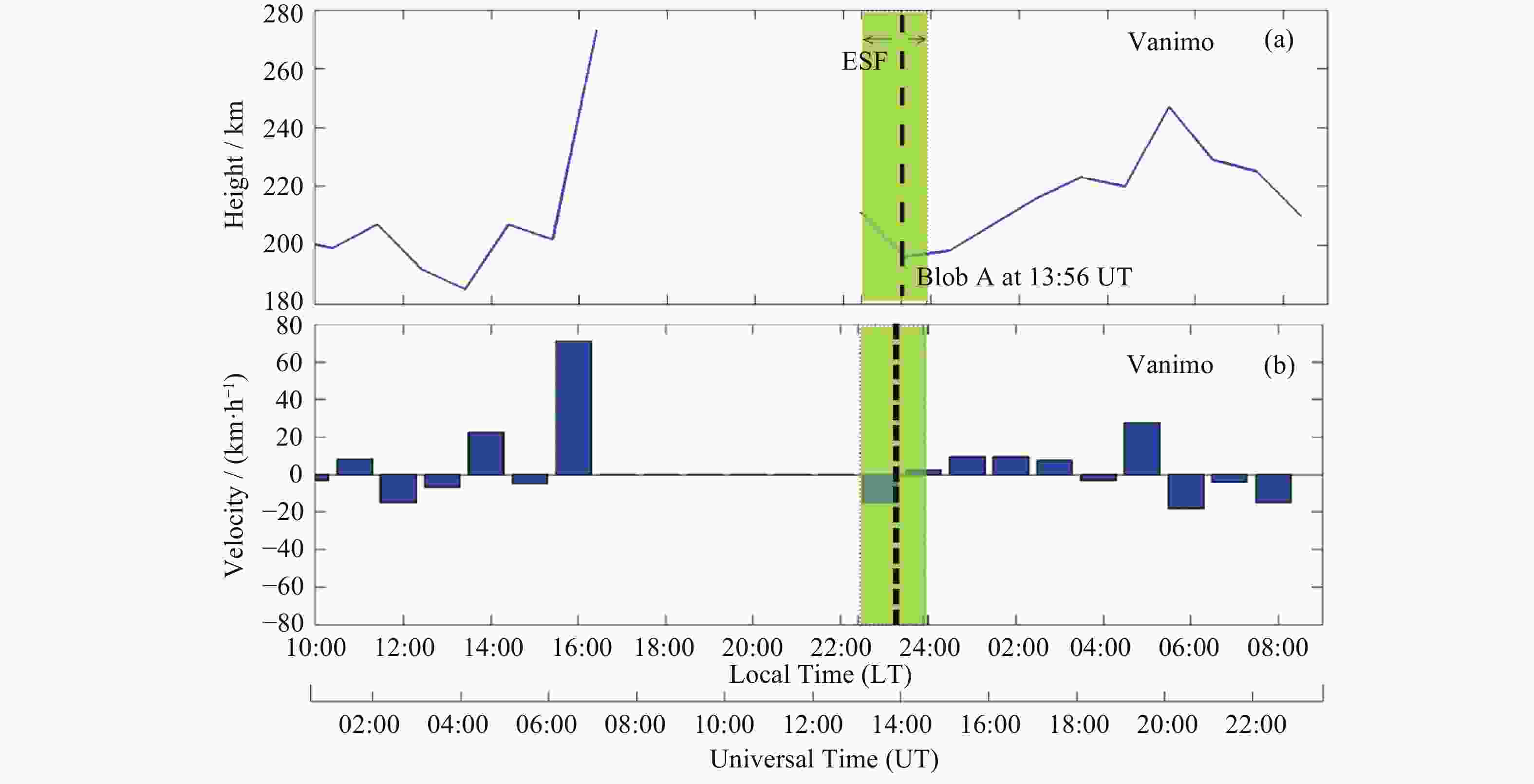

    图  3  2003年10月6日Vanimo台站的观测结果。(a) 电离层F层底部虚高,(b) F层底部垂直运动速度

    Figure  3.  Observations of Vanimo on 6 October 2003. (a) Virtual height of ionospheric F bottom, (b) vertical drift velocity at F bottom

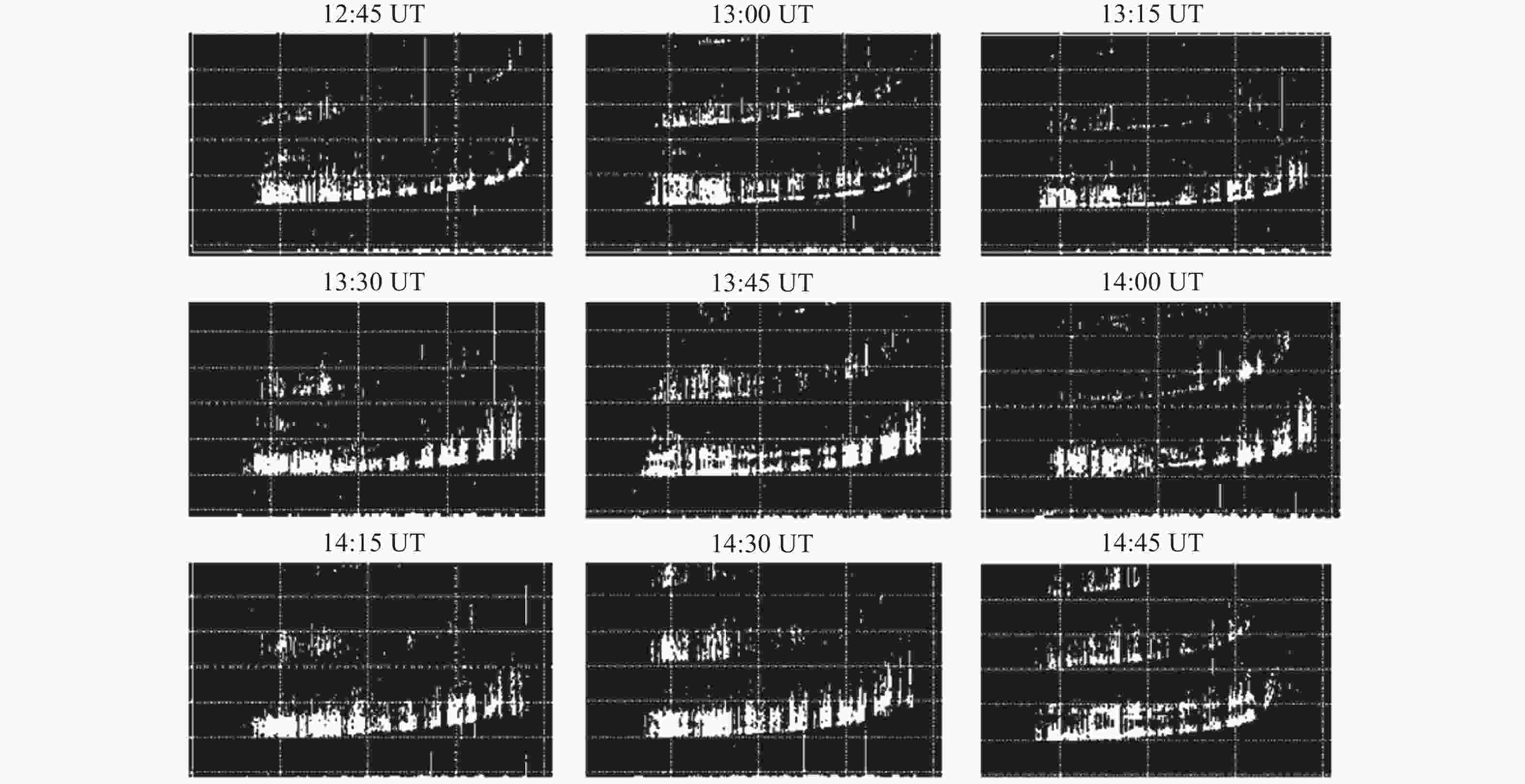

    图  4  2003年10月6日Vanimo台站测高仪频高图及其中的扩展F现象(对应于图3绿色方块所指代时间范围)

    Figure  4.  Ionograms with Spread F obtained by ionosonde at Vanimo on 6 October 2003 (Corresponding to the time range marked by green box in Fig. 3)

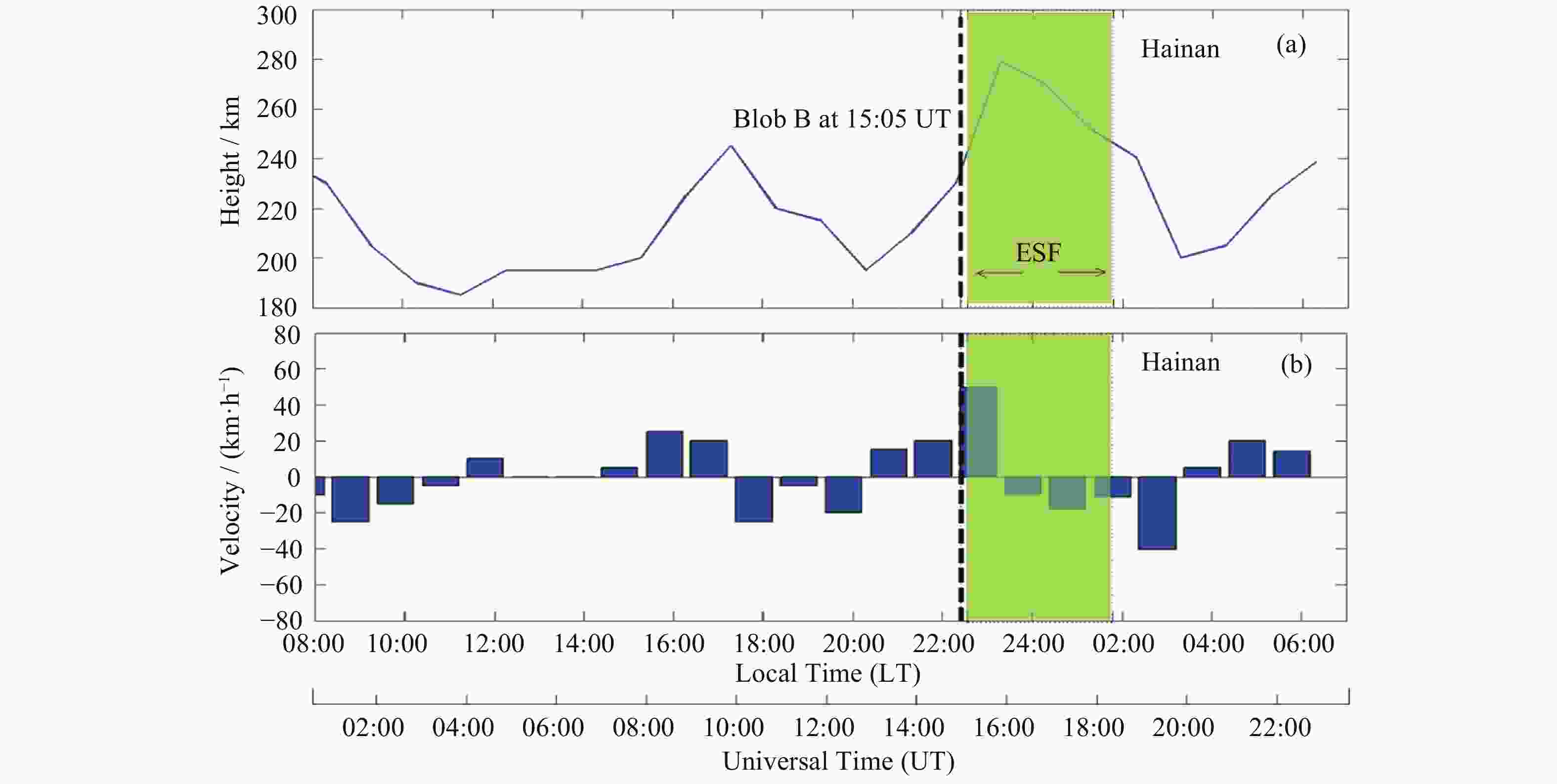

    图  5  2004年3月8日海南台站观测结果。(a) 电离层F层底部虚高,(b) F层底部垂直运动速度

    Figure  5.  Observations of Hainan on 8 March 2004. (a) Virtual height of ionospheric F bottom, (b) vertical drift velocity at F bottom varied

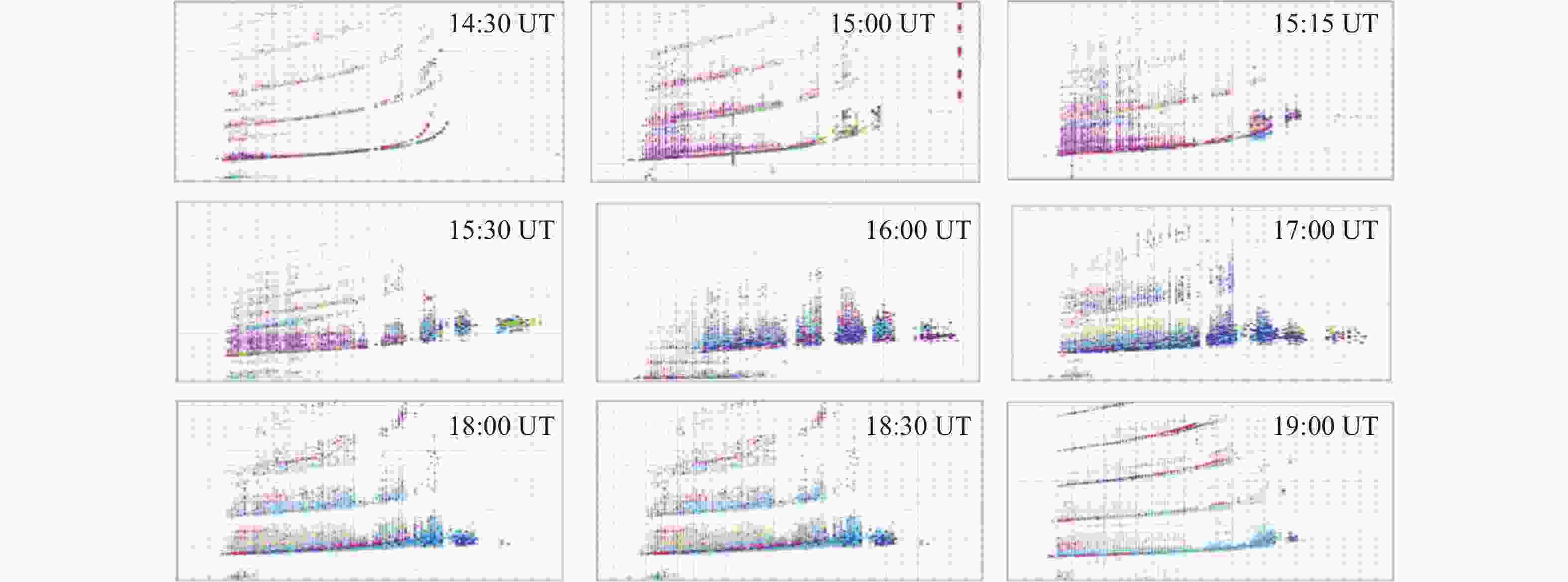

    图  6  2004年3月8日海南台站测高仪频高图及其中的扩展F现象(对应图5绿色方块所指代时间范围)

    Figure  6.  Ionograms with Spread F obtained by ionosonde at Vanimo on 8 March 2004 (Corresponding to the time range marked by green box in Fig. 5)

  • [1] OYA H, TAKAHASHI T, WATANABE S. Observation of low latitude ionosphere by the impedance probe on board the Hinotori satellite[J]. Journal of Geomagnetism and Geoelectricity, 1986, 38: 111 doi: 10.5636/jgg.38.111
    [2] LE G, HUANG C S, PFAFF R F, et al. Plasma density enhancements associated with equatorial spread F: ROCSAT-1 and DMSP observations[J]. Journal of Geophysical Research, 2003, 108: 1318 doi: 10.1029/2002JA009592
    [3] KIL H, CHOI H S, HEELIS R A, et al. Onset conditions of bubbles and blobs: a case study on 2 March 2009[J]. Geophysical Research Letters, 2011, 38(6). DOI: 10.1029/2011GL046885
    [4] YOKOYAMA T, SU S Y, FUKAO S. Plasma blobs and irregularities concurrently observed by ROCSAT-1 and equatorial atmosphere radar[J]. Journal of Geophysical Research, 2007, 112(A05311). DOI: 10.1029/2006JA012044
    [5] WANG Z, SHI J K, TORKAR K, et al. Correlation between ionospheric strong range spread F and scintillations observed in Vanimo station[J]. Journal of Geophysical Research:Space Physics, 2014, 119: 8578-8585
    [6] BASU S, MCCLURE J P, HANSON W B, et al. Coordinated study of equatorial scintillation and insitu and radar observations of nighttime f-region irregularities[J]. Journal of Geophysical Research, 1980, 85(NA10): 5119-5130 doi: 10.1029/JA085iA10p05119
    [7] PARK J, STOLLE C, LUHR H, et al. Magnetic signatures and conjugate features of low-latitude plasma blobs as observed by the CHAMP satellite[J]. Journal of Geophysical Research, 2008, 113(A09313). DOI: 10.1029/2008JA013211
    [8] KRALL J, HUBA J D, JOYCE G, et al. Density enhancements associated with equatorial spread F[J]. Annales Geophysicae, 2010, 28: 327-337 doi: 10.5194/angeo-28-327-2010
    [9] HUANG C S, LE G, BEAUJARDIERE O De La, et al. Relationship between plasma bubbles and density enhancements: observations and interpretation[J]. Journal of Geophysical Research:Space Physics, 2014, 119: 1325-1336 doi: 10.1002/2013JA019579
    [10] PIMENTA A A, SAHAI Y, BITTENCOURT J A, et al. Plasma blobs observed by ground-based optical and radio techniques in the Brazilian tropical sector[J]. Geophysical Research Letters, 2004, 31(L12810). DOI: 10.1029/2004GL020233
    [11] PIMENTA A A, SAHAI Y, BITTENCOURT J A, et al. Ionospheric plasma blobs observed by OI 630 nm all-sky imaging in the Brazilian tropical sector during the major geomagnetic storm of April 6-7, 2000[J]. Geophysical Research Letters, 2007, 34(L02820). DOI: 10.1029/2006GL028529
    [12] TARDELLI C F, PIMENTA A A, TARDELLI A, et al. Plasma blobs associated with plasma bubbles observed in the Brazilian sector[J]. Advanc Space Research, 2017, 60: 1716-1724 doi: 10.1016/j.asr.2017.06.018
    [13] WANG Z, LIU Huixin, SHI Jiankui, et al. Plasma blobs concurrently observed with bubbles in the Asian-Oceanian sector during solar maximum[J]. Journal of Geophysical Research: Space Physics, 2019, 124(8): 7062-7071 doi: 10.1029/2018JA026373
    [14] KLENZING J H, ROWLAND D E, PFAFF R F, et al. Observations of low-latitude plasma density enhancements and their associated plasma drifts [J]. Journal of Geophysical Research, 2011, 16(A0932410). DOI: 1029/2011JA016711
