Sensitivity Analysis on the Retrieval of Significant Wave Height Using Fengyun-3E GNSS-R
-
摘要: 星载全球导航卫星反射遥感(GNSS-R)是一种利用导航卫星L波段信号前向准镜面反射的新型海洋遥感技术. 通过对比GNSS-R技术与其他微波遥感技术的异同, 在测量方法上提出了两种GNSS-R反演有效波高的技术路线. 一种为基于GNSS-R归一化时延波形前沿斜率的直接测量方法, 另一种为基于GNSS-R海面粗糙度的间接测量方法. 通过理论分析, 结合风云三号E星实测数据, 分析了两种方法的可行性和敏感性. 结果表明, 受限于当前体制下的GNSS信号带宽, GNSS-R测距精度不足, 其波形前沿斜率对有效波高几乎无敏感性, 无法用于反演; GNSS-R测量的海面粗糙度可以用于反演有效波高, 精度为0.5～0.55 m, 虽然也存在一定的局限性, 但可作为一种获取有效波高数据的良好补充手段. 研究结果可为后续GNSS-R卫星任务的设计提供指导.
-
关键词:
- 全球导航卫星系统反射遥感 /
- 有效波高 /
- 敏感性分析 /
- 海面粗糙度
Abstract: The Global Navigation Satellite System Reflectometry (GNSS-R) is a new ocean remote sensing technique using L-band forward quasi-specular scattering navigation signals. After comparing the similarities and differences between GNSS-R and other microwave remote sensing techniques, two methods of retrieving Significant Wave Height (SWH) by GNSS-R are proposed: one is a direct method using the leading edge slope of the normalized delay waveform; the other is indirect based on the sea surface roughness measurement. The feasibility and sensitivity of the two methods are analyzed through theoretical model and actual measurements from Fengyun-3E data. The results show that due to the low ranging accuracy from GNSS signals bandwidth, the leading edge slope is almost insensitive to SWH, which cannot be used for retrieval; the sea surface roughness from GNSS-R can be used to retrieve SWH with an accuracy of about 0.5～0.55 m. Although it still has some limitations, it can be used as a good supplementary means to obtain SWH data. The results of this paper can also provide guidance for the design of future GNSS-R satellite missions.-
Key words:
- GNSS-R /
- Significant wave height /
- Sensitivity analysis /
- Ocean surface roughness
-
图 1 星载GNSS-R DDM二维波形(a)与从DDM中提取的归一化一维波形(b)
Figure 1. Spaceborne GNSS-R DDM two-dimensional waveform (a) and the one dimensional waveform extracted from the DDM (b)

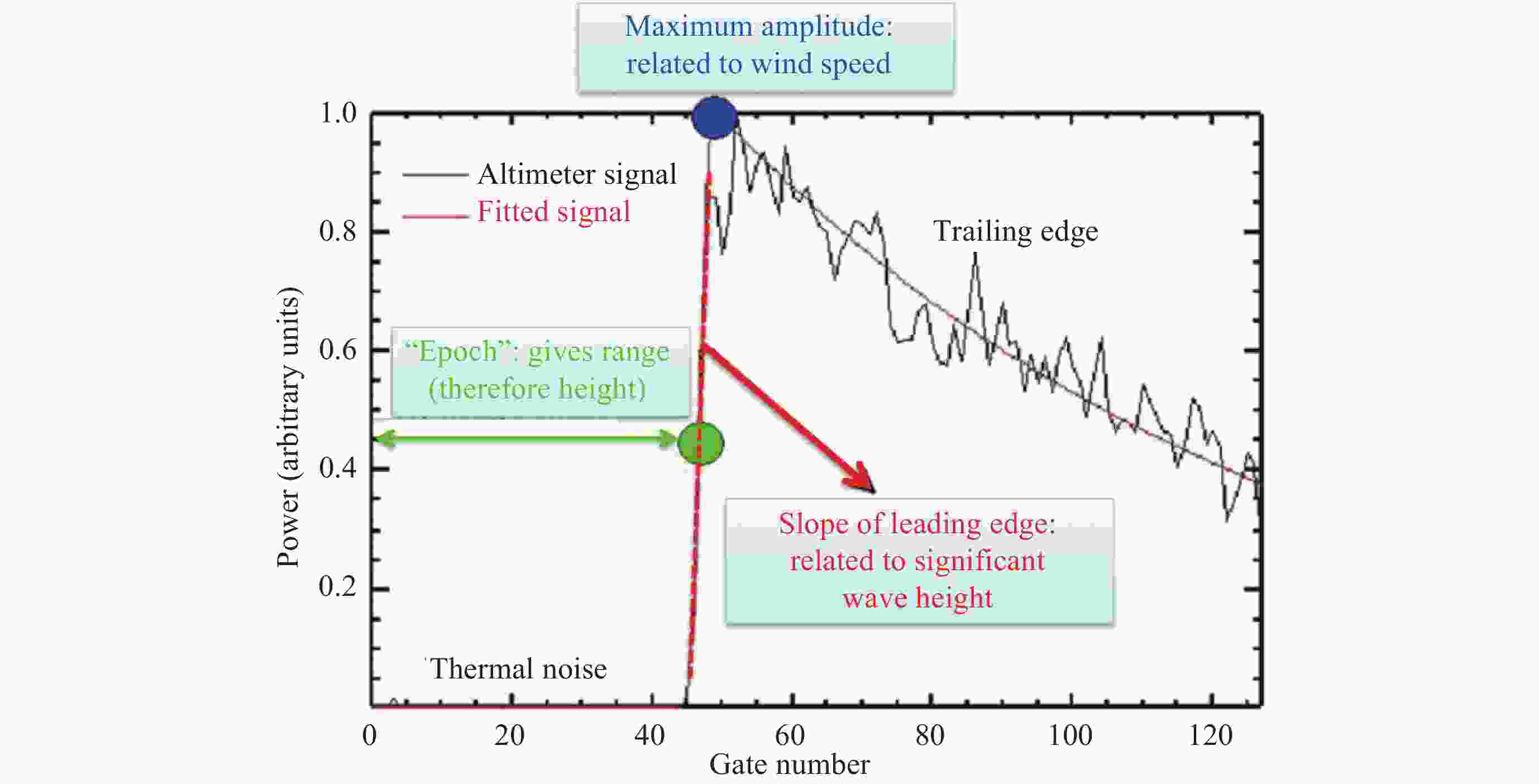

图 2 雷达高度计波形及反演海面高度、海面风速、有效波高的观测量
Figure 2. Radar altimeter waveform and observations of sea surface height, sea surface wind speed and significant wave height

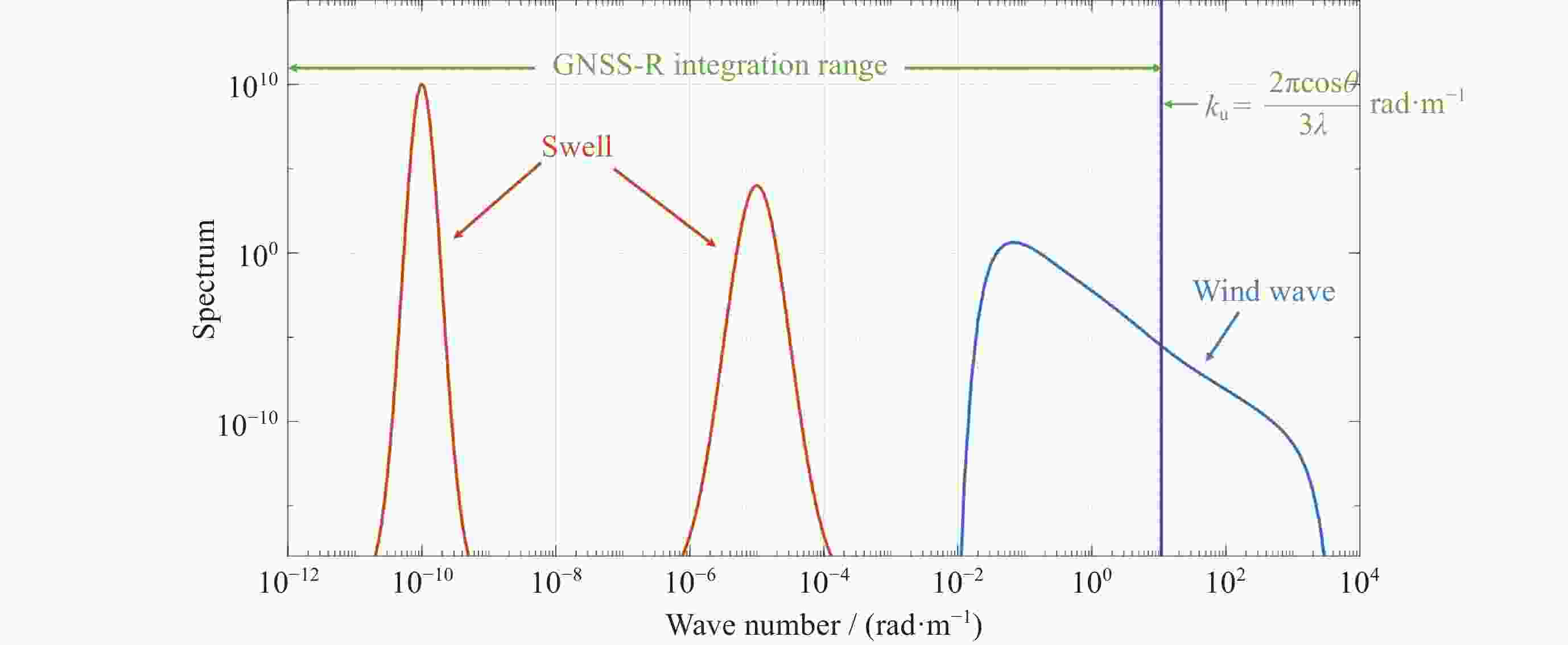

图 3 GNSS-R MSS的计算以及与涌浪、风浪海浪谱的关系
Figure 3. Calculation of GNSS-R MSS and its relationship with the spectrums of swell and wind

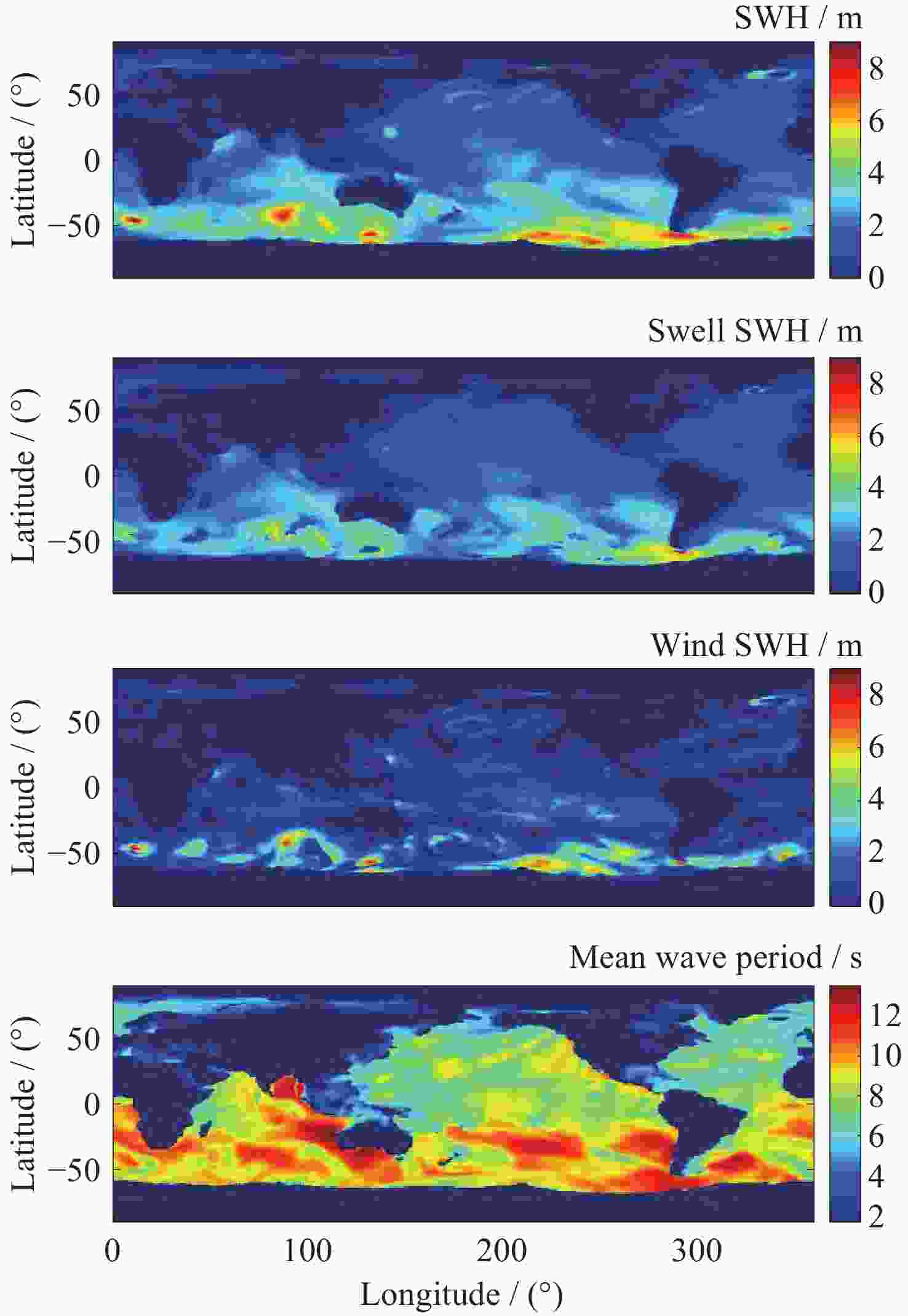

图 4 2022年7月28日00:00 UT时ECWMF ERA5的整体有效波高、涌浪有效波高、风浪有效波高和平均海浪周期
Figure 4. Total SWH, swell SWH, wind SWH and mean wave period from ECMWF ERA5 at 00:00 UT on 28 July 2022

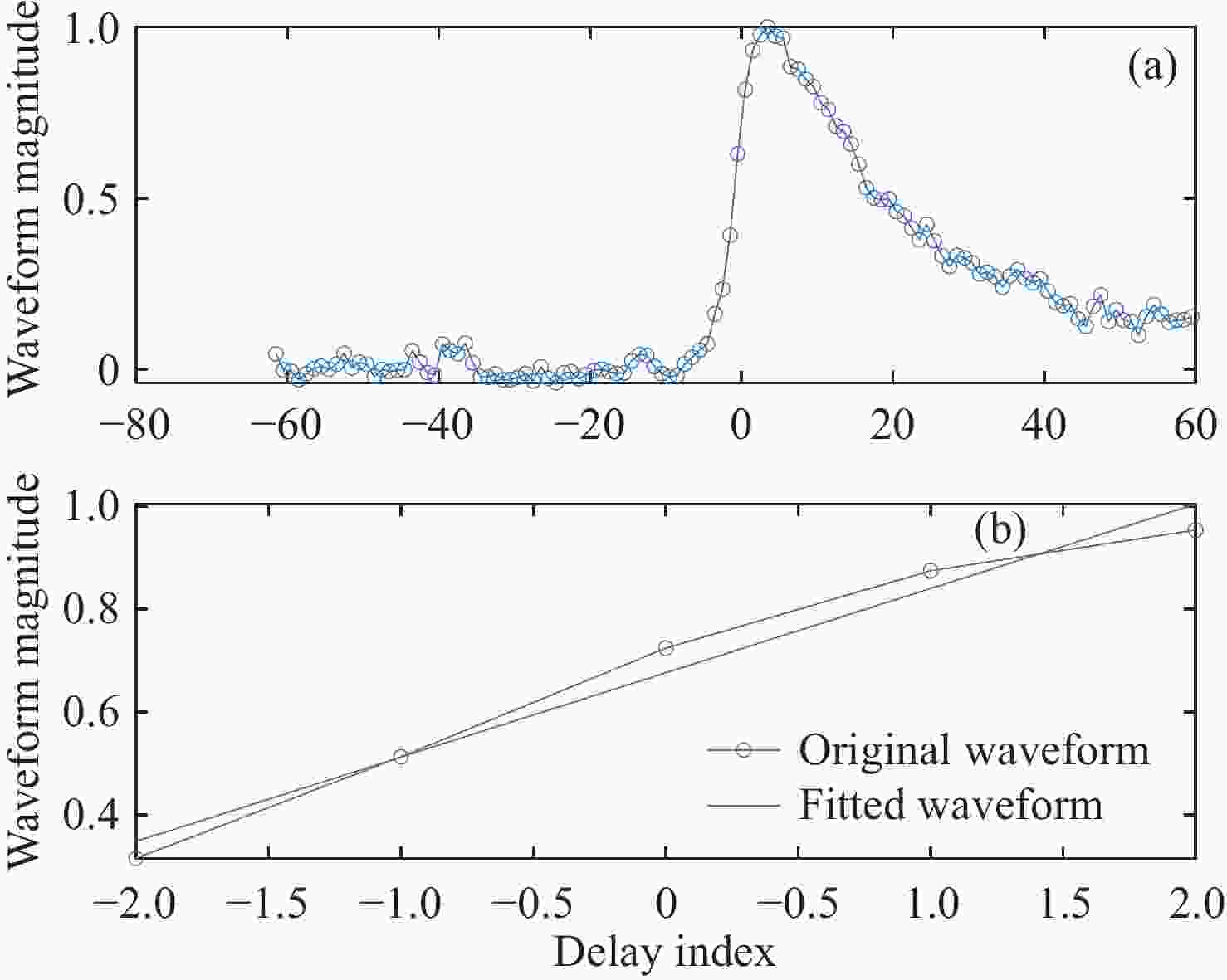

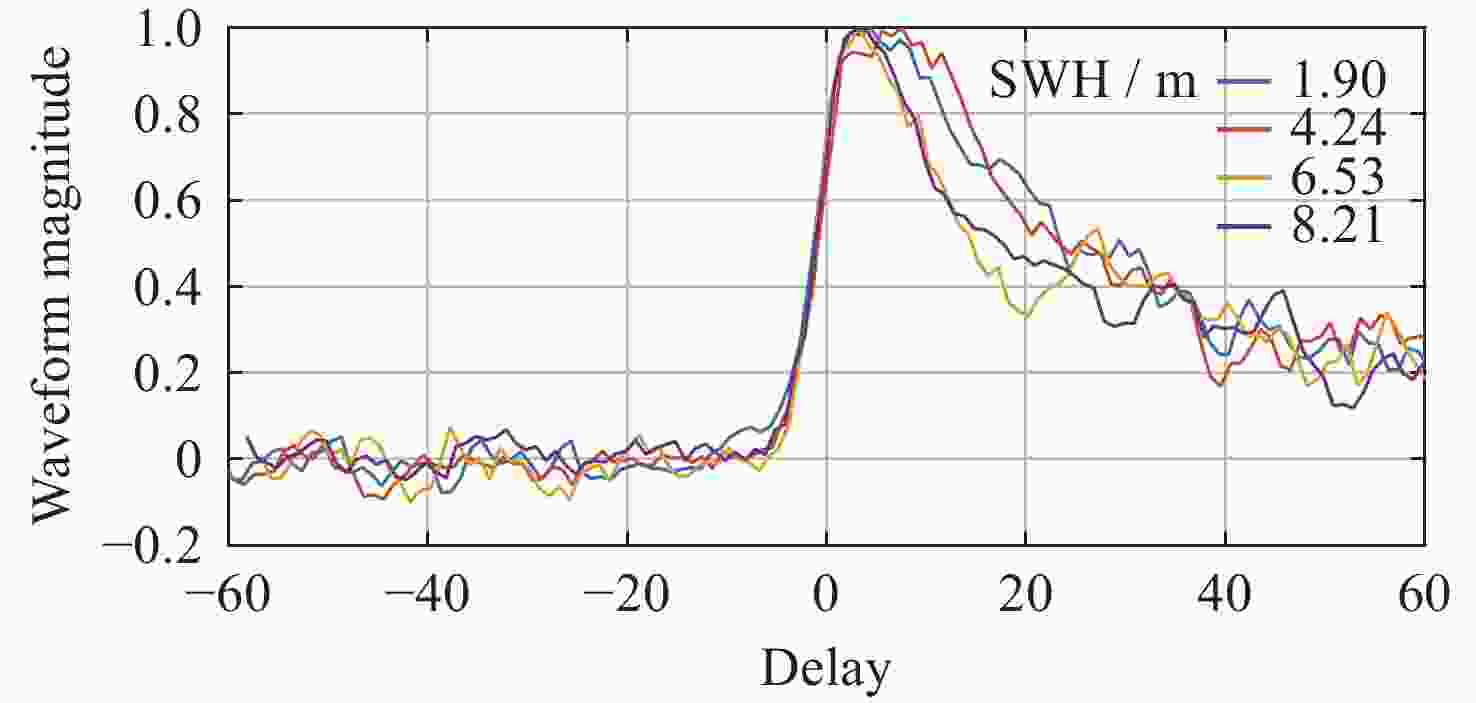

图 5 GNSS-R一维时延波形(a)与镜面反射点附近原始一维时延波形与拟合后波形(b)
Figure 5. GNSS-R one dimensional delay waveform (a), GNSS-R original waveform and fitted waveform near the specular point (b)

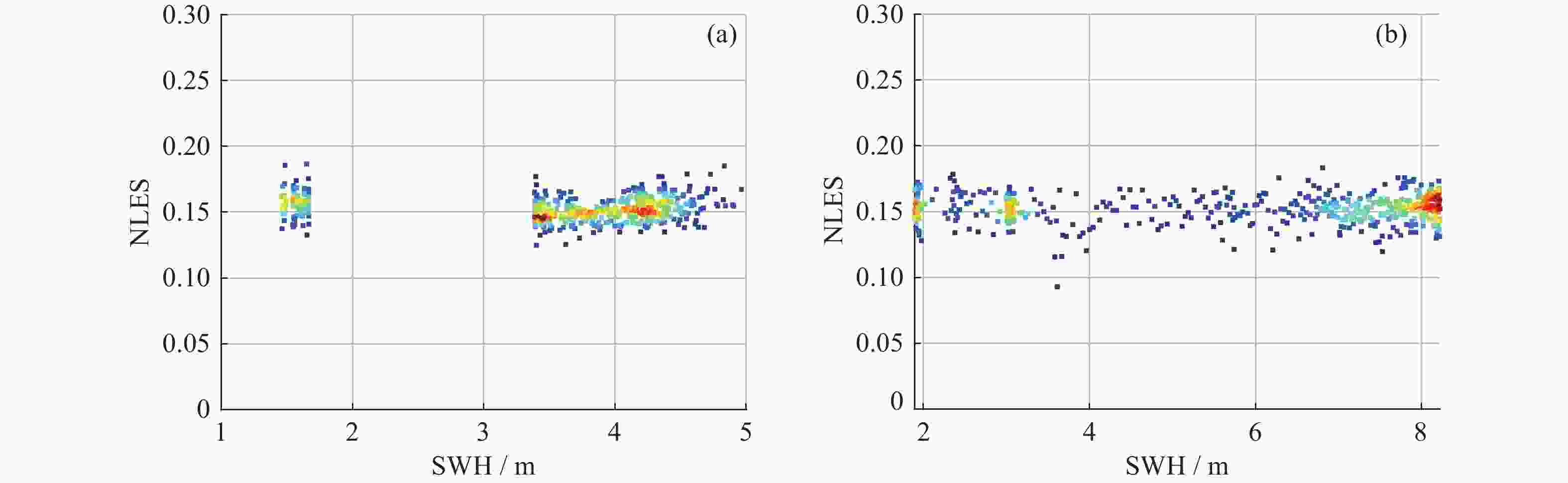

图 7 归一化波形前沿斜率与有效波高的散点密度. (a) 2022年7月10日19:00 UT－20:00 UT数据, (b) 2022年7月29日13:00 UT－14:00 UT 数据
Figure 7. Scatter density plots for the comparison between NLES and SWH. (a) Data at 19:00 UT－20:00 UT on 10 July 2022, (b) data at 13:00 UT－14:00 UT on 29 July 2022

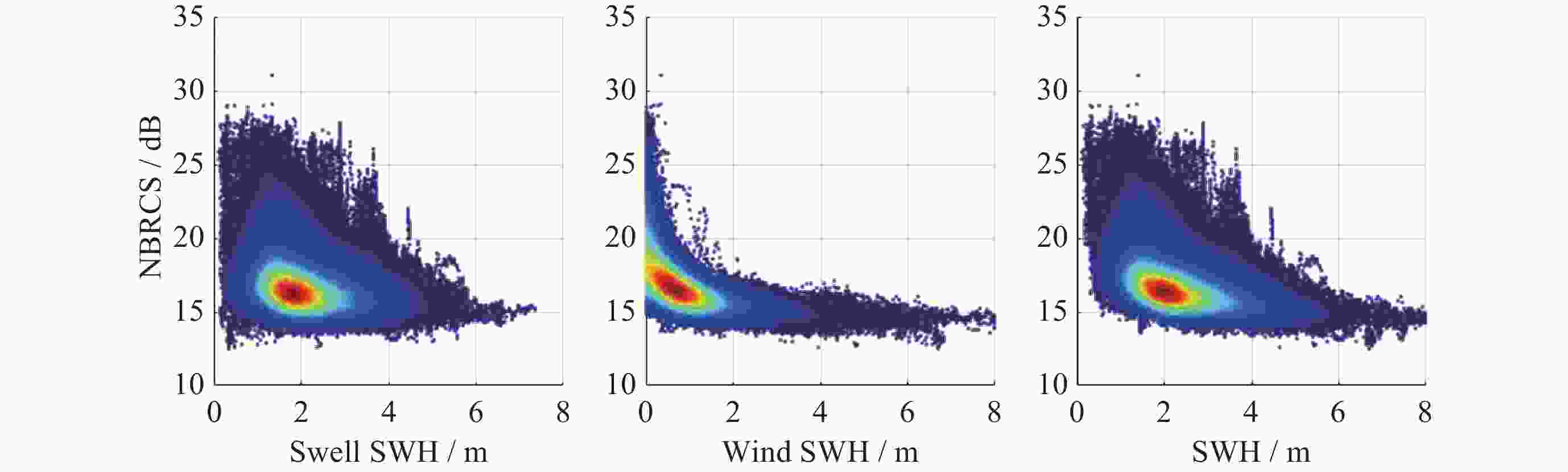

图 8 FY-3E NBRCS与涌浪有效波高、风浪有效波高、整体有效波高的散点密度
Figure 8. Density scatter plots for the comparison between FY-3E NBRCS and swell, wind and total SWH

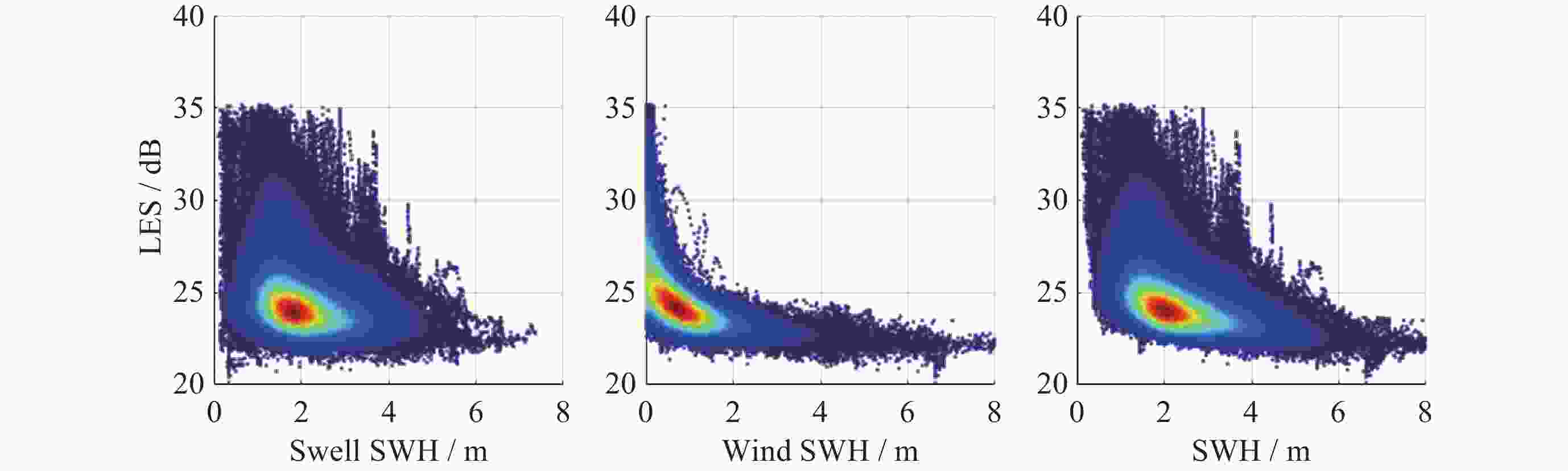

图 9 FY-3E LES与涌浪有效波高、风浪有效波高、整体有效波高的散点密度
Figure 9. Density scatter plots for the comparison between FY-3E LES and swell, wind and total SWH

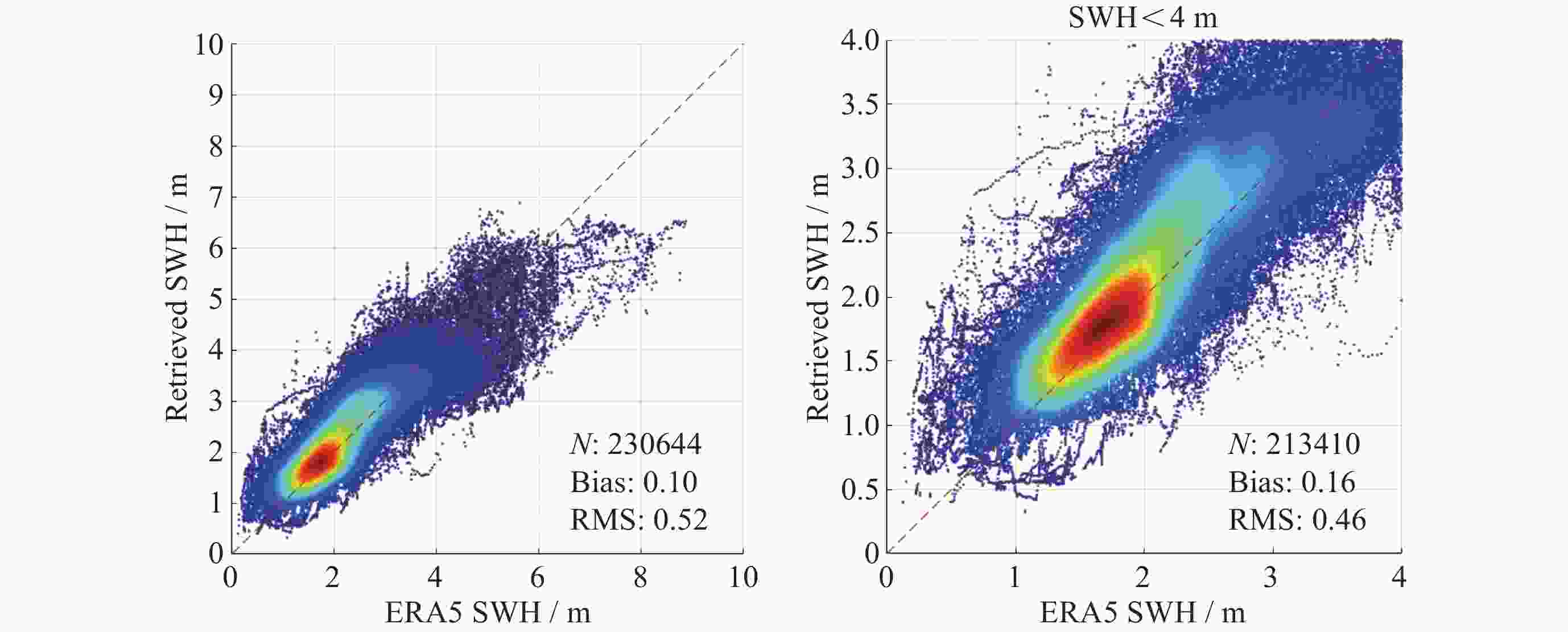

图 10 GNSS-R反演有效波高与ECMWF ERA5有效波高对比的散点密度. (a)整体对比, (b) 4 m以下对比
Figure 10. Density scatter plots for the comparison of between SWH retrieved by GNSSR and ECMWF ERA5 SWH. (a) Overall comparison, (b) SWH under 4 m

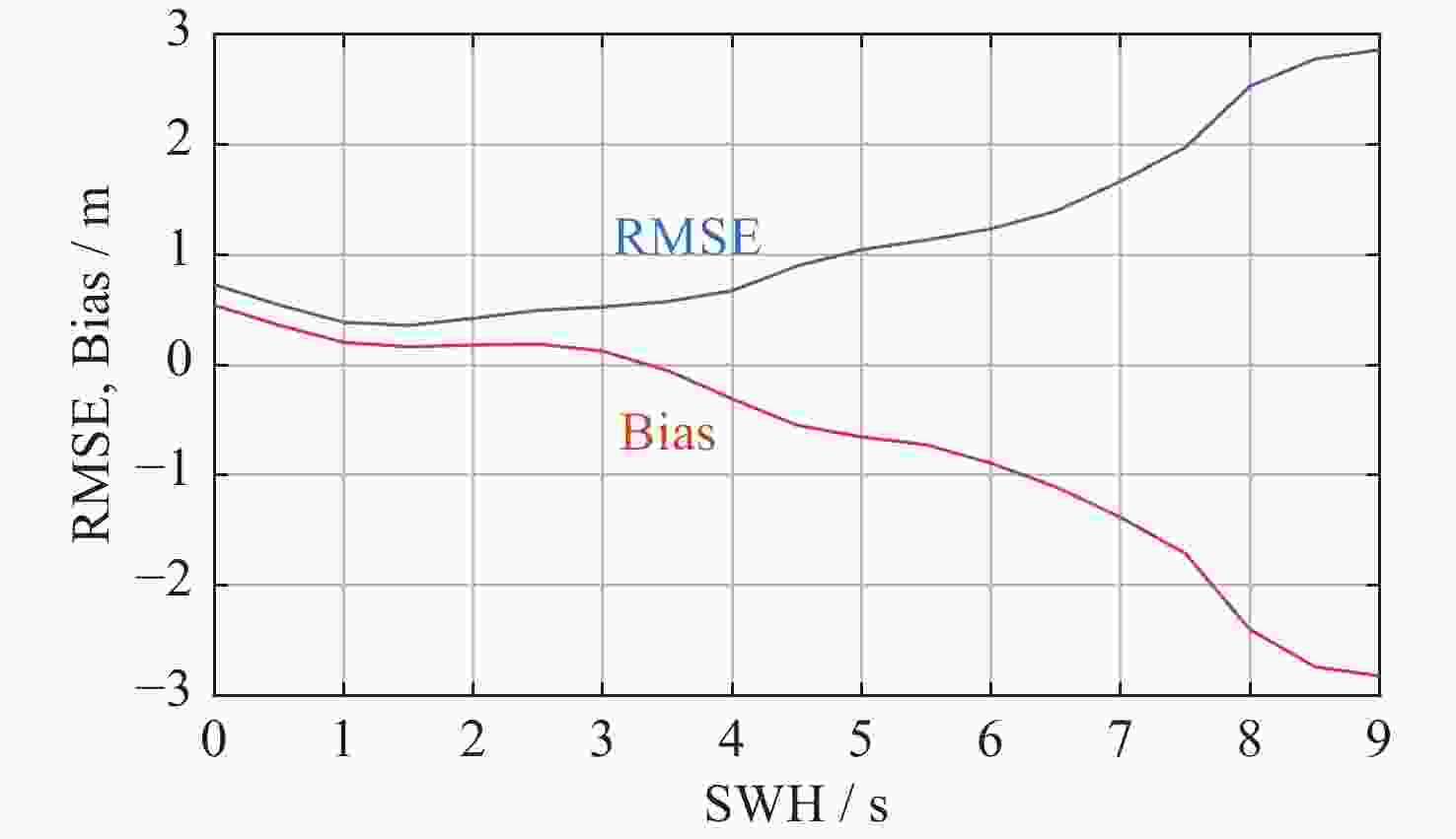

图 11 GNSS-R有效波高反演精度与ERA5有效波高的关系
Figure 11. SWH retrieval statistics as a function of ERA5 SWH

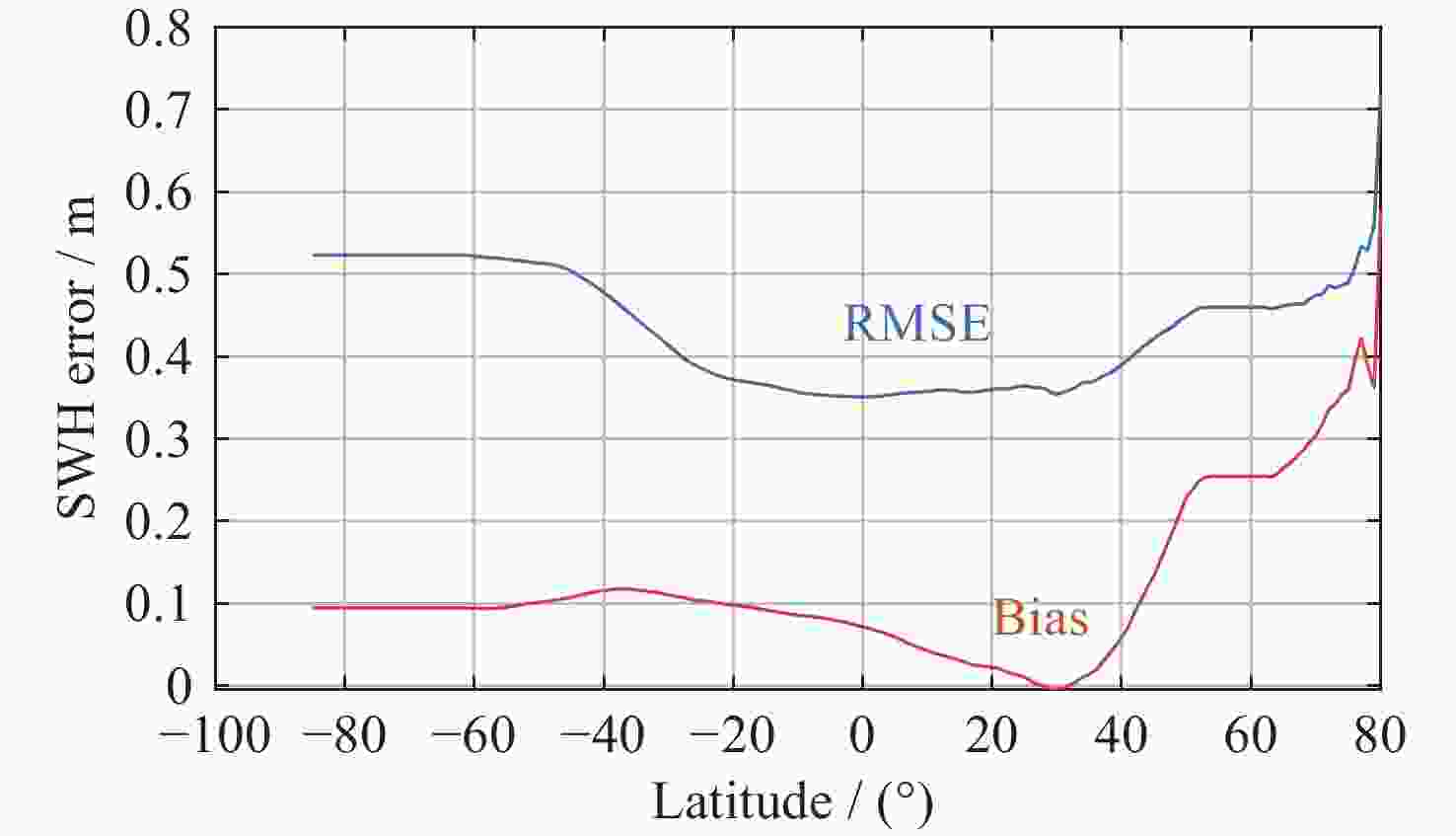

图 12 GNSS-R有效波高反演精度与数据纬度的关系
Figure 12. GNSS-R SWH retrieval statistics as a function of data latitudes

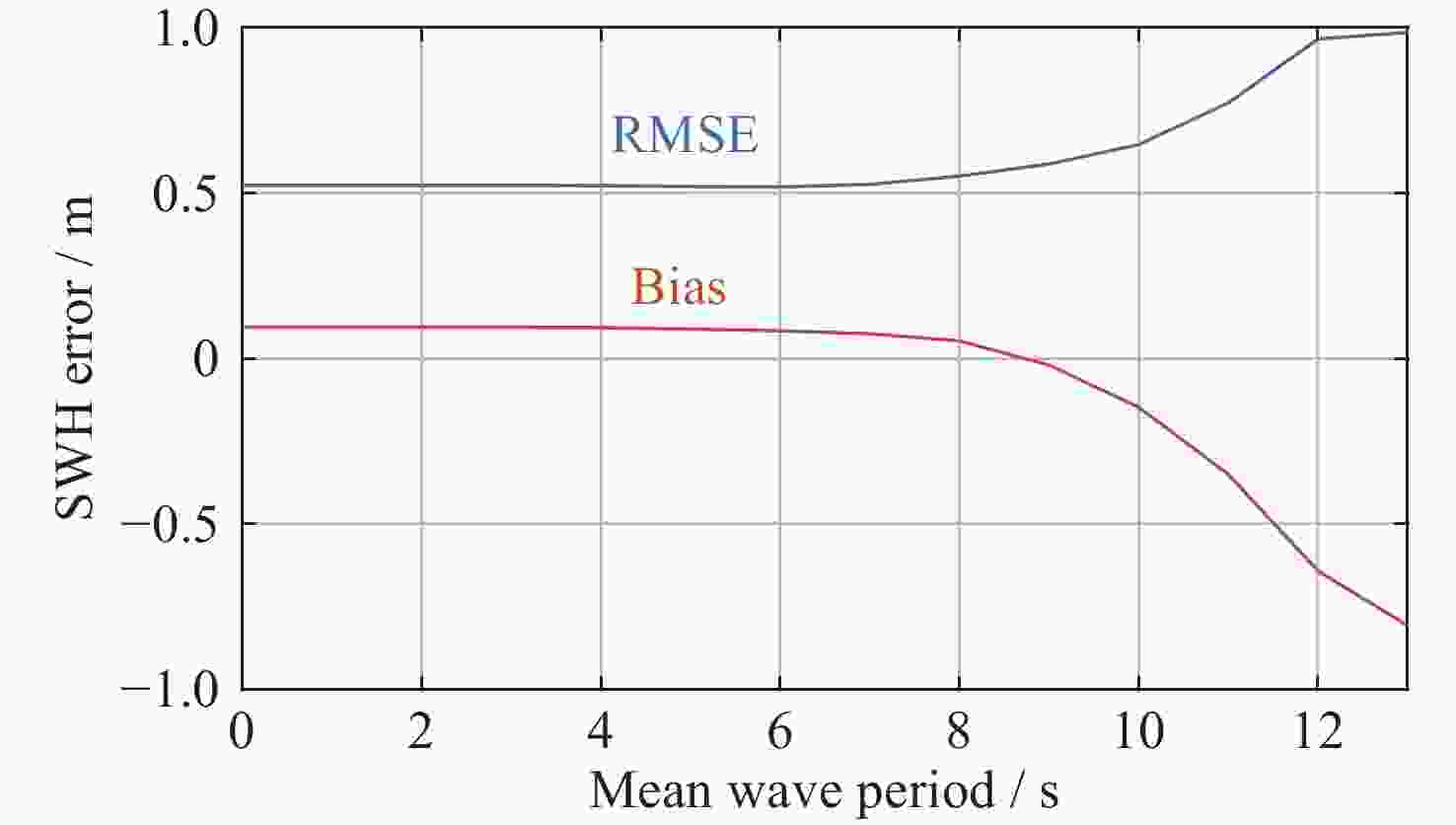

图 13 GNSS-R有效波高反演精度与海浪平均周期的关系
Figure 13. GNSS-R SWH retrieval statistics as a function of mean wave period
表 1 各种微波遥感技术在海洋遥感上的探测机理对比
Table 1. Comparison of mechanisms of different microwave ocean remote sensing techniques
探测技术 波段 主被动 探测机理 微波辐射计 C～Ka 被动 测量辐射亮温 散射计/SAR L～Ku 主动 后向布拉格散射 雷达高度计 Ku 主动 星下点镜面反射 GNSS-R L 主动 前向准镜面反射
下载: 导出CSV
表 2 各种微波遥感技术测量有效波高的卫星/载荷、反演精度、反演方法和对比数据源
Table 2. Satellite/payload, retrieval accuracy, methods, and comparison datasets from different microwave remote sensing technique in retrieving significant wave height
技术 卫星/载荷 精度/m 反演方法 对比数据源 参考文献 雷达高度计 Jason, Sentinel-3, HY-2 0.2～0.3 波形前沿斜率 浮标、高度计 [10–12,15] SAR Radasat, Sentinel-1等 0.3～0.5 先反演海浪谱, 再对海浪
谱积分或经验模型浮标、海浪模式 [13,14] 干涉成像高度计 天宫二号 0.3～0.5 与SAR相同 海浪模式、高度计 [15] 海浪波谱仪 CFOSAT/SWIM 0.3～0.4 波形前沿斜率 海浪模式、高度计 [16,17] 散射计 ERS-1/2, ASCAT等 0.5～0.72 雷达散射截面 浮标、海浪模式 [18,19]
下载: 导出CSV
表 3 不同特征参数、不同复杂度下的神经网络在训练集和测试集上的有效波高反演均方根误差 (单位: m)
Table 3. RMSE of neural network in retrieving SWH with different feature parameters and complexity (unit: m)
实验组 特征参数 网络 训练集精度 测试集精度 结果分析 1 NBRCS, LES, INC, AZI, PRN [25,25] 0.56 0.79 过拟合 2 同实验1 [10,10] 0.65 0.70 3 同实验1 [5,5] 0.68 0.69 4 实验1+SWS [25,25] 0.53 0.77 过拟合 5 实验1+SWS [10,10] 0.64 0.69 6 实验1+SWS [5,5] 0.67 0.68 7 实验1+SWS+Lat+Lon [25,25] 0.27 0.83 过拟合 8 实验1+SWS+Lat+Lon [10,10] 0.44 0.55 9 实验1+SWS+Lat+Lon [5,5] 0.46 0.52 10 实验1+SWS+Lat+Lon [3,3] 0.53 0.55 欠拟合 11 实验1 +Lat+Lon [5,5] 0.48 0.54 12 SWS+Lat+Lon [5,5] 0.53 0.58 13 Lat+Lon [5,5] 0.59 0.69
下载: 导出CSV
-
