基于气辉观测的中国南方电离层赤道等离子体泡标准数据集
doi: 10.11728/cjss2026.01.2025-0097 cstr: 32142.14.cjss.2025-0097
-
钟佳 男, 1987年出生, 博士, 现为中国科学院国家空间科学中心项目高级工程师, 主要研究方向为空间天气数据挖掘与机器学习建模、科学可视化技术. E-mail: zhongjia@nssc.ac.cn -
邹自明 男, 1971年出生, 博士, 现为中国科学院国家空间科学中心研究员、国家空间科学数据中心主任、中国科学院大学博士生导师, 长期从事空间科学与数据科学交叉领域研究, 在科学数据治理理论、标准研制、空间信息组织与互操作、日地空间大数据系统工程、空间天气领域数据挖掘与知识发现等方面开展研究. E-mail: mzou@nssc.ac.cn -
徐寄遥 男, 1959年出生, 博士, 现为中国科学院国家空间科学中心研究员、博士生导师, 国家杰出青年基金获得者, 现任国家重大科技基础设施“空间环境地基综合监测网——子午工程II期”总工程师 . 长期从事中高层大气物理学研究, 主要方向包括大气光化学/动力学建模、遥感探测技术研发及信息处理方法. E-mail: jyxu@spaceweather.ac.cn
作者简介:
Standard Dataset of Ionospheric Equatorial Plasma Bubbles over Southern China Based on Airglow Observations
-

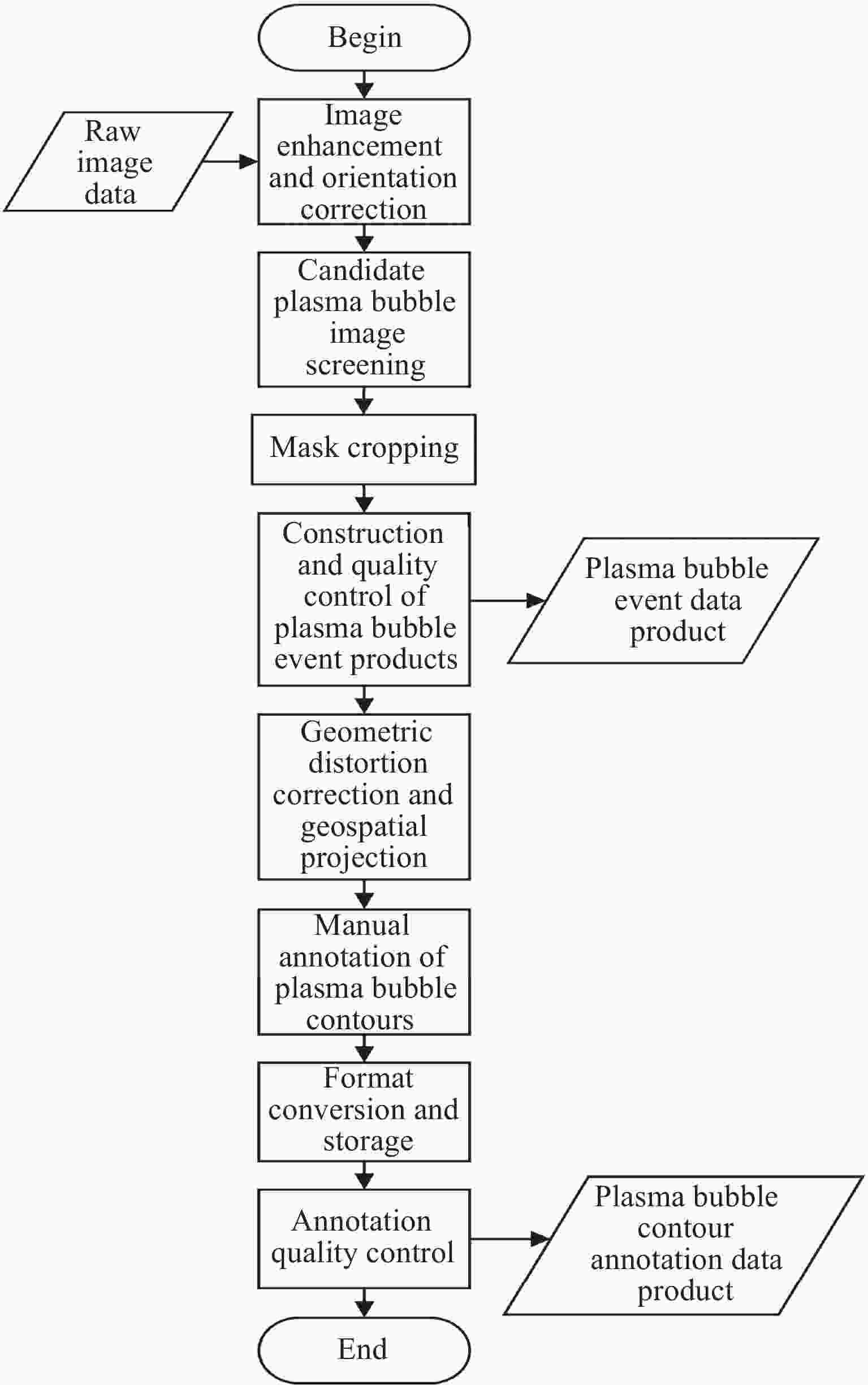

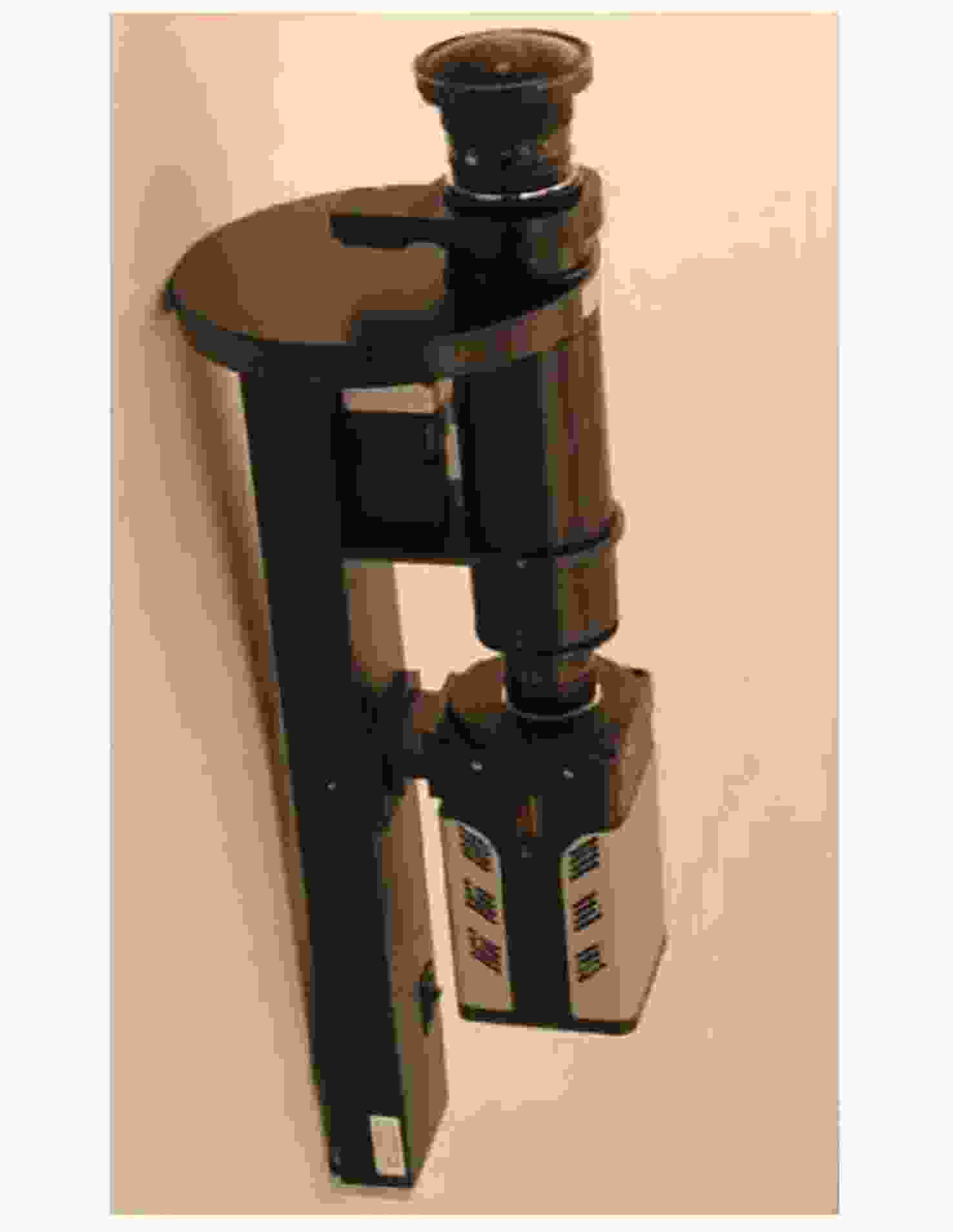

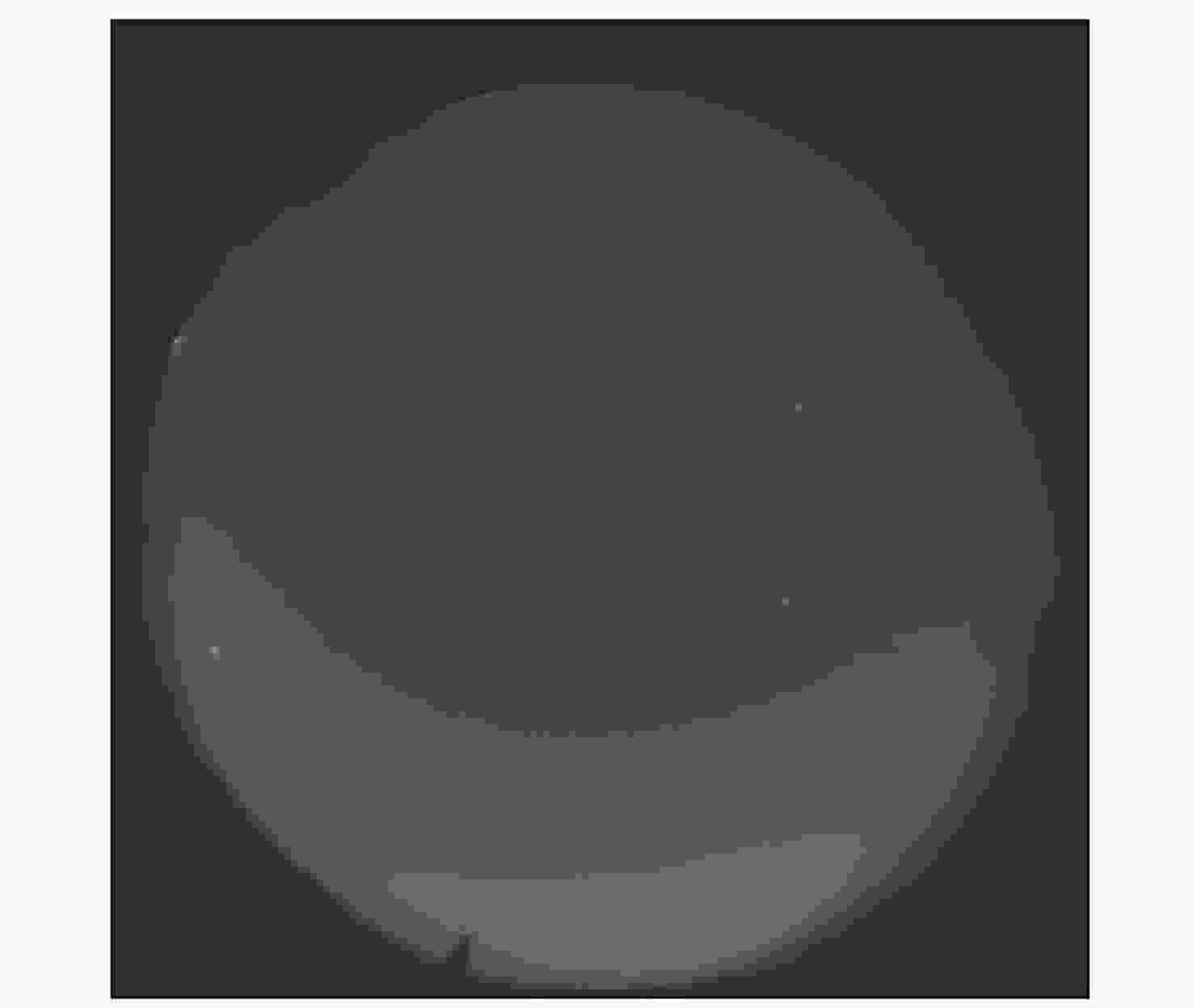

摘要: 气辉成像观测凭借其高时空分辨率及大范围连续监测能力, 为研究电离层赤道等离子体泡的水平精细结构及其演化特征提供了重要手段. 然而, 当前缺乏高质量、专业标注的等离子体泡数据集, 严重制约了监督式人工智能算法在该领域的应用研究. 为此, 研究构建了首个基于气辉观测的电离层等离子体泡标准数据集, 包含等离子体泡事件数据与精确轮廓标注数据. 该数据集源自云南曲靖站630 nm波段气辉成像仪历时一个完整太阳活动周(2012－2022年)的连续观测, 所有原始数据均经过图像增强、方位校正、几何畸变校正及地理坐标投影等标准化预处理, 并由专家团队完成等离子体泡事件识别及轮廓标注. 该数据集的时间分辨率高达3 min, 系统收录了不同太阳活动强度下的等离子体泡事件样本, 涵盖I型与Y型等多种典型形态. 本数据集为开发高精度监督式人工智能算法提供了高质量基准数据, 有助于促进基于气辉成像的电离层等离子体泡自动化检测与形态演化研究.Abstract: Airglow imaging observations, with their high spatiotemporal resolution and large-scale continuous monitoring capability, provide a crucial approach to studying the fine horizontal structures and evolutionary characteristics of ionospheric equatorial plasma bubbles. However, the current lack of high-quality, professionally annotated plasma bubble datasets severely restricts the application of supervised Artificial Intelligence (AI) algorithms in this field. To address this issue, this study constructs the first standardized dataset of ionospheric plasma bubbles based on airglow observations, including plasma bubble event data products and precise contour annotation data products. The dataset is derived from continuous observations over a full solar activity cycle (2012–2022) by a 630 nm band airglow imager at the Qujing Station in Yunnan, China. All raw data underwent standardized preprocessing, including image enhancement, azimuth correction, geometric distortion correction, and geographic coordinate projection. Expert teams then performed plasma bubble event identification and contour annotation. With a high temporal resolution of 3 minutes, the dataset systematically documents plasma bubble events under varying solar activity intensities, covering multiple typical morphologies such as “shaped”I- and “Y-shaped” structures. This dataset provides high-quality benchmark data for developing high-precision supervised AI algorithms, facilitating automated detection and morphological evolution research of ionospheric plasma bubbles based on airglow imaging.
-

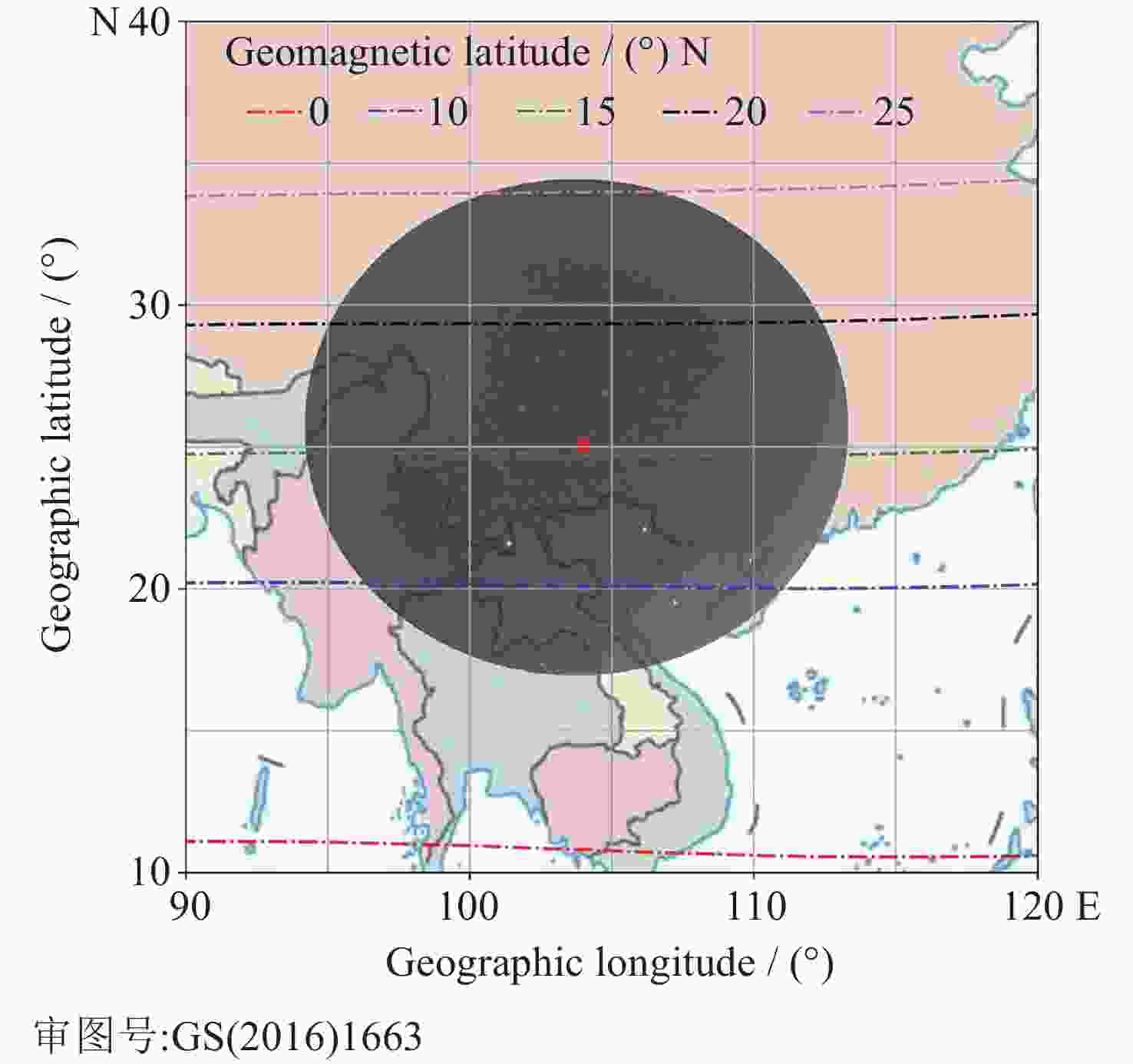

图 1 曲靖站 (红色点) 全天空气辉成像仪$ {\mathbf{160}}^{{^{\circ}}} $有效观测视场角覆盖空间范围
Figure 1. Spatial coverage of the 160°effective Field-of-View (FOV) for the all-sky airglow imager at Qujing Station (Red dot)

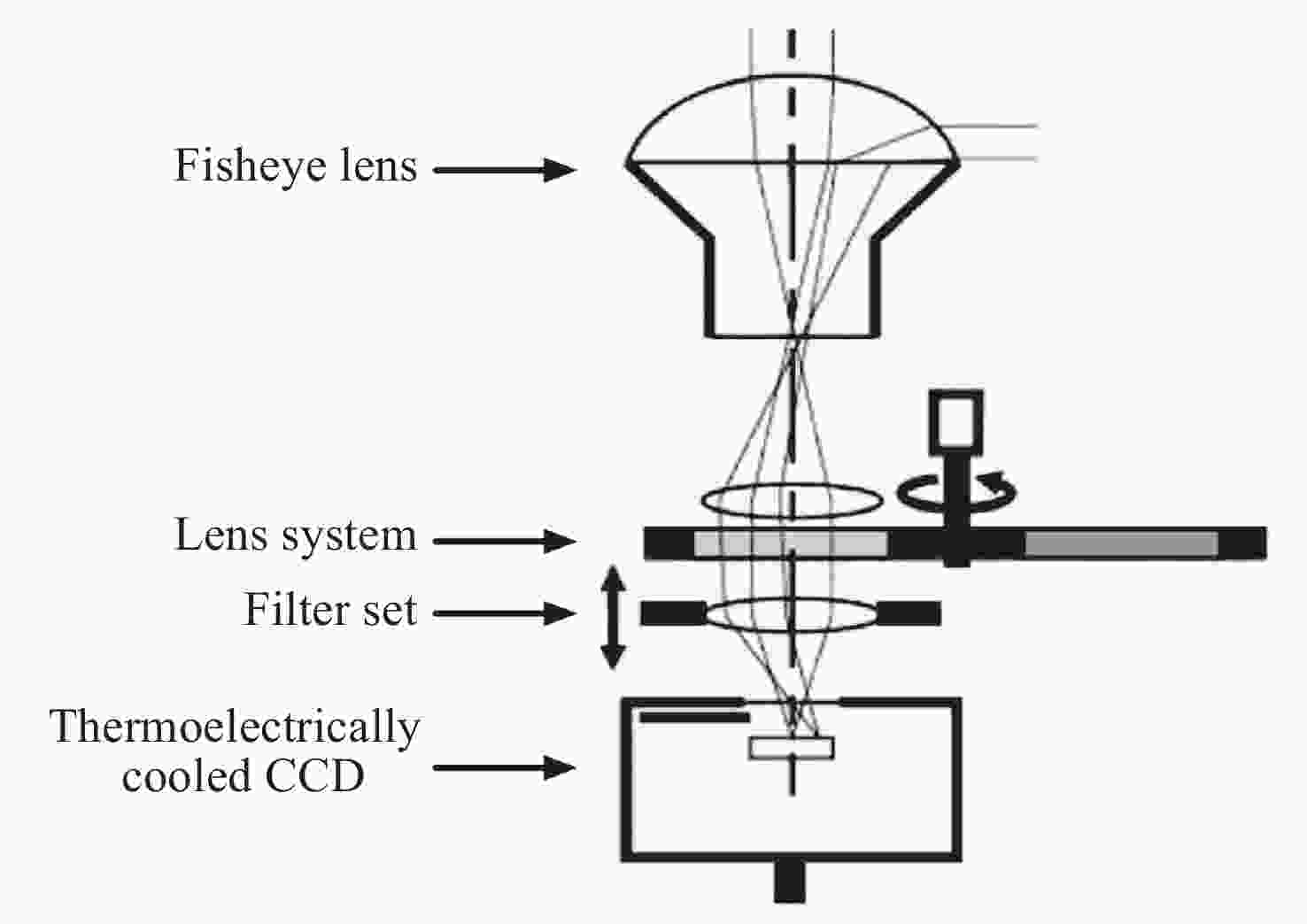

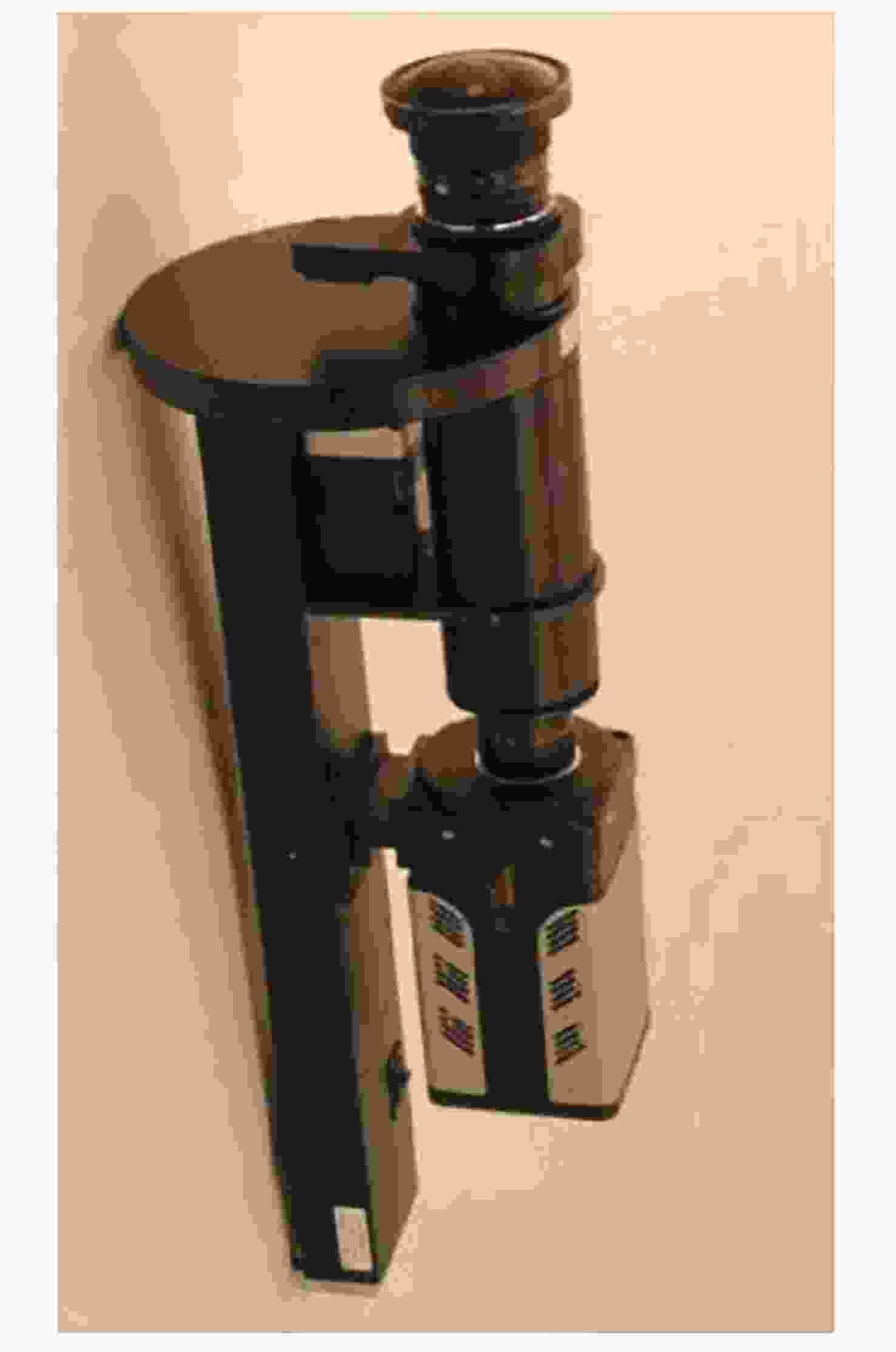

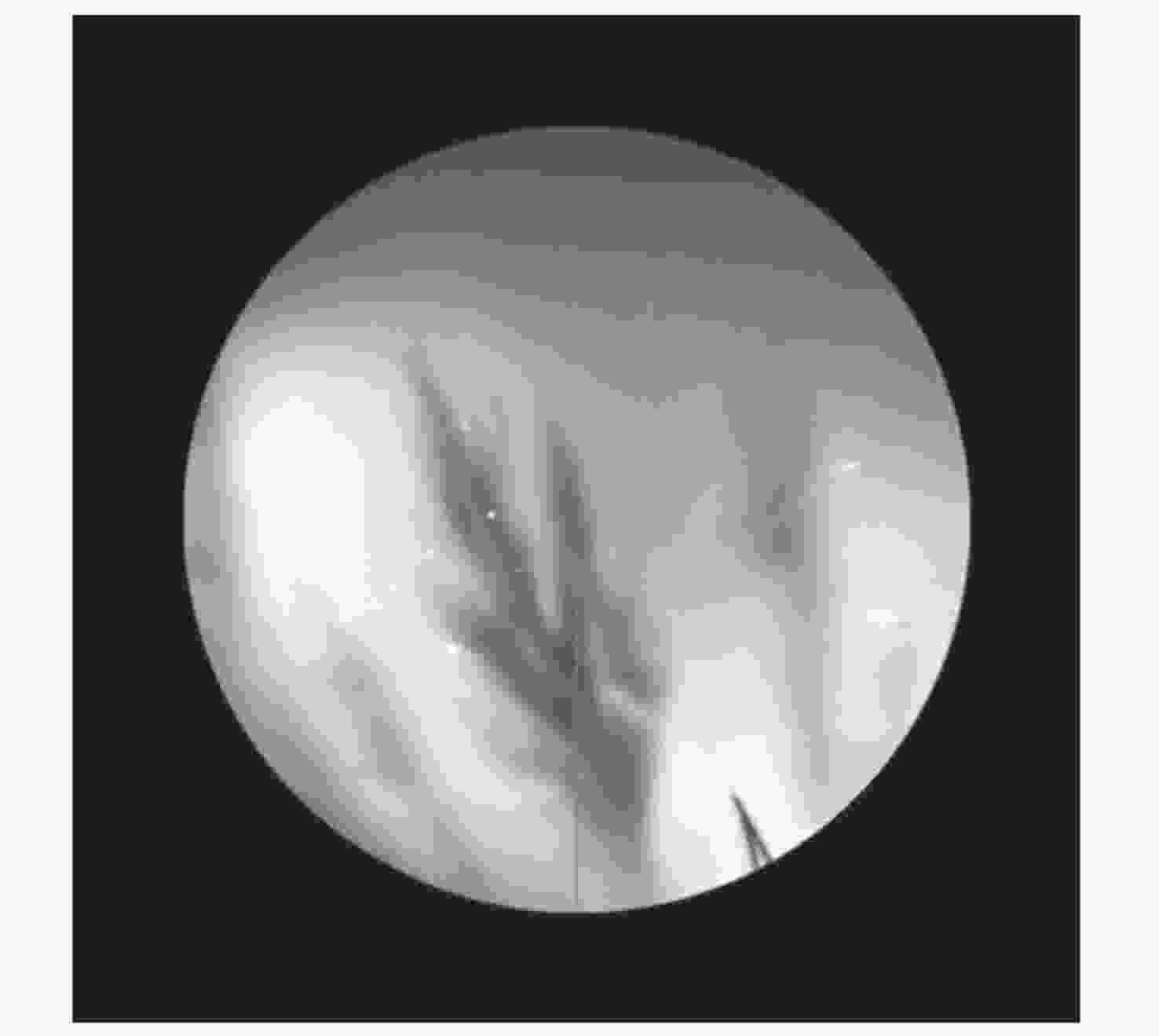

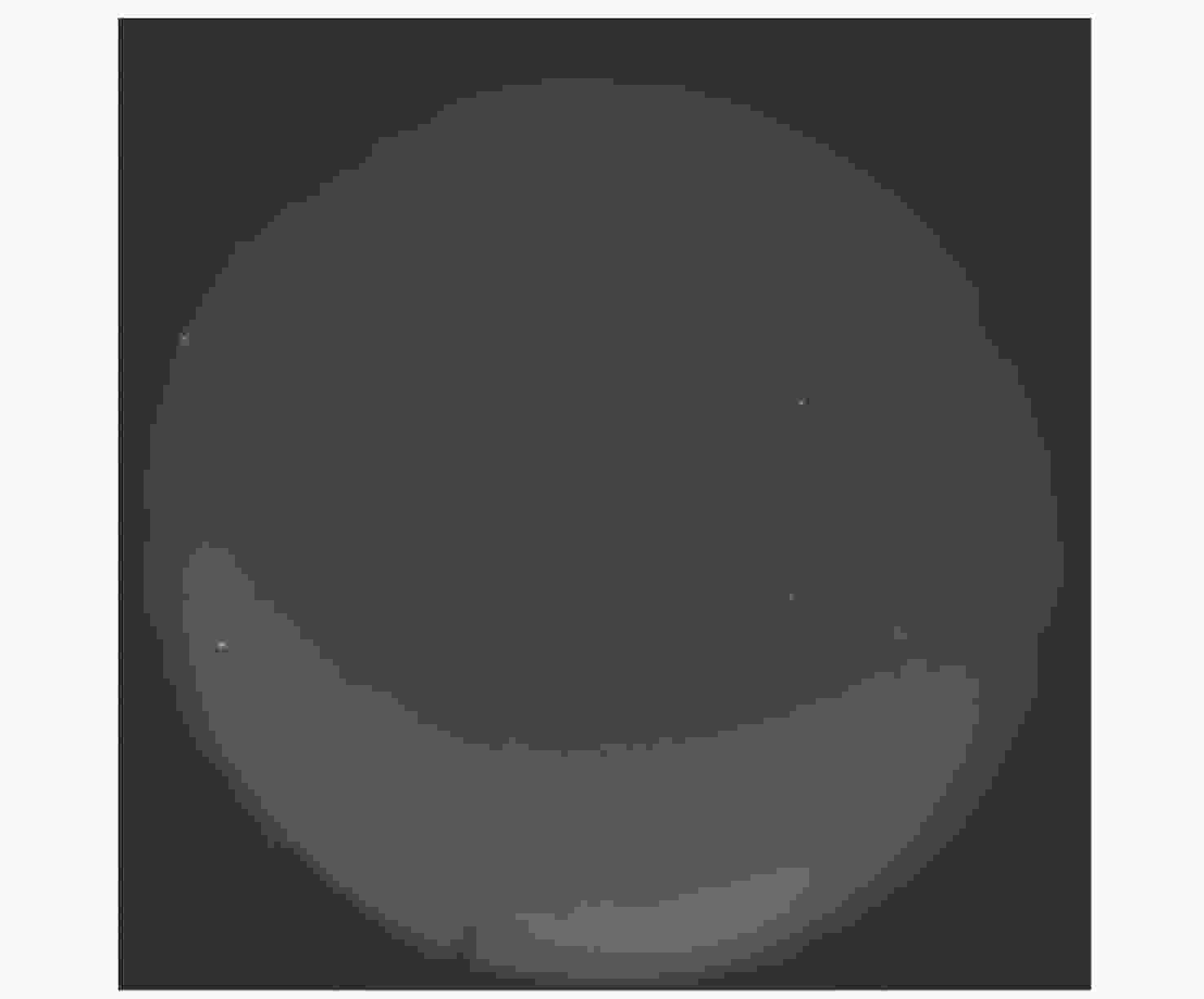

图 6 曲靖站2014年3月1日23:42:01 (UTC+8) 的等离子体泡事件图像
Figure 6. Plasma bubble event image observed at Qujing Station on 1 March 2014 at 23:42:01 (UTC+8)

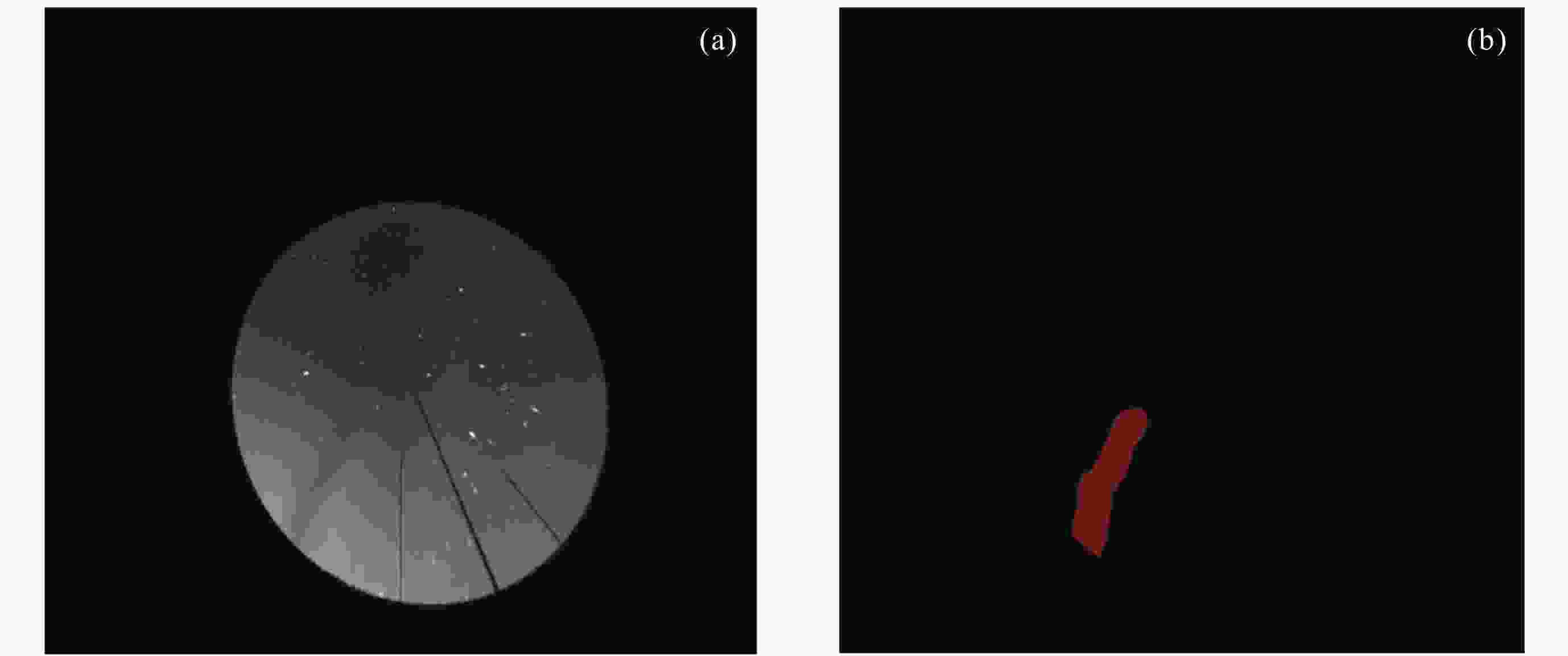

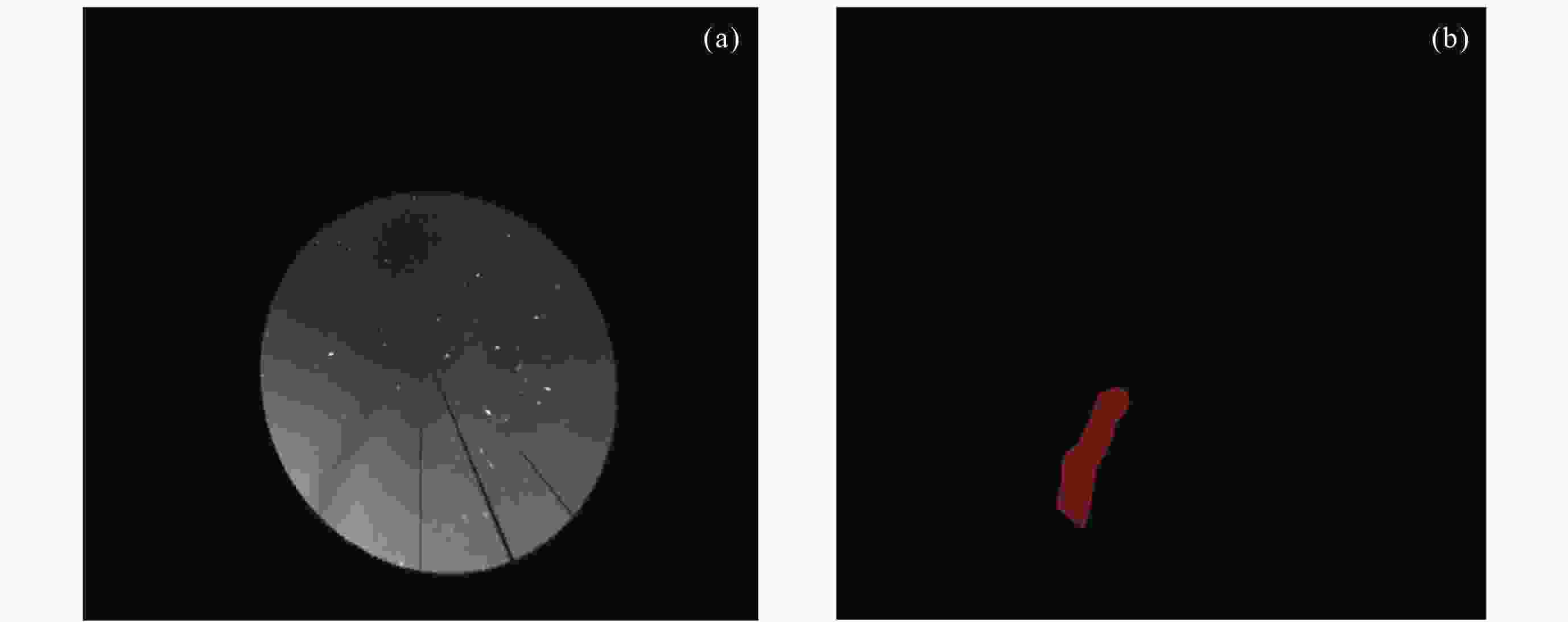

图 7 简单I型等离子体泡事件的轮廓标注. (a) 待标注的等离子体泡观测图像, (b)等离子体泡掩膜图像
Figure 7. Contour annotation of a simple I-shaped plasma bubble event. (a) Observation image of plasma bubble to be annotated, (b) mask image of plasma bubble

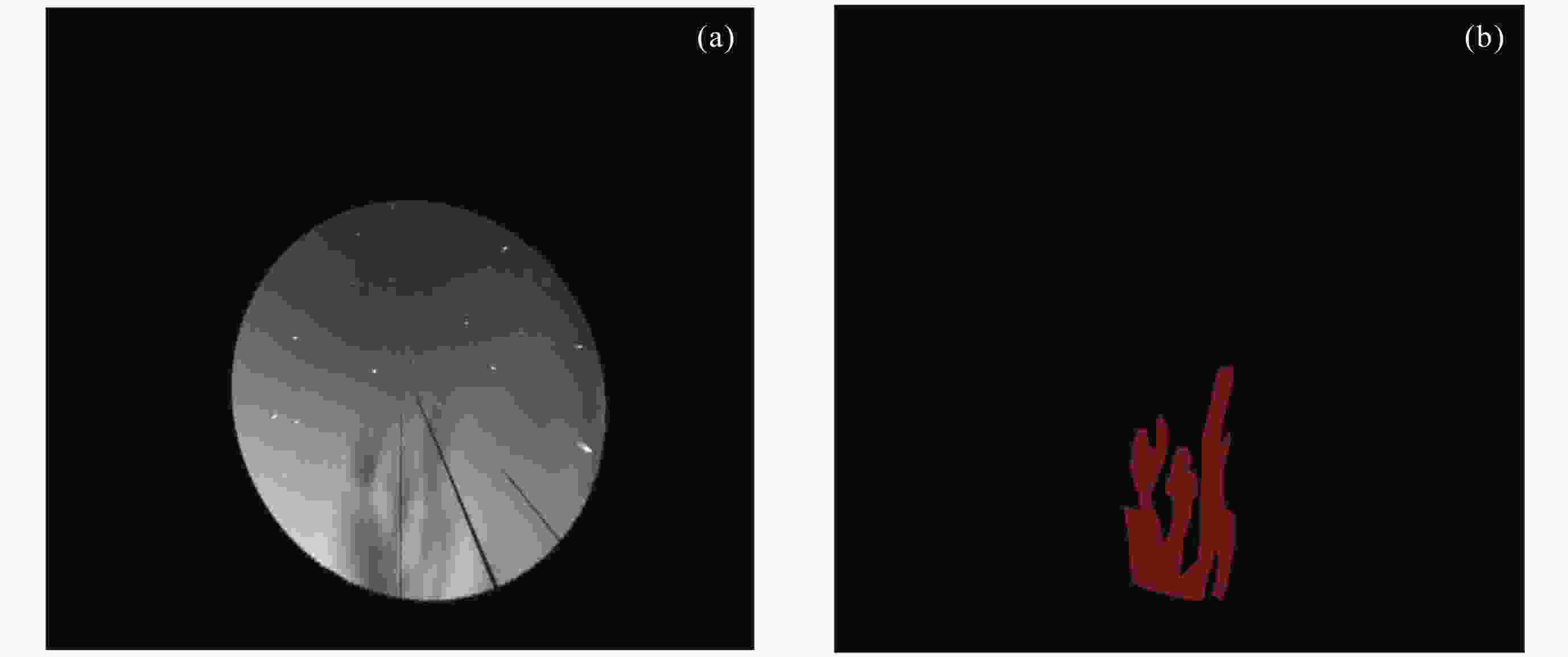

图 8 具有复杂分叉结构的Y型等离子体泡事件轮廓标注. (a) 待标注的等离子体泡观测图像, (b)等离子体泡掩膜图像
Figure 8. Contour annotation of a Y-shaped plasma bubble event with complex bifurcation structure. (a) Observation image of plasma bubble to be annotated, (b) mask image of plasma bubble

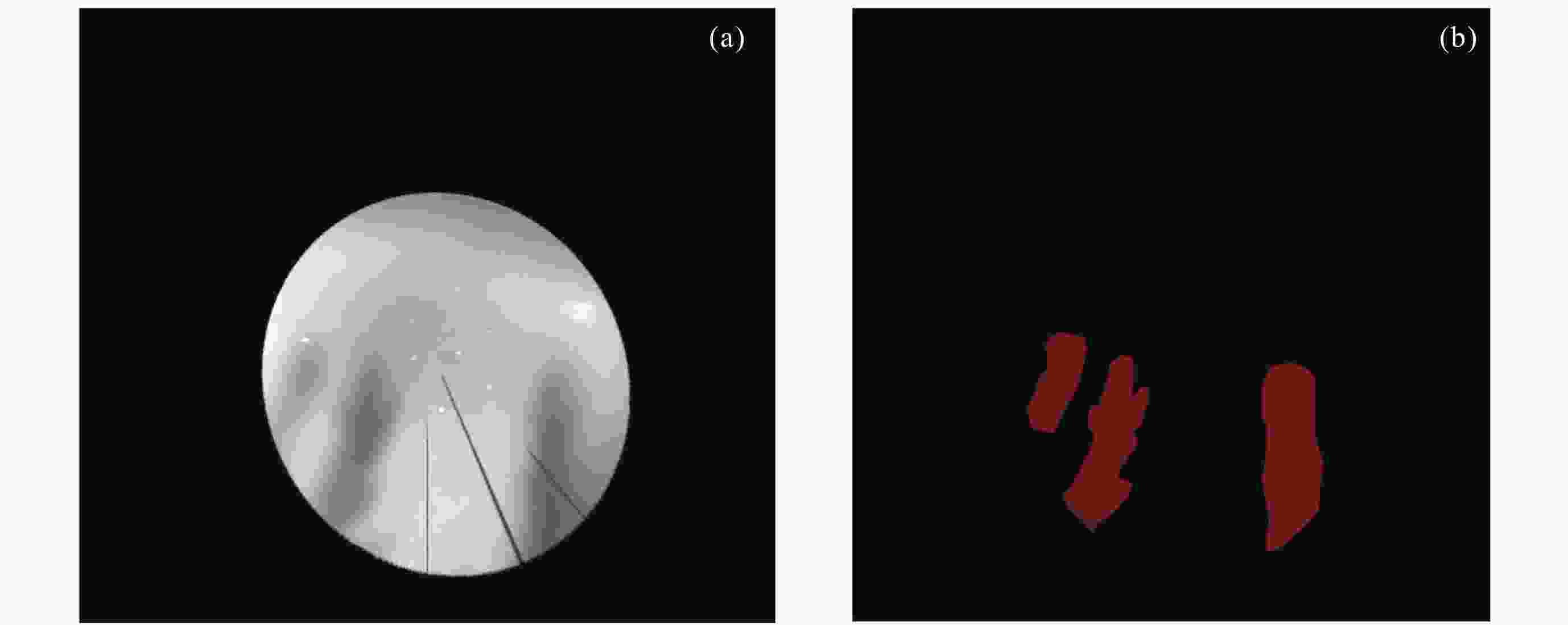

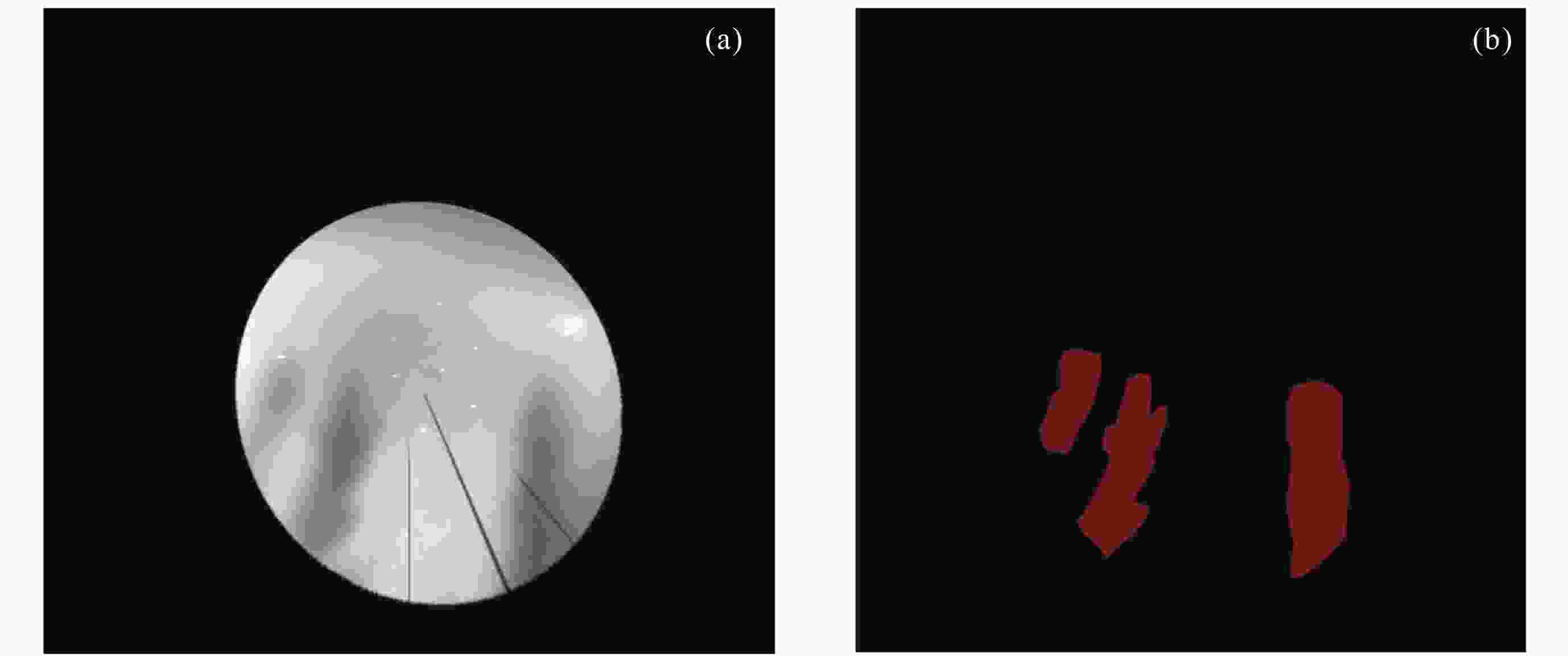

图 9 多个I型与Y型离子体泡事件轮廓标注. (a) 待标注的等离子体泡观测图像, (b)等离子体泡掩膜图像
Figure 9. Contour annotation of multiple I-shaped and Y-shaped plasma bubble events . (a) Observation image of plasma bubble to be annotated, (b) mask image of plasma bubble

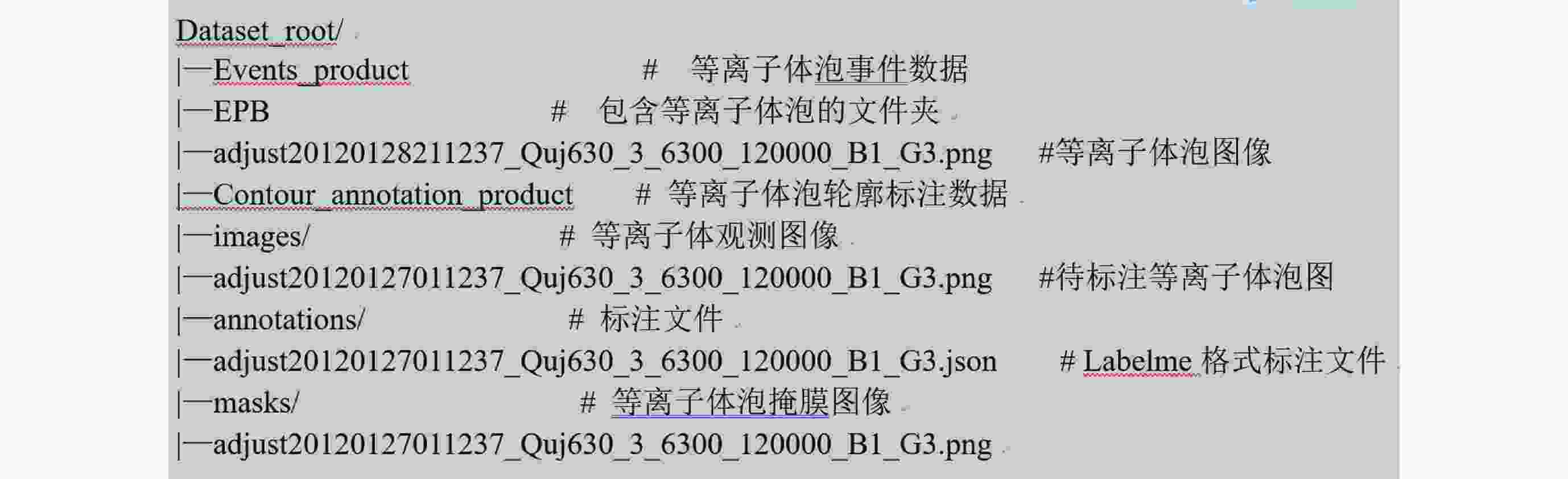

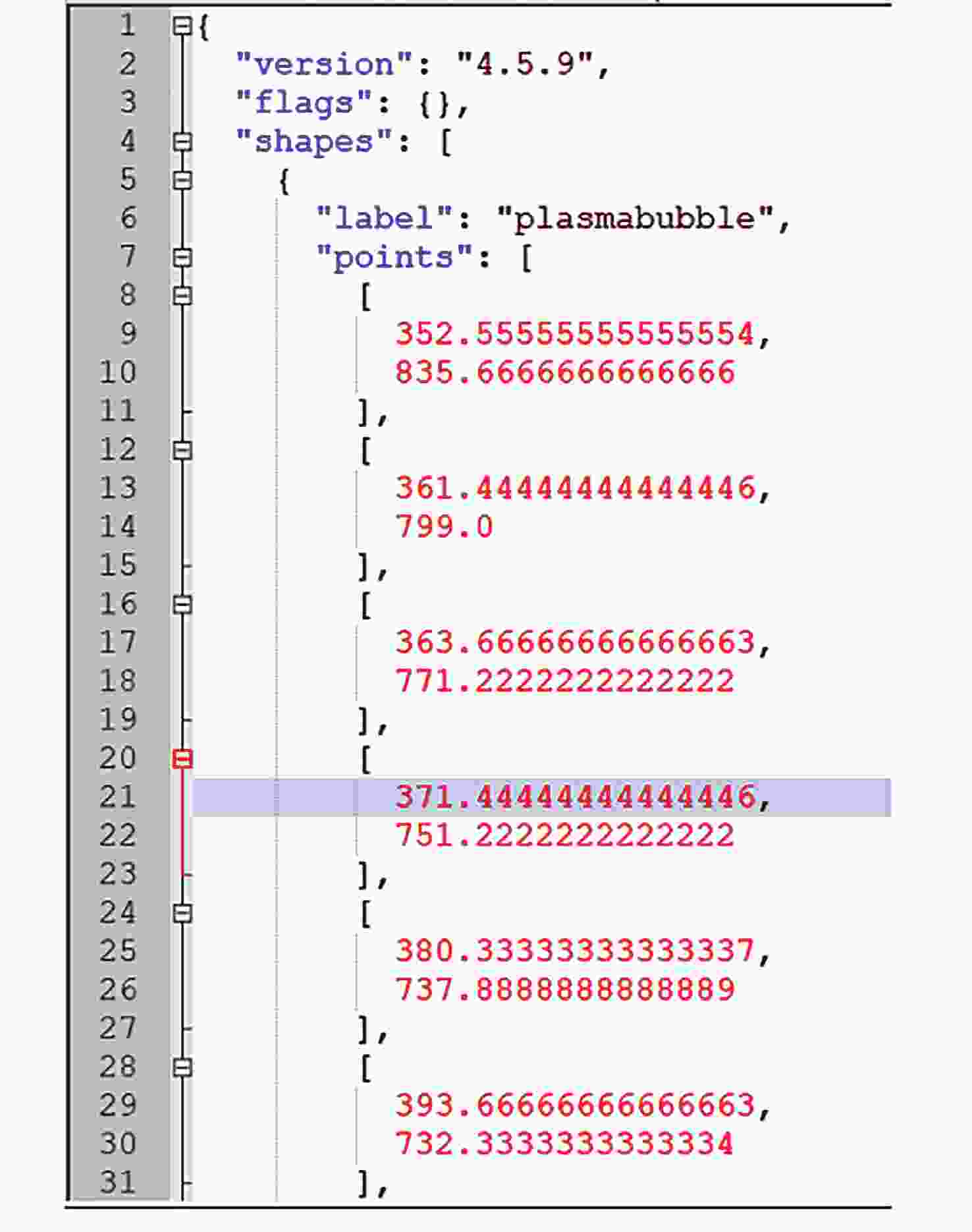

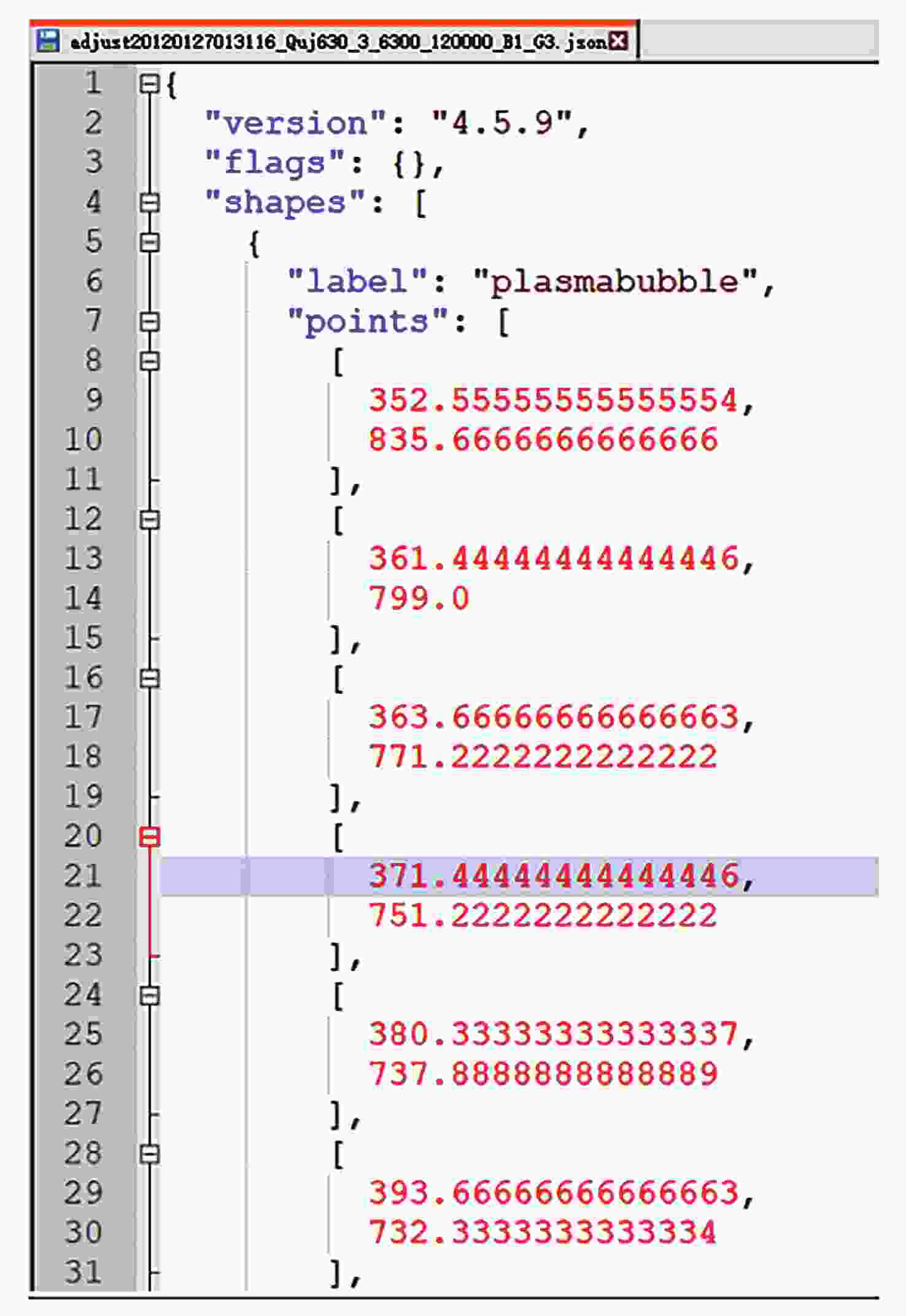

图 11 等离子体泡标准数据集文件组织形式
Figure 11. File organization format of plasma bubble standard dataset

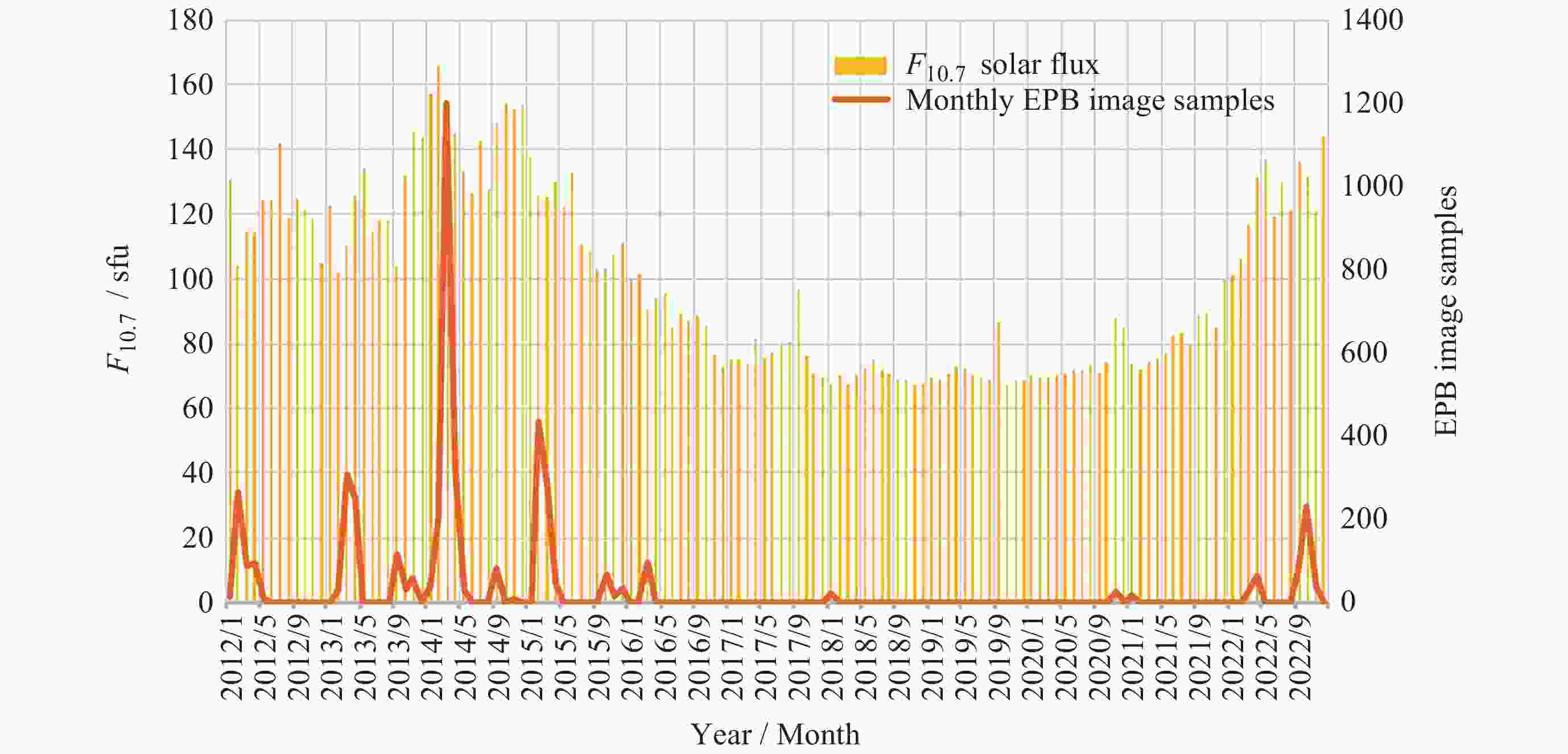

图 12 等离子体泡样本逐年逐月分布与太阳活动水平的关系[26].
Figure 12. Relationship between interannual and monthly distributions of plasma bubble samples and solar activity levels

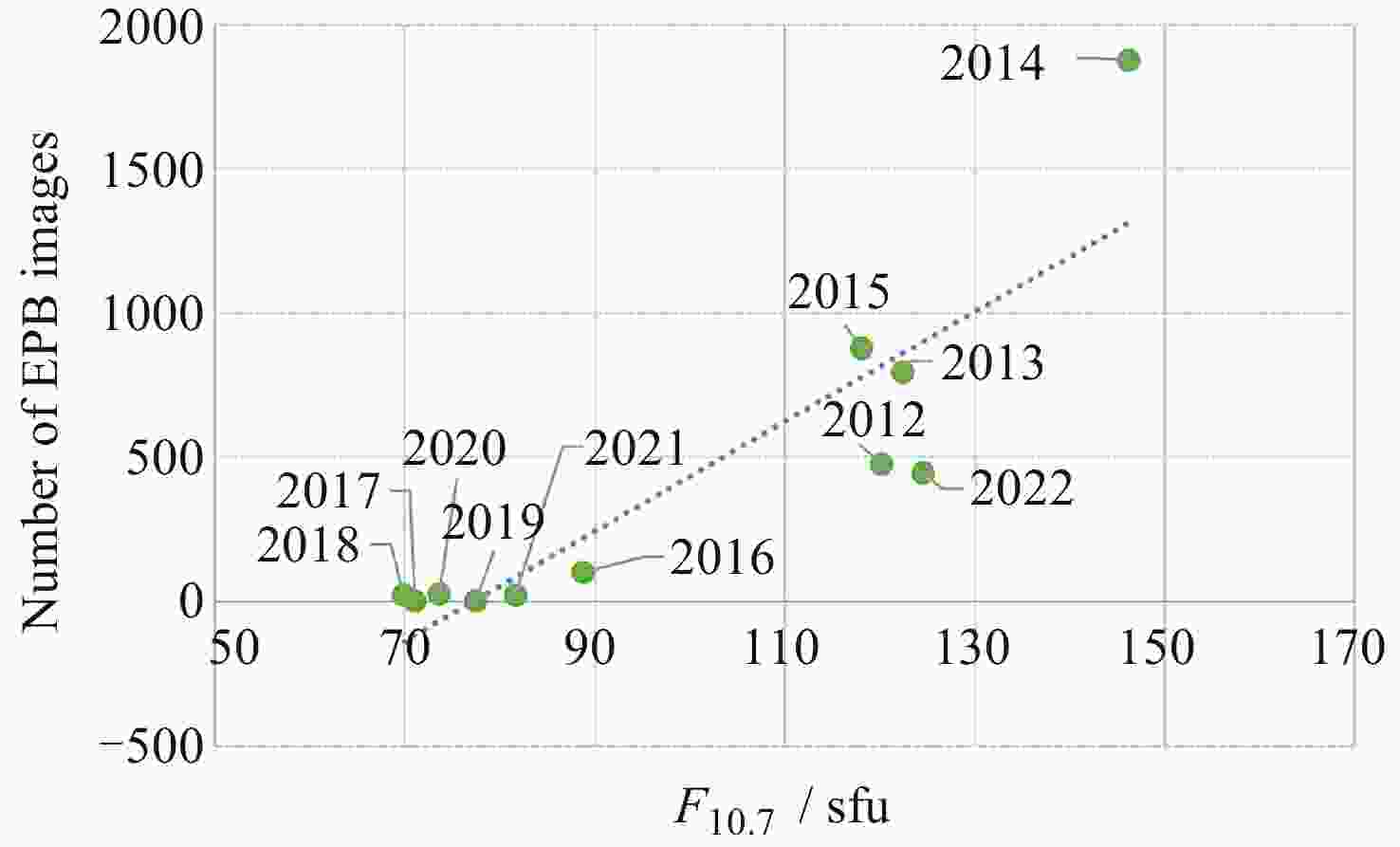

图 13 等离子体泡图像数量年均值与太阳射电流量年均值的关系
Figure 13. Relationship between the annual mean number of EPB images and the annual mean solar flux
表 1 曲靖台站不同年份观测夜晚与气辉观测图像及等离子体泡样本分布
Table 1. Distribution of observation nights, airglow observation images and plasma bubble samples at Qujing Station in different years
Year Observation nights Clear nights No. of images No. of good quality images No. of EPB images 2012 291 108 43389 13639 474 2013 347 132 58441 16012 799 2014 357 145 68662 18066 1893 2015 360 121 75368 19112 889 2016 323 112 65849 18012 99 2017 341 110 71820 17739 0 2018 313 129 64227 19510 21 2019 294 133 60604 18701 0 2020 313 134 62052 17150 25 2021 363 135 77322 20012 20 2022 355 133 75641 20124 444 Total 3657 1392 723375 198077 4664
下载: 导出CSV
-
