临近空间大气风场星载Fabry-Perot干涉仪设计及仿真结果分析
doi: 10.11728/cjss2026.02.2025-0041 cstr: 32142.14.cjss.2025-0041
-
孙翼然 男, 2000年出生, 中国科学院国家空间科学中心硕士研究生, 主要研究方向为空间光学遥感技术. E-mail: sunyiran22@mails.ucas.ac.cn -
王后茂 男, 1986年出生, 现为国家空间科学中心副研究员, 主要研究方向为大气气溶胶和风场反演及交叉定标等. E-mail: hmwang@nssc.ac.cn
作者简介:
通讯作者:
Design and Simulation Results Analysis of a Spaceborne Fabry–Perot Interferometer for the Near-Space Atmospheric Wind Field
-

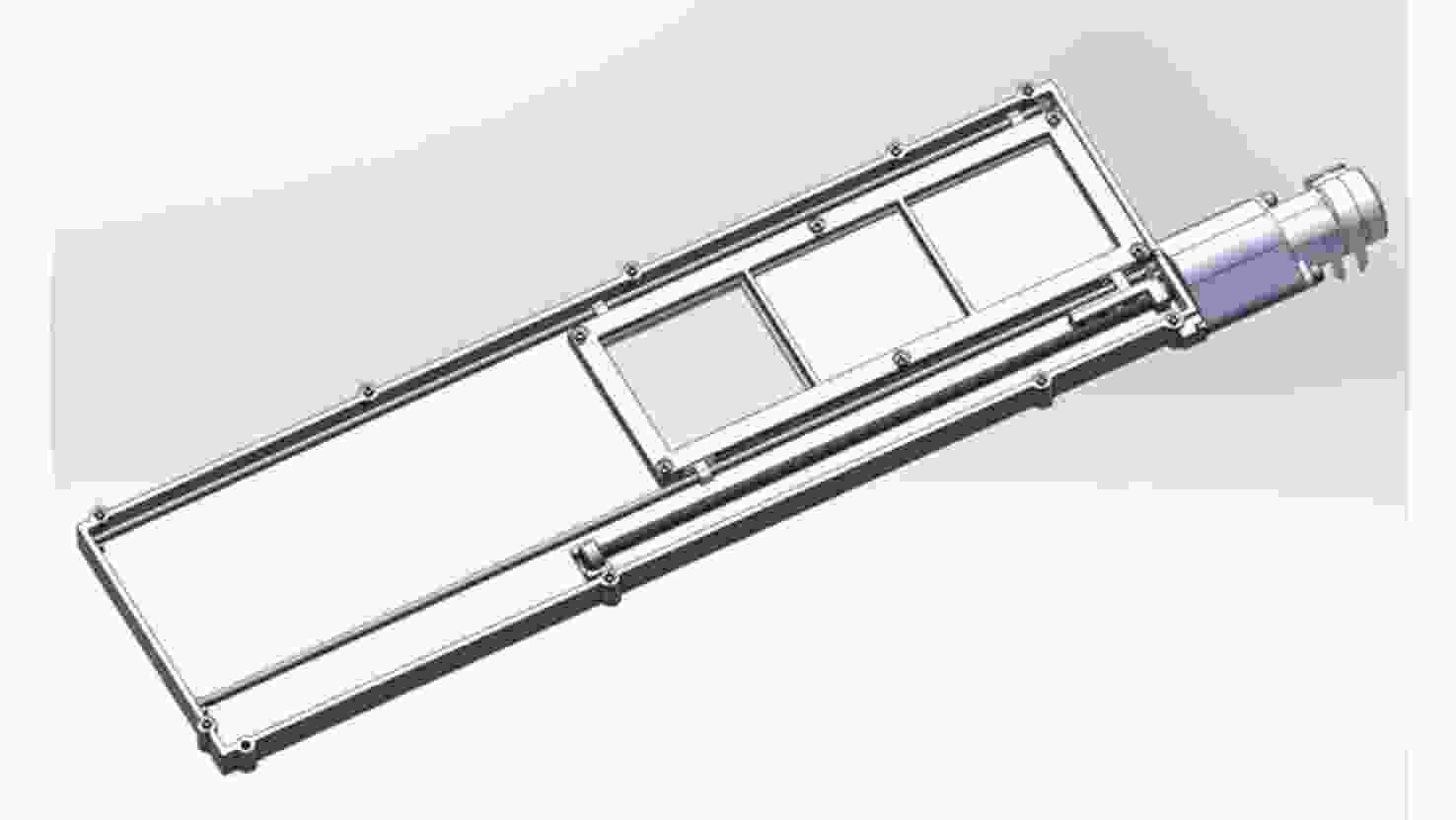

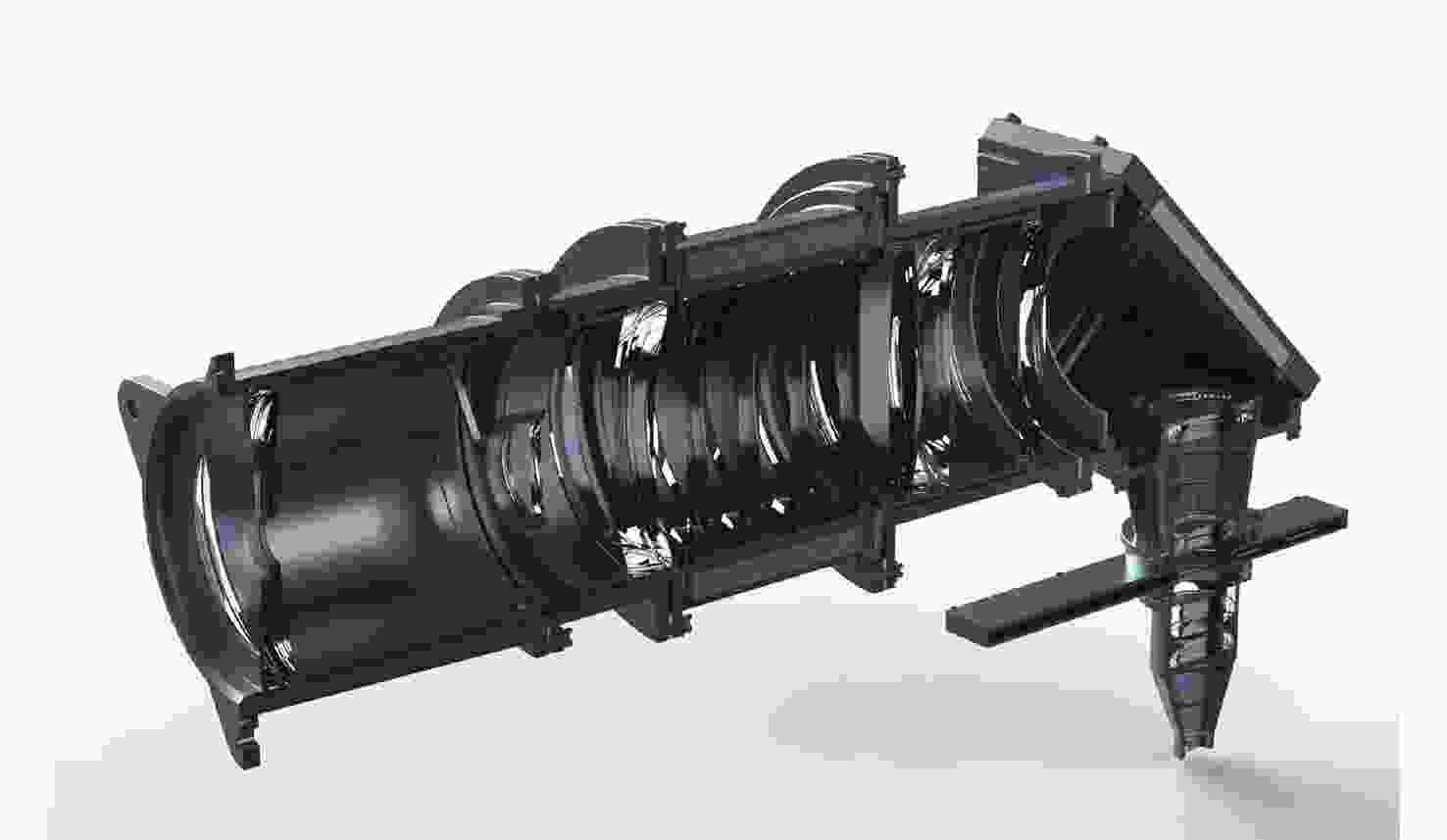

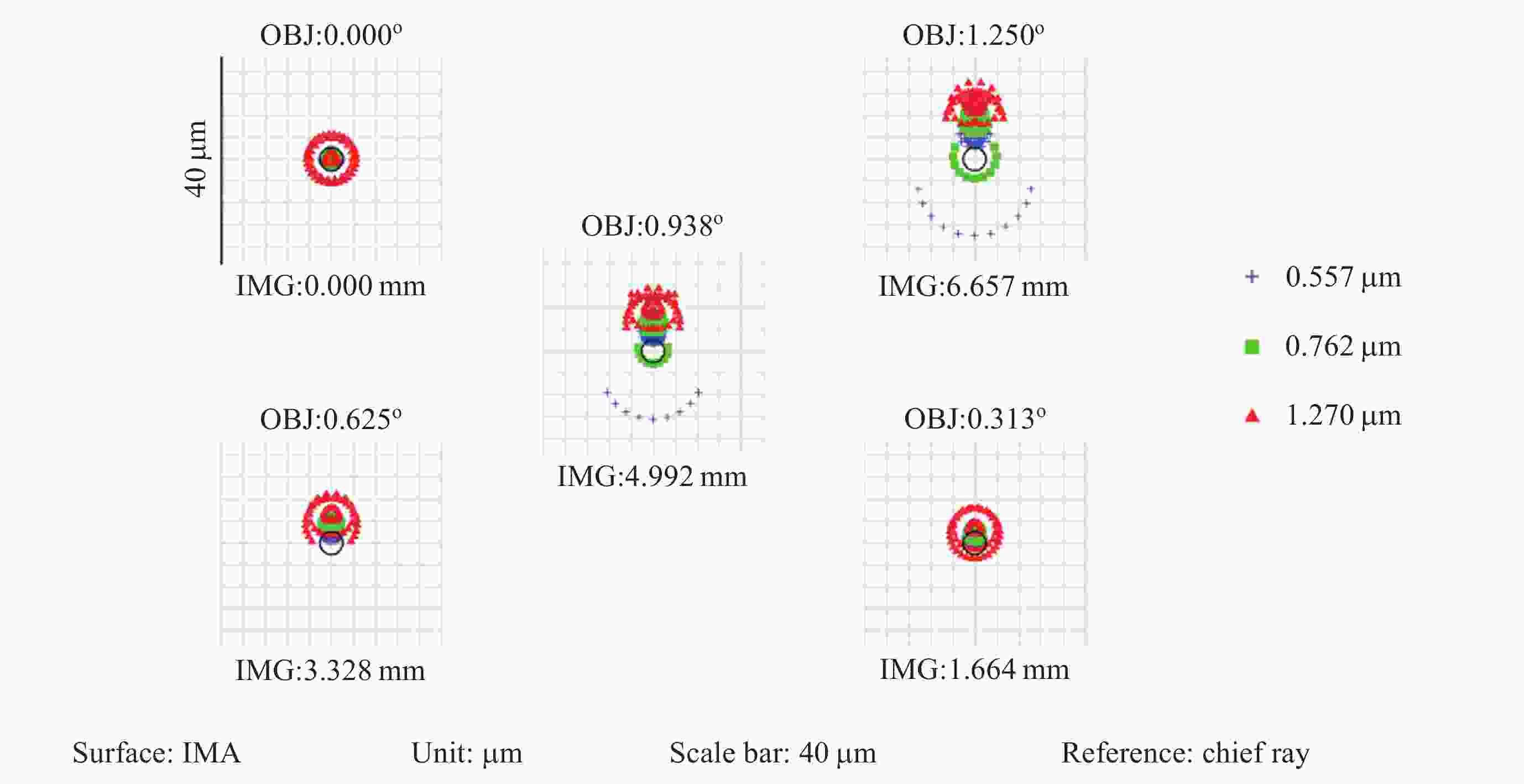

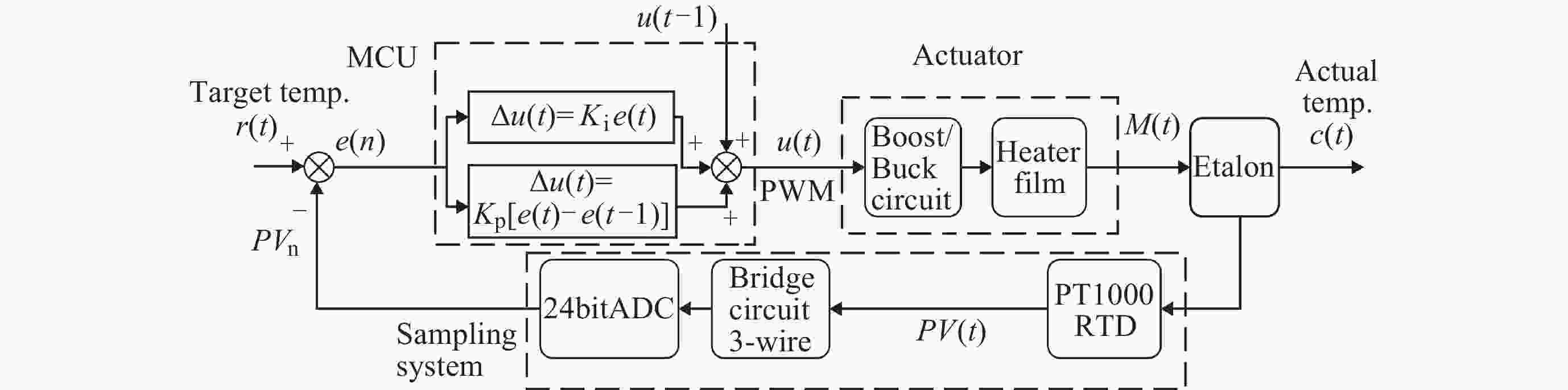

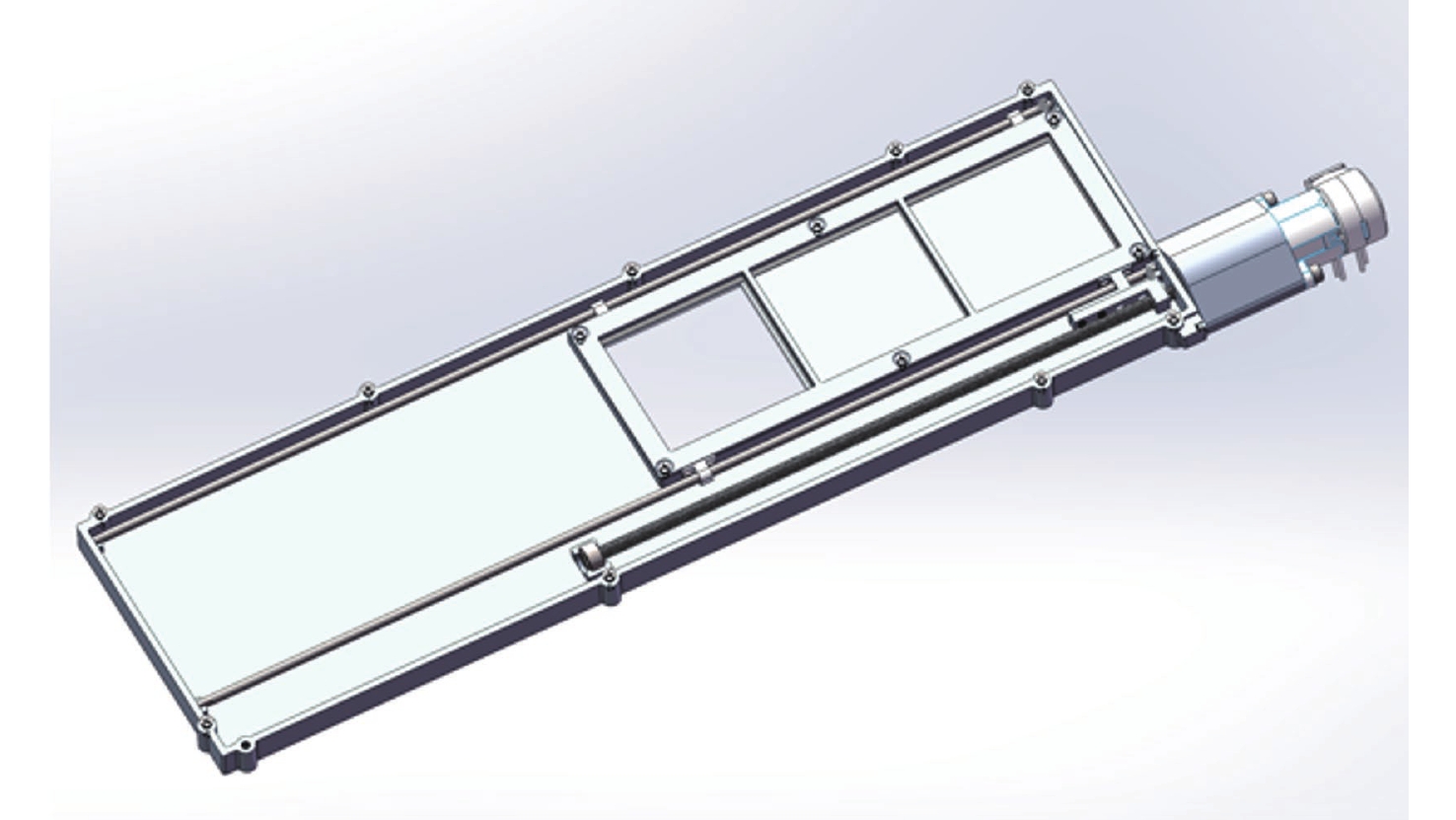

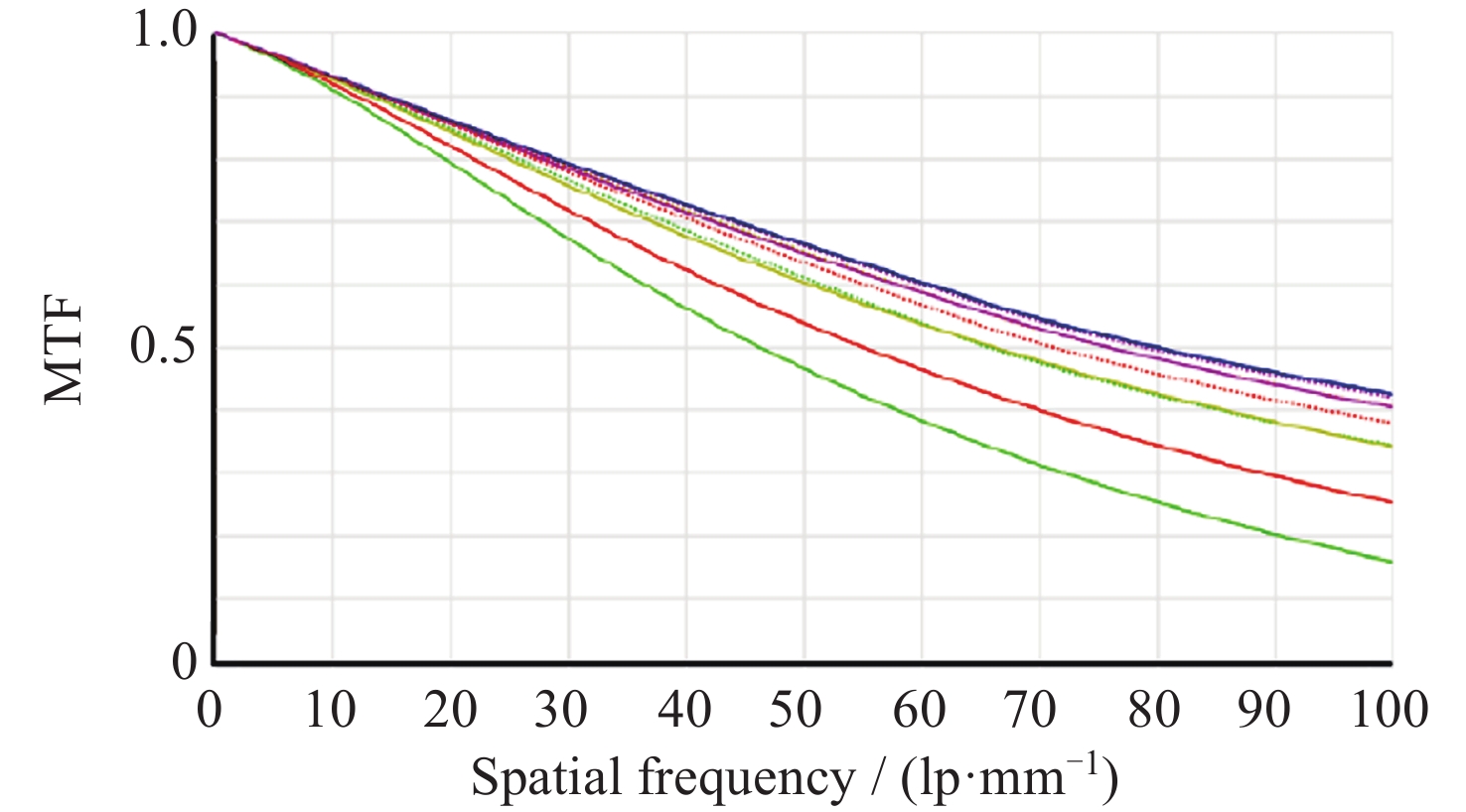

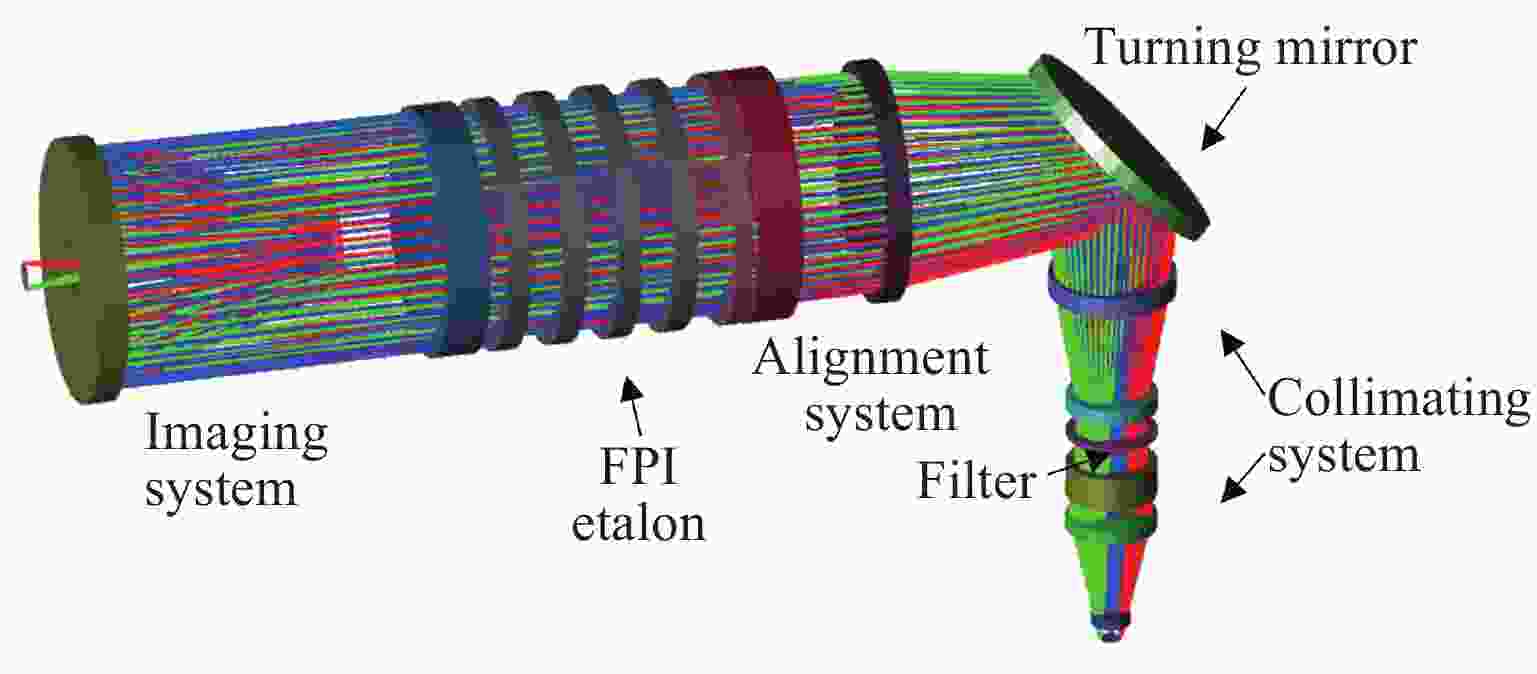

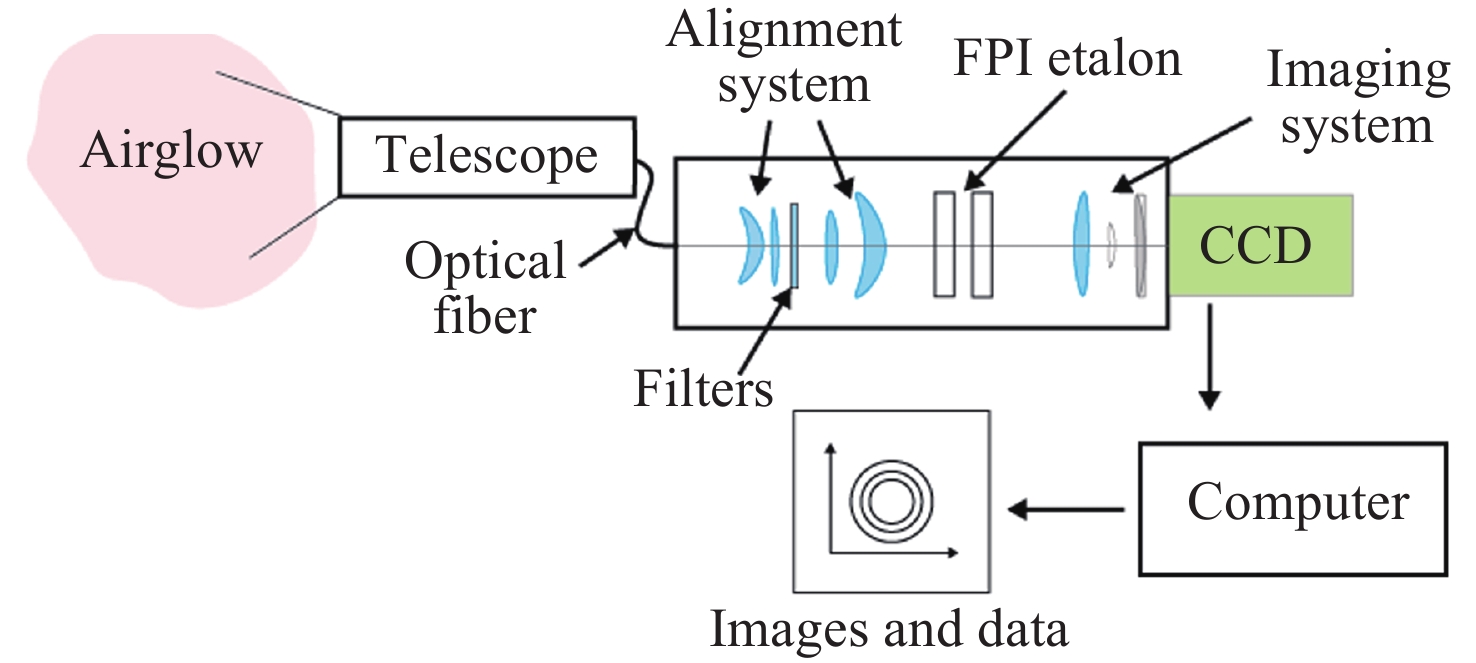

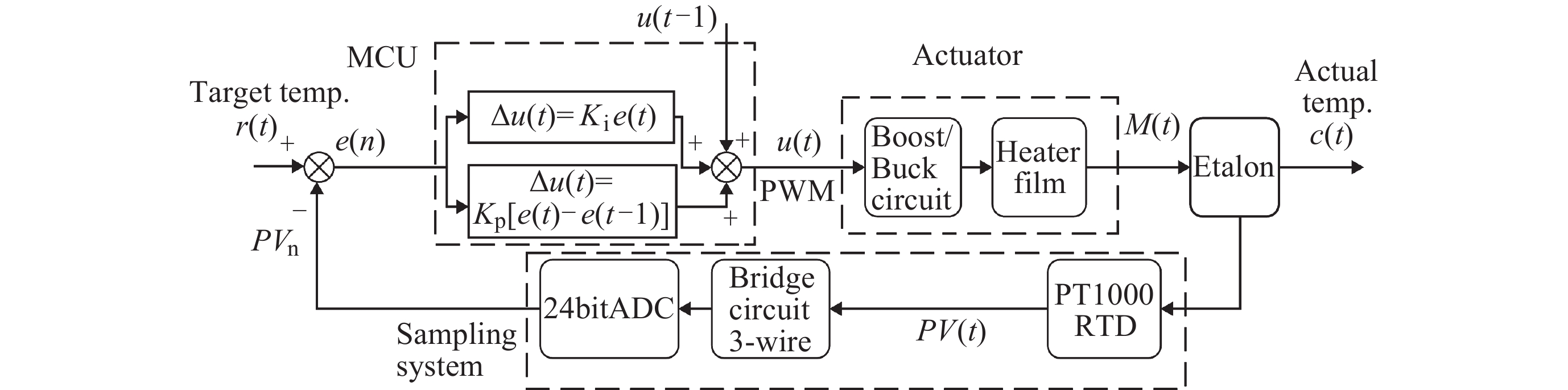

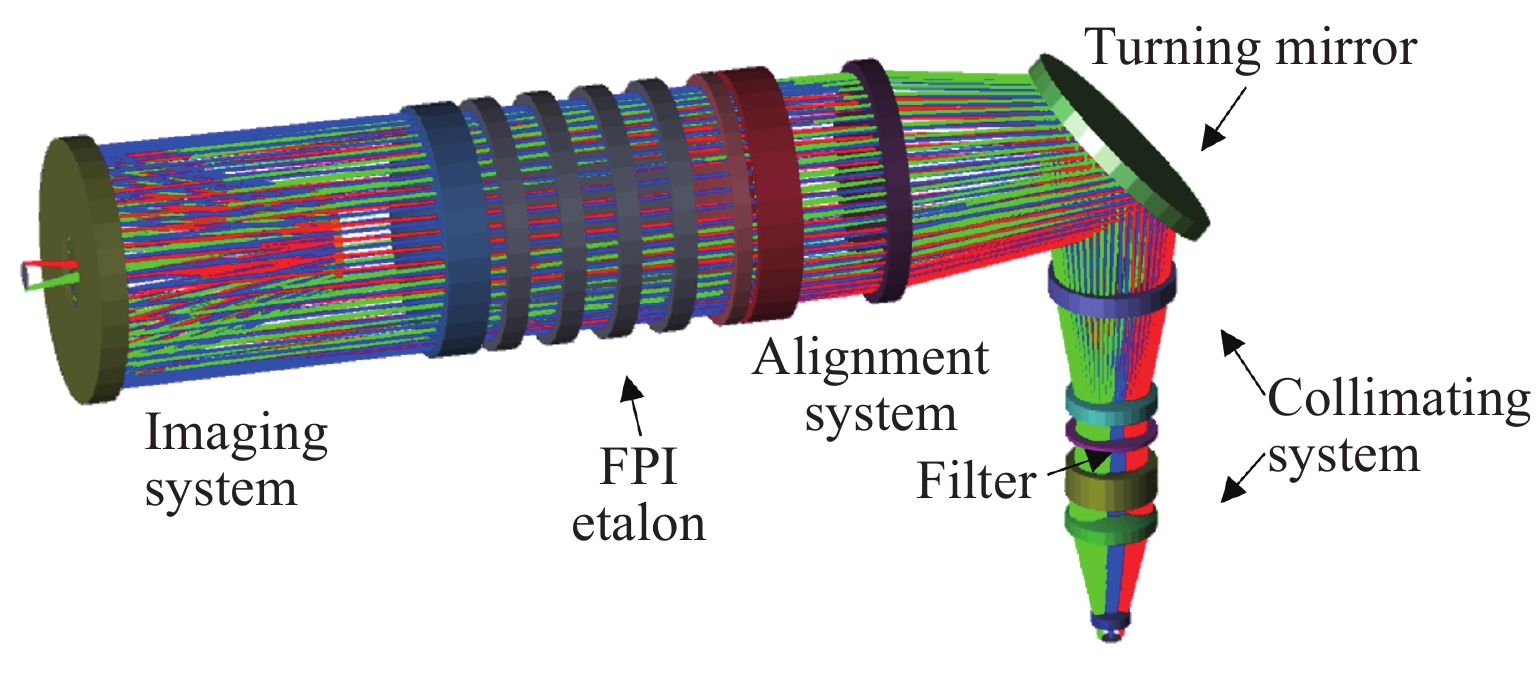

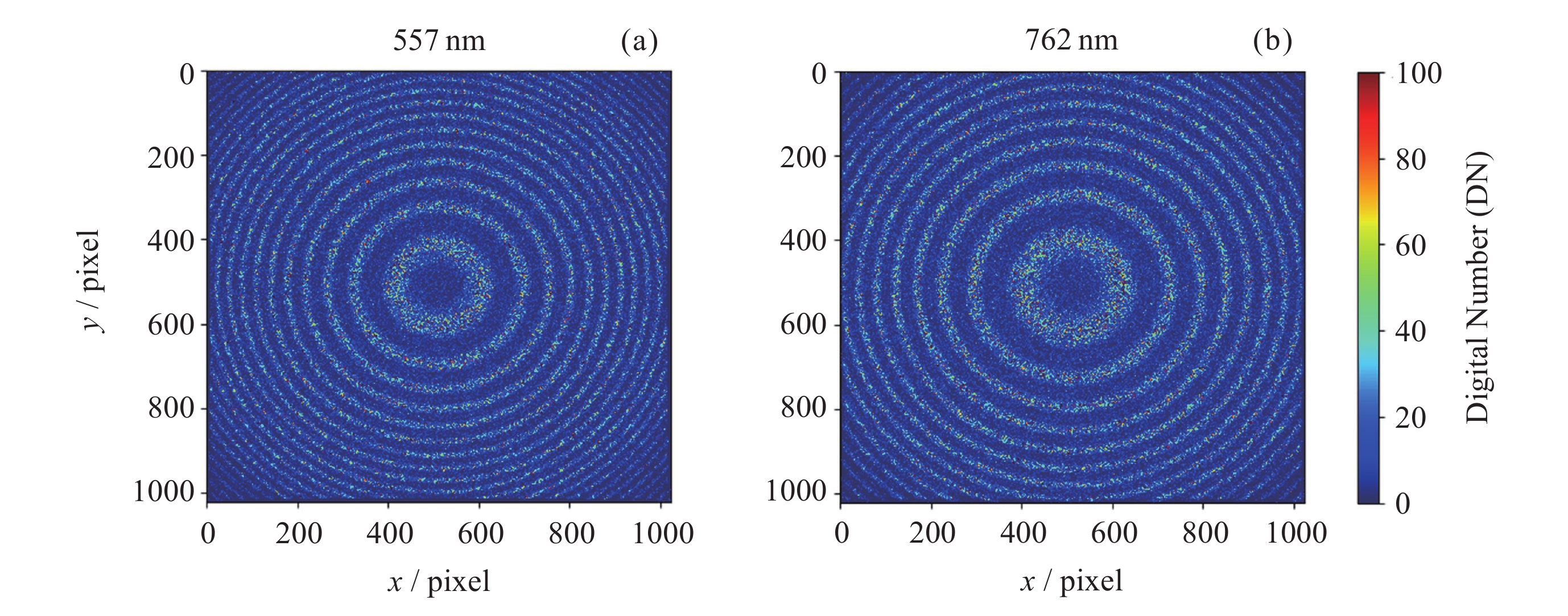

摘要: Fabry-Perot干涉仪(FPI)是较为重要、广泛应用的临近空间风场探测手段, 为弥补中国在天基FPI测风方面的空白, 中国科学院国家空间中心研发了一种星载FPI测风仪. 对此星载FPI测风仪的光学、结构与温控设计、光学仿真及结果进行分析. 根据宽波段的探测需求, 分析光学设计, 并对其成像系统进行像质评估. 基于光学仿真数据, 对星载FPI仪器进行风速反演与精度分析, 在557.7 nm和762.0 nm两个波段的风速误差分别为-1.722 m·s–1和-2.3672 m·s–1, 表明该星载仪器设计符合测风要求. 根据仪器的结构设计特点和成像部分温控方案, 提出一种平移式滤光片切换装置, 采用梯形螺杆加微型减速步进电机或微型直线电机驱动. 进而探讨了仪器核心组件标准具的控温精度与测风误差的关系, 采用了主被动相结合的设计, 降低温度变化对结果的影响, 并进行了仿真验证.
-
关键词:
- Fabry-Perot干涉仪(FPI) /
- 临近空间 /
- 风速反演 /
- 星载仪器
Abstract: Currently, there are relatively few spaceborne methods for detecting near-space atmospheric wind fields, and the Fabry–Perot Interferometer (FPI) is one of the more important and widely used detection techniques. To address the gap in China’s space-based FPI wind sensing capabilities, the National Space Science Center developed a spaceborne FPI wind interferometer. This paper mainly introduces this instrument’s optical design, structural design, thermal control design, optical simulation, and result analysis. First, the optical design is discussed based on the wideband detection requirements, and the imaging system’s image quality is evaluated. Then, based on optical simulation data, wind speed inversion and accuracy analysis of the spaceborne FPI instrument are conducted. The wind speed errors at the 557.7 nm and 762.0 nm bands are –1.722 m·s–1 and –2.3672 m·s–1, respectively, indicating that the spaceborne instrument design meets the wind measurement requirements. Then, the key points of the instrument's structural design and the thermal control solution for the imaging part are presented, along with a translational filter switching device driven by a trapezoidal lead screw and a micro gear stepping motor or micro linear motor. The paper also explores the relationship between the temperature control accuracy of the instrument’s core components (the etalon) and wind measurement errors. A combined active and passive design is adopted to minimize the impact of temperature fluctuations on the results, which is verified with simulation results. -

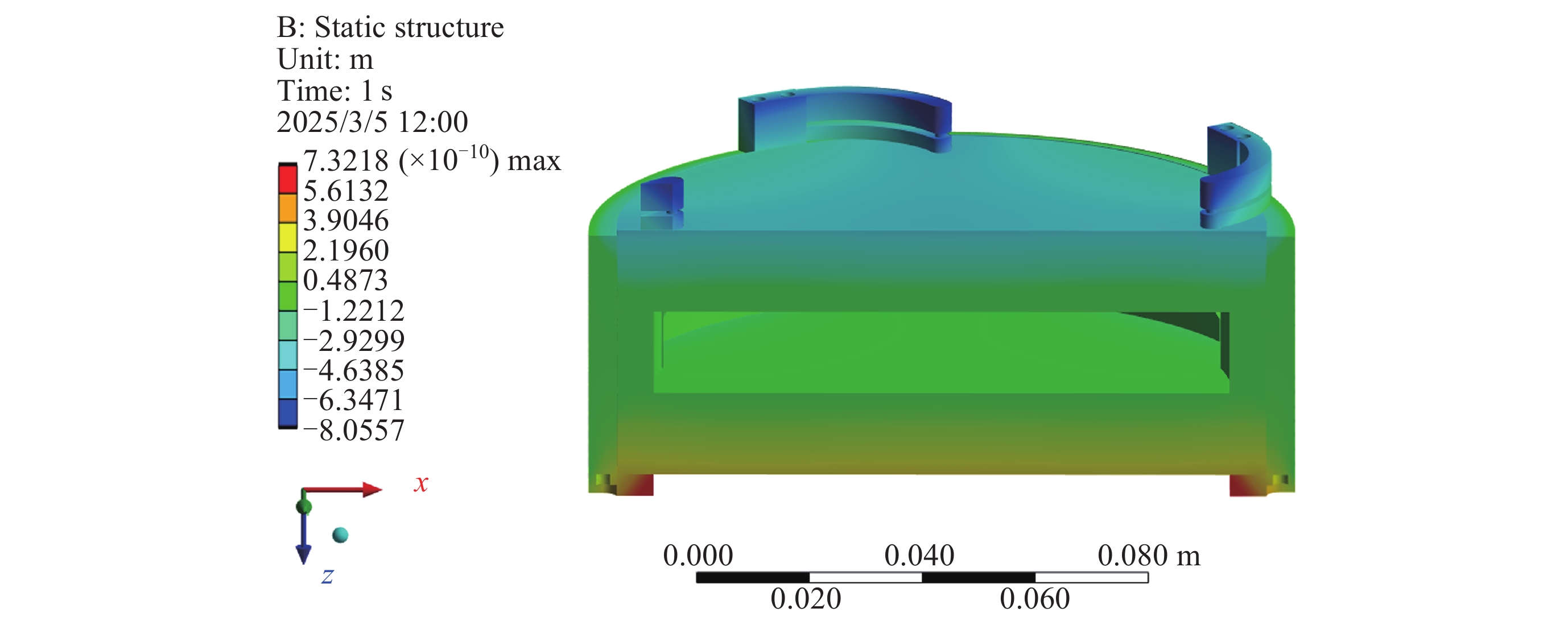

图 8 0.05 K 温度变化下的形变仿真结果
Figure 8. Deformation simulation results at 0.05 K temperature change
表 1 风速反演结果
Table 1. Wind speed inversion results
序号 波段λ/nm 风速真值v0/(m·s–1) 风速反演值v1/(m·s–1) 偏差Δv/(m·s–1) 1 557.7 50 48.2780 –1.722 2 762.0 40 37.6328 –2.3672
下载: 导出CSV
表 2 标准具相关材料物性
Table 2. Etalon related material properties
材料 密度ρ/(kg·m–3) 热膨胀率α/K–1 泊松比ν 弹性模量E/GPa 热导率λ /(W·m–1·K–1) 殷瓦32-5合金 8150 6.3×10–7 0.23 144 13.9 康宁熔石英玻璃 2200 5.2×10–7 0.16 73 1.38 ZERODUR玻璃 2530 7×10–9 0.24 90.3 1.46
下载: 导出CSV
表 3 标准具工作表面的位移值
Table 3. Displacement values for the etalon's work surface
位置 r =0 mm r=10 mm r=20 mm r=30 mm r=40 mm r=50 mm 前镜片工作表面位移/nm –0.0298 –0.0274 –0.0220 –0.0172 –0.0182 –0.0262 后镜片工作表面位移/nm –0.0273 –0.0344 –0.0344 –0.0385 –0.0369 –0.0273 腔长变化量Δd/nm –0.0025 0.0069 0.0124 0.0214 0.0187 0.0011
下载: 导出CSV
-
[1] WANG Houmao. Retrieval of Wind and Temperature for Middle and Upper Atmosphere Based on Full-Closed and Non-Full Circular Fringes of Fabry-Perot Interferometer (FPI)[D]. Beijing: University of China Academy of Science, 2017 [2] HAN Weihua. Processing of Fringe Image from Spaceborne Fabry-Perot Interferometer Prototype[D]. Beijing: Center for Space Science and Applied Research, Chinese Academy of Sciences, 2010 [3] WANG Daoqi, WANG Houmao, HE Weiwei, et al. Radiative Transfer Characteristics of the 1.27 μm O2(a1Δg) Airglow in Limb-Viewing[J]. Spectroscopy and Spectral Analysis, 2024, 44(4): 1088-1097 doi: 10.3964/j.issn.1000-0593(2024)04-1088-10 [4] WANG Daoqi, WANG Houmao, HU Xiangrui, et al. A new method for retrieving the near-space temperature profile based on the 1.27 μm O2 airglow[J]. Journal of Infrared and Millimeter Waves, 2024, 43(2): 215-225 doi: 10.11972/j.issn.1001-9014.2024.02.011 [5] SHIOKAWA K, KADOTA T, EJIRI M K, et al. Three-channel imaging Fabry-Perot interferometer for measurement of mid-latitude airglow[J]. Applied Optics, 2001, 40(24): 4286-4296 doi: 10.1364/AO.40.004286 [6] WANG Houmao, WANG Yongmei, WANG Yingjian. Data processing of the middle and upper atmospheric wind field retrieval based on the Fabry-Perot Interferometer[J]. Chinese Journal of Geophysics, 2013, 56(4): 1095-1101 doi: 10.6038/cjg20130405 [7] FENG Yutao, FU Di, ZHAO Zengliang, et al. An overview of spaceborne atmospheric wind field measurement with passive optical remote sensing[J]. Acta Optica Sinica, 2023, 43(6): 0601011 doi: 10.3788/AOS221462 [8] HAYS P B, ABREU V J, DOBBS M E, et al. The high-resolution Doppler imager on the upper Atmosphere Research Satellite[J]. Journal of Geophysical Research: Atmospheres, 1993, 98(D6): 10713-10723 doi: 10.1029/93JD00409 [9] HANG S P, SHEPHERD G G. On the response of the O(1S) dayglow emission rate to the Sun's energy input: an empirical model deduced from WINDII/UARS global measurements[J]. Journal of Geophysical Research: Space Physics, 2005, 110(A3): A03304 doi: 10.1029/2004ja010887 [10] SEWELL S, WU Q, ZMARZLY P, et al. WindCube: a CubeSat thermospheric wind instrument utilizing Fabry-Perot interferometry[C]//Small Satellite Conference. Logan: Utah State University, 2022: SSC22-WKIII-08 [11] YUAN W, XU J Y, MA R P, et al. First observation of mesospheric and thermospheric winds by a Fabry-Perot interferometer in China[J]. Chinese Science Bulletin, 2010, 55(35): 4046-4051 doi: 10.1007/s11434-010-4192-2 [12] YANG C J, ZHAO B Q, JIN Y Y, et al. Climatology of Nighttime Upper Thermospheric Winds From Fabry-Perot Interferometer 2011-2019 Measurements Over Kelan (38.7°N, 111.6°E), China: Local Time, Seasonal, Solar Cycle, and Geomagnetic Activity Dependence[J]. Journal of Geophysical Research: Space Physics, 2020, 125(9): e2020JA027892 doi: 10.1029/2020JA027892 [13] 王后茂, 王咏梅, 付建国, 等. 一种用于测量高层大气风场的新型地基Fabry-Perot干涉仪[J]. 空间科学学报, 2016, 36(3): 352-357 doi: 10.11728/cjss2016.03.352WANG Houmao, WANG Yongmei, FU Jianguo, ZHANG Zhongmou. A new ground-based Fabry-Perot interferometer for measurement of the thermospheric wind[J]. Chinese Journal of Space Science, 2016, 36(3): 352-357 doi: 10.11728/cjss2016.03.352 [14] QIN Minghui, ZHANG Yange, AI Yong. Response of lower thermospheric neutral wind at Yellow River Station in Arctic to auroral substorm[J]. Chinese Journal of Polar Research, 2019, 31(2): 191-197 doi: 10.13679/j.jdyj.20180053 [15] HU Guoyuan, AI Yong, ZHANG Yange, et al. Thermospheric wind observation by a scanning Fabry-Perot interferometer during MERINO campaign[J]. Chinese Journal of Geophysics, 2014, 57(11): 3688-3694 doi: 10.6038/cjg2014112 [16] ZHANG Yange, AI Yong, He Pingan, et al. A FPI (fabry-perot interferometer) design method[P]. CN: 102749476A. 2012-10-24 [17] WANG Shang, ZHANG Xingxiang, ZHU Junqing. Design and analysis of all aluminum alloy optical mechanical structure of space cameras[J]. Infrared Technology, 2022, 44(4): 364-370 [18] LÜ Zuokun, QI Jun, LI Yan, et al. Design and implementation of efficient temperature control algorithm for Fabry-Perot etalon of spaceborne lidar[J]. Journal of Applied Optics, 2018, 39(1): 130-134 doi: 10.5768/JAO201839.0107003 [19] SHANGGUAN Mingjia, XIA Haiyun, SHU Zhifeng, et al. Scanning F-P etalon based high spectral resolution lidar for low-stratosphere temperature measurement[J]. High Power Laser and Particle Beams, 2014, 26(12): 121003 doi: 10.11884/HPLPB201426.121003 [20] ENGLERT C R, HARLANDER J M, BROWN C M, et al. Michelson interferometer for global high-resolution thermospheric imaging (MIGHTI): instrument design and calibration[J]. Space Science Reviews, 2017, 212(1): 553-584 [21] ZHANG Wei. Research on Pulse Frequency-locking Method of Doppler Lidar Based on Fabry-Perot Etalon[D]. Xi'an: Xi'an University of Technology, 2013 [22] KRAINAK M A, STEPHEN M A, MARTINO A J, et al. Tunable solid-etalon filter for the ICESat/GLAS 532 nm channel lidar receiver[C]//2003 IEEE International Geoscience and Remote Sensing Symposium (IGARSS). Toulouse: IEEE, 2003, 5: 3020-3022. DOI: 10.1109/IGARSS.2003. 1294667 [23] ZHAO R J, ZHAO Y K, QIN M, et al. Influence of process parameters on properties of Super Invar alloy fabricated by laser powder bed fusion for semiconductor equipment[J]. Additive Manufacturing, 2024, 92: 104404 doi: 10.1016/j.addma.2024.104404 [24] SUN Jian, FENG Yutao, BAI Qinglan, et al. Design of thermal stable Fabry-Perot etalon for wind measurement[J]. Optics and Precision Engineering, 2013, 21(5): 1167-1173 doi: 10.3788/OPE.20132105.1167 [25] 汪巧云, 毛邦宁, 裘燕青, 等. F-P光纤标准具高精度温控系统设计与算法研究[J]. 光电子·激光, 2020, 31(7): 682-687 doi: 10.16136/j.joel.2020.07.0082WANG Qiaoyun, MAO Bangning, QIU Yanqing, et al. The design of a thermostatic structure for fiber F-P etalons and the temperature control algorith[J]. Journal of Optoelectronics·Laser, 2020, 31(7): 682-687 doi: 10.16136/j.joel.2020.07.0082 -
-
