某舱外载荷设备热控设计及验证

齐晓巧; 朱清淋; 杨雷; 乔志宏

doi:10.11728/cjss2026.02.2025-0050

某舱外载荷设备热控设计及验证

doi: 10.11728/cjss2026.02.2025-0050 cstr: 32142.14.cjss.2025-0050

1.
北华航天工业学院机电工程学院　廊坊　065000
2.
中国科学院空间应用工程与技术中心　北京　100094
3.
北京中科宇航技术有限公司创新中心　北京　100176

基金项目: 中国载人航天工程空间站载荷研制项目(T0182411PN), 博士科研启动基金项目(BKY-2022-11)和廊坊市科技支撑计划项目(2022011018,2022011024)共同资助

详细信息

通讯作者:

齐晓巧　女, 1987年10月出生于河北省保定市, 现为北华航天工业学院机电工程学院讲师, 硕士导师, 主要研究方向为机械设计理论研究、结构热控设计、减振降噪研究等. E-mail: qixiaoqiao315@163.com

中图分类号: V524
计量
- 文章访问数: 161
- HTML全文浏览量: 29
- PDF下载量: 25
- 被引次数:
  0(来源:Crossref)

  0(来源:其他)
出版历程
- 收稿日期: 2025-04-03
- 修回日期: 2026-01-12
- 网络出版日期: 2026-01-13

Thermal Control Design and Verification of Extravehicular Load Equipment

1.
School of Mechanical and Electrical Engineering, North China Institute of Aerospace Engineering, Langfang 065000
2.
Institute of Space Application Engineering and Technology, Chinese Academy of Sciences, Beijing 100094
3.
InnovCenter, Beijing Zhongke Aerospace Technology Co., Ltd., Beijing 100176

摘要

摘要: 为了解决某舱外载荷设备在轨运行时因温度波动导致频率稳定性和传递精度下降的问题, 提出一套以被动热控为主、主动热控为辅的高效热控方案. 方案采用单相液冷冷板作为主散热面, 10单元多层隔热组件进行全方位包覆, 并利用高导热材料实现高效热传导; 同时辅以加热片与TEC半导体陶瓷片进行精确控温. 通过有限元仿真分析高低温工况下的温度分布并进行优化设计, 将关键部件温度变化控制在±0.5 K以内. 地面常温热平衡实验和在轨数据结果表明, 该方案有效抑制了温度波动对载荷设备的干扰, 显著提升了设备整体温度均匀性, 使光电二极管等敏感器件工作于最佳温度范围(25～50℃), 舱外载荷温度敏感器件温度变化速率优于0.1 K·min^–1, 满足了高精度时频传输系统的在轨稳定性要求, 可为同类航天载荷设备热控设计提供重要参考.
- 舱外 /
- 载荷设备 /
- 热控设计 /
- 有限元 /
- 热平衡实验
Abstract: In order to solve the problem of frequency stability and transmission accuracy decrease caused by temperature fluctuation during on-orbit operation of an extravehicular load equipment, a highly efficient thermal control scheme is proposed which bases on passive thermal control as the main approach and active thermal control as the auxiliary method . The scheme employs a single-phase liquid cold plate as the main heat dissipation surface, and 10-unit multi-layer insulation components for comprehensive encapsulation. High thermal conductivity materials are utilized to achieve efficient heat conduction. Simultaneously, heating sheets and TEC semiconductor ceramic sheets are used for precise temperature control. Through finite element simulation analysis of temperature distribution under both high and low temperature conditions and optimization design, the temperature variation of key components is controlled within ±0.5 K. The ground constant-temperature thermal balance experiment and the in-orbit data results indicate that this scheme effectively suppresses the interference of temperature fluctuations on the load equipment, significantly improves the overall temperature uniformity of the equipment. It enables photodiodes and other sensitive devices to operate within the optimal temperature range (25-50°C). The temperature change rate of temperature-sensitive devices on the extravehicular load equipment is better than 0.1 K·min^–1, meeting the on-orbit stability requirements of high-precision time-frequency transmission systems. It can provide an important reference for the thermal control design of similar space load equipment.
- Extravehicular /
- Load equipment /
- Thermal control design /
- Finite element /
- Thermal vacuum experiment

HTML全文

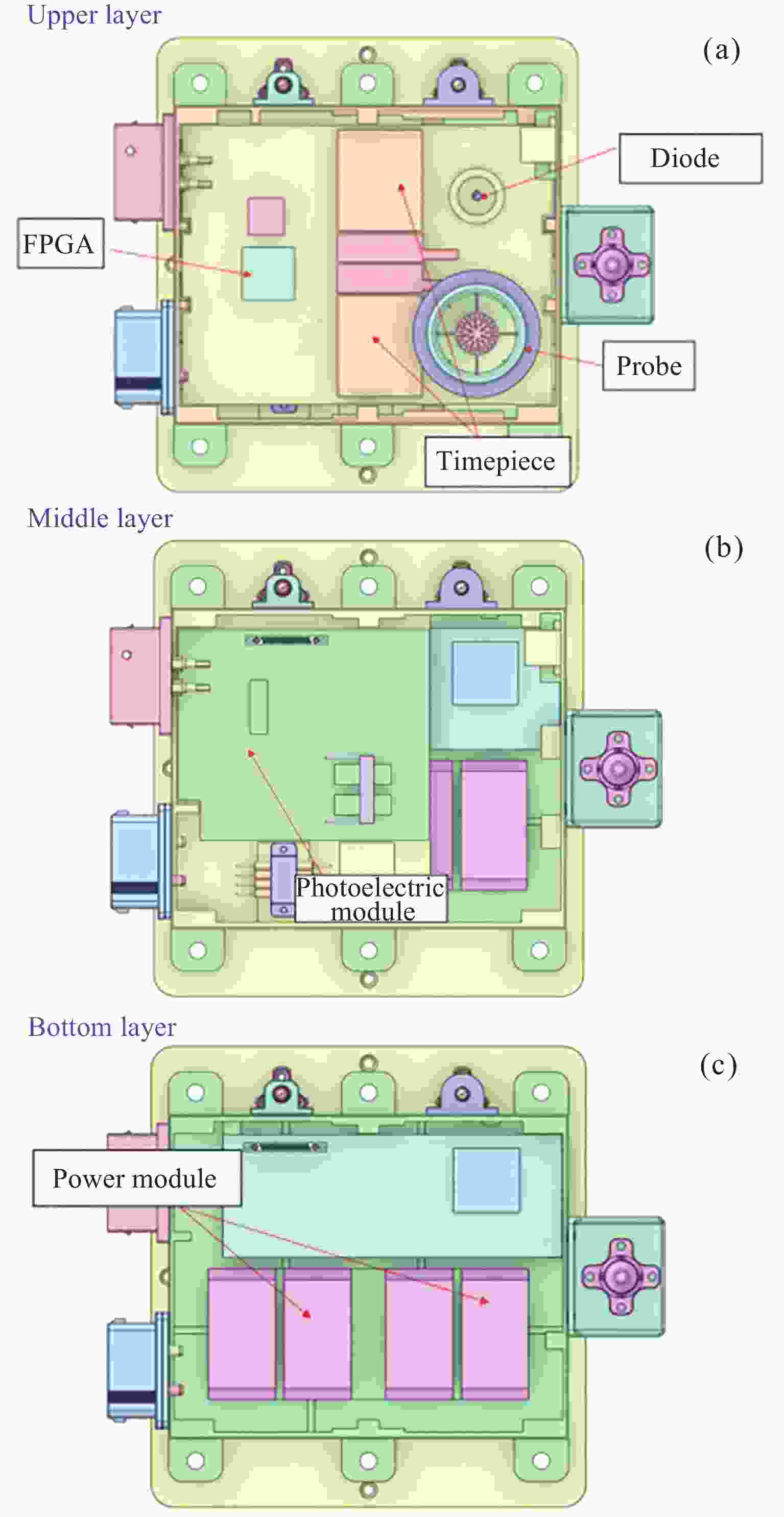

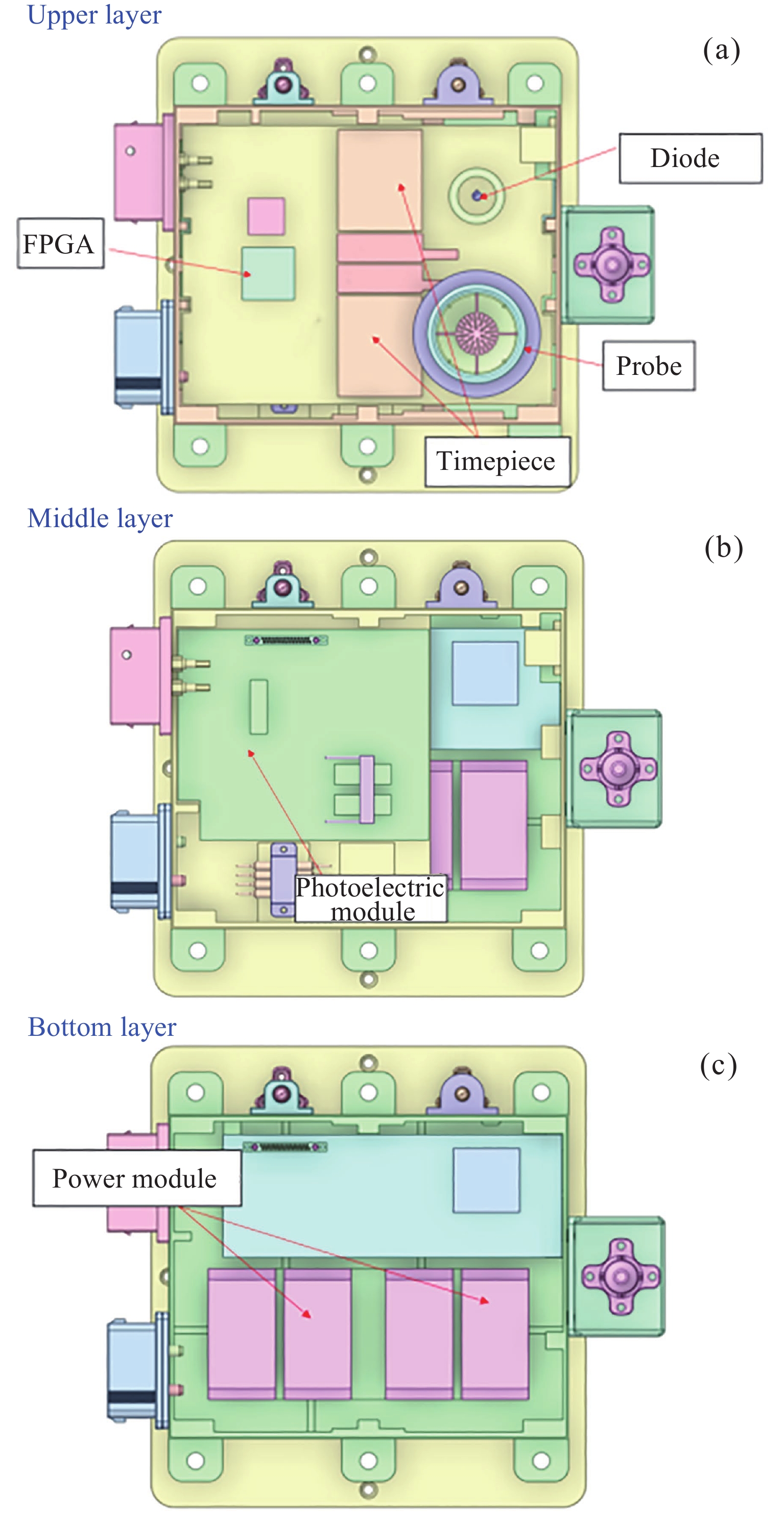

图 1 各器件在设备结构中的布局位置

Figure 1. Layout of each device in the structure

下载: 全尺寸图片幻灯片

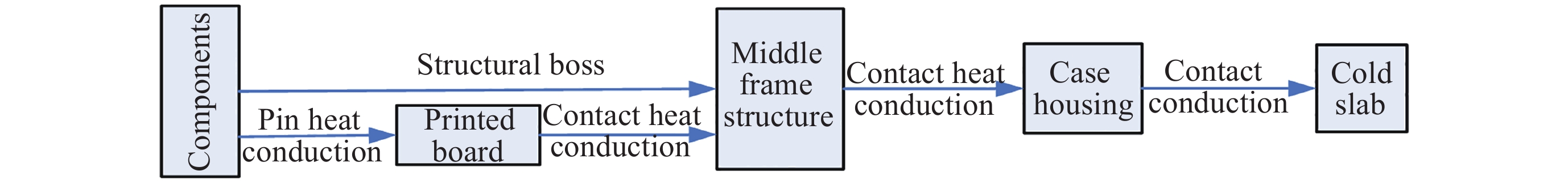

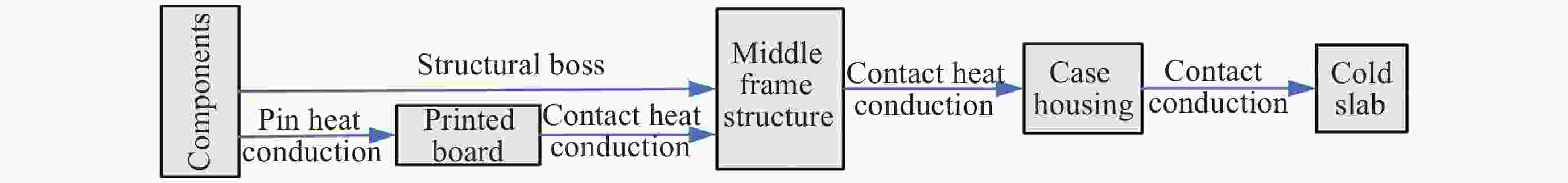

图 2 器件散热途径

Figure 2. Heat dissipation channels of the device

下载: 全尺寸图片幻灯片

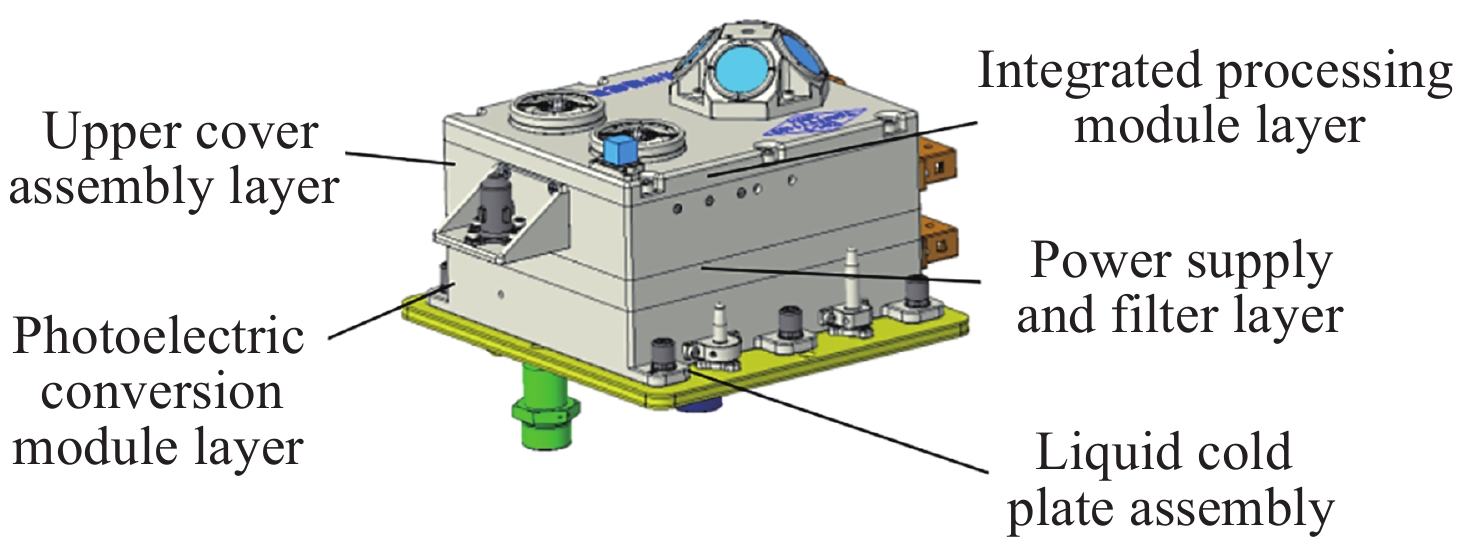

图 3 结构布局设计的整体情况

Figure 3. Overall situation of structural layout design

下载: 全尺寸图片幻灯片

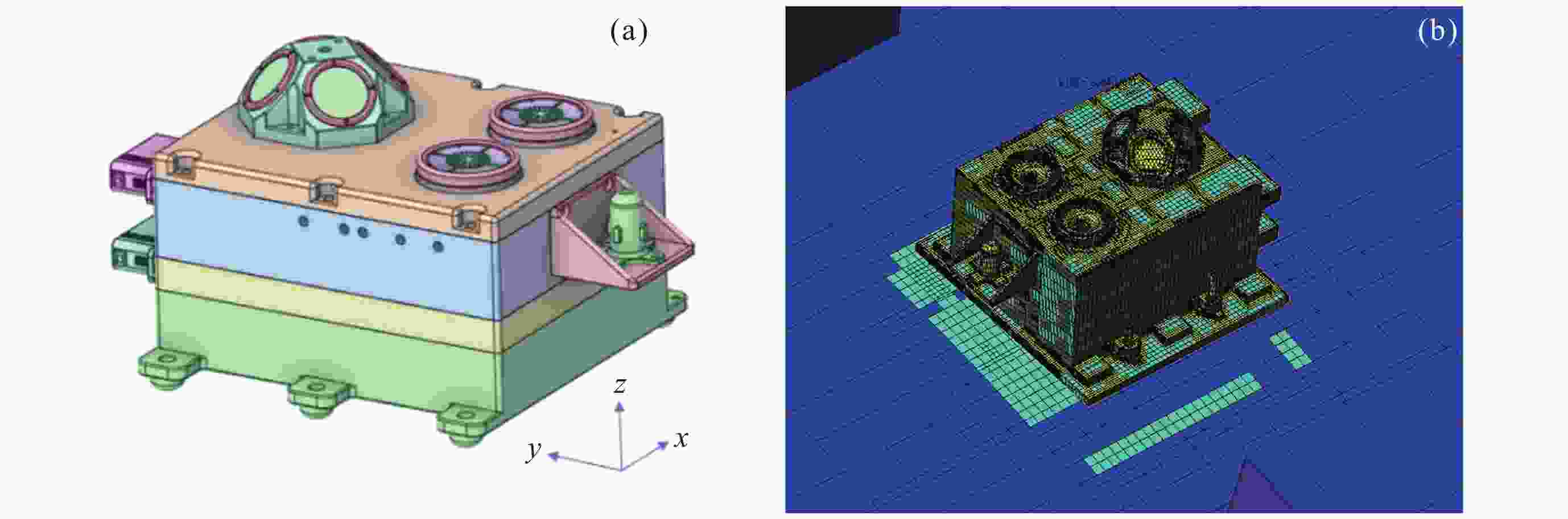

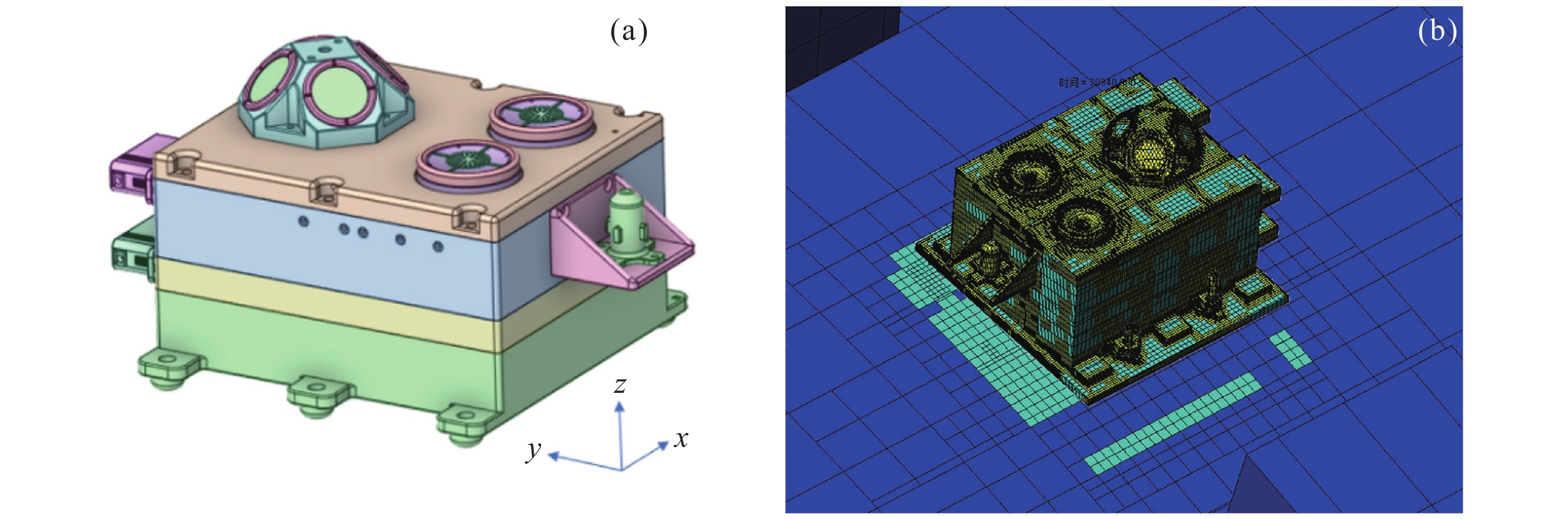

图 4 飞行姿态及热模型

Figure 4. Flight attitude and thermal model

下载: 全尺寸图片幻灯片

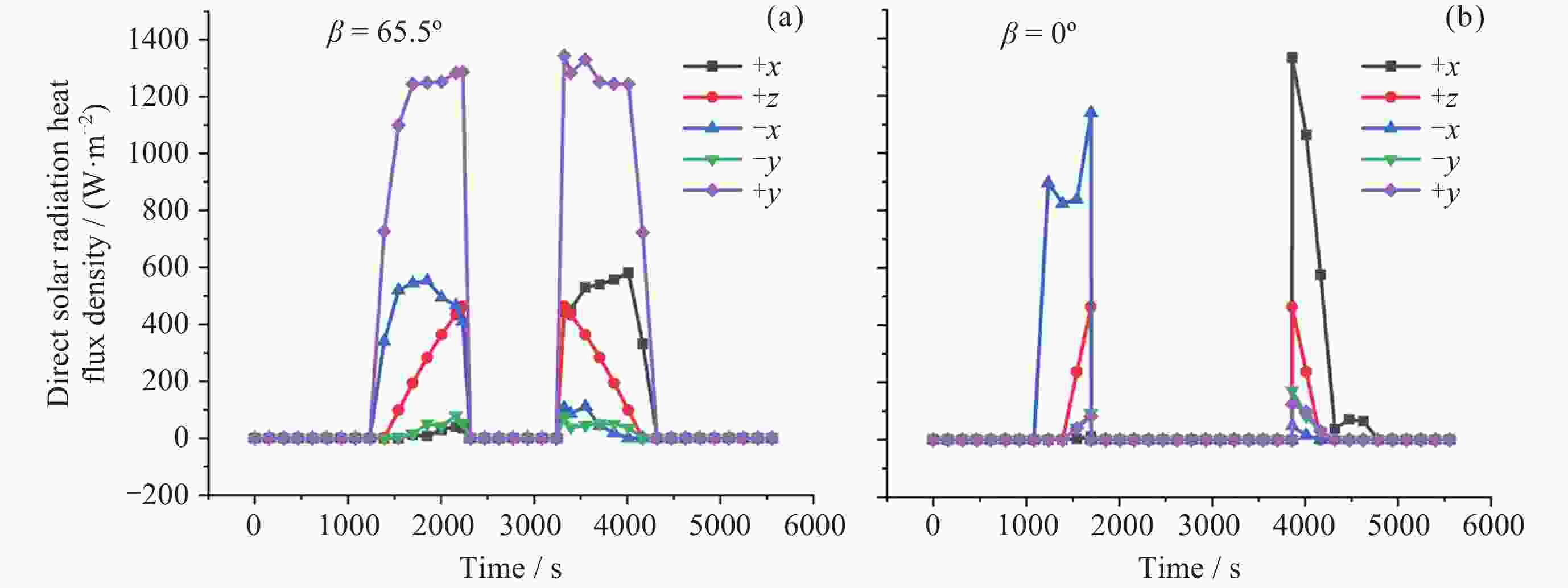

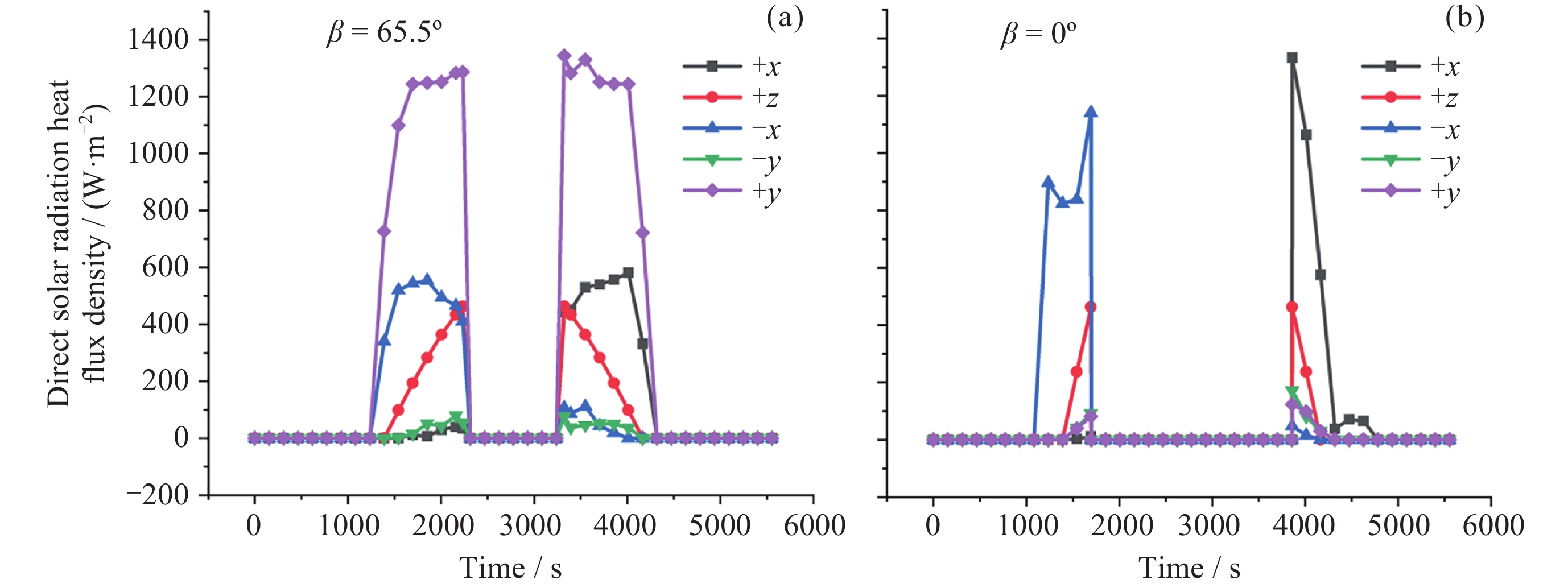

图 5 β角为65.5°和0°时各朝向面到达太阳直射的辐射强度

Figure 5. Intensity of direct solar radiation reaching each orientation plane at β angles of 65.5° and 0°

下载: 全尺寸图片幻灯片

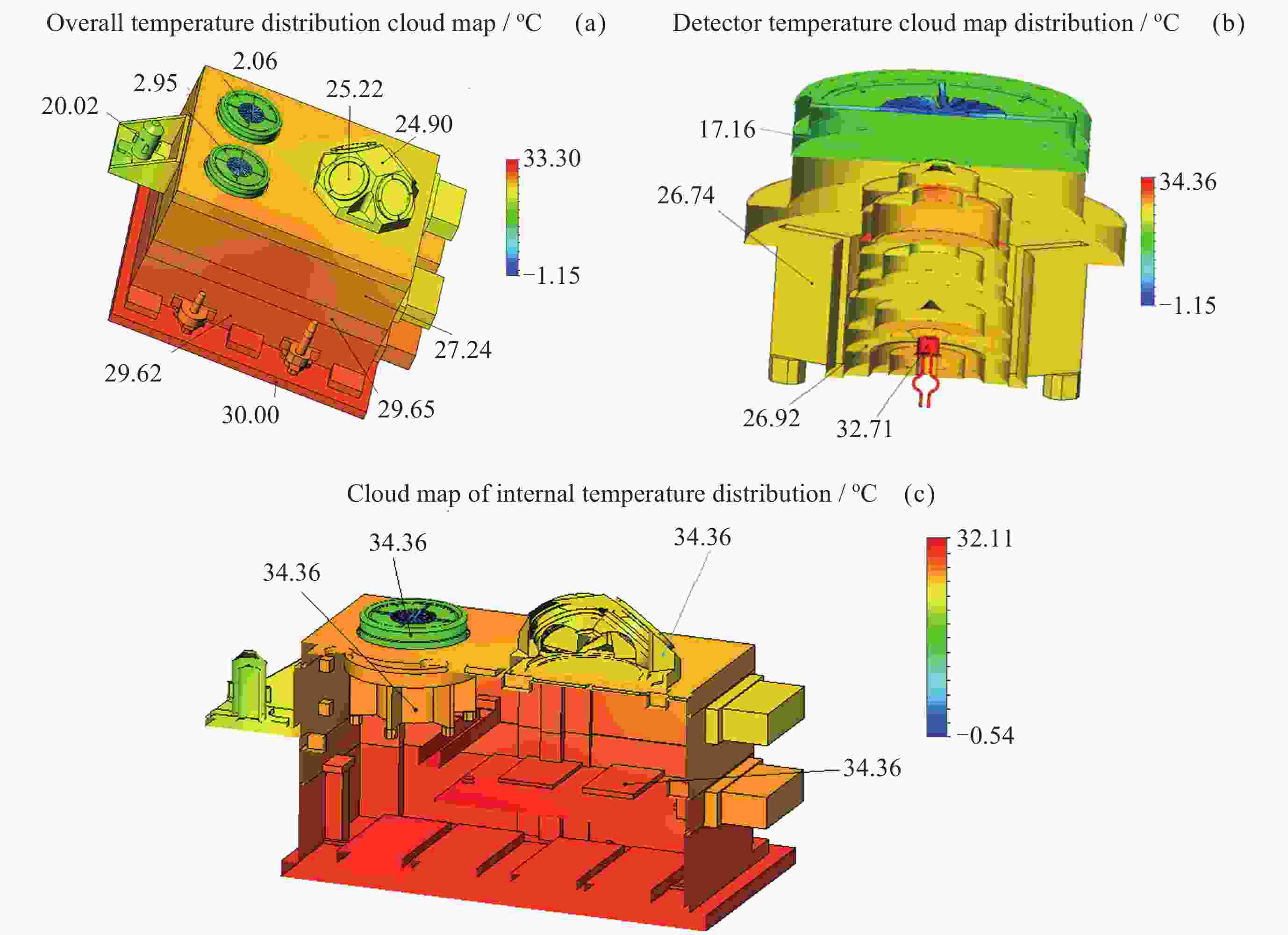

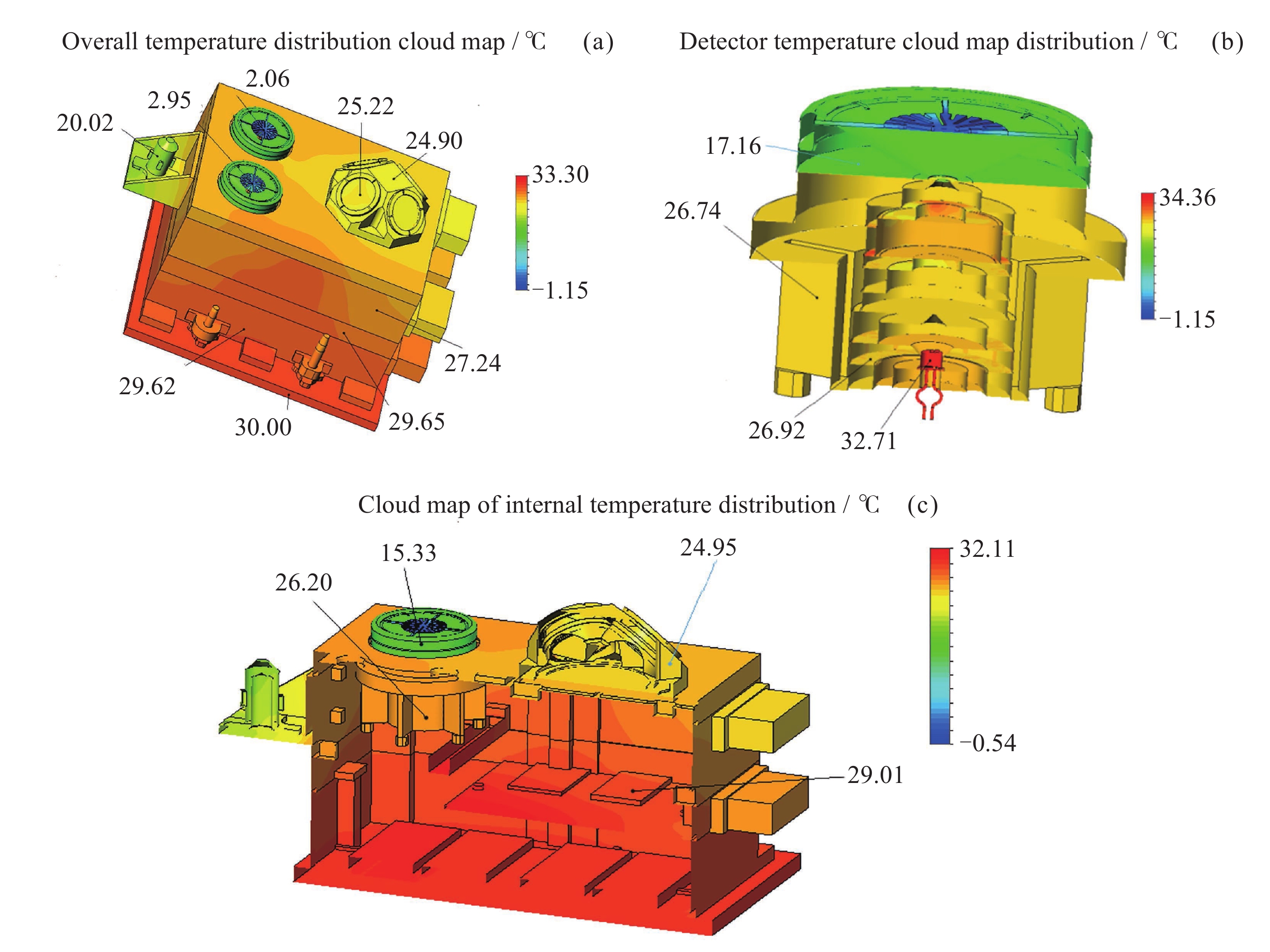

图 6 高温工况下温度分布情况

Figure 6. Temperature distribution under high temperature conditions.

下载: 全尺寸图片幻灯片

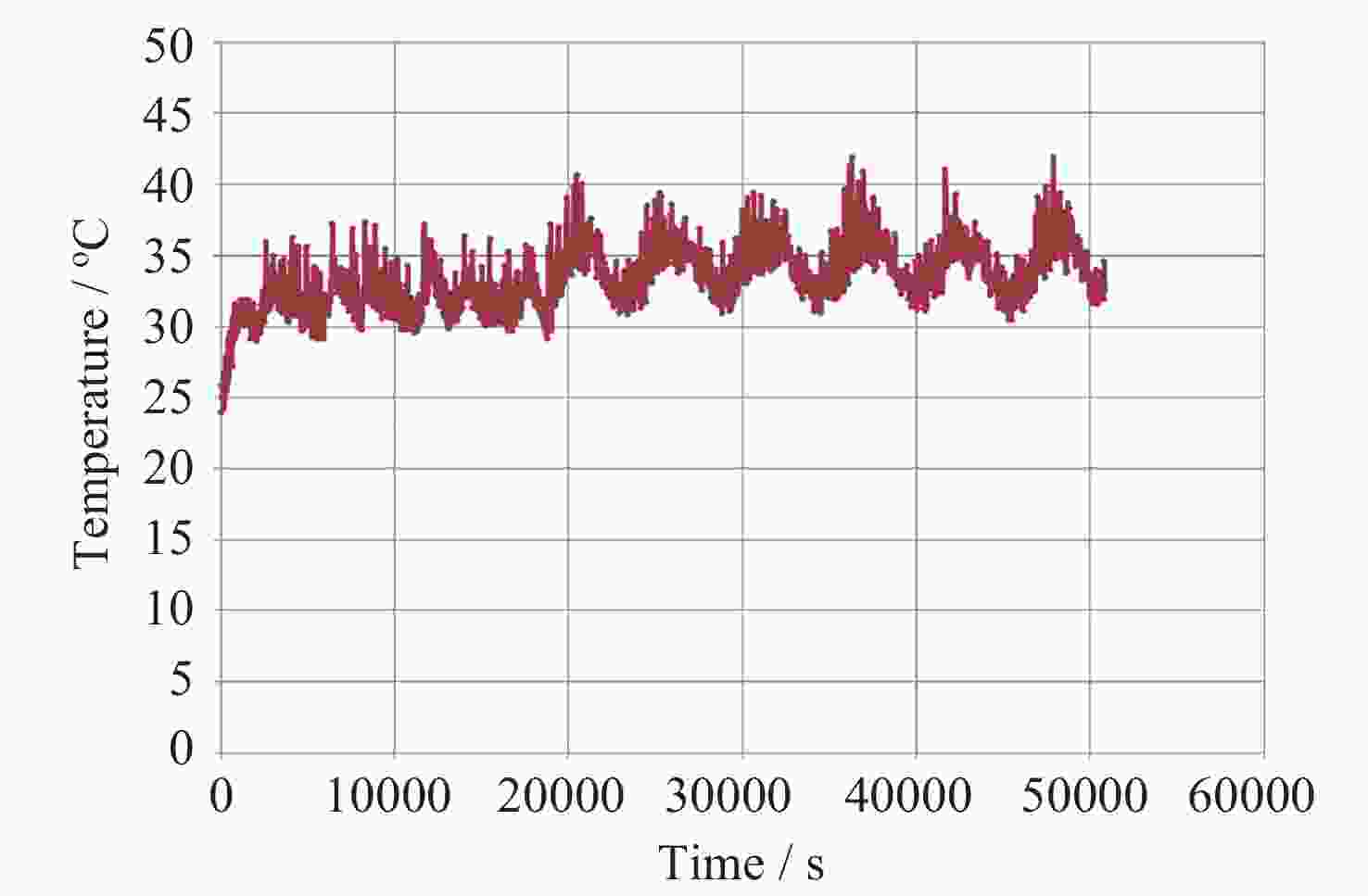

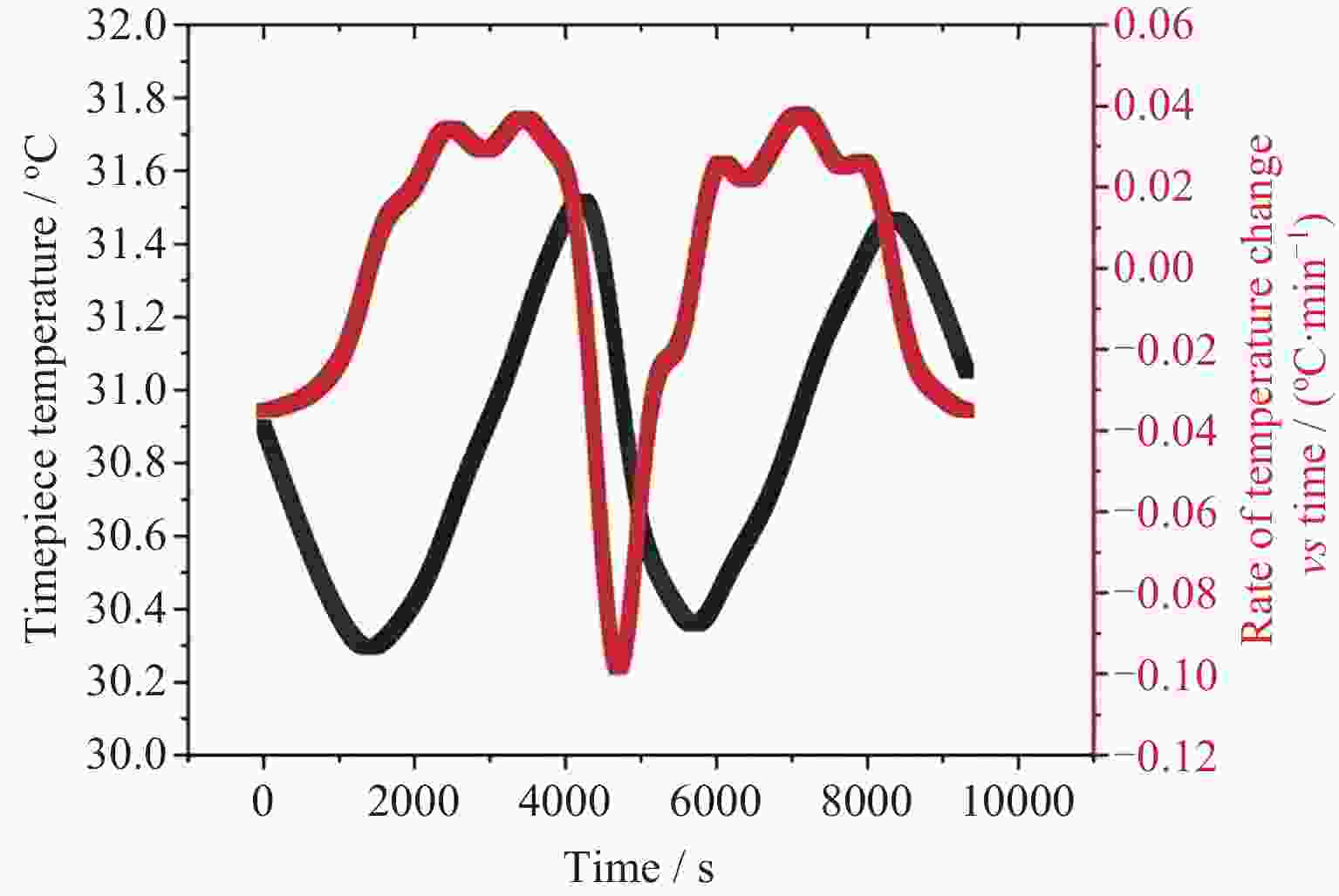

图 7 高温工况下光电二极管温度随时间的变化曲线

Figure 7. Photodiode temperature curve with time under high temperature condition

下载: 全尺寸图片幻灯片

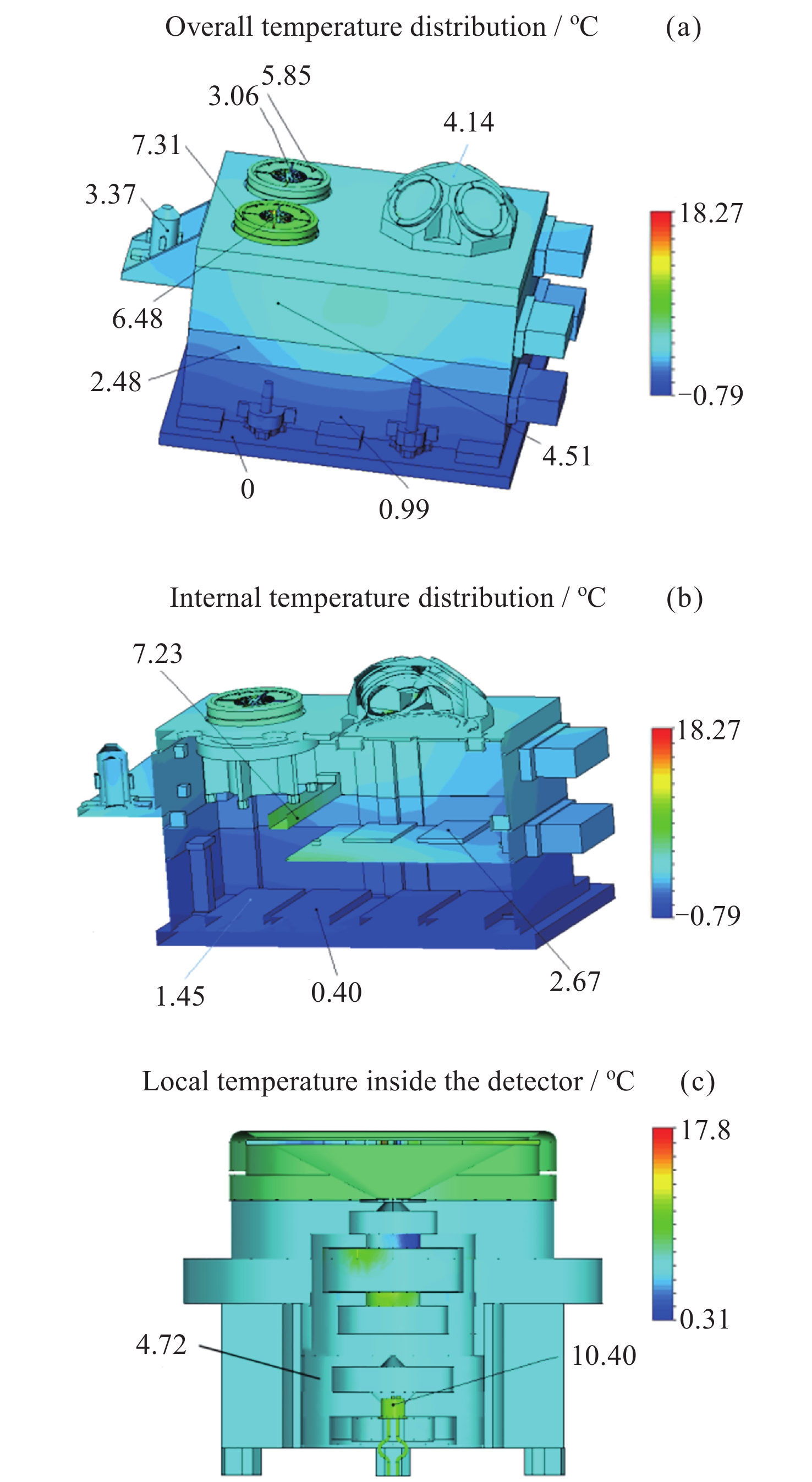

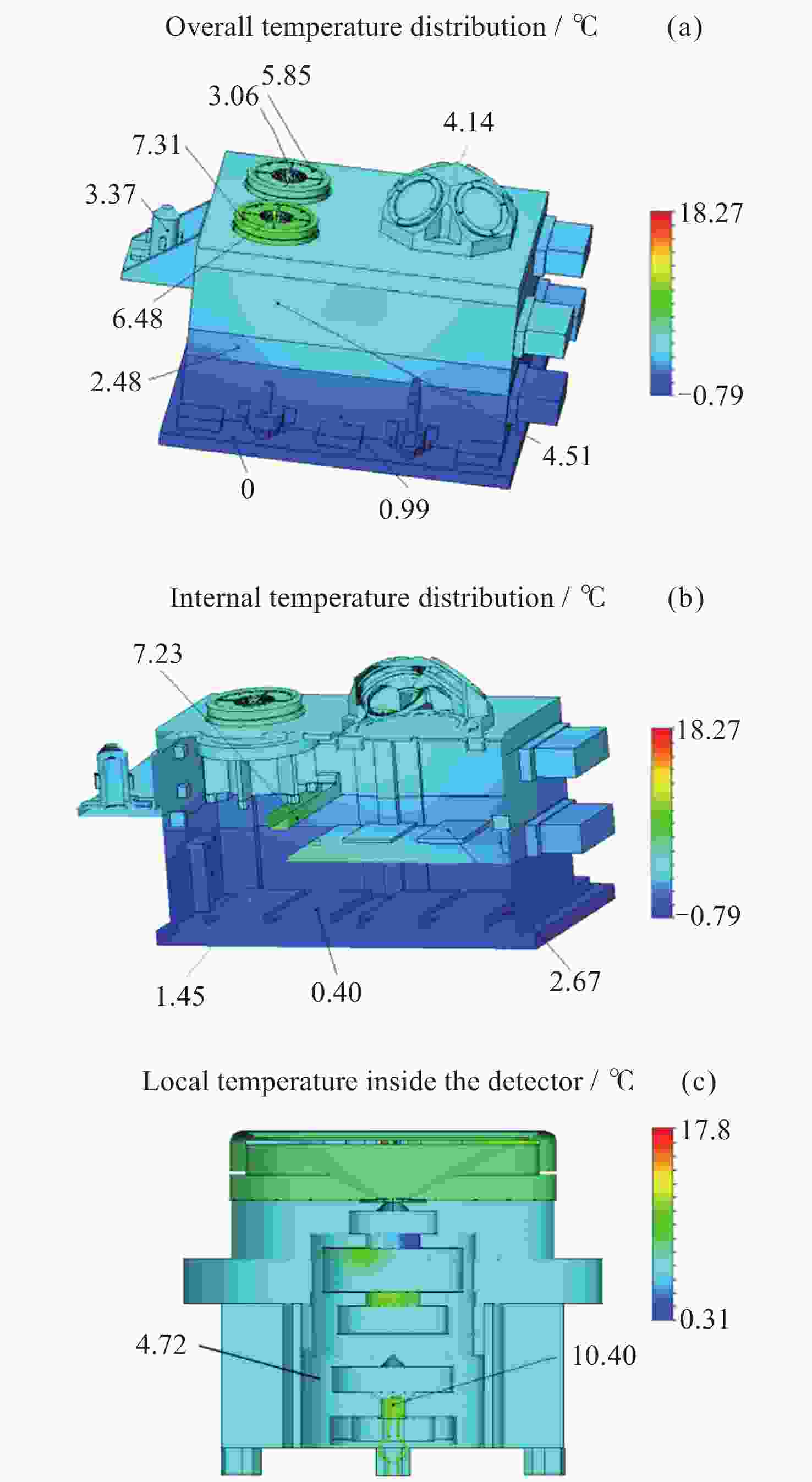

图 8 低温工况下温度分布情况.

Figure 8. Temperature distribution under low temperature conditions.

下载: 全尺寸图片幻灯片

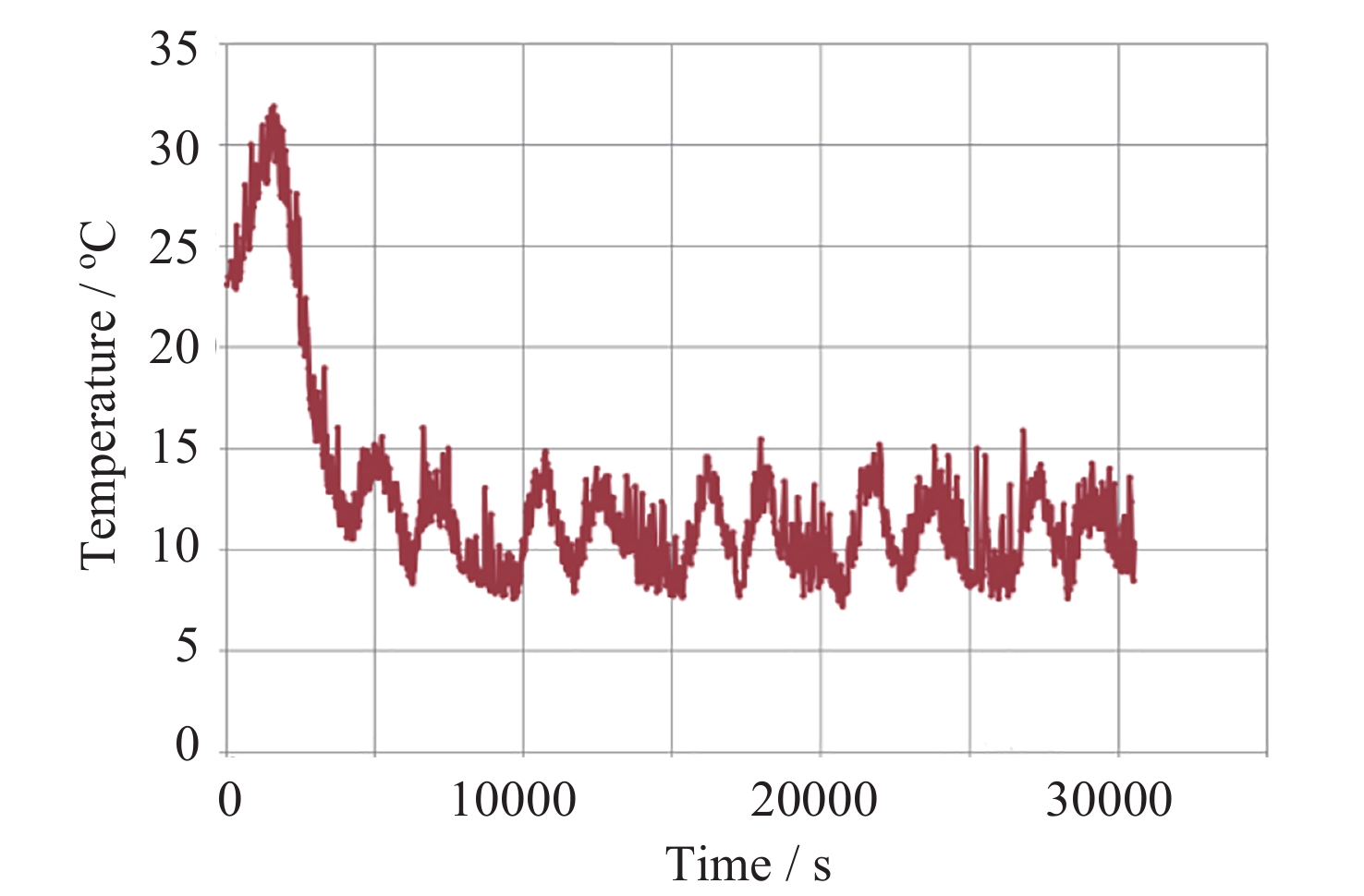

图 9 低温工况二极管温度随时间变化曲线

Figure 9. Curve of diode temperature with time in low temperature condition

下载: 全尺寸图片幻灯片

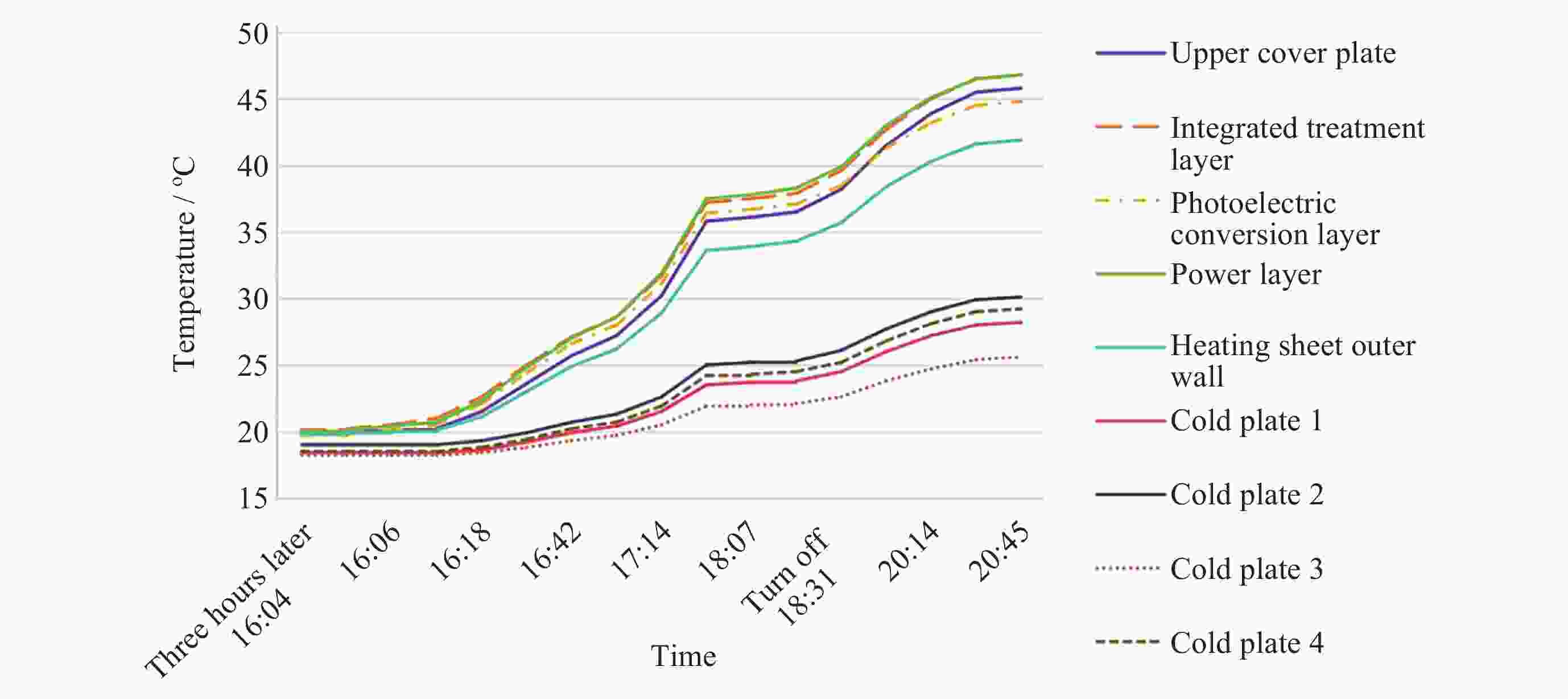

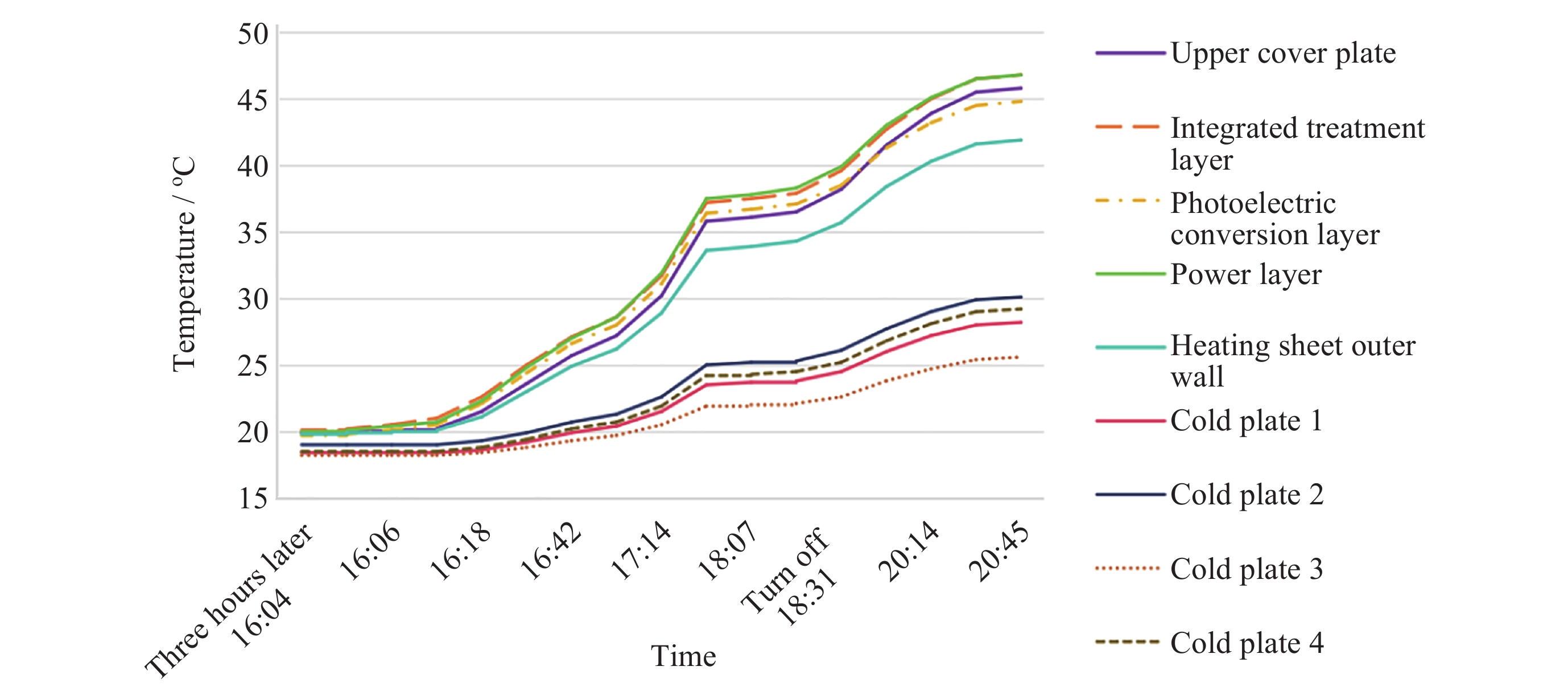

图 10 常温热平衡实验各模块温度随时间的变化曲线

Figure 10. Temperature change curve of each module in normal temperature hot vacuum test with time

下载: 全尺寸图片幻灯片

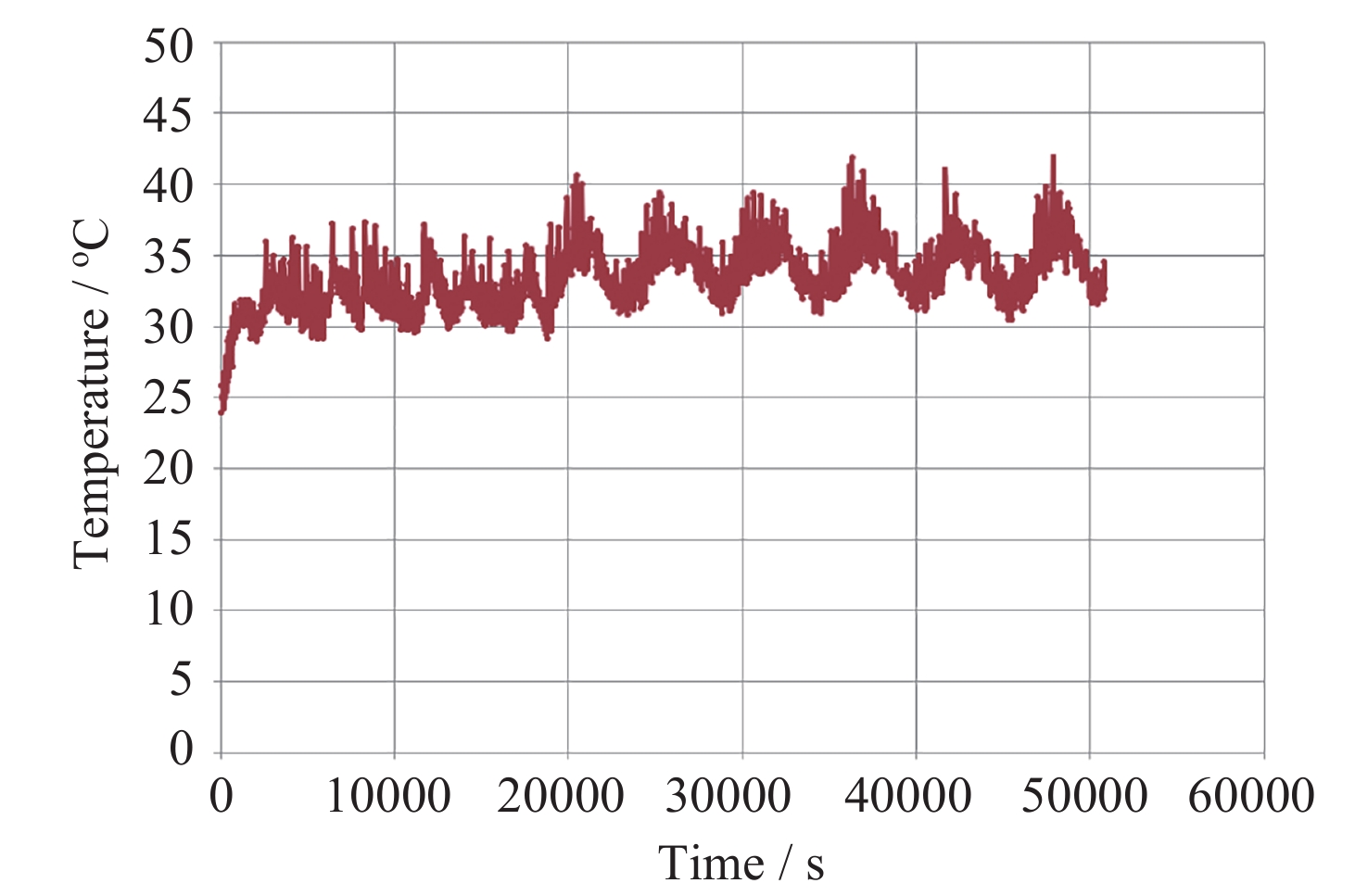

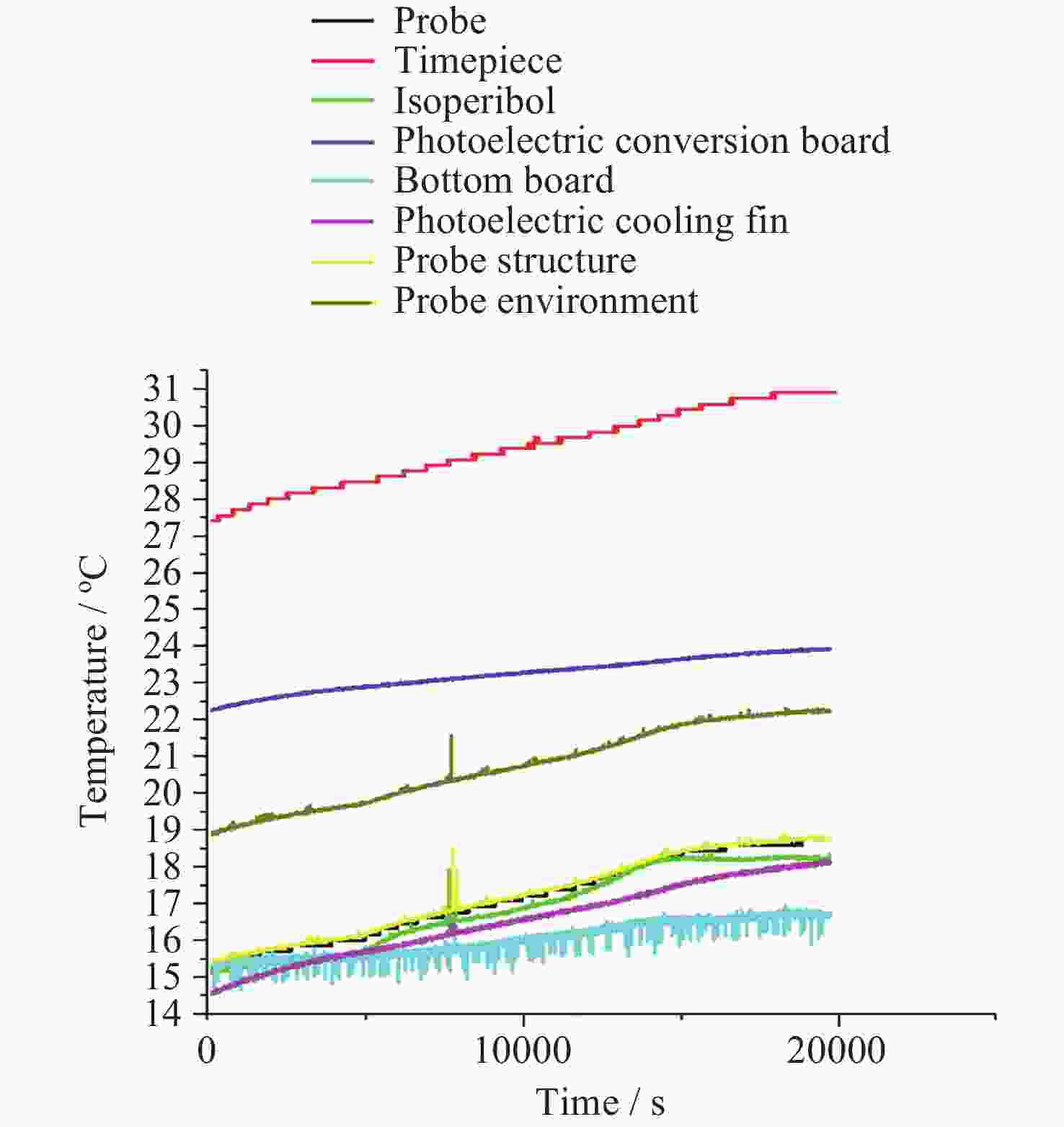

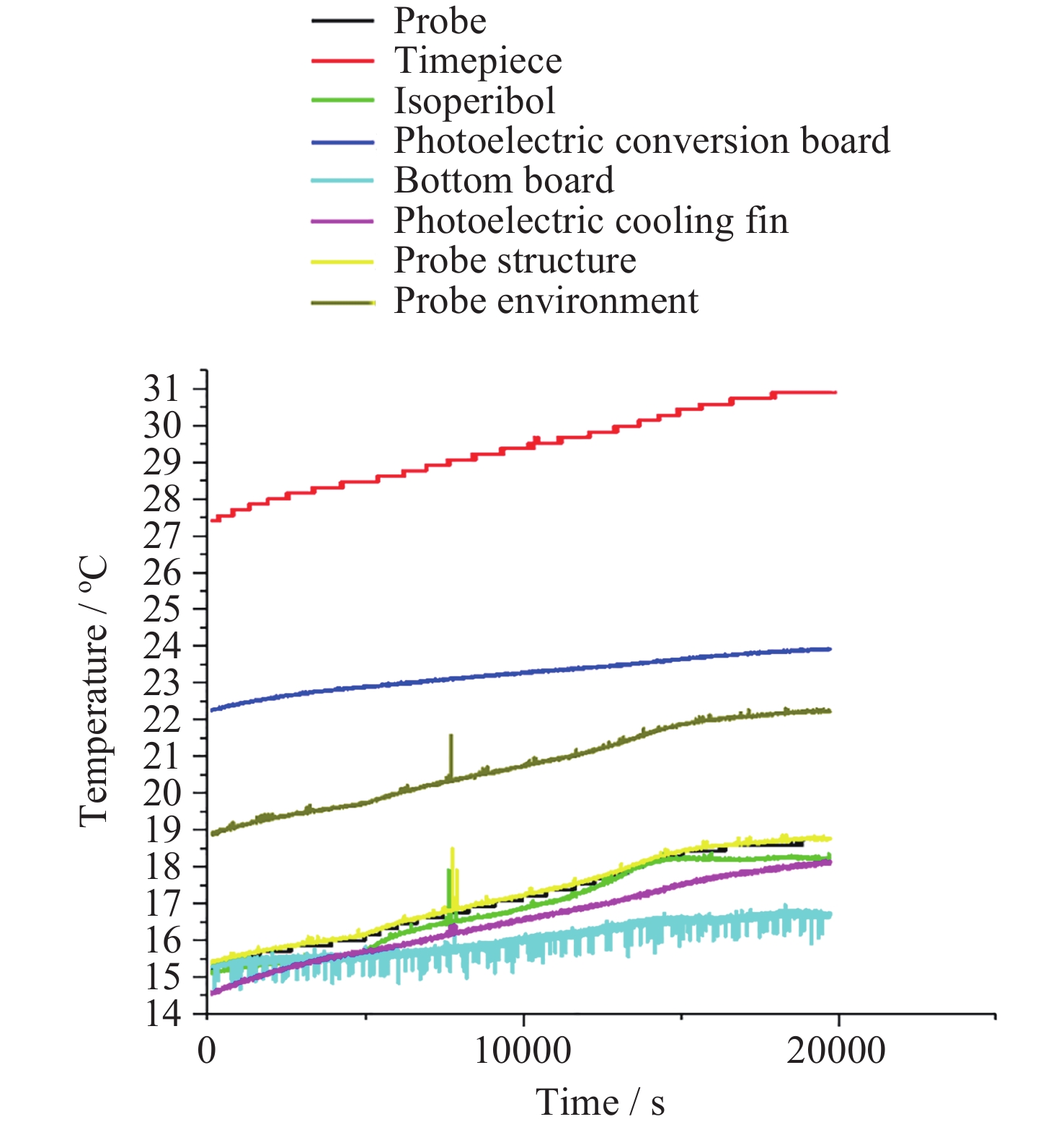

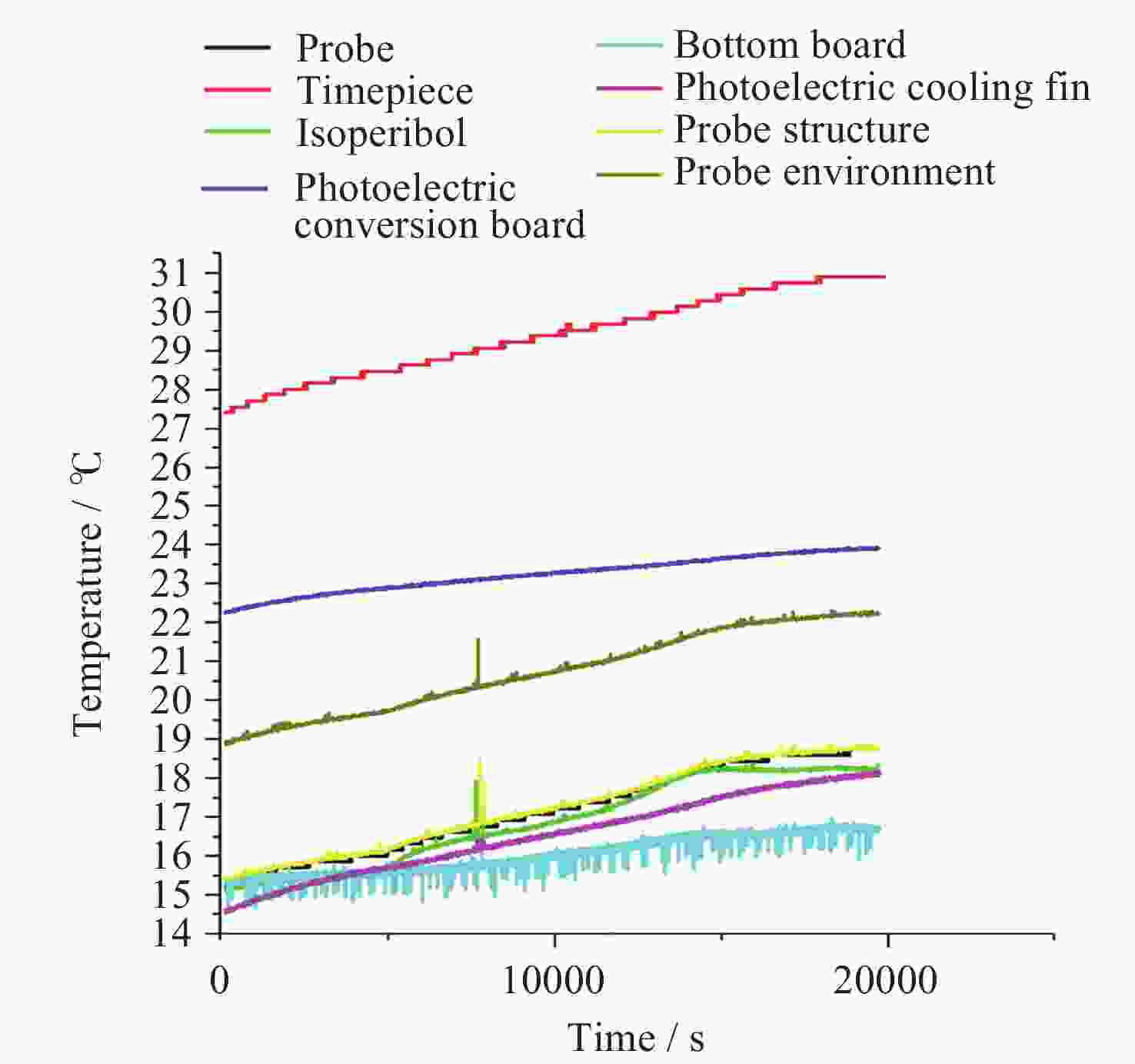

图 11 激光时频传递载荷在轨热控遥测数据曲线

Figure 11. Data curve of on-orbit thermal control telemetry of laser time-frequency transfer load

下载: 全尺寸图片幻灯片

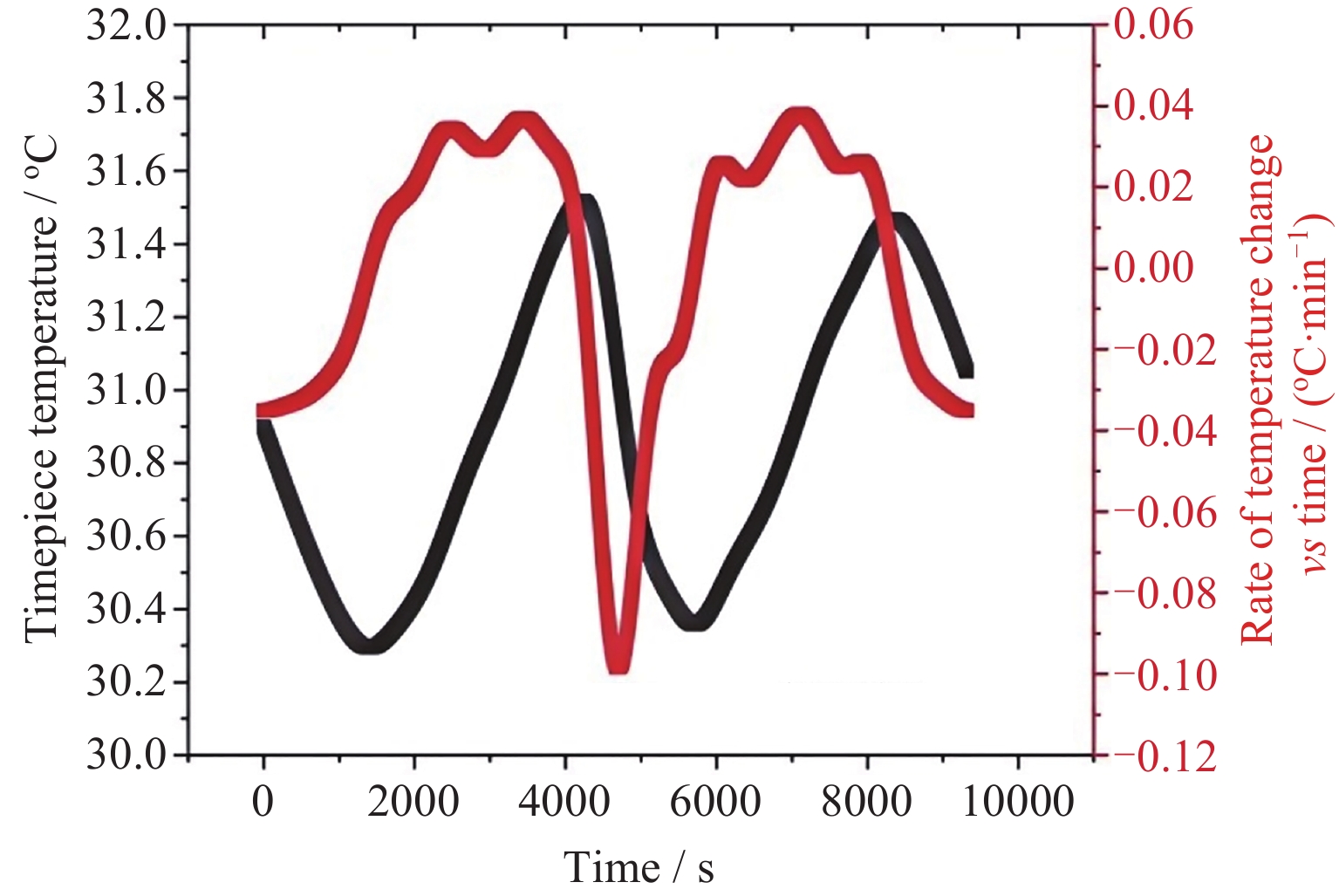

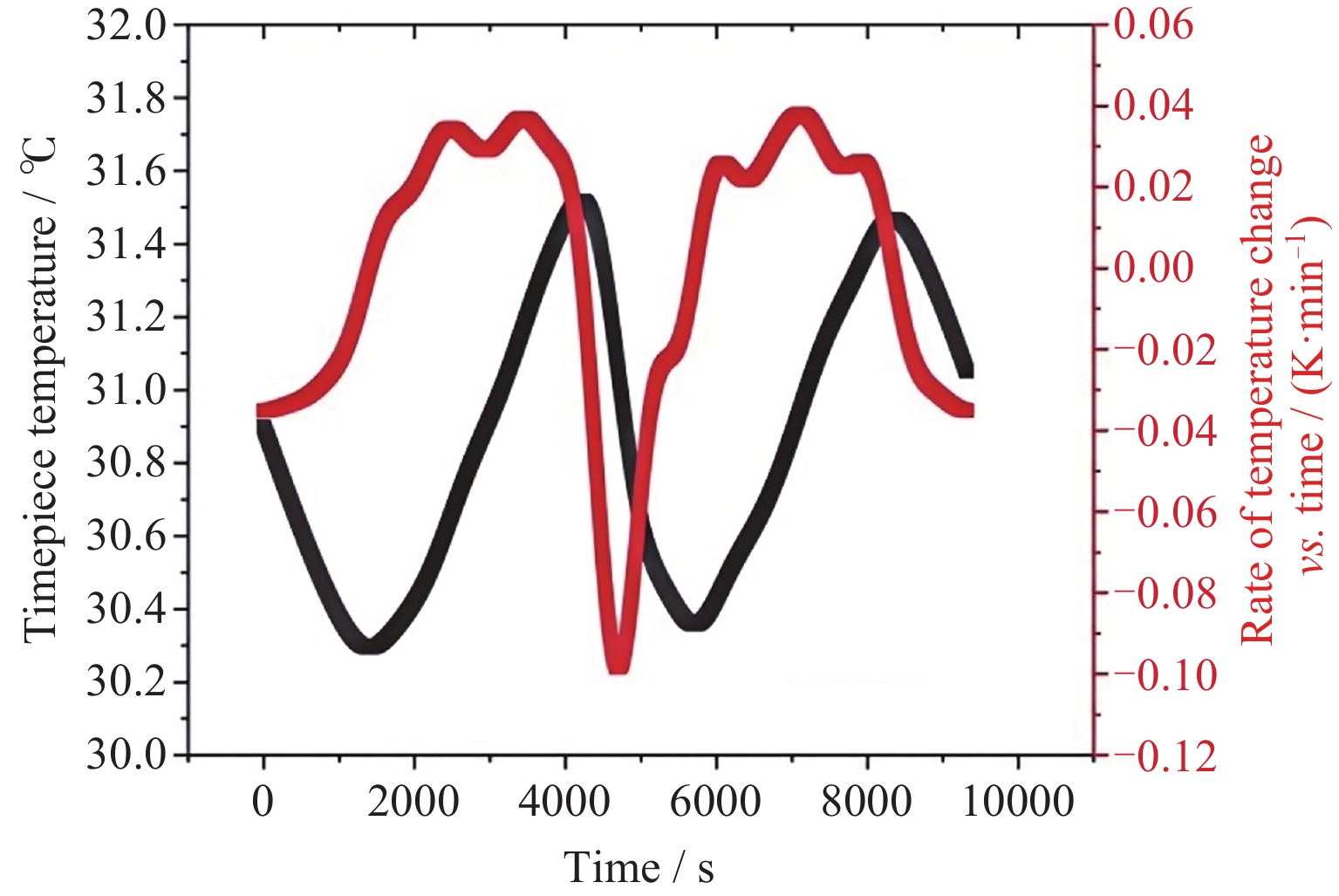

图 12 一轨内二极管热控遥测数据曲线

Figure 12. Telemetry data curve of diode’s thermal control within one orbital pass

下载: 全尺寸图片幻灯片

表 1 某舱外载荷设备关键器件温控需求

Table 1. Temperature control requirements of key components of laser time-frequency transmission load

Key device name	Operating temperature range / ℃	Optimum operating temperature range (thermal control target) / ℃
FPGA	–55～+125	–45～+85
Diode	–55～+65	25～+50
Timepiece	–55～+65	25～+50
Optical module	–40～+85	–40～+85
Power module	–55～+125	–55～+85
EMI filter	–55～+125	–55～+85

下载: 导出CSV

表 2 热模型热物性参数选取

Table 2. Selection of thermal physical property parameters of the thermal model

Number	Materials	Specific heat capacity/ (J·kg^–1·K^–1)	Thermal conductivity/ (W·m^–1·K^–1)	Density/(kg·m^–3)
1	Stainless steel	477	14.9	7900
2	TC4	411	6.8	4440
3	2 A12	924	151	2780
4	3 A21	1092	181	2730
5	7075	2810	960	140
6	Quartz glass	800	1.4	2200
7	Polytetrafluoroethylene	1000	0.24	2200
8	6061	953	155	2700
9	Multi-layer insulation component	―	―	―
10	Fr4	600	10	1687
注　多层绝缘组件的有效发射率为0.03.

下载: 导出CSV

表 3 热模型接触热阻选取

Table 3. Selection of contact thermal resistance in the thermal model

Number	Name	Contact form	Contact heat transfer coefficient/(W·m^–2·K^–1)
1	Between frames	Apply thermal grease	1000
2	Power module and installation base plate	Apply thermal grease	1000
3	Filter and installation base plate	Apply thermal grease	1000
4	Heat dissipation plate and casing	Apply thermal grease	1000
5	TEC heat dissipation bracket and housing	Apply thermal grease	1000
6	Heat dissipation plate and timer	Insulating heat-conducting pad: 1 mm	―
7	Heat dissipation plate and optical module	Insulating heat-conducting pad: 1 mm	―
8	Heat dissipation and FPGA	Insulating heat-conducting pad: 1 mm	―
9	Reflector and upper cover plate	TC4 (2.5 mm)	―

下载: 导出CSV

表 4 舱外载荷设备器件热耗及结壳热阻

Table 4. Heat Consumption of extravehicular payload equipment and components and thermal resistance of the crust

Number	Device type	Packaging	Power consumption/W	Crust formation thermal resistance/(K·W^–1)
1	FPGA	BGA148	3	0.2
2	1553 Chip	DIP70	0.5	6.8
3	Optical fiber 1553	SOP4	10	―
4	ACTEL	CQFP84	0.4	3.8
5	Timer chip	HTQFP	1.5	0.6
6	Comparator	WQFN	0.37	3.8
7	Single-pole double-throw analog switch	SOT-23	0.5	12.3
8	Level converter	μMAX	0.7	17.0
9	DC/DC Converter	Welded Hermetic	4.5	1.1
10	Total		21.47	―

下载: 导出CSV

表 5 不同β角下卫星各个面到达的周期平均热流密度(单位: W·m^–2 )

Table 5. Periodic average heat flux densities reached by each surface of the satellite at different β angles (Unit: W·m^–2)

β /(°)	Types of external heat flow	+x	+z	–x	–y	+y
–65.5	Total external heat flow	188.3	353.3	198.7	114.2	537.1
	Direct sunlight	91.1	94.2	94.8	13.9	424.5
	Earth reflection	23.1	48.5	25.2	22.7	29.7
	Infrared of the Earth	74.0	210.6	78.7	77.6	82.8

0	Total external heat flow	203.9	361.9	231.3	161.9	149.7
	Direct sunlight	81.1	35.9	96.5	10.7	9.7
	Earth reflection	53.8	115.8	59.4	67.1	60.7
	Infrared of the Earth	69.1	210.2	75.3	84.1	79.4

65.5	Total external heat flow	217.0	358.6	215.2	634.1	133.3
	Direct sunlight	118.2	99.5	113.7	524.8	29.4
	Earth reflection	22.0	48.4	25.1	30.2	22.8
	Infrared of the Earth	76.8	210.7	76.4	79.1	81.1

下载: 导出CSV

表 6 舱外载荷设备分析工况

Table 6. Analysis of operating conditions of extravehicular payload equipment

Working condition	β/(º)	Coating life	Temperature of the load installation surface/℃	Flight attitude	Working mode
High-temperature working condition	–65.5	End stage	30	Three-axis stable flight	Measurement mode
Low-temperature working condition	0	Early stage	0	Three-axis stable flight	Measurement mode

下载: 导出CSV
