Calibration Method of Chang’E-7 Lunar Seismograph Payload
-
摘要: 嫦娥七号任务计划在月球南极部署中国首台自主研制的月震仪, 用于监测天然月震与陨石撞击等事件激发的振动信号, 并开展为期八年的科学探测. 为保障月震仪在月球极端环境下的测量精度与长期工作的稳定性, 需建立系统的定标方法, 以确保其关键参数与技术指标符合科学探测与数据反演的要求. 依据地面地震计入网技术标准, 结合月震仪的带宽、动态范围、震级测量范围等性能要求, 设计了涵盖幅频响应、灵敏度及其误差、自噪声、量程等关键指标的地面定标试验方案. 此外, 针对在轨运行需求, 本文设计了月面在轨自主定标方案, 并提出基于人工震源的月面定标方法. 本研究构建了完整的月震仪功能与性能定标体系, 为月震仪从地面验证到在轨运行各阶段提供了系统的性能测试与评估依据, 为后续获取高精度月震数据并开展科学解析奠定了重要基础.Abstract: The Chang’E-7 mission will deploy China’s first independently developed lunar seismograph at the Moon’s south pole to record ground motions generated by moonquakes and meteoroid impacts. The instrument is designed for an eight-year operation lifetime aimed at characterizing the seismic activity and shallow interior structure of the Moon. To ensure measurement accuracy and long-term operational stability under the extreme conditions of the lunar environment, it is essential to establish a systematic calibration methodology. This will guarantee that the instrument’s key technical parameters and calibration indicators meet the requirements for scientific exploration and data inversion. Based on the technical criteria for ground-based seismograph network integration, and considering performance specifications such as bandwidth, dynamic range, and magnitude range, this paper proposes a comprehensive ground calibration test plan covering critical indicators, including amplitude-frequency response, sensitivity and sensitivity error, self-noise levels and measurement range. Furthermore, in accordance with the operational requirements during the lunar surface phase, an autonomous in-situ calibration scheme has been designed, along with a proposed manual source calibration method on the lunar surface. This study establishes a comprehensive calibration framework for the functionality and performance of the lunar seismograph, providing systematic procedures for performance testing and evaluation throughout all mission phases—from ground validation to in-situ operation on the lunar surface. The proposed framework lays an essential foundation for acquiring high-precision lunar seismic data and conducting subsequent scientific analyses.
-

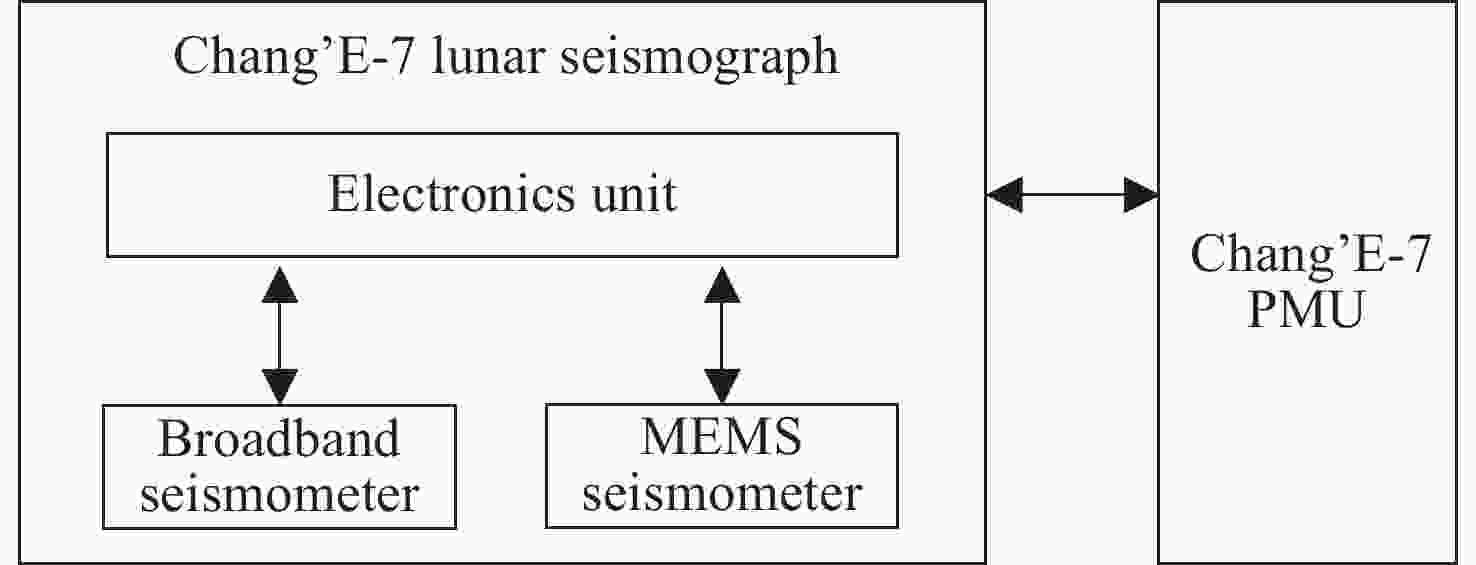

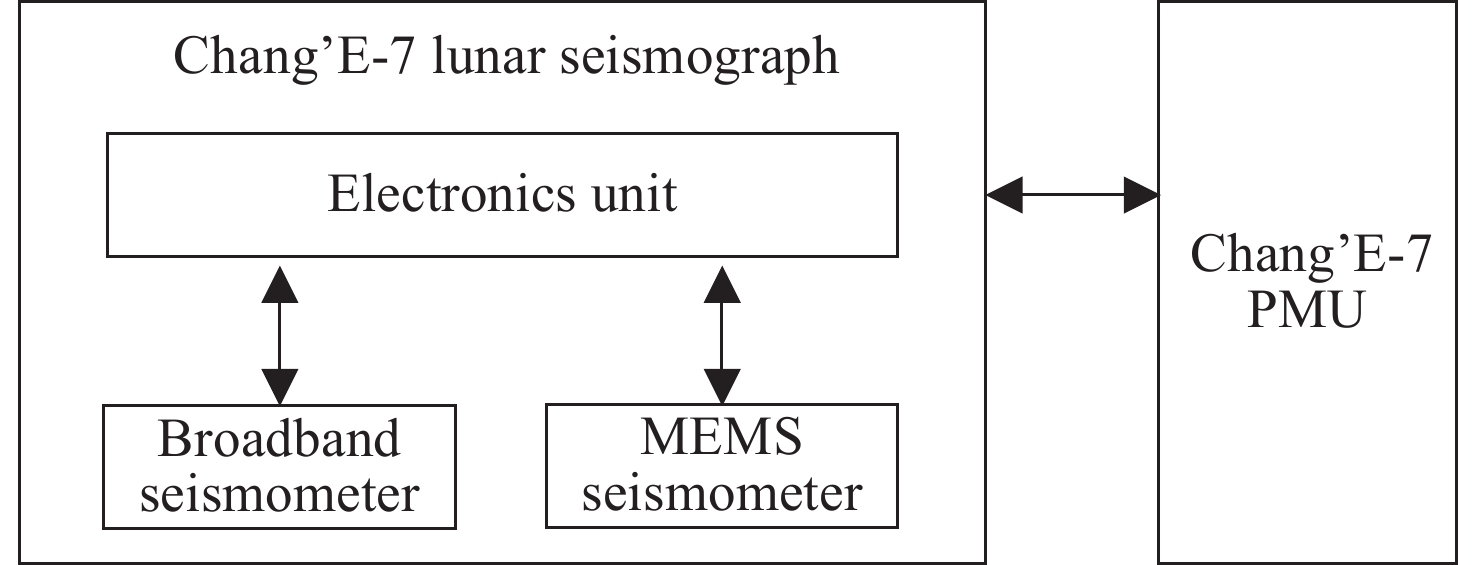

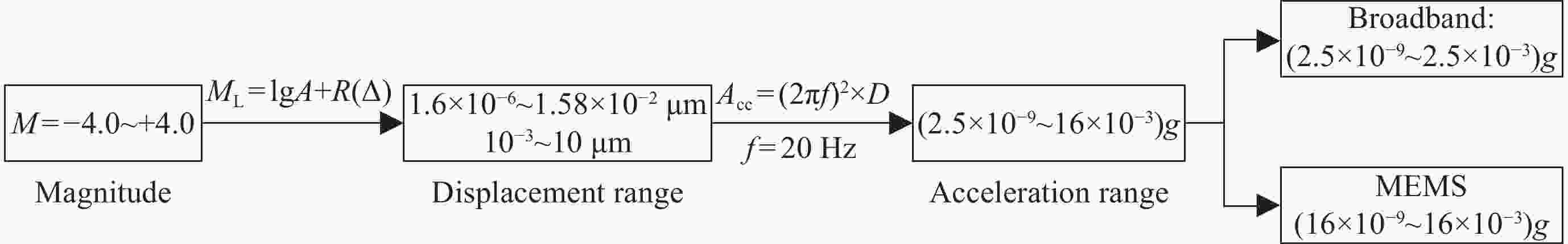

图 2 震级性能指标与加速度性能指标的对应关系
Figure 2. Correlation principles between magnitude and acceleration performance indicators
表 1 月震仪主要指标项
Table 1. Main performance indicators of the lunar seismograph
指标项 要求值 频带范围/Hz 1/120～100 动态范围/dB >120 测量范围 –4～+4级月震
下载: 导出CSV
表 2 月震仪主要性能指标与定标试验项目
Table 2. Main performance indicators of the lunar seismograph and the corresponding calibration test items
序号 名称 定标试验项目 任务要求规定的指标要求 宽频带月震计 MEMS月震计 1 测量带宽 振动台频带定标 1/120～10 Hz 1～100 Hz 2 震级测量范围 振动台量程定标 –4.0～+3.2级 –3.2～+4.0级 3 加速度测量范围 量程与自噪声 (2.5×10–9～2.5×10–3)g (16×10–9～16×10–3)g 4 自噪声 自噪声定标 优于2.5×10–9g /Hz1/2@1 Hz 优于16×10–9g/Hz1/2@10 Hz 5 灵敏度 振动台量程定标 2000±60 V/g 187±20 V/g 6 灵敏度标定误差 振动台量程定标 ≤3% ≤3% 7 动态范围 量程与自噪声 >120 dB >120 dB
下载: 导出CSV

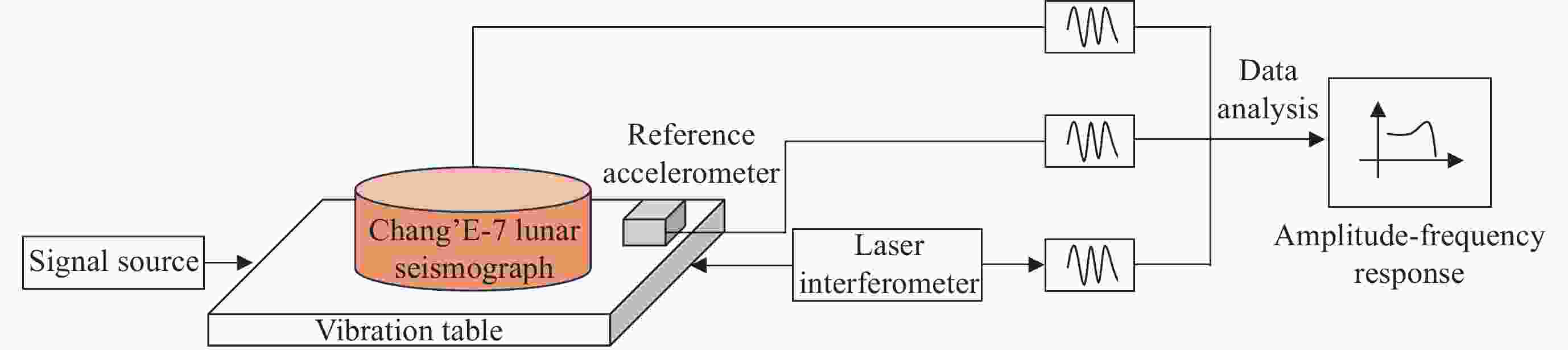

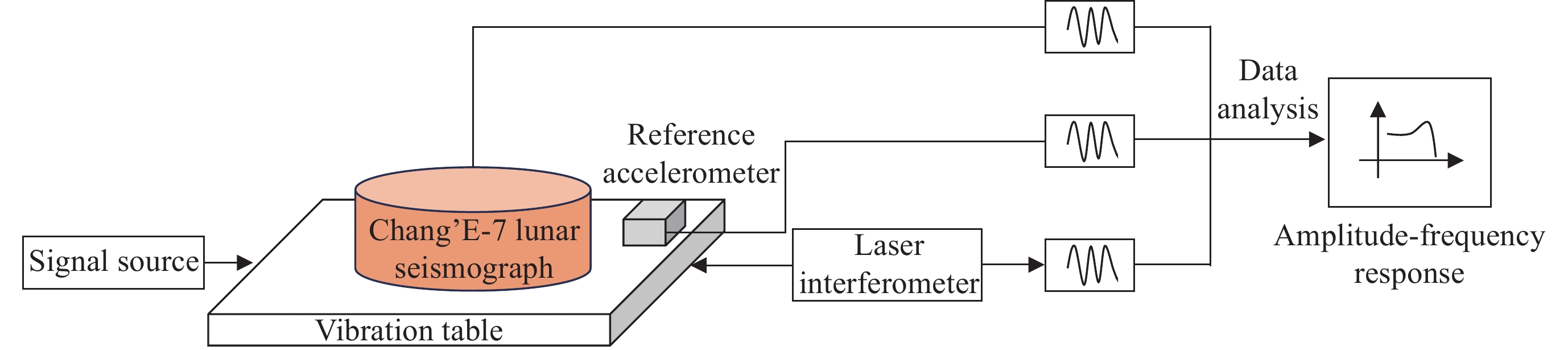

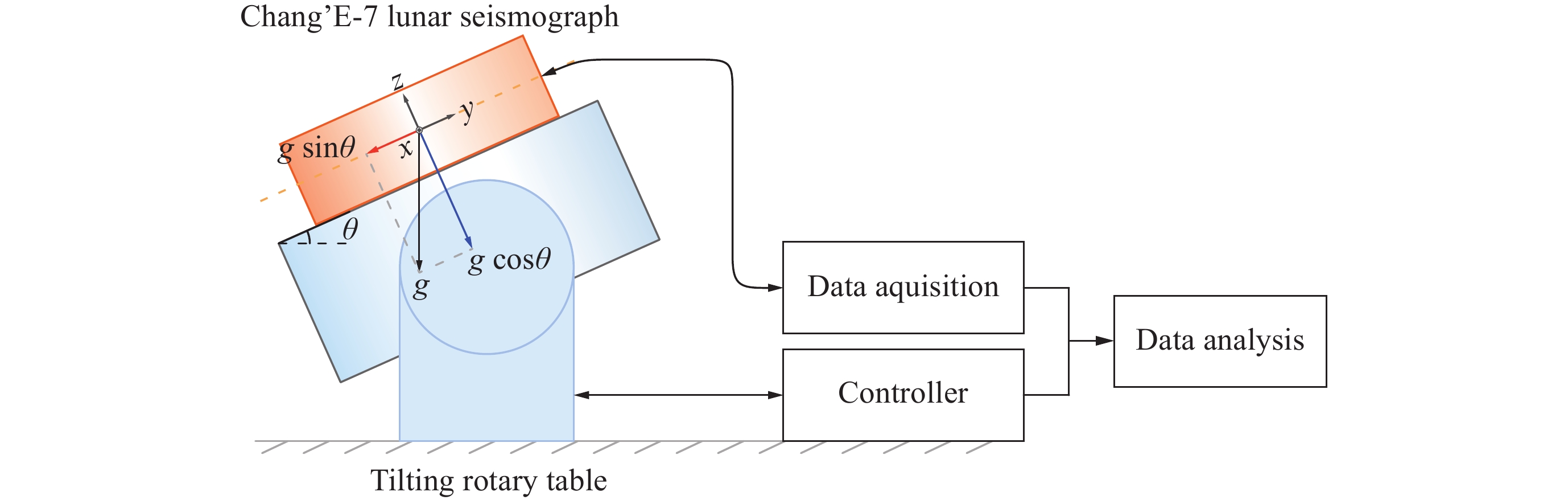

表 3 定标试验设备
Table 3. Calibration test equipment
名称 型号 生产单位 参数性能 加速度计标定测试
工作站3629 Brüel & Kjær 最大负载10 kg
频率范围0.1～200 Hz
激励信号: 步进正弦或双正弦高精度线性运动
测试台CDZ-50 浙江大学 最大负载40 kg
频率范围0.005～160 Hz

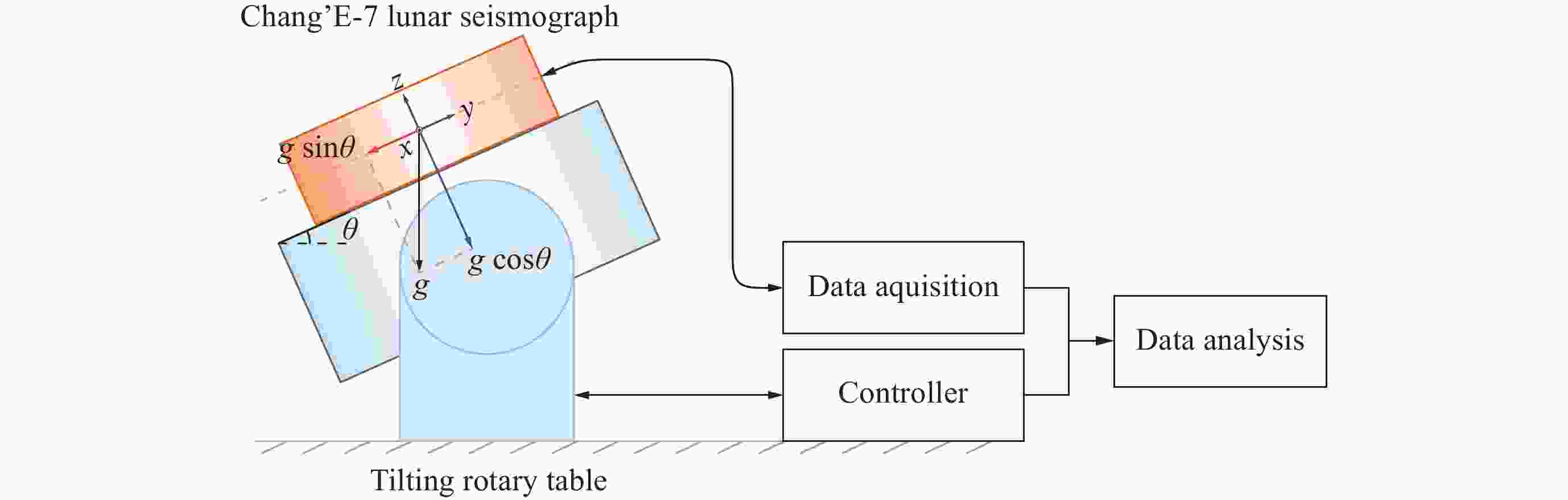

最大负载时的最大加速度0.2 g(峰值)高精度二自由度惯性测试台 TBL-D2208 北京航天控制仪器研究所 最大负载20 kg
转台转角范围±360°
转台角位置定位精度1″超低频振动基准装置 ― 中国计量科学研究院 包含垂直向振动和水平向振动
频率范围0.005～80 Hz
加速度失真度<1%
最大加速度20 m·s–2, 最大位移1000 mm
加速度测量不确定度0.2%～0.5%(k=2)
下载: 导出CSV
-
[1] 傅晓晶, 蔡晓东, 刘一鸣, 等. “嫦娥七号”探测器多器协同综合测试技术[J]. 深空探测学报(中英文), 2023, 10(6): 577-585 doi: 10.15982/j.issn.2096-9287.2023.20230103FU Xiaojing, CAI Xiaodong, LIU Yiming, et al. Comprehensive testing technology for multi spacecraft collaboration in Chang’E-7 lunar probe[J]. Journal of Deep Space Exploration, 2023, 10(6): 577-585 doi: 10.15982/j.issn.2096-9287.2023.20230103 [2] 张金海, 林杨挺, 姚振兴. 月球内部圈层结构探测及关键技术挑战[J]. 中国科学基金, 2022, 36(6): 888-894ZHANG Jinhai, LIN Yangting, YAO Zhenxing. Detection of lunar interior structures and the challenge on its key technology[J]. Bulletin of National Natural Science Foundation of China, 2022, 36(6): 888-894 [3] WANG C, JIA Y Z, XUE C B, et al. Scientific objectives and payload configuration of the Chang’E-7 mission[J]. National Science Review, 2024, 11(2): nwad329 doi: 10.1093/nsr/nwad329 [4] 吴伟仁, 于登云, 王赤, 等. 月球极区探测的主要科学与技术问题研究[J]. 深空探测学报(中英文), 2020, 7(3): 223-231,240WU Weiren, YU Dengyun, WANG Chi, et al. Research on the main scientific and technological issues on lunar polar exploration[J]. Journal of Deep Space Exploration, 2020, 7(3): 223-231,240 [5] JAUMANN R, HIESINGER H, ANAND M, et al. Geology, geochemistry, and geophysics of the Moon: status of current understanding[J]. Planetary and Space Science, 2012, 74(1): 15-41 doi: 10.1016/j.pss.2012.08.019 [6] 王赤, 林杨挺, 裴照宇, 等. 月球科研站的关键科学问题[J]. 中国科学基金, 2022, 36(6): 830-840WANG Chi, LIN Yangting, PEI Zhaoyu, et al. Key scientific questions related to the lunar research station[J]. Bulletin of National Natural Science Foundation of China, 2022, 36(6): 830-840 [7] 裴照宇, 王琼, 徐琳, 等. 基于月球科研站的科研活动战略分析及其作业平台总体方案研究[J]. 空间科学学报, 2025, 45(1): 1-14 doi: 10.11728/cjss2025.01.2024-0188PEI Zhaoyu, WANG Qiong, XU Lin, et al. Strategic analysis of scientific activities and study on the overall plan of scientific operation platforms based on the lunar research station[J]. Chinese Journal of Space Science, 2025, 45(1): 1-14 doi: 10.11728/cjss2025.01.2024-0188 [8] LOGNONNÉ P, BANERDT W B, GIARDINI D, et al. SEIS: insight’s seismic experiment for internal structure of Mars[J]. Space Science Reviews, 2019, 215(1): 12 doi: 10.1007/s11214-018-0574-6 [9] GARCIA R F, KHAN A, DRILLEAU M, et al. Lunar seismology: an update on interior structure models[J]. Space Science Reviews, 2019, 215(8): 50 doi: 10.1007/s11214-019-0613-y [10] NUNN C, GARCIA R F, NAKAMURA Y, et al. Lunar seismology: a data and instrumentation review[J]. Space Science Reviews, 2020, 216(5): 89 doi: 10.1007/s11214-020-00709-3 [11] LATHAM G, EWING M, PRESS F, et al. The apollo passive seismic experiment[J]. Science, 1969, 165(3890): 241-250 [12] MIMOUN D, MURDOCH N, LOGNONNÉ P, et al. The noise model of the SEIS seismometer of the InSight mission to Mars[J]. Space Science Reviews, 2017, 211(1/2/3/4): 383-428 doi: 10.1007/s11214-017-0409-x [13] 地震监测预报标准化技术委员会. 地震观测仪器进网技术要求 地震仪: DB/T 22—2020[S]. 北京: 中国标准出版社, 2020Seismic Monitoring and Prediction Standardization Technical Committee. Technical Requirements of Instruments in Network for Earthquake Monitoring—Seismograph: DB/T 22—2020[S]. Beijing: Standards Press of China, 2020 [14] 全国地震专用计量测试技术委员会. 地表地震计检定规程: JJG(地震) 001—2024[S]. 北京: 中国标准出版社, 2024National Technical Committee on Seismic Metrology and Testing. Verification Regulation of Ground Seismometer: JJG(Dizhen) 001—2024[S]. Beijing: Standards Press of China, 2024 [15] GAGNEPAIN-BEYNEIX J, LOGNONNÉ P, CHENET H, et al. A seismic model of the lunar mantle and constraints on temperature and mineralogy[J]. Physics of the Earth and Planetary Interiors, 2006, 159(3/4): 140-166 doi: 10.1016/j.pepi.2006.05.009 [16] COOPER M R, KOVACH R L, WATKINS J S. Lunar near‐surface structure[J]. Reviews of Geophysics, 1974, 12(3): 291-308 doi: 10.1029/RG012i003p00291 [17] GARCIA R F, GAGNEPAIN-BEYNEIX J, CHEVROT S, et al. Very preliminary reference Moon model[J]. Physics of the Earth and Planetary Interiors, 2011, 188(1/2): 96-113 doi: 10.1016/j.pepi.2011.06.015 [18] 刘瑞丰. 震级[M]. 北京: 地震出版社, 2024LIU Ruifeng. Magnitude[M]. Beijing: Seismological Press, 2024 [19] 陈运泰, 刘瑞丰. 矩震级及其计算[J]. 地震地磁观测与研究, 2018, 39(2): 1-9 doi: 10.3969/j.issn.1003-3246.2018.02.001CHEN Yuntai, LIU Ruifeng. Moment magnitude and its calculation[J]. Seismological and Geomagnetic Observation and Research, 2018, 39(2): 1-9 doi: 10.3969/j.issn.1003-3246.2018.02.001 [20] 刘越. 面向嫦娥七号MEMS月震计的定标测试研究[D]. 武汉: 华中科技大学, 2024LIU Yue. Calibration Testing Research for MEMS Seismometer of Chang’E-7 Mission[D]. Wuhan: Huazhong University of Science and Technology, 2024 [21] WIELANDT E. Seismic sensors and their calibration[M]//BORMANN P. New Manual of Seismological Observatory Practice 2 (NMSOP-2). Potsdam: Deutsches GeoForschungsZentrum GFZ, 2012: 1-51 [22] PAVLIS G L, VERNON F L. Calibration of seismometers using ground noise[J]. Bulletin of the Seismological Society of America, 1994, 84(4): 1243-1255 doi: 10.1785/BSSA0840041243 [23] 刘洋君, 薛兵, 朱小毅, 等. 地震计自噪声的研究[J]. 地震, 2010, 30(1): 138-146 doi: 10.3969/j.issn.1000-3274.2010.01.016LIU Yangjun, XUE Bing, ZHU Xiaoyi, et al. Study on the self-noise of seismometers[J]. Earthquake, 2010, 30(1): 138-146 doi: 10.3969/j.issn.1000-3274.2010.01.016 [24] RINGLER A T, SLEEMAN R, HUTT C R, et al. Seismometer self-noise and measuring methods[M]//BEER M, KOUGIOUMTZOGLOU I A, PATELLI E, et al. Encyclopedia of Earthquake Engineering. Berlin, Heidelberg: Springer, 2015: 3220-3231 [25] HOLCOMB L G. A direct method for calculating instrument noise levels in side-by-side seismometer evaluations[R]. Albuquerque, New Mexico: U. S. Geological Survey, 1989 [26] PETERSON J R. Observations and modeling of seismic background noise[R]. Albuquerque, New Mexico: U. S. Geological Survey, 1993 [27] PINOT B, MIMOUN D, MURDOCH N, et al. The in situ evaluation of the SEIS noise model[J]. Space Science Reviews, 2024, 220(3): 26 doi: 10.1007/s11214-024-01056-3 [28] MCNAMARA D E, BOAZ R I. Seismic noise analysis system using power spectral density probability density functions: a stand-alone software package[R]. Reston, Virginia: U. S. Geological Survey, 2006 [29] 马晓荔, 周原, 马龙, 等. 面向“嫦娥七号”飞跃器任务的宽温区转动阻力矩原位测试方法[J]. 航天器环境工程, 2025, 42(1): 85-90 doi: 10.12126/see.2024066MA Xiaoli, ZHOU Yuan, MA Long, et al. In-situ test method for rotational resistance torque in extreme temperature range based on the Chang’e-7 leaper[J]. Spacecraft Environment Engineering, 2025, 42(1): 85-90 doi: 10.12126/see.2024066 [30] 张翔, 张金海. 月震研究进展与展望[J]. 地球与行星物理论评, 2021, 52(4): 391-401ZHANG Xiang, ZHANG Jinhai. Research progress and prospect of moonquakes[J]. Reviews of Geophysics and Planetary Physics, 2021, 52(4): 391-401 [31] EWING M, LATHAM G, PRESS F, et al. Seismology of the Moon and implications on internal structure, origin and evolution[J]. Highlights of Astronomy, 1971, 2: 155-172 doi: 10.1017/S1539299600000101 -
-
