面向天基频谱感知的动态信道化设计方法
doi: 10.11728/cjss2026.03.2025-0026 cstr: 32142.14.cjss.2025-0026
-
饶嘉成 男, 2000年5月出生于江西省抚州市, 现为中国科学院国家空间科学中心硕士研究生, 专业为电磁场与微波技术, 主要研究方向为空间综合电子技术 -
黄永辉 男, 1974年1月出生于辽宁省鞍山市, 现为中国科学院国家空间科学中心研究员, 博士生导师, 主要研究方向为航天器测控通信、射频机器学习和空间认知通信等. E-mail: yonghui@nssc.ac.cn
作者简介:
通讯作者:
Design Method of Dynamic Channelization for Space-based Spectrum Sensing
-

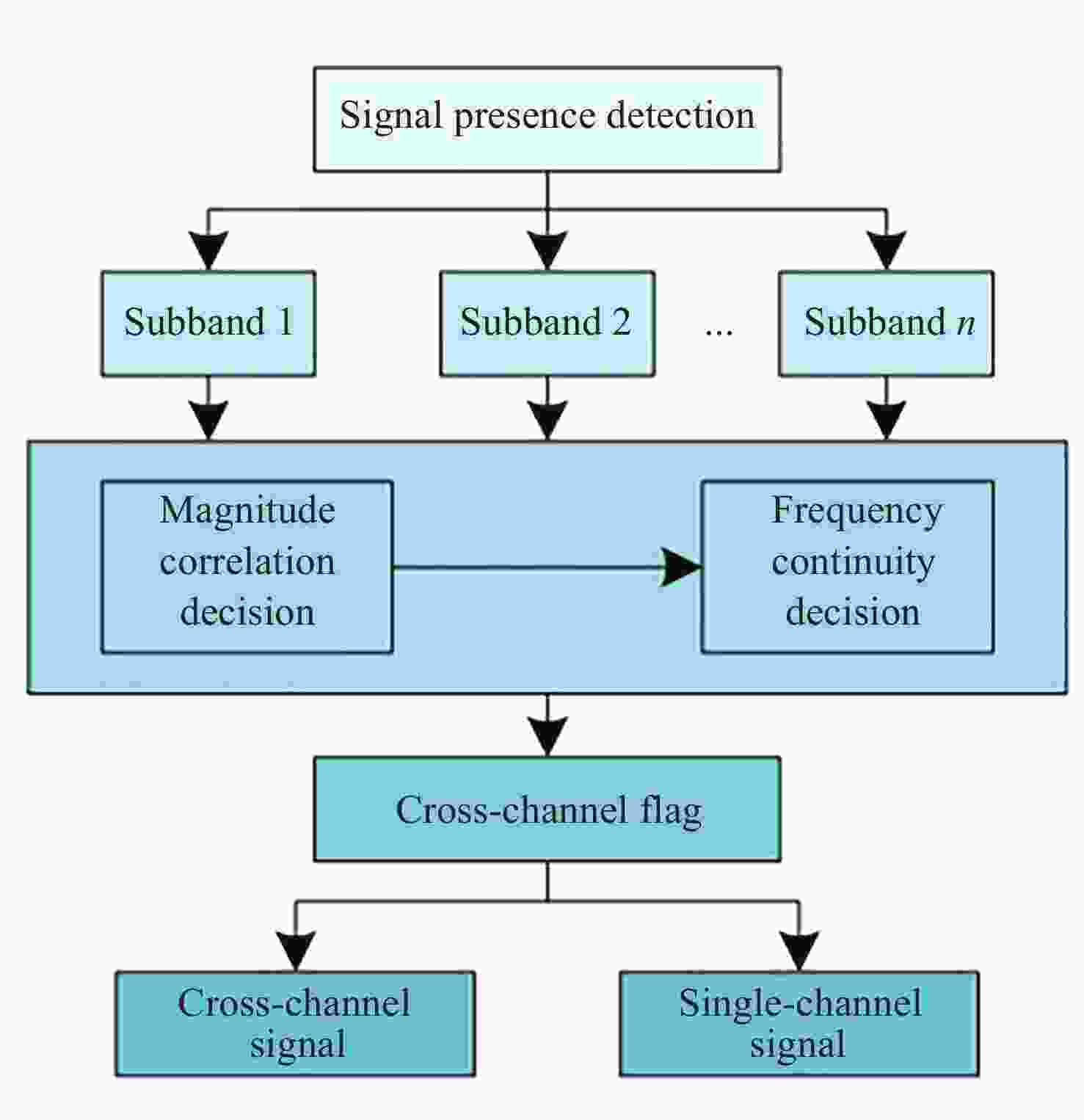

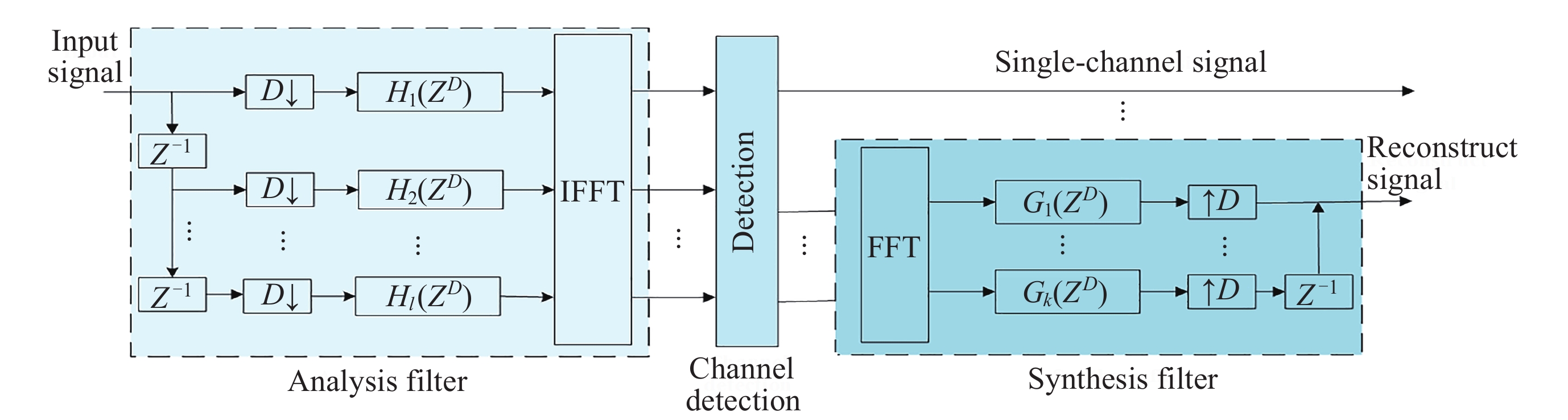

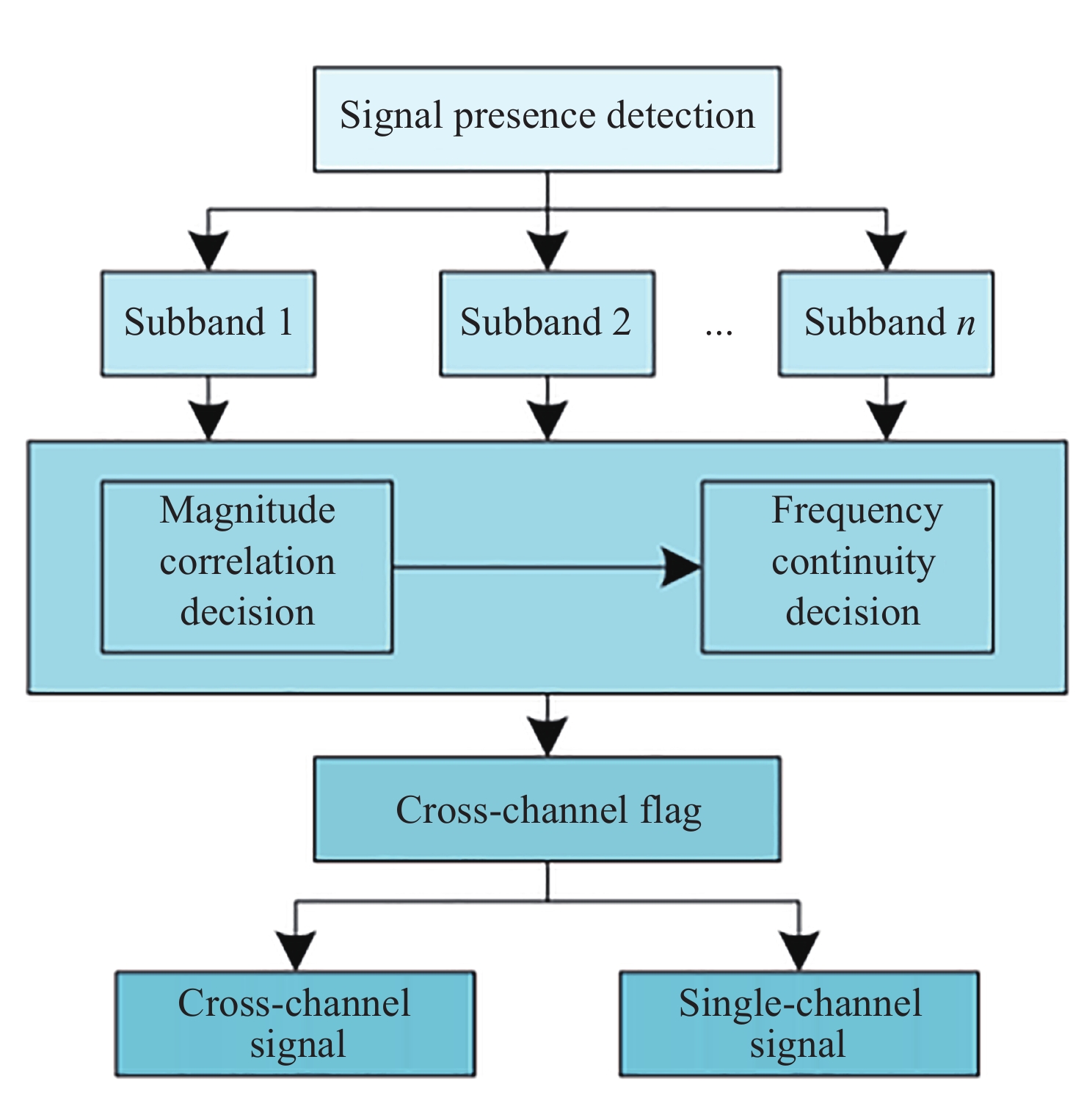

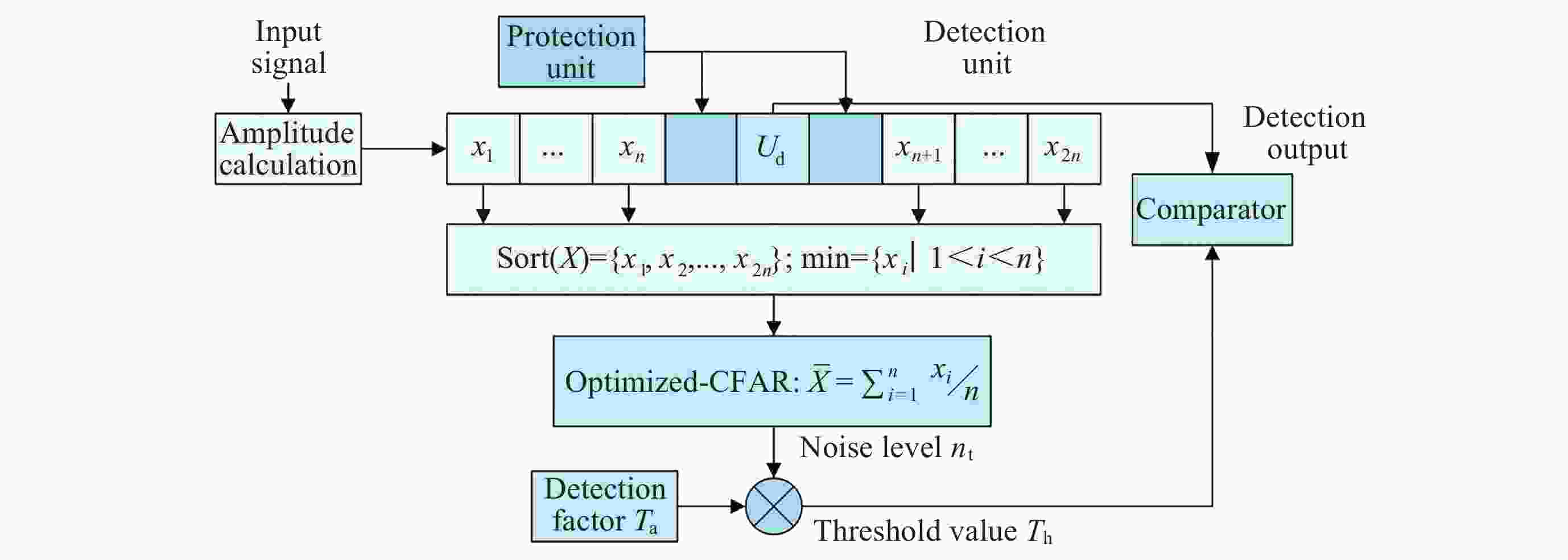

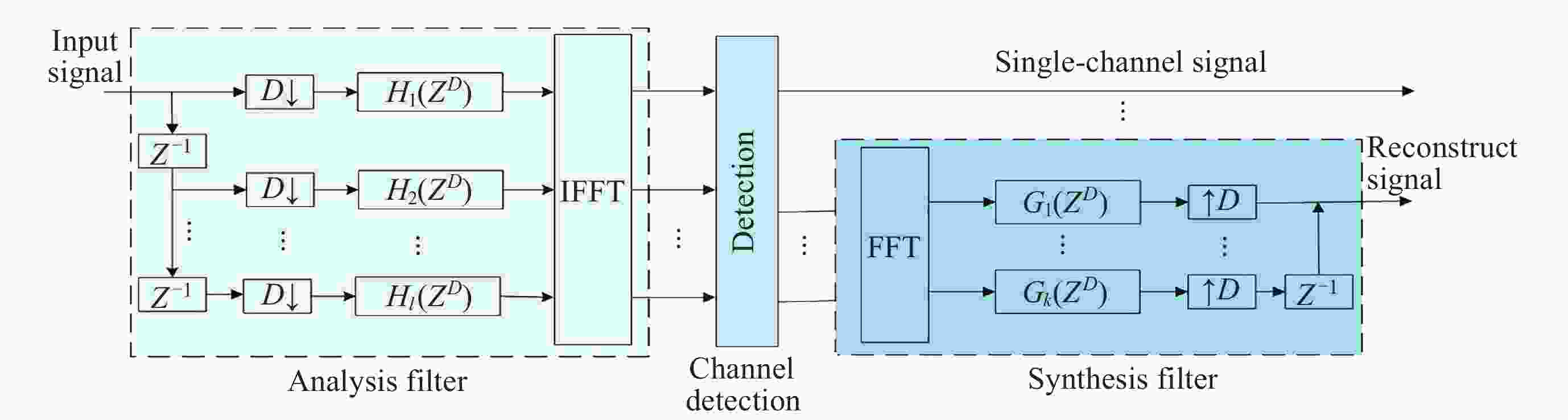

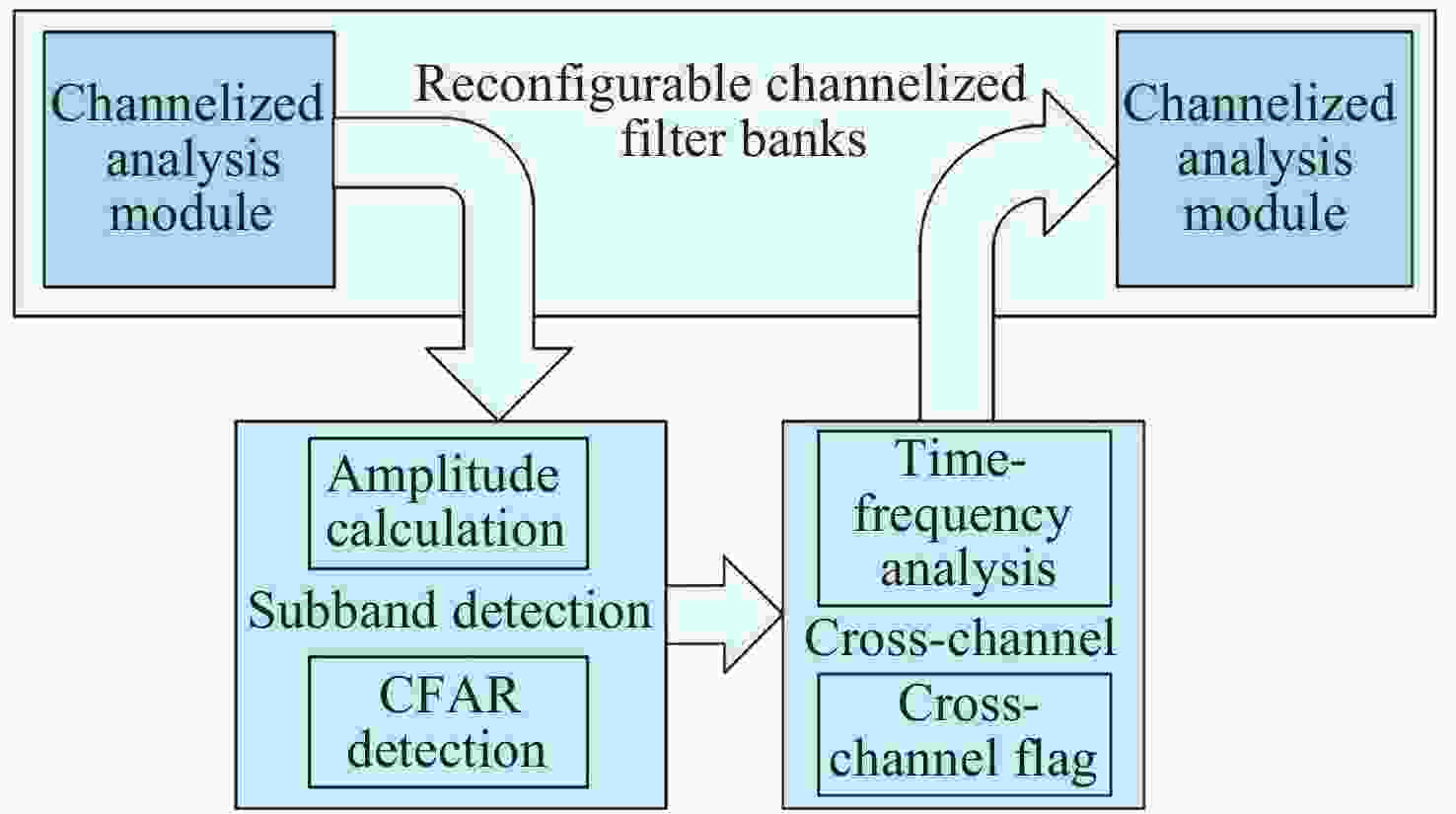

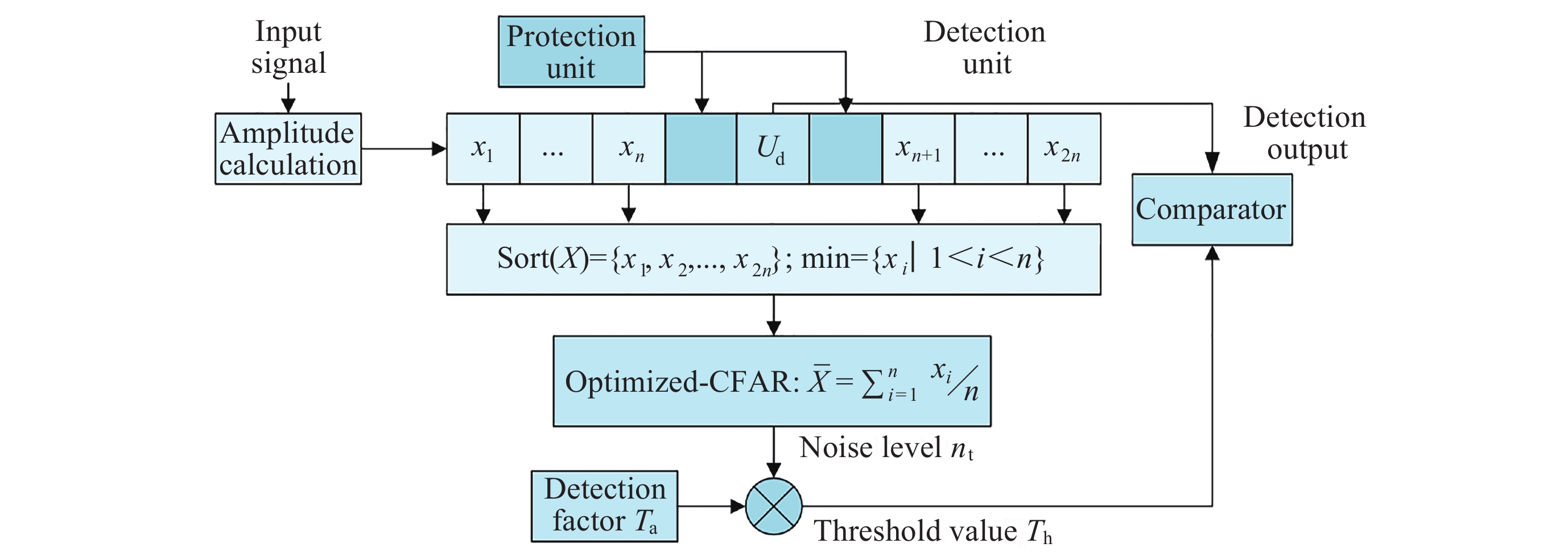

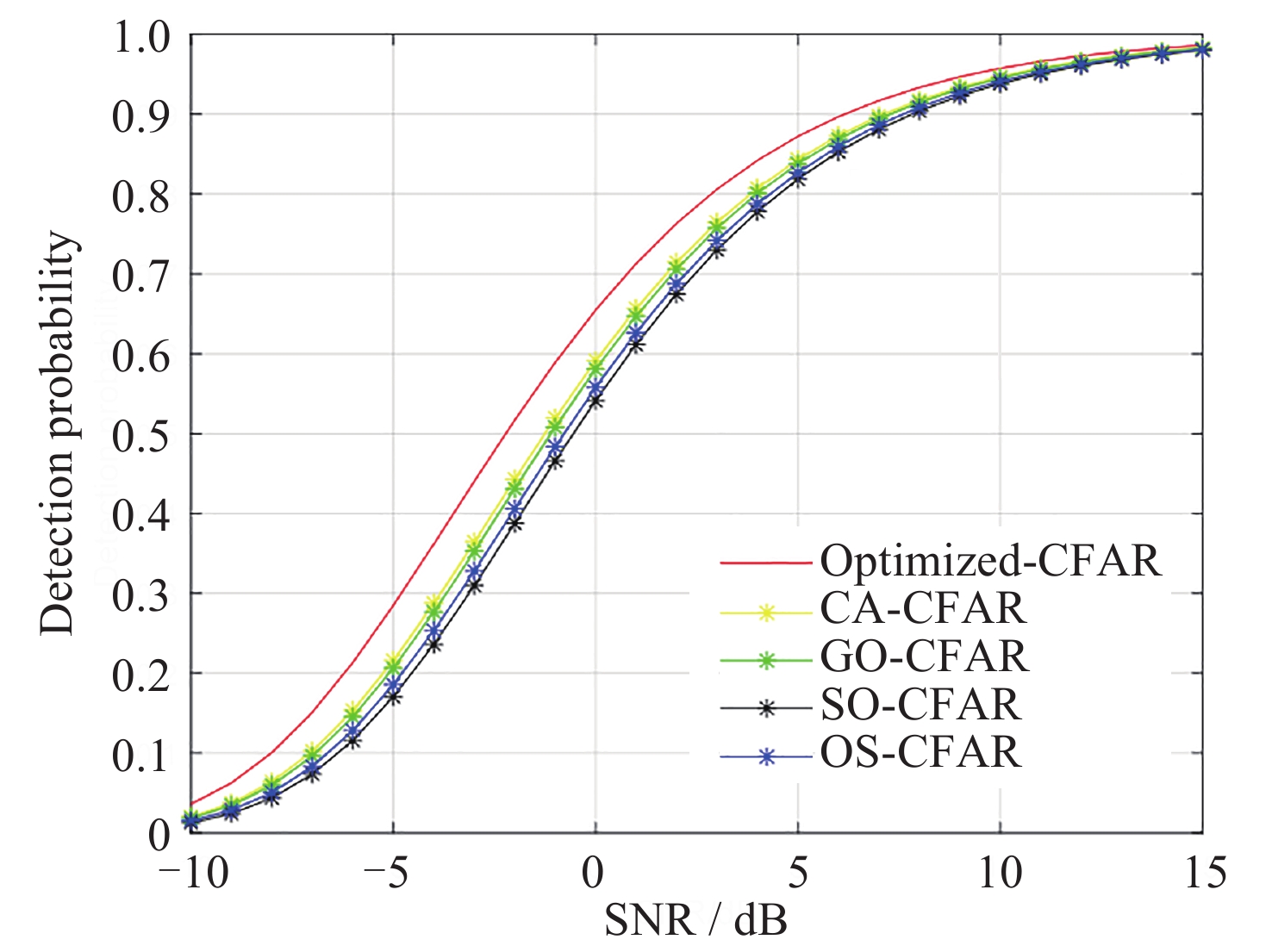

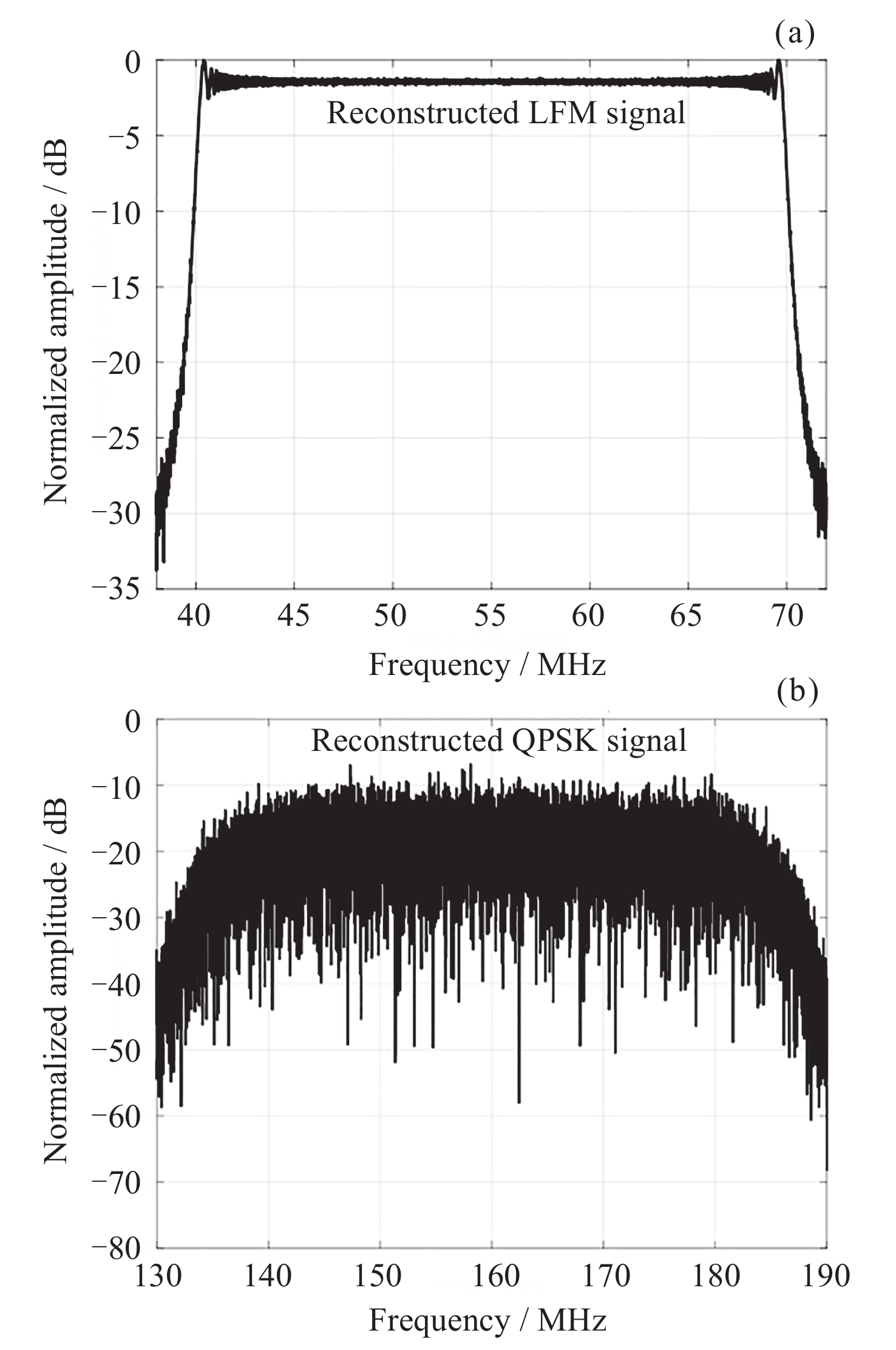

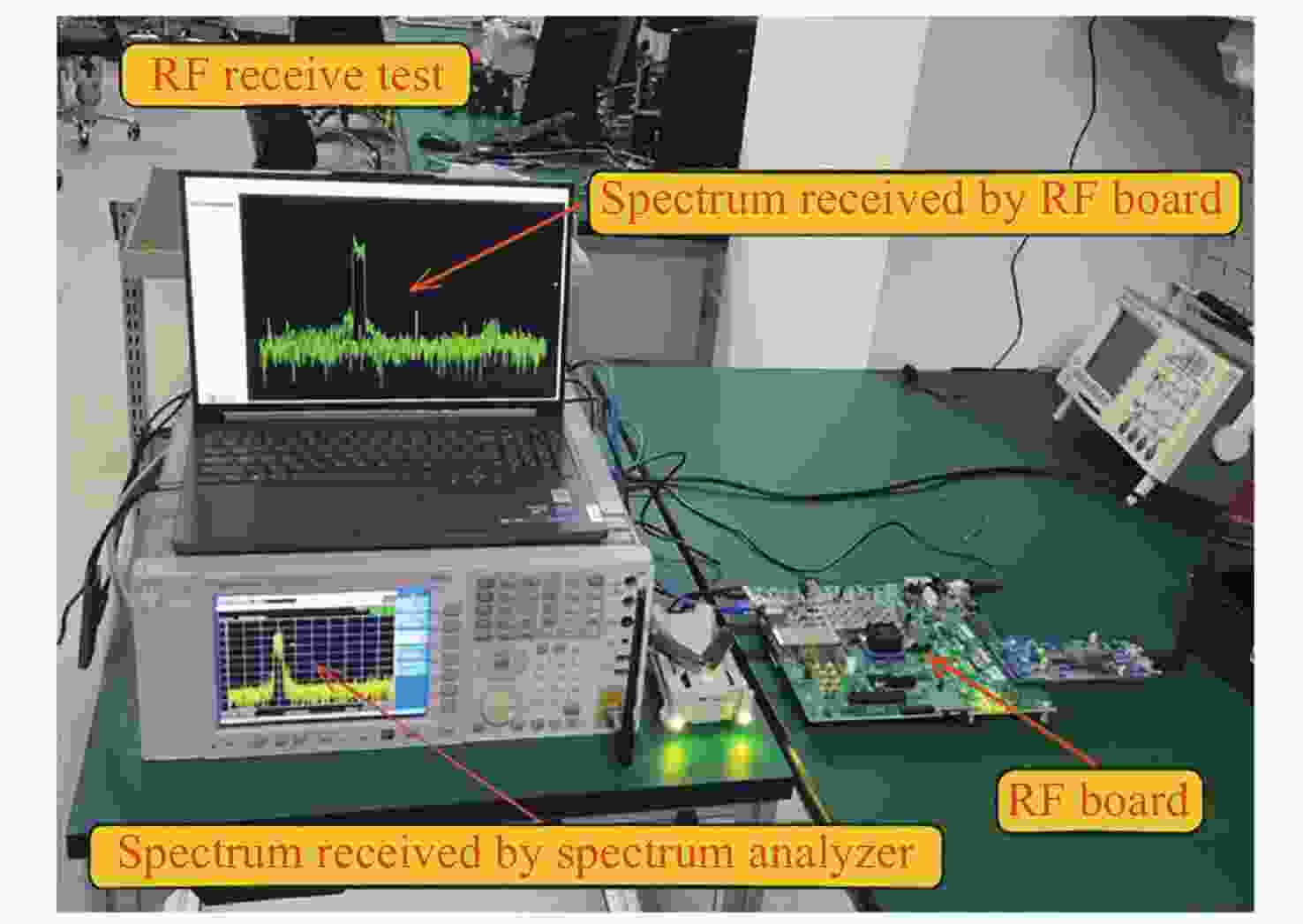

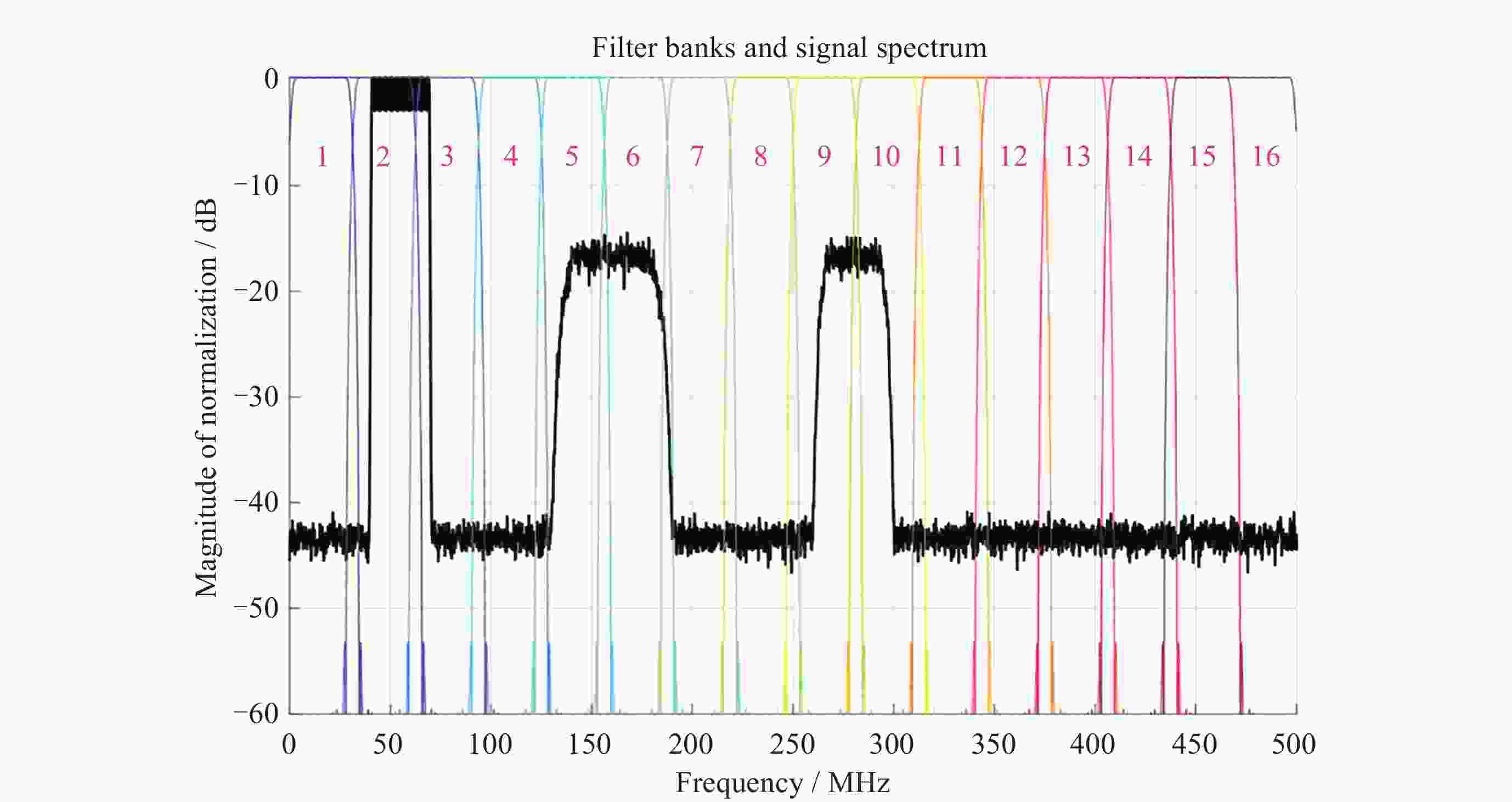

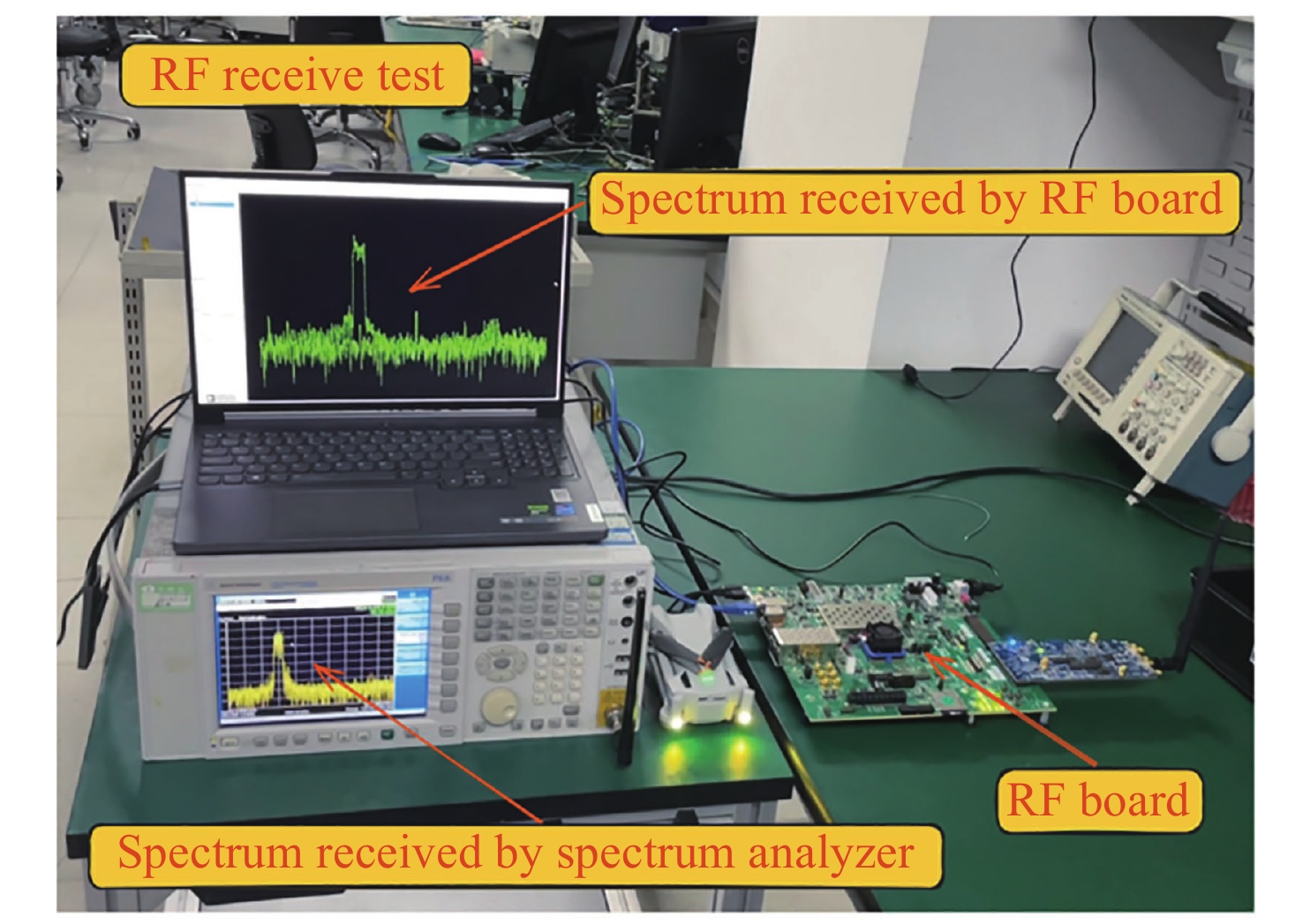

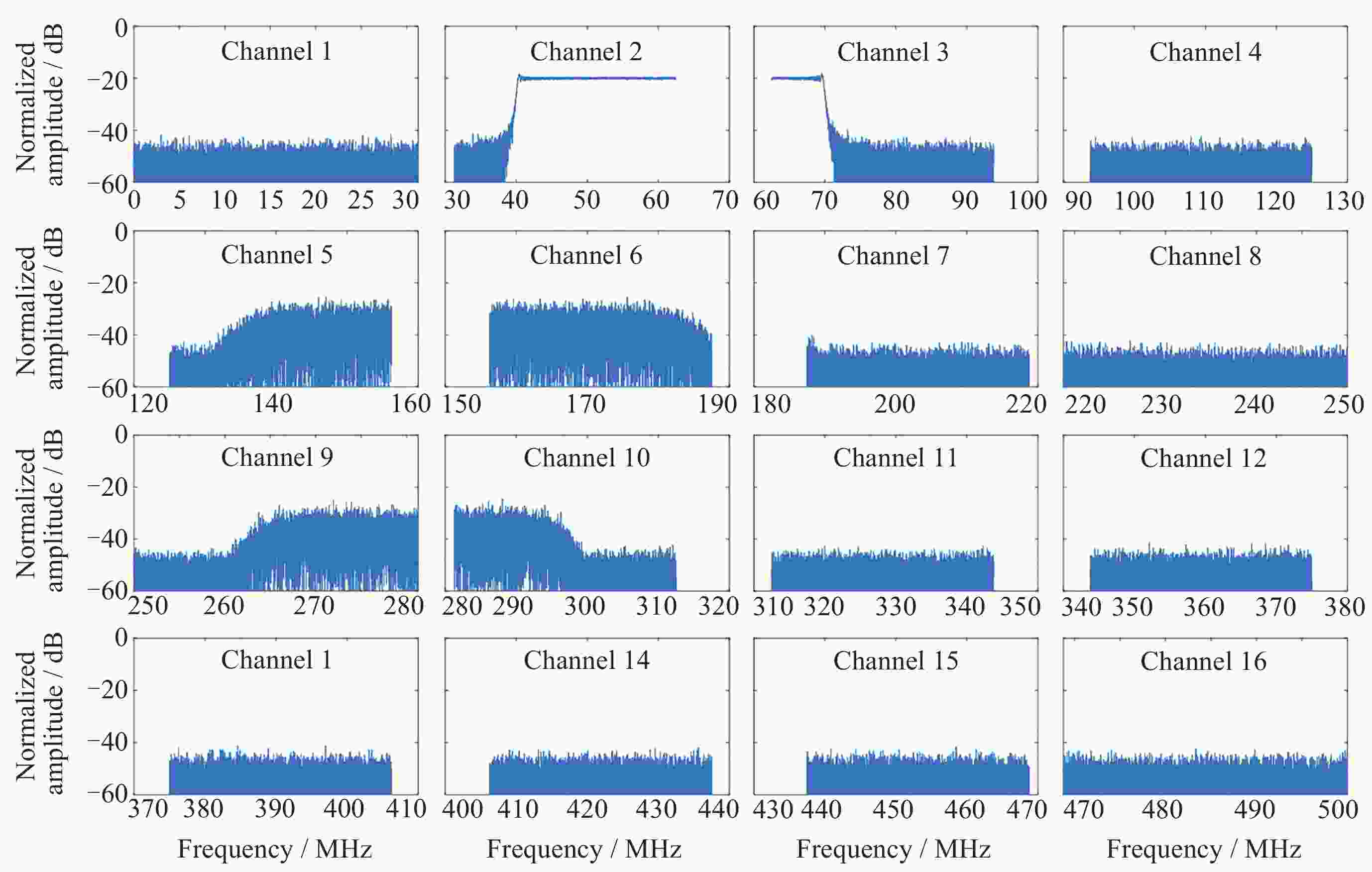

摘要: 随着全球在轨电磁设备的增长, 电磁频谱感知能力成为衡量国家综合科技实力的重要指标. 动态信道化技术是实现天基宽带频谱感知的关键技术, 具备宽带信号实时分解与并行处理能力, 可以缓解星上计算与数据处理压力. 针对频谱感知中宽带信号的跨信道问题, 设计了具有完全重构特性的多相滤波器组, 建立了分析–综合联合处理系统, 并提出优化的恒虚警率检测(Optimized-Constant False Alarm Rate, Optimized-CFAR)算法, 结合时频域联合跨信道判决方法, 实现了跨信道信号的自适应融合与精确重构. 该算法系统整体框架包括信道化滤波器组、子带频谱检测及跨信道判决三个核心模块. 实验结果表明, 15 dB信噪比条件下, 系统检测概率提升至98.6%, 重构信号保真度达0.972, 为天基频谱监测应用提供了高效解决方案.Abstract: The proliferation of electromagnetic devices in orbital environments has made electromagnetic spectrum sensing a critical capability for modern space-based systems. As space-based communication networks expand and electromagnetic interference becomes increasingly complex, advanced spectrum monitoring solutions are essential. This paper addresses the cross-channel signal processing challenge in wideband spectrum sensing, particularly for space-based platforms with limited computational resources and stringent real-time processing requirements. A dynamic channelization system incorporating perfect reconstruction polyphase filter banks is proposed to enable efficient wideband signal decomposition and parallel processing. The architecture features an analysis-synthesis joint processing framework that reduces onboard computational complexity while preserving signal integrity. An Optimized Constant False Alarm Rate (Optimized-CFAR) detection algorithm is developed to improve detection performance under varying noise conditions. The system employs a time-frequency domain joint cross-channel decision method for precise reconstruction of signals spanning multiple frequency channels. The polyphase filter bank design minimizes aliasing and distortion while ensuring computational efficiency for satellite implementation. Experimental results demonstrate significant performance improvements. At a 15 dB signal-to-noise ratio, the system achieves 98.6% detection probability, substantially outperforming conventional methods. The reconstructed signal fidelity reaches 0.972, indicating excellent preservation of signal characteristics. The cross-channel decision algorithm effectively resolves signal boundary ambiguities, enabling accurate identification and reconstruction of wideband signals exceeding individual channel bandwidths. The proposed system provides an efficient solution for space-based spectrum monitoring applications. The integration of Optimized-CFAR detection with polyphase filtering techniques offers a scalable framework for real-time wideband spectrum analysis suitable for orbital deployment, enhancing electromagnetic spectrum awareness capabilities for space-based communication and surveillance systems.
-
表 1 信道化滤波器组乘法器消耗对比
Table 1. Comparison of multiplier in channelized filter banks
设计方法 乘法器数量 比例/(%) 本方法 687 2.6 LPFB 25920 100 PPFB 1652 6.37 FRM 822 3.17
下载: 导出CSV
表 2 不同通道下处理实时性对比
Table 2. Comparison of real-time processing in different channels
信道数 系统吞吐率/GSPS 处理延迟/μs 功耗/W 16 1.6 1.72 2.8 32 3.2 3.45 4.5 64 4.0 6.84 8.2
下载: 导出CSV
表 3 不同信道数下资源消耗占比
Table 3. Resource consumption proportion under different channels
信道数 DSP48使用率/(%) BRAM使用率/(%) LUT使用率/(%) 16 8.6 12.3 14.7 32 17.3 25.7 28.9 64 34.6 48.2 52.3
下载: 导出CSV
-
[1] 谢春茂, 张川, 黄明, 等. 电磁频谱空间应用及发展趋势综述[J]. 电子科技大学学报, 2024, 53(2): 161-173XIE Chunmao, ZHANG Chuan, HUANG Ming, et al. A review of the applications and development trends of electromagnetic spectrum space[J]. Journal of University of Electronic Science and Technology of China, 2024, 53(2): 161-173 [2] 夏瑞, 王敬超, 邓博于, 等. 低轨电磁监测智能处理框架与关键技术综述[J]. 工程科学学报, 2023, 45(5): 807-818XIA Rui, WANG Jingchao, DENG Boyu, et al. LEO constellation-based electromagnetic monitoring intelligent processing framework and a review of key technologies[J]. Chinese Journal of Engineering, 2023, 45(5): 807-818 [3] HUANG Y, CUI H Y, HOU Y Q, et al. Space-based electromagnetic spectrum sensing and situation awareness[J]. Space: Science & Technology, 2024, 4: 0109 [4] KODHELI O, LAGUNAS E, MATURO N, et al. Satellite communications in the new space era: a survey and future challenges[J]. IEEE Communications Surveys & Tutorials, 2021, 23(1): 70-109 doi: 10.1109/COMST.2020.3028247 [5] WANG X H, MENG Q, HAN J L, et al. Flexible filter bank based on an improved weighted overlap-add algorithm for processing wide bandwidth radio astronomy signals[J]. Publications of the Astronomical Society of the Pacific, 2015, 127(958): 1263-1268 doi: 10.1086/684435 [6] 郭连平, 田书林, 王志刚, 等. WOLA滤波器组在宽带数字中频处理中的应用[J]. 计量学报, 2013, 34(5): 486-490 doi: 10.3969/j.issn.1000-1158.2013.05.18GUO Lianping, TIAN Shulin, WANG Zhigang, et al. Application of WOLA filterbanks in wideband digital IF processing[J]. Acta Metrologica Sinica, 2013, 34(5): 486-490 doi: 10.3969/j.issn.1000-1158.2013.05.18 [7] SU Y. Design of a narrow transition band dynamic digital channelized receiver without Merging adjacent sub-channels[J]. Journal of Physics: Conference Series, 2020, 1486(4): 042044 doi: 10.1088/1742-6596/1486/4/042044 [8] 罗立宇, 龚晓峰, 雒瑞森. 基于乘法器复用的信道化接收机的设计与应用[J]. 现代电子技术, 2020, 43(9): 10-13,20LUO Liyu, GONG Xiaofeng, LUO Ruisen. Design and application of channelized receiver based on multiplier reuse[J]. Modern Electronics Technique, 2020, 43(9): 10-13,20 [9] LÓPEZ-RISUEÑO G, GRAJAL J, SANZ-OSORIO A. Digital channelized receiver based on time-frequency analysis for signal interception[J]. IEEE Transactions on Aerospace and Electronic Systems, 2005, 41(3): 879-898 doi: 10.1109/TAES.2005.1541437 [10] KIM J, UTOMO D R, DISSANAYAKE A, et al. The evolution of channelization receiver architecture: principles and design challenges[J]. IEEE Access, 2017, 5: 25385-25395 doi: 10.1109/ACCESS.2017.2772810 [11] HARRIS F J, DICK C, RICE M. Digital receivers and transmitters using polyphase filter banks for wireless communications[J]. IEEE Transactions on Microwave Theory and Techniques, 2003, 51(4): 1395-1412 doi: 10.1109/TMTT.2003.809176 [12] RUIZ S, DIETZEN T, VAN WATERSCHOOT T, et al. A comparison between overlap-save and weighted overlap-add filter banks for multi-channel Wiener filter based noise reduction[C]//2021 29th European Signal Processing Conference (EUSIPCO). Dublin: IEEE, 2021: 336-340 [13] MAHESH R, VINOD A P. Low complexity flexible filter banks for uniform and non-uniform channelisation in software radios using coefficient decimation[J]. IET Circuits, Devices & Systems, 2011, 5(3): 232-242 [14] ZHANG X, WANG X R. Waveform design with controllable modulus dynamic range under spectral constraints[J]. Signal Processing, 2021, 189: 108285 doi: 10.1016/j.sigpro.2021.108285 [15] CONTE E, DE MAIO A, GALDI C. Signal detection in compound-Gaussian noise: Neyman-Pearson and CFAR detectors[J]. IEEE Transactions on Signal Processing, 2000, 48(2): 419-428 doi: 10.1109/78.823969 [16] HARRIS F J. Multirate Signal Processing for Communication Systems[M]. 2nd ed. New York: River Publishers, 2021 [17] VETTERLI M, KOVACEVIC J. Wavelets and Subband Coding[M]. Englewood Cliffs: Prentice-Hall, 1995 [18] 饶云华, 周健康, 万显荣, 等. 基于动态有序矩阵的外辐射源雷达CFAR算法[J]. 电子与信息学报, 2021, 43(4): 1154-1161 doi: 10.11999/JEIT191024RAO Yunhua, ZHOU Jiankang, WAN Xianrong, et al. CFAR for passive radar based on Dynamic Ordered Matrix[J]. Journal of Electronics & Information Technology, 2021, 43(4): 1154-1161 doi: 10.11999/JEIT191024 [19] TENG F, JIAO Y W, YANG W G, et al. Multiphase parallel demodulation for remote sensing satellite data transmission—Filter bank based on WOLA structure[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2022, 15: 9556-9565 doi: 10.1109/JSTARS.2022.3201251 [20] 朱政宇, 周宁, 梁静, 等. 基于FRM的WOLA滤波器组动态信道化结构[J]. 北京邮电大学学报, 2024, 47(3): 62-68 doi: 10.13190/j.jbupt.2023-099ZHU Zhengyu, ZHOU Ning, LIANG Jing, et al. Dynamic channelization structure of WOLA filter banks based on FRM[J]. Journal of Beijing University of Posts and Telecommunications, 2024, 47(3): 62-68 doi: 10.13190/j.jbupt.2023-099 -
-
下载:
图(9) / 表(3)
