基于卫星遥感的海浪斜率方差验证与差异原因分析
doi: 10.11728/cjss2026.03.2025-0076 cstr: 32142.14.cjss.2025-0076
-
郎姝燕 女, 1983年出生于山西, 硕士研究生学历, 现为国家卫星海洋应用中心研究员, 主要研究方向为海洋遥感. E-mail: langshuyan@mail.nsoas.org.cn -
李秀仲 男, 1985年出生于山东, 博士研究生学历, 现为南京信息工程大学海洋科学学院副教授, 硕士生导师, 主要研究方向为海洋微波遥感. E-mail: lixiuzhong@nuist.edu.cn
作者简介:
通讯作者:
Validation and Discrepancy Analysis of Sea Surface Mean Square Slope Measured by SWIM and CYGNSS
-

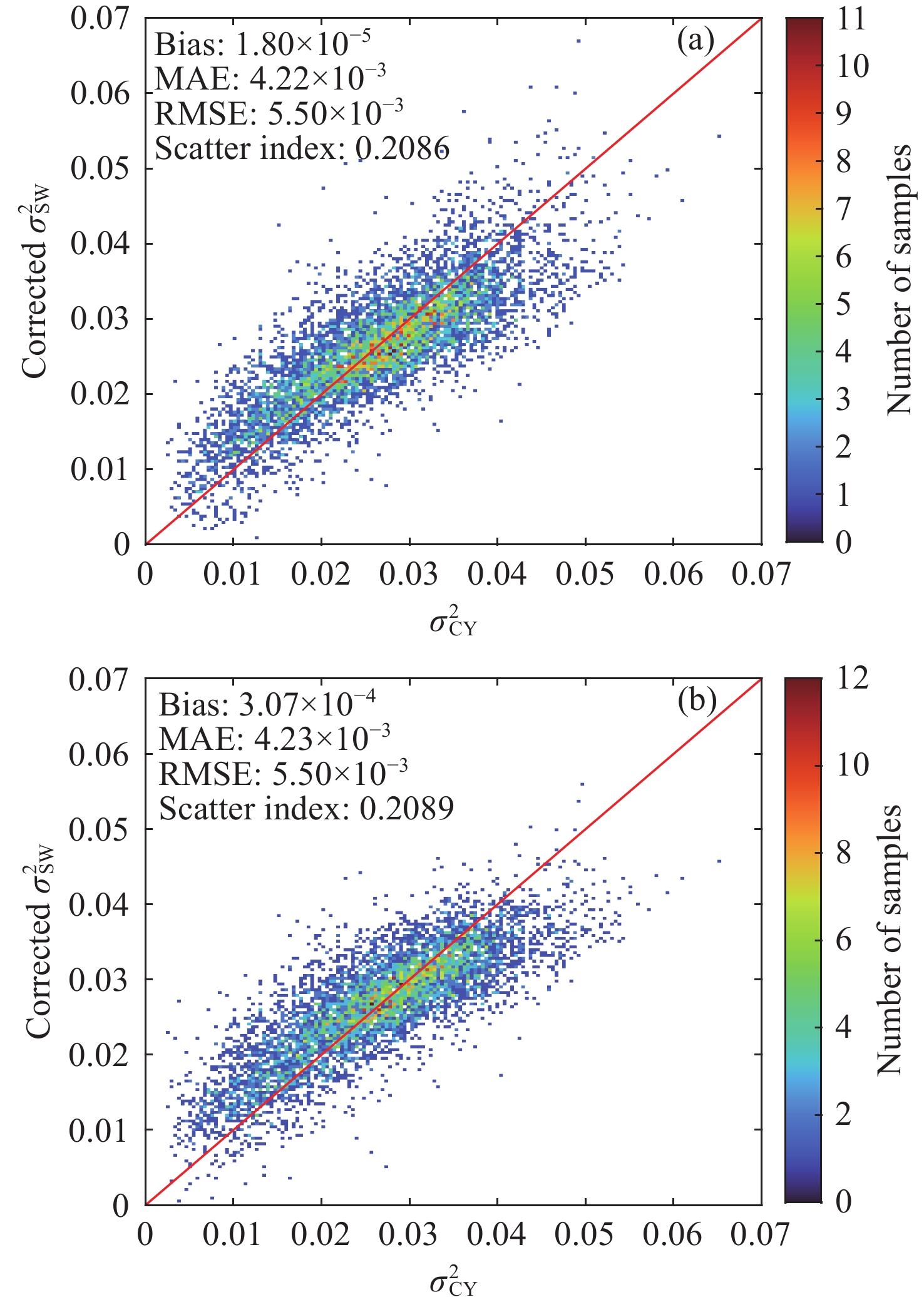

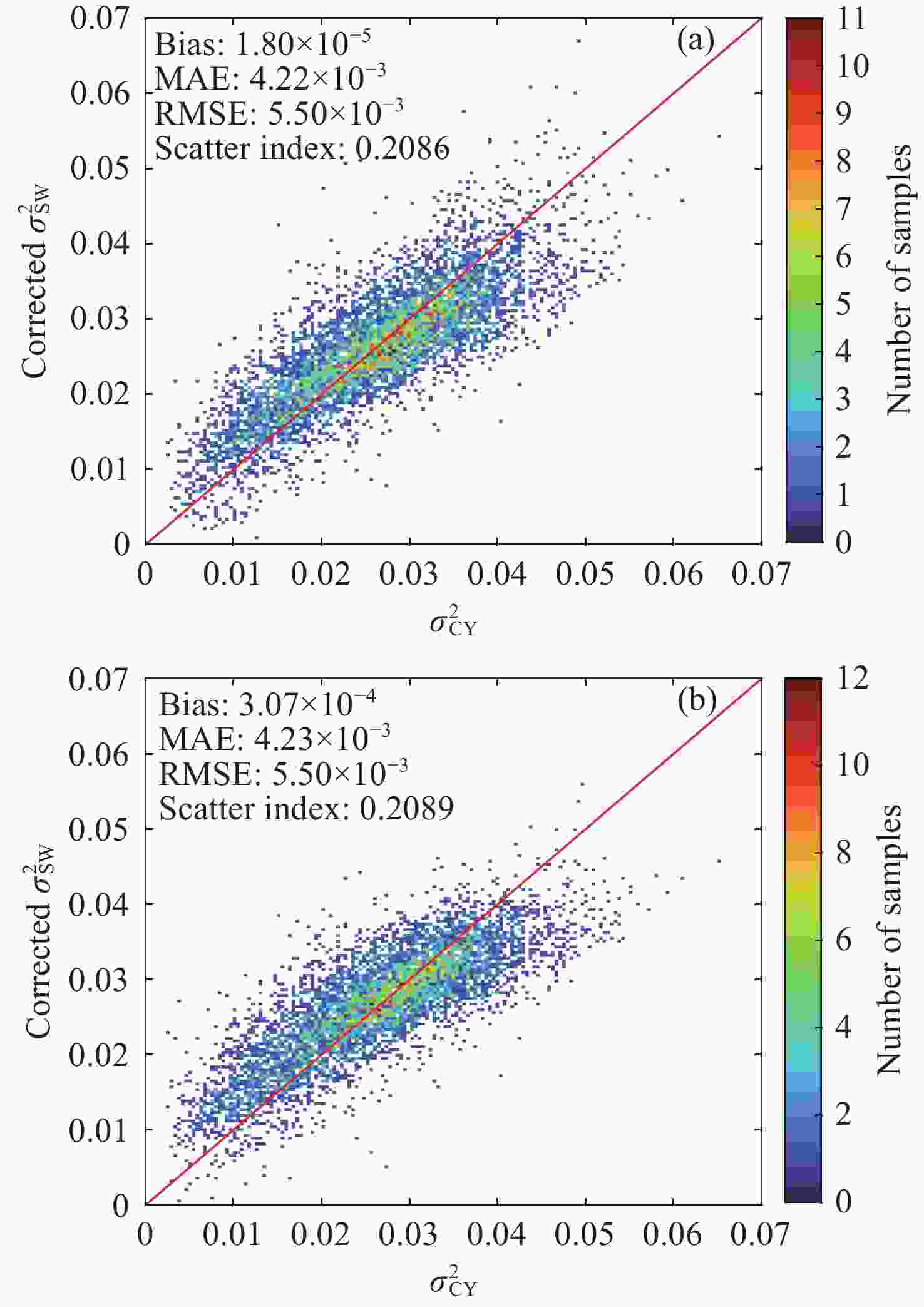

摘要: 海面斜率方差MSS(Mean Square Slope)是海洋微波遥感领域表征海面粗糙度的关键参数, 对研究海气耦合过程及海洋气象监测意义重大. 对中法海洋卫星CFOSAT(China France Oceanography Satellite)搭载的海浪波谱仪SWIM(Surface Waves Investigation and Monitoring)和旋风全球卫星导航系统CYGNSS (Cyclone Global Navigation Satellite System)所反演的MSS展开对比分析. SWIM 通过拟合不同入射角和方位角下的二维归一化雷达后向散射截面反演MSS, CYGNSS则在初步观测基础上减去一个校正量以获取局地风引起的MSS. 对2023年1月数据进行时空匹配后进行直接对比, 发现小风速下SWIM反演的MSS大于CYGNSS, 而风速超过约7m·s–1时CYGNSS的MSS大于SWIM反演的MSS, 这主要归因于二者微波波段不同及CYGNSS反演过程中减去涌浪产生的 MSS校正量. 利用Elfouhaily谱模型对SWIM MSS校正后, 二者平均偏差约为0.03, 随机均方误差为0.0323, 此误差源于涌浪产生的MSS及截止波长差异. 研究结果明确了两种星载传感器反演MSS的差异与误差来源, 为MSS数据校准及后续海洋研究与应用提供了重要参考.
-
关键词:
- 海面斜率方差 /
- 微波遥感 /
- 中法海洋卫星 /
- SWIM /
- 旋风全球卫星导航系统

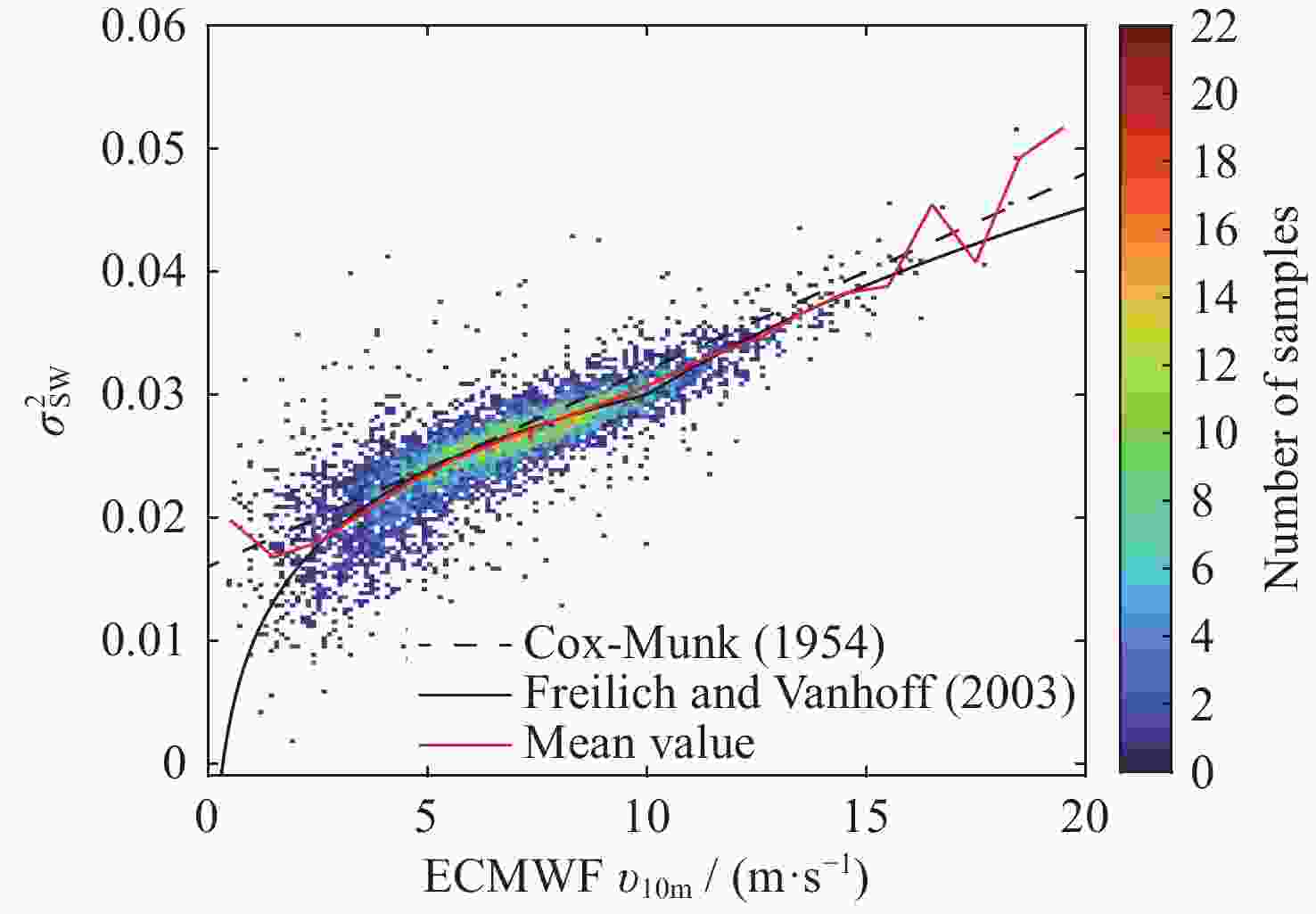

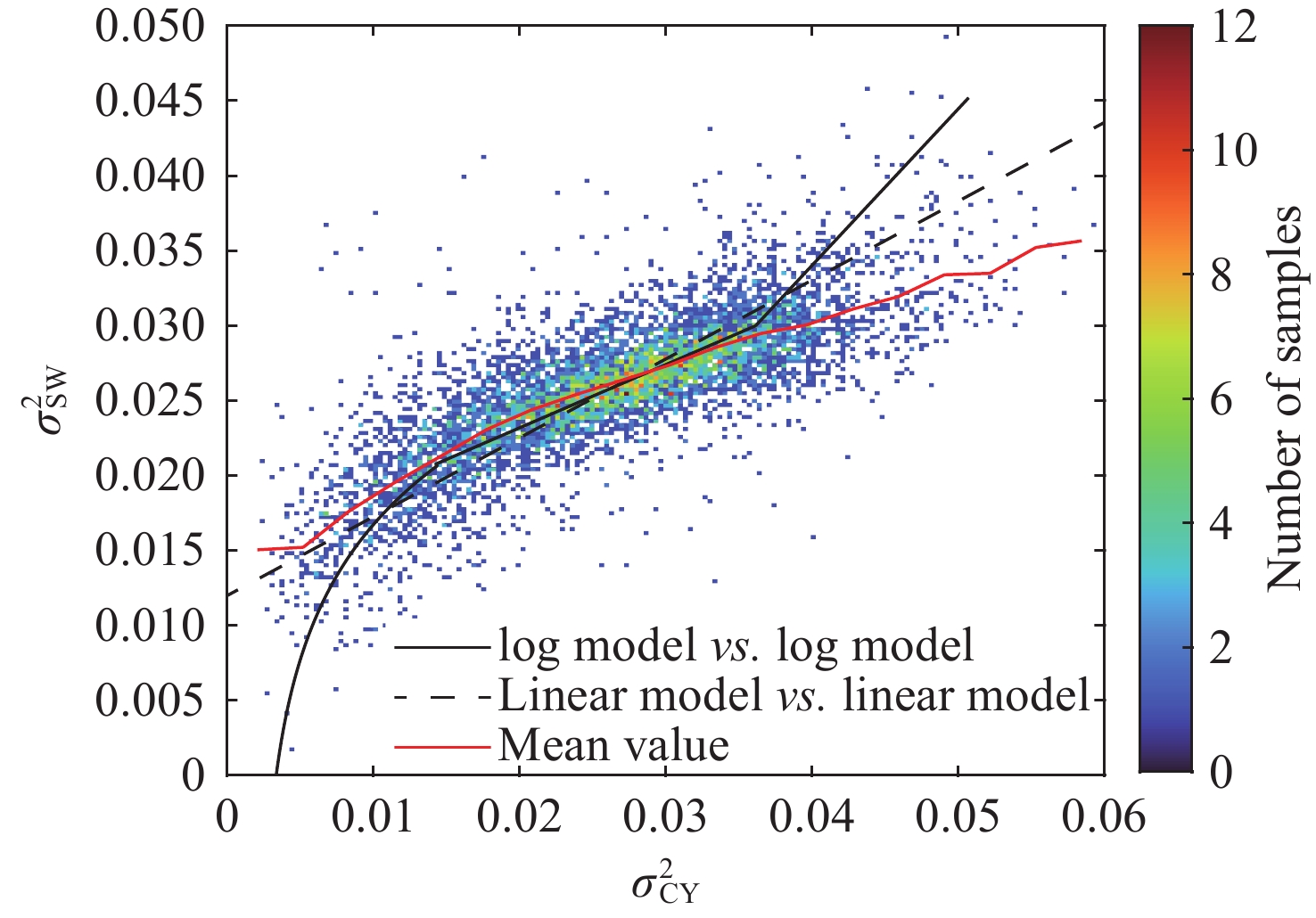

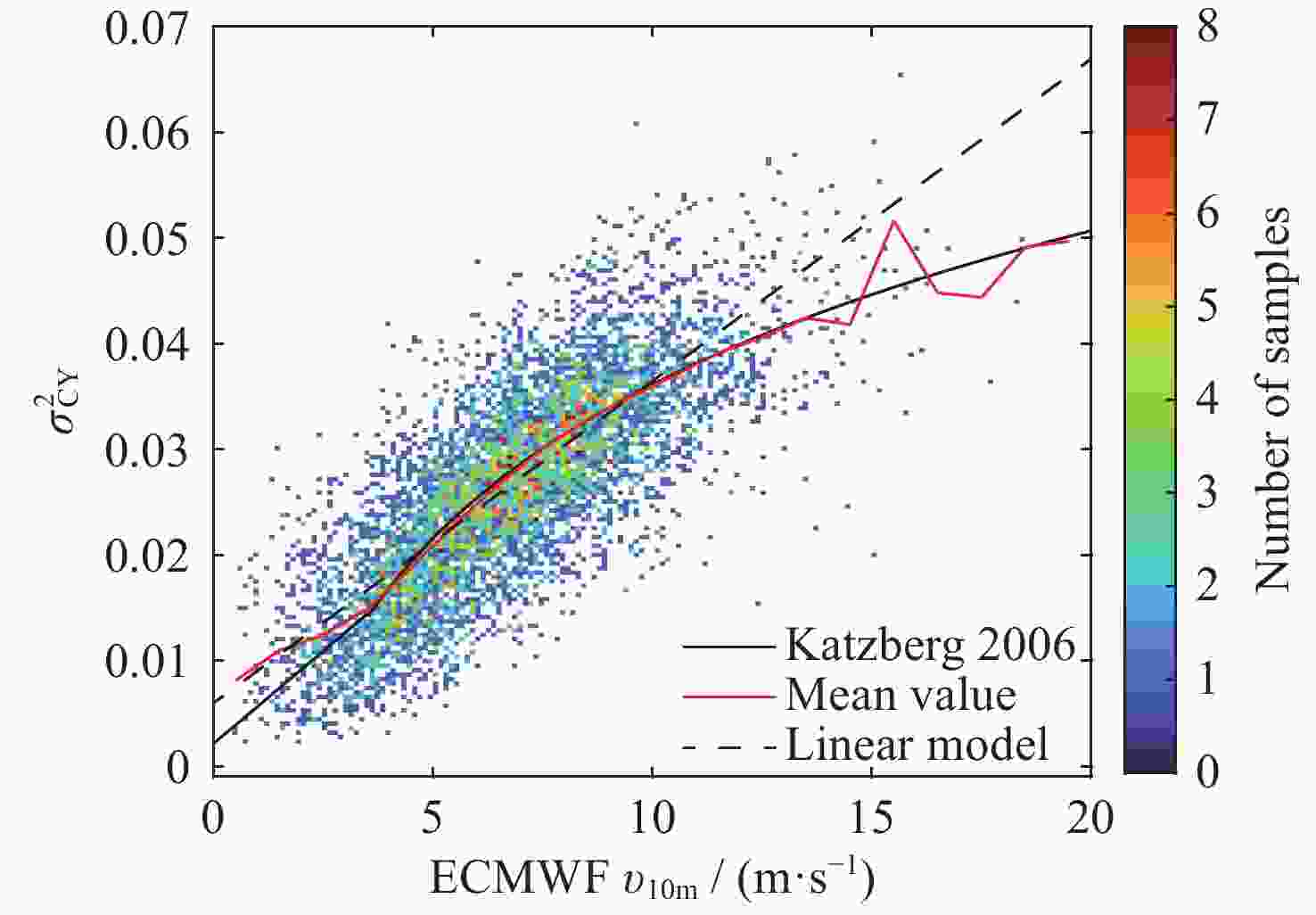

Abstract: The Mean Square Slope (MSS) of the sea surface is a key parameter for characterizing sea surface roughness in the field of marine microwave remote sensing, and it is of great significance for studying the air-sea coupling process and marine meteorological monitoring. This paper conducts a comparative analysis of the MSS retrieved by the Surface Waves Investigation and Monitoring (SWIM) on the China-France Oceanography Satellite (CFOSAT) and the Cyclone Global Navigation Satellite System (CYGNSS). SWIM retrieves the MSS by fitting the two-dimensional normalized radar backscatter cross-section under different incident angles and azimuth angles. CYGNSS obtains the MSS caused by local winds by subtracting a correction amount on the basis of preliminary observations. In this paper, after collocating the data from SWIM and CYGNSS in January 2023, a direct comparison has been made. It is found that the MSS derived from SWIM is higher than that retrieved by CYGNSS under low wind speeds, while when the wind speed exceeds approximately 7 m·s–1, the MSS derived from CYGNSS is higher than that given by SWIM. This is mainly attributed to the differences in the microwave bands of the two and the correction amount of the MSS generated by swell subtracted during the retrieval process of CYGNSS. After correcting the SWIM MSS using the Elfouhaily spectrum model, the bias between the two is approximately 0.03, and the random root mean square error is 0.0323. This error is caused by the MSS generated by swell and the differences in the cutoff wavelength. The research results clarify the differences and error sources of the MSS retrieved by the two spaceborne sensors, providing an important reference for the calibration of MSS data and subsequent marine research and applications. -

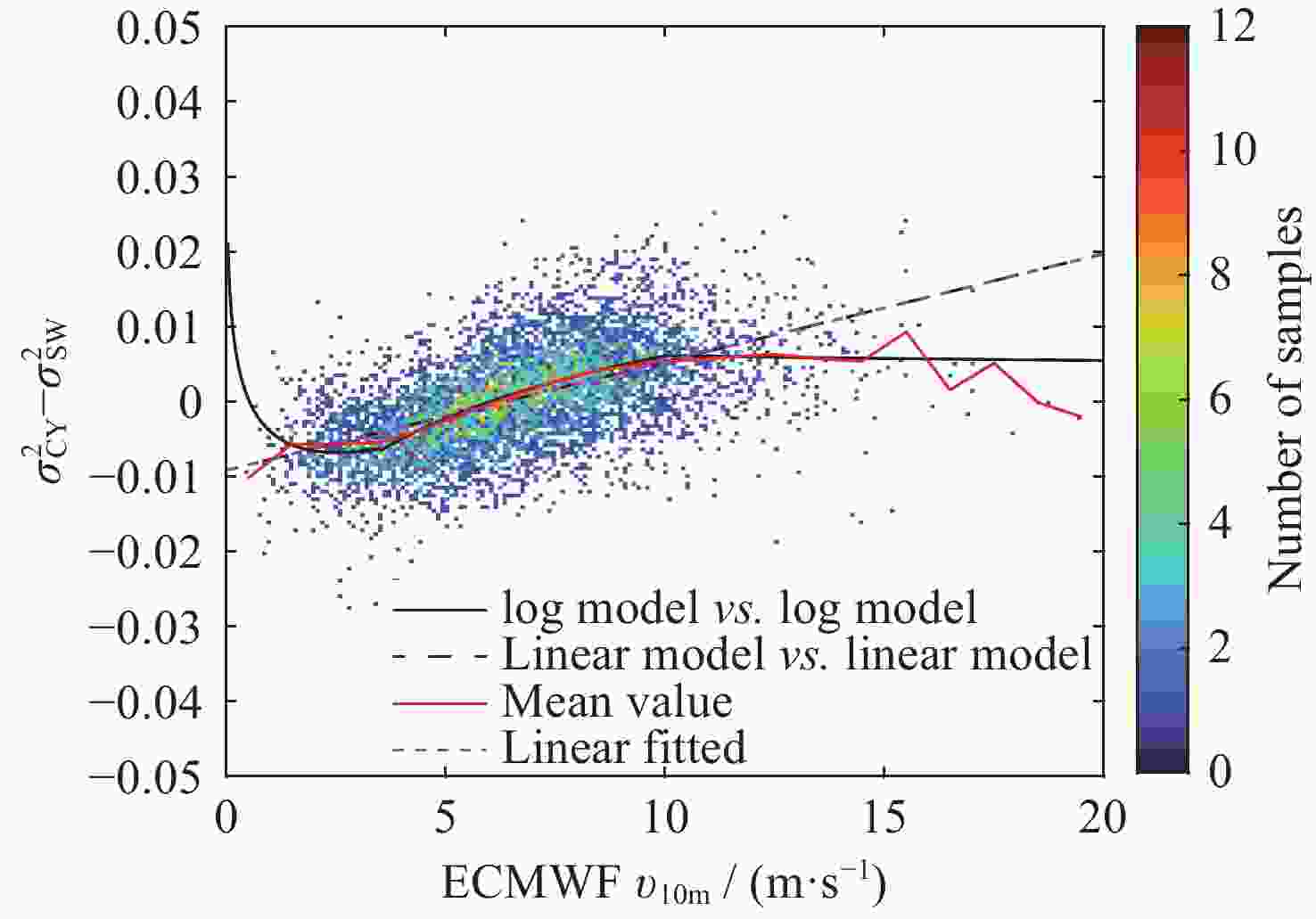

图 4 SWIM与CYGNSS MSS之差随风速的变化
Figure 4. Dependence of the difference between SWIM and CYGNSS MSS on wind speed
-
[1] LI S Q, ZHAO D L, ZHOU L M, et al. Dependence of mean square slope on wave state and its application in altimeter wind speedretrieval[J]. International Journal of Remote Sensing, 2013, 34(1): 264-275 doi: 10.1080/01431161.2012.713144 [2] ROMERO L, LUBANA K. On the bimodality of the wind-wave spectrum: mean square slopes and azimuthal overlap integral[J]. Journal of Physical Oceanography, 2022, 52(7): 1549-1562 doi: 10.1175/JPO-D-21-0299.1 [3] ZHONG Y Z, CHIEN H, CHANG H M, et al. Ocean wind observation based on the mean square slope using a self-developed miniature wave buoy[J]. Sensors, 2022, 22(19): 7210 doi: 10.3390/s22197210 [4] HWANG P A. Ocean surface roughness from satellite observations and spectrum modeling of wind waves[J]. Journal of Physical Oceanography, 2022, 52(9): 2143-2158 doi: 10.1175/JPO-D-22-0043.1 [5] GUO M D, CHEN K S. YANG Y, et al. Effective surface roughness in radar ocean backscattering[J]. IEEE Transactions on Geoscience and Remote Sensing, 2023, 61: 2004113 [6] XIE D F, GUO F. Quantitative evaluation of the effects of large-scale sea wave components on microwave backscattering from ocean surface[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2022, 15: 5853-5864 doi: 10.1109/JSTARS.2022.3192556 [7] LIU Y G, SU M Y, YAN X H, et al. The mean-square slope of ocean surface waves and its effects on radar backscatter[J]. Journal of Atmospheric and Oceanic Technology, 2000, 17(8): 1092-1105 doi: 10.1175/1520-0426(2000)017<1092:tmssoo>2.0.co;2 [8] SHARONI S M H, REBA M N M, LIM H S. Improved tropical cyclone wind speed estimation for microwave altimeter using machine learning[J]. Remote Sensing of Environment, 2024, 301: 113961 doi: 10.1016/j.rse.2023.113961 [9] ZHANG Y, ZHAO X Y, YANG S H, et al. Research on sea surface wind speed FM based on CYGNSS and HY-2B microwave scatterometer[J]. IEEE Transactions on Geoscience and Remote Sensing, 2024, 62: 1-15 doi: 10.1109/tgrs.2024.3363705 [10] GARRISON J L, VOO J K, YUEH S H, et al. Estimation of sea surface roughness effects in microwave radiometric measurements of salinity using reflected global navigation satellite system signals[J]. IEEE Geoscience and Remote Sensing Letters, 2011, 8(6): 1170-1174 doi: 10.1109/LGRS.2011.2159323 [11] FREILICH M H, VANHOFF B A. The relationship between winds, surface roughness, and radar backscatter at low incidence angles from TRMM precipitation radar measurements[J]. Journal of Atmospheric and Oceanic Technology, 2003, 20(4): 549-562 doi: 10.1175/1520-0426(2003)20<549:TRBWSR>2.0.CO;2 [12] LI X Z, KARAEV V, PANFILOVA M, et al. Measurements of total sea surface mean square slope field based on SWIM data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2022, 60: 5114109 doi: 10.1109/tgrs.2022.3174392 [13] SCHULER D L, LEE J S, KASILINGAM D, et al. Measurement of ocean surface slopes and wave spectra using polarimetric SAR image data[J]. Remote Sensing of Environment, 2004, 91(2): 198-211 [14] MONALDO F, DOBSON E. On using significant wave height and radar cross section to improve radar altimeter measurements of wind speed[J]. Journal of Geophysical Research: Oceans, 1989, 94(C9): 12699-12701 doi: 10.1029/JC094iC09p12699 [15] BAO L W, ZHANG X, CAO C H, et al. Impact of polarization basis on wind and wave parameters estimation using the azimuth cutoff from GF-3 SAR imagery[J]. IEEE Transactions on Geoscience and Remote Sensing, 2022, 60: 5234716 doi: 10.1109/tgrs.2022.3204409 [16] HOSSAN A, JONES WL. Ku- and Ka-band ocean surface radar backscatter model functions at low-incidence angles using full-swath GPM DPR data[J]. Remote Sensing, 2021, 13(8): 1569 doi: 10.3390/rs13081569 [17] HAUSER D, TOURAIN C, HERMOZO L, et al. New observations from the SWIM radar on-board CFOSAT: instrument validation and ocean wave measurement assessment[J]. IEEE Transactions on Geoscience and Remote Sensing, 2021, 59(1): 5-26 doi: 10.1109/TGRS.2020.2994372 [18] BU J W, YU K G. A new integrated method of CYGNSS DDMA and LES measurements for significant wave height estimation[J]. IEEE Transactions on Geoscience and Remote Sensing, 2022, 19: 1505605 doi: 10.1109/lgrs.2022.3198131 [19] CHRIS R. CYGNSS Handbook[M/OL]. (2022-04-01)[2024-04-20]. https://www.fulcrum.org/concern/monographs/g445cg50v?locale=en [20] VALENZUELA G R. Theories for the interaction of electromagnetic and oceanic waves — a review[J]. Boundary-Layer Meteorology, 1978, 13(1): 61-85 doi: 10.1007/bf00913863 [21] BARRICK D. Rough surface scattering based on the specular point theory[J]. IEEE Transactions on Antennas and Propagation, 1968, 16(4): 449-454 doi: 10.1109/TAP.1968.1139220 [22] BU J W, YU K G, NI J, et al. Combining ERA5 data and CYGNSS observations for the joint retrieval of global significant wave height of ocean swell and wind wave: a deep convolutional neural network approach[J]. Journal of Geodesy, 2023, 97(8): 81 doi: 10.1007/s00190-023-01768-4 [23] WANG T L, ZAVOROTNY V U, JOHNSON J, et al. Modeling of sea state conditions for improvement of CYGNSS L2 wind speed retrievals[C]//IGARSS 2018 - 2018 IEEE International Geoscience and Remote Sensing Symposium. Valencia, Spain: IEEE, 2018: 8288-8291 [24] ELFOUHAILY T, CHAPRON B, KATSAROS K, et al. A unified directional spectrum for long and short wind-driven waves[J]. Journal of Geophysical Research: Oceans, 1997, 102(C7): 15781-15796 doi: 10.1029/97JC00467 [25] COX C, MUNK W. Statistics of the sea surface derived from sun glitter[J]. Journal of Marine Research, 1954, 13(2): 198-227 [26] WU J. Sea-surface slope and equilibrium wind-wave spectra[J]. Physics of Fluids, 1972, 15(5): 741-747 doi: 10.1063/1.1693978 [27] WU J. Mean square slopes of the wind-disturbed water surface, their magnitude, directionality, and composition[J]. Radio Science, 1990, 25(1): 37-48 doi: 10.1029/RS025i001p00037 [28] KATZBERG S J, TORRES O, GANOE G. Calibration of reflected GPS for tropical storm wind speed retrievals[J]. Geophysical Research Letters, 2006, 33(18): L18602 -
-
