基于云平台CPU与GPU协同处理的光学卫星遥感影像正射融合方法
doi: 10.11728/cjss2025.05.2023-0069 cstr: 32142.14.cjss.2023-0069
-
于潇 女, 1980年10月出生, 现为北京通信与跟踪研究所副研究员, 主要研究方向为GPU在云平台环境中的应用. E-mail: yuxiao801026@126.com -
张一 女, 1997年4月出生, 现为北京跟踪与通信技术研究所研究实习员, 研究方向为人工智能和云技术在数据处理中的应用. E-mail: MinnieZ423@163.com -
张强 男, 1979年3月出生, 现为北京通信与跟踪研究所研究员, 主要研究方向为人工智能和云技术在数据处理中的应用. E-mail: 13581688087@126.com
作者简介:
通讯作者:
Optical Satellite Remote Sensing Image Orthographic Fusion Method Based on Coprocessing of CPU and GPU in Domestic Cloud Platform
-
摘要: 系统探讨了基于国产云平台调度下自主可控CPU和GPU协同处理的光学卫星遥感影像正射融合方法执行效率问题, 通过数据流配置、中间数据存储访问优化等手段进一步提高了该方法执行效率. 在云平台调度下, 使用飞腾S2500和英伟达A100对高分二号卫星多光谱影像进行正射融合的试验, 结果表明, 该方法可很大程度提高光学卫星遥感影像正射融合效率, 与传统X86架构CPU与GPU协同的正射融合算法相比, 加速比为14.3倍以上, 数据处理时间压缩至8.4 s内, 其中GPU运算耗时仅1 s, 可满足并优化大数据量的光学卫星遥感影像快速正射融合的要求.
-
关键词:
- 正射融合 /
- 国产云平台 /
- CPU和GPU协同处理 /
- 数据流配置 /
- 存储访问优化
Abstract: The processing efficiency of optical satellite remote sensing image orthographic fusion method based on coprocessing of CPU and GPU in domestic cloud platform is discussed systematically and is improved by data flow configuration and the intermediate data storage access optimization. The Phytium S2500 and NVIDIA A100 are used in the cloud platform to do the orthographic fusion experiment. The experiment results show that the method can greatly improve the fusion efficiency of optical satellite remote sensing image, and the acceleration ratio is more than 14.3 times of the traditional X86 architecture CPU and GPU collaborative orthographic fusion algorithm., and the corresponding processing time is reduced to less than 8.4 s, and the GPU operation time is only 1 s, which can meet the requirements of rapid orthographic correction of the large data of optical satellite remote sensing image. -

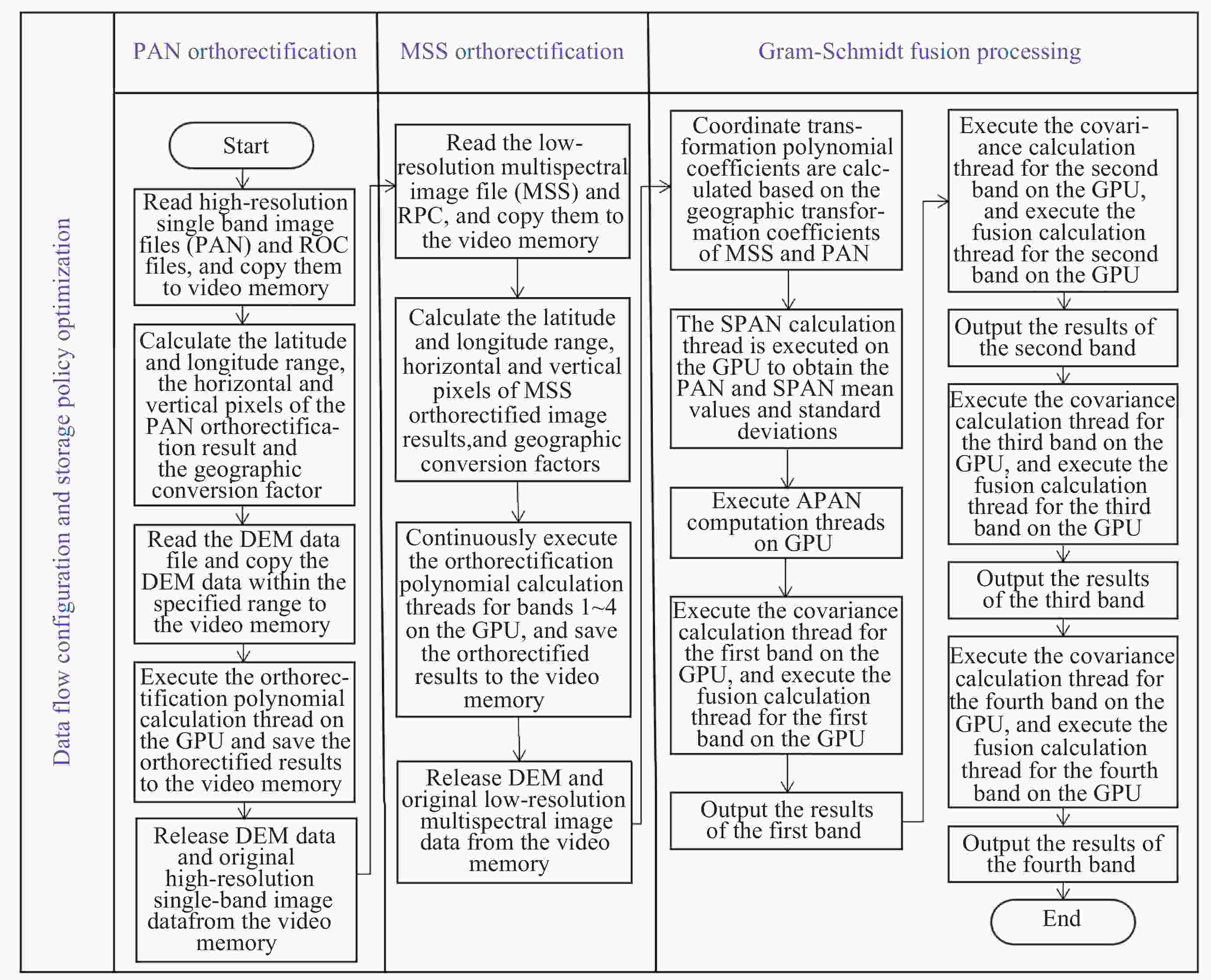

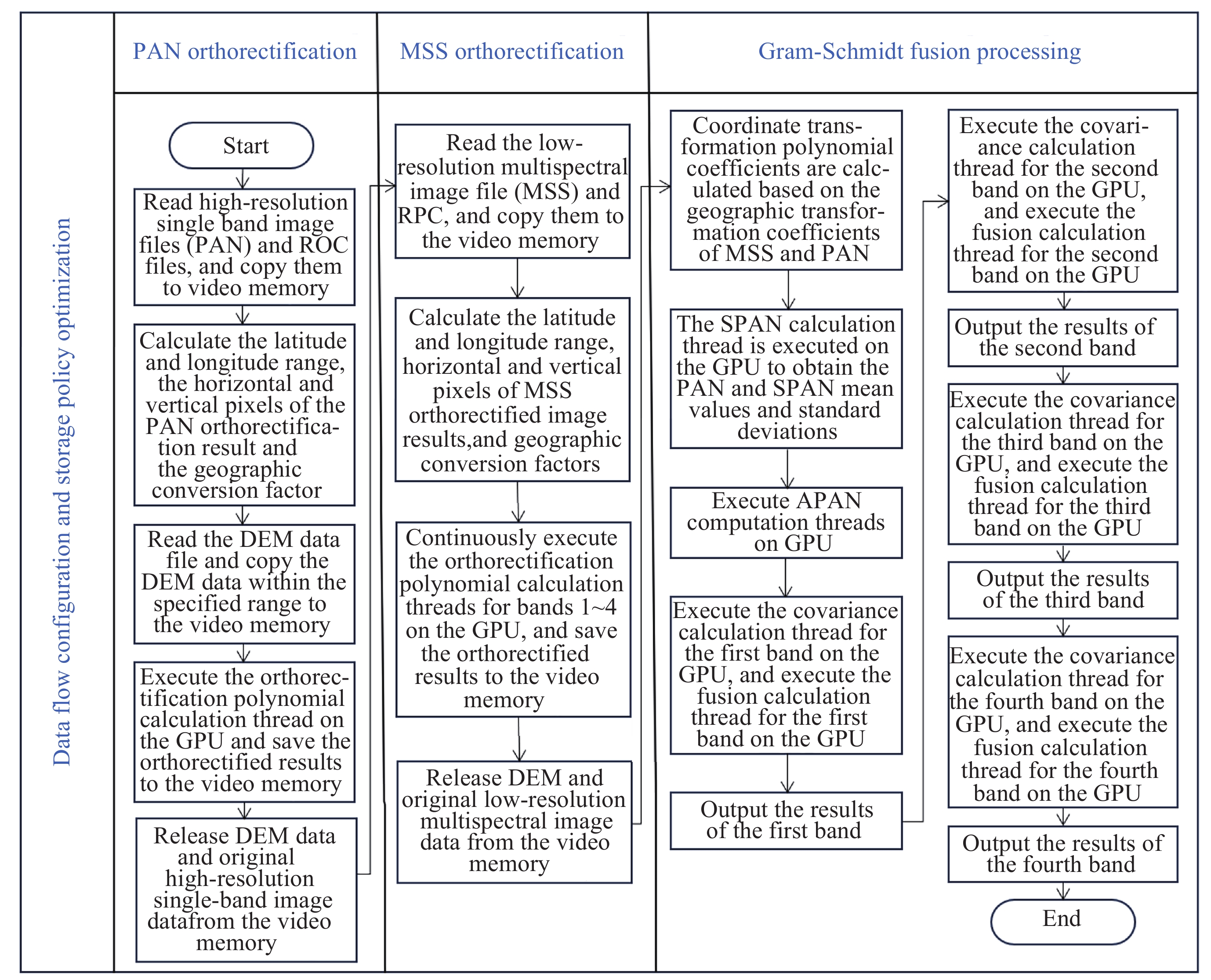

图 2 数据流配置和存储策略优化流程
Figure 2. Flowchart of data flow configuration and storage policy optimization

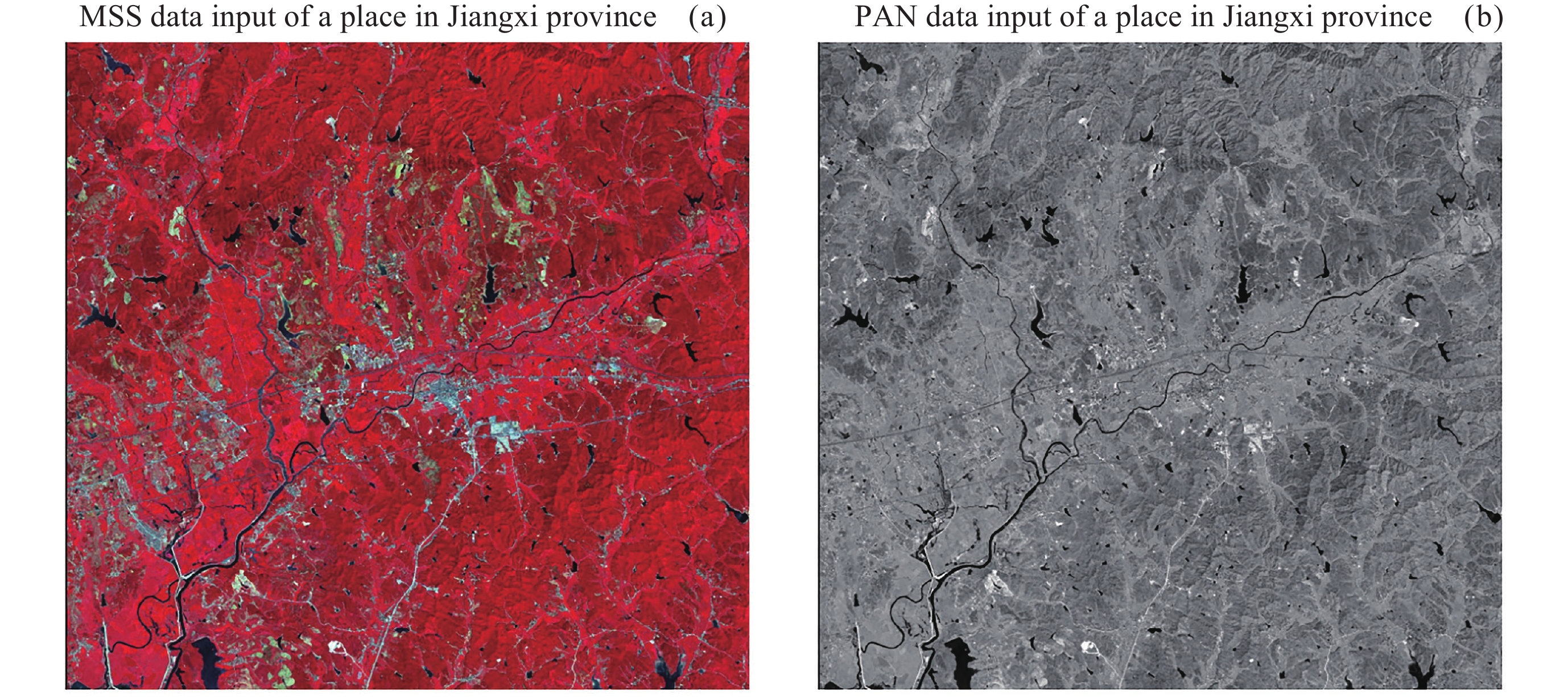

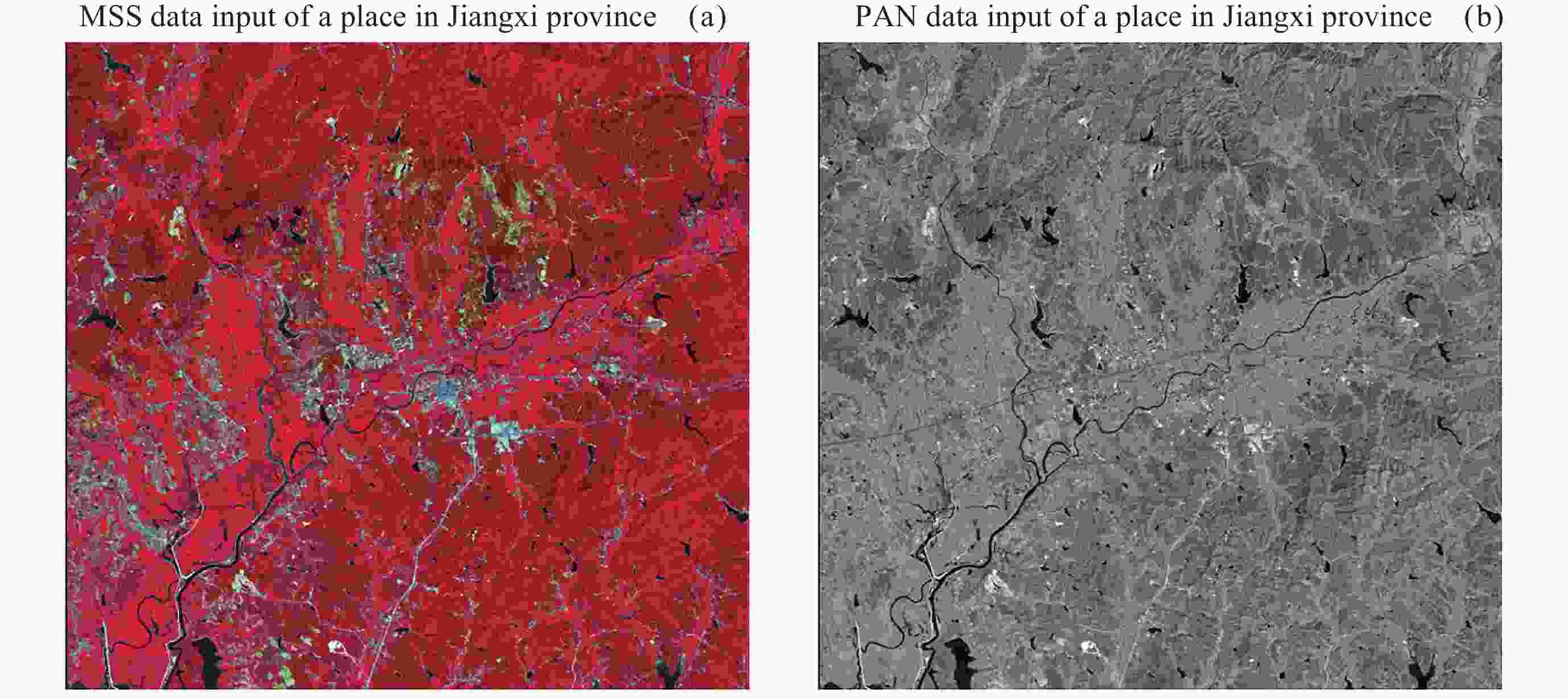

图 3 中国江西省某地多光谱与全色谱段数据对比
Figure 3. Comparison of multispectral with whole-chromatographic data from a place in Jiangxi Province

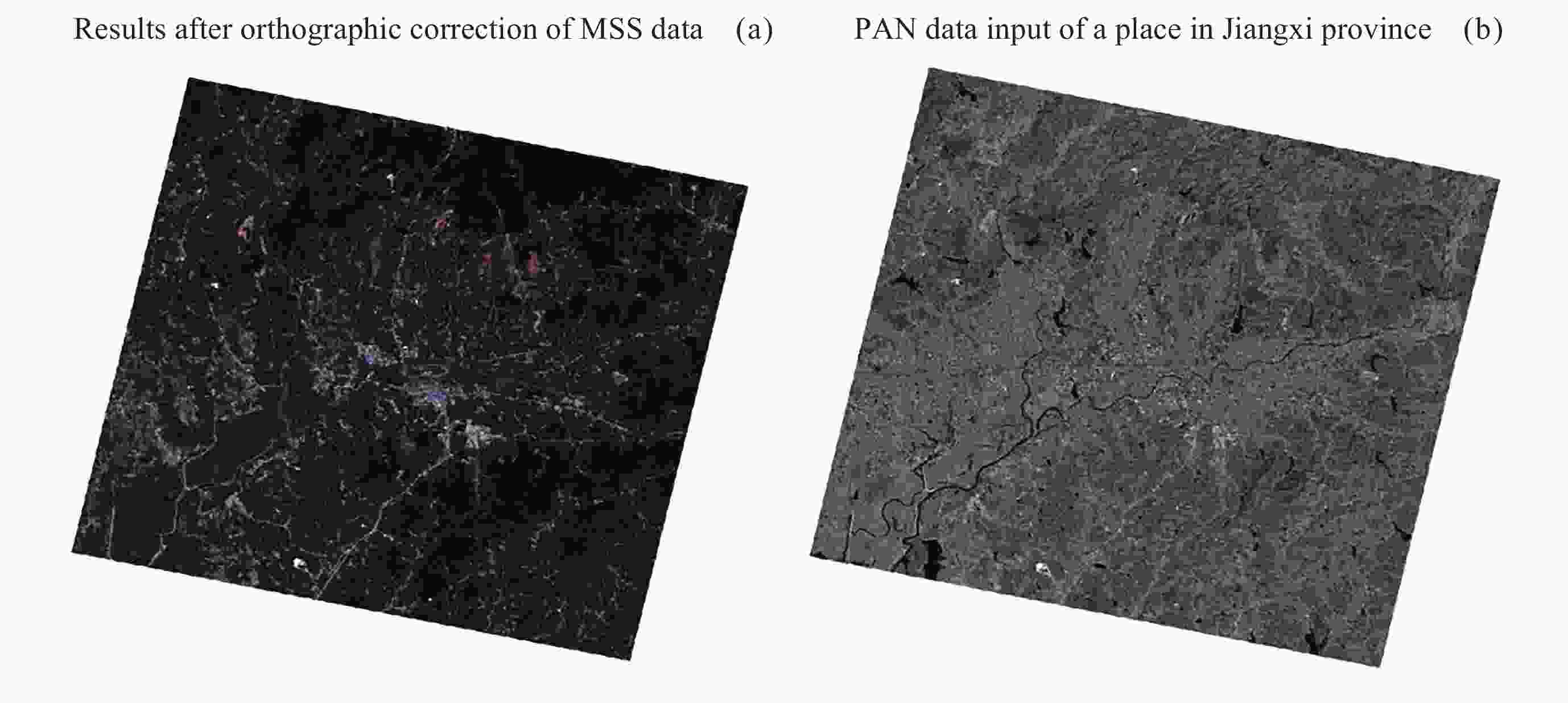

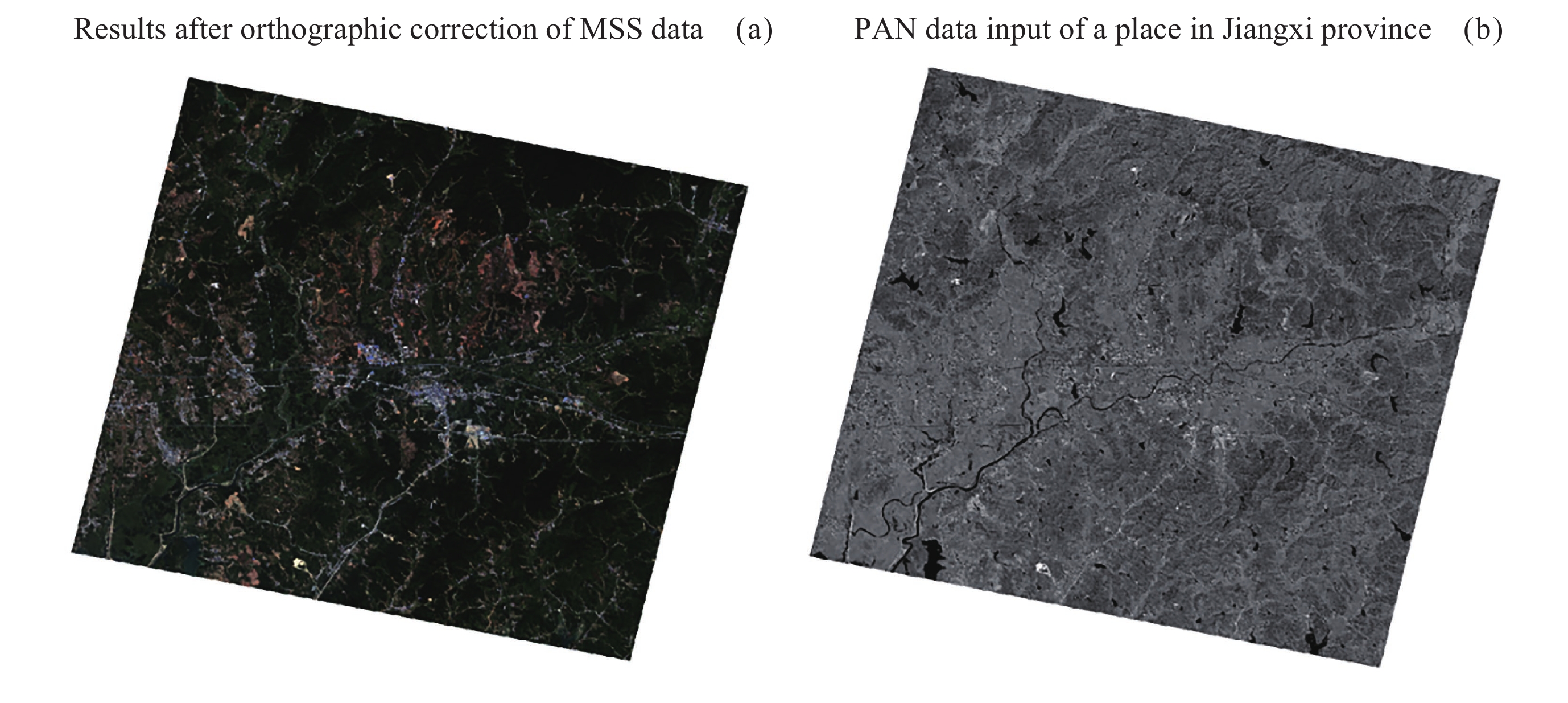

图 4 ENVI软件单独进行正射校正的输出图像对比
Figure 4. Comparison of output images for orthographic correction by ENVI software alone

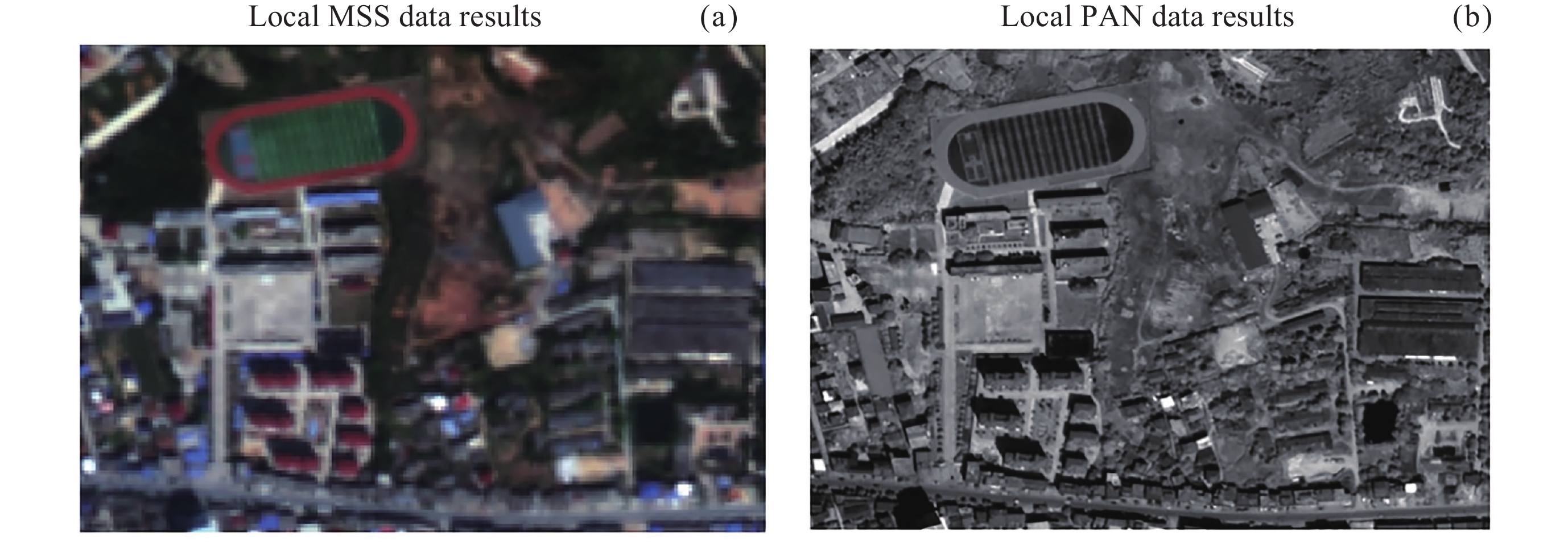

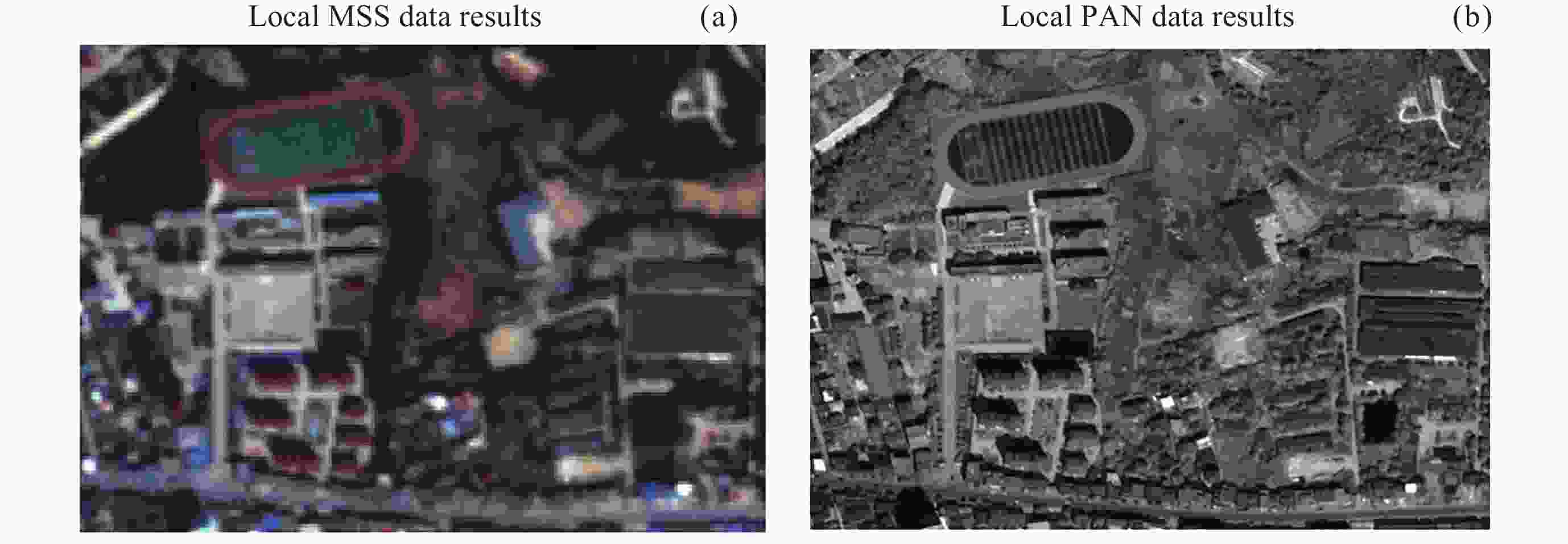

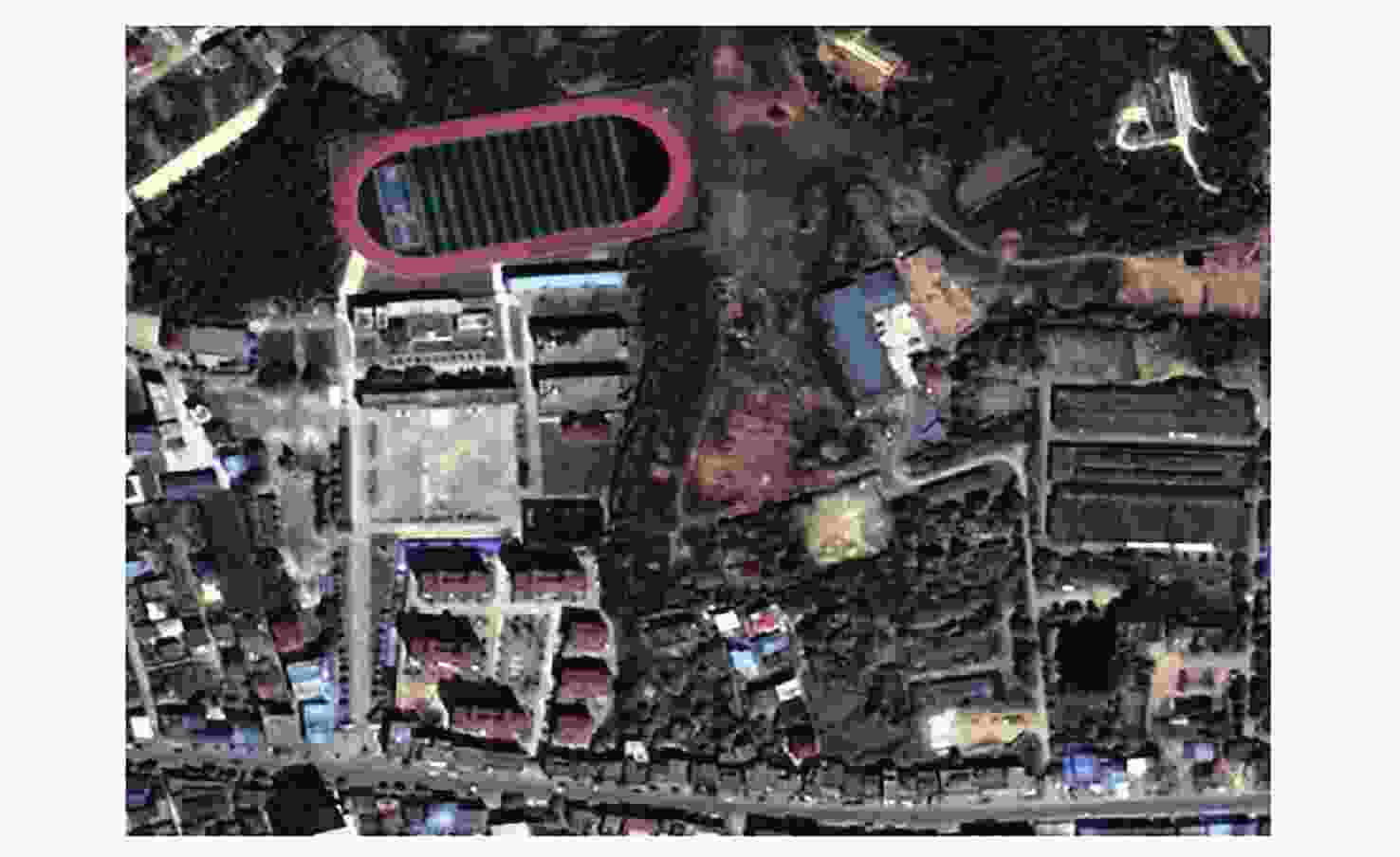

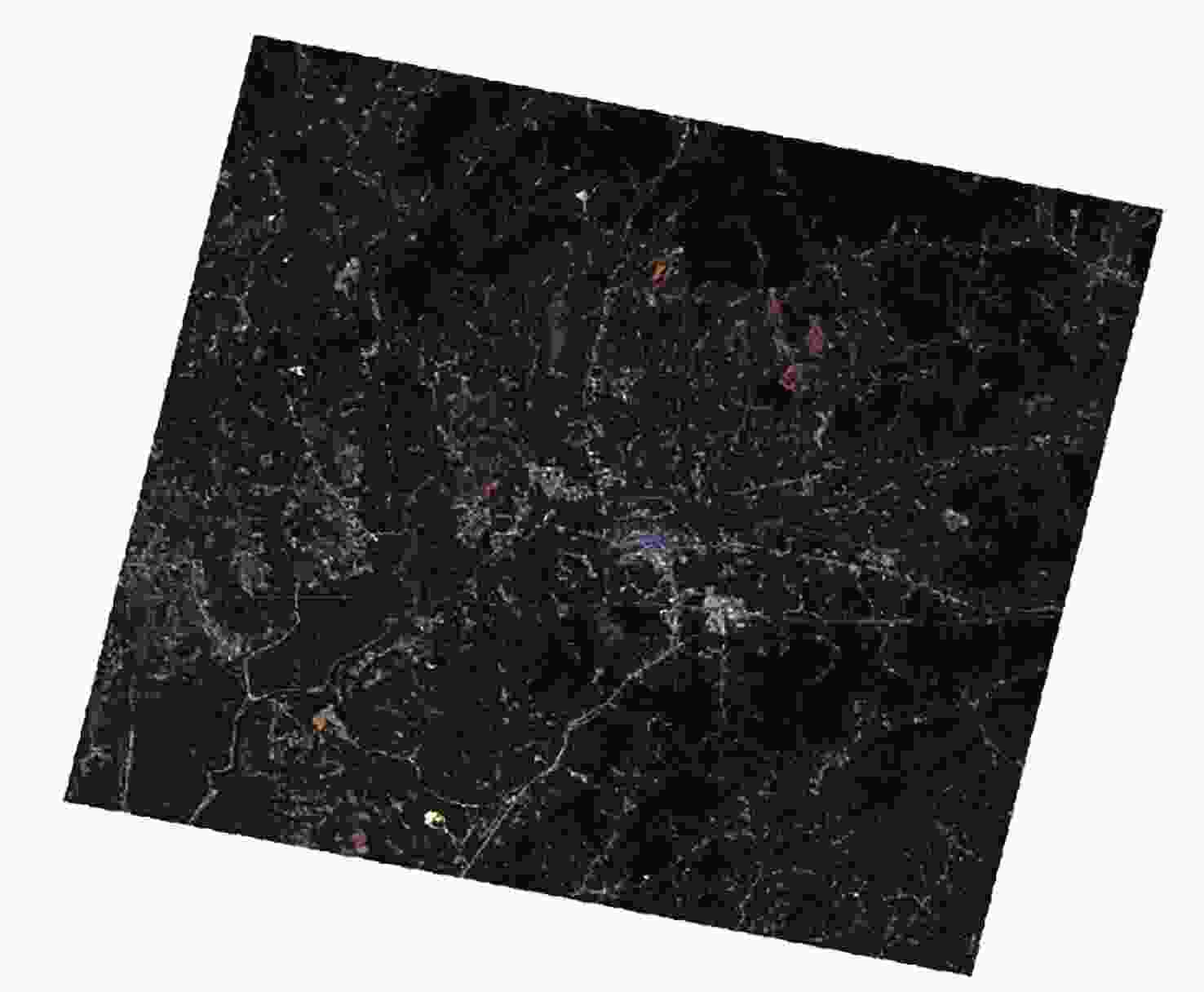

图 6 ENVI软件单独进行局部正射校正的输出图像对比
Figure 6. Comparison of the output image of ENVI software for local orthographic correction alone
表 1 多组对照实验结果
Table 1. Results of multi-group controlled experiments
实验组 服务器配置及处理方式 是否MPI优化 正射校正与Gram-Schmidt
融合平均总耗时/s1 X86架构服务器CPU 是 197 2 国产云平台调度下的英伟达A100和飞腾S2500国产ARM架构
服务器(CPU和GPU协同处理)否 14.5 3 国产云平台调度下的英伟达A100和飞腾S2500国产ARM架构
服务器(CPU和GPU协同处理)是 8.4
下载: 导出CSV
表 2 通用图像质量评价
Table 2. General image quality evaluation
谱段 通用图像质量评价指标 蓝谱段 0.884 341 绿谱段 0.881 685 红谱段 0.900 098 近红外谱段 0.904 558
下载: 导出CSV
表 3 结构相似性
Table 3. Structural similarity
谱段 结构相似性 蓝谱段 0.905 893 绿谱段 0.898 183 红谱段 0.907 704 近红外谱段 0.910 948
下载: 导出CSV
表 4 亮度均值
Table 4. Average brightness
谱段 MSS均值 融合结果均值 蓝谱段 321.998 567 321.770 95 绿谱段 258.338 339 258.186 605 红谱段 173.628 840 173.585 835 近红外谱段 389.297 872 389.379 371
下载: 导出CSV
表 5 光谱相关系数
Table 5. Spectral correlation coefficients
谱段 光谱相关系数 蓝谱段 0.884 392 绿谱段 0.881 768 红谱段 0.900 149 近红外谱段 0.904 606
下载: 导出CSV
-
