Hardware Acceleration of YOLOv5s Network Model Based on Aerospace-grade FPGA

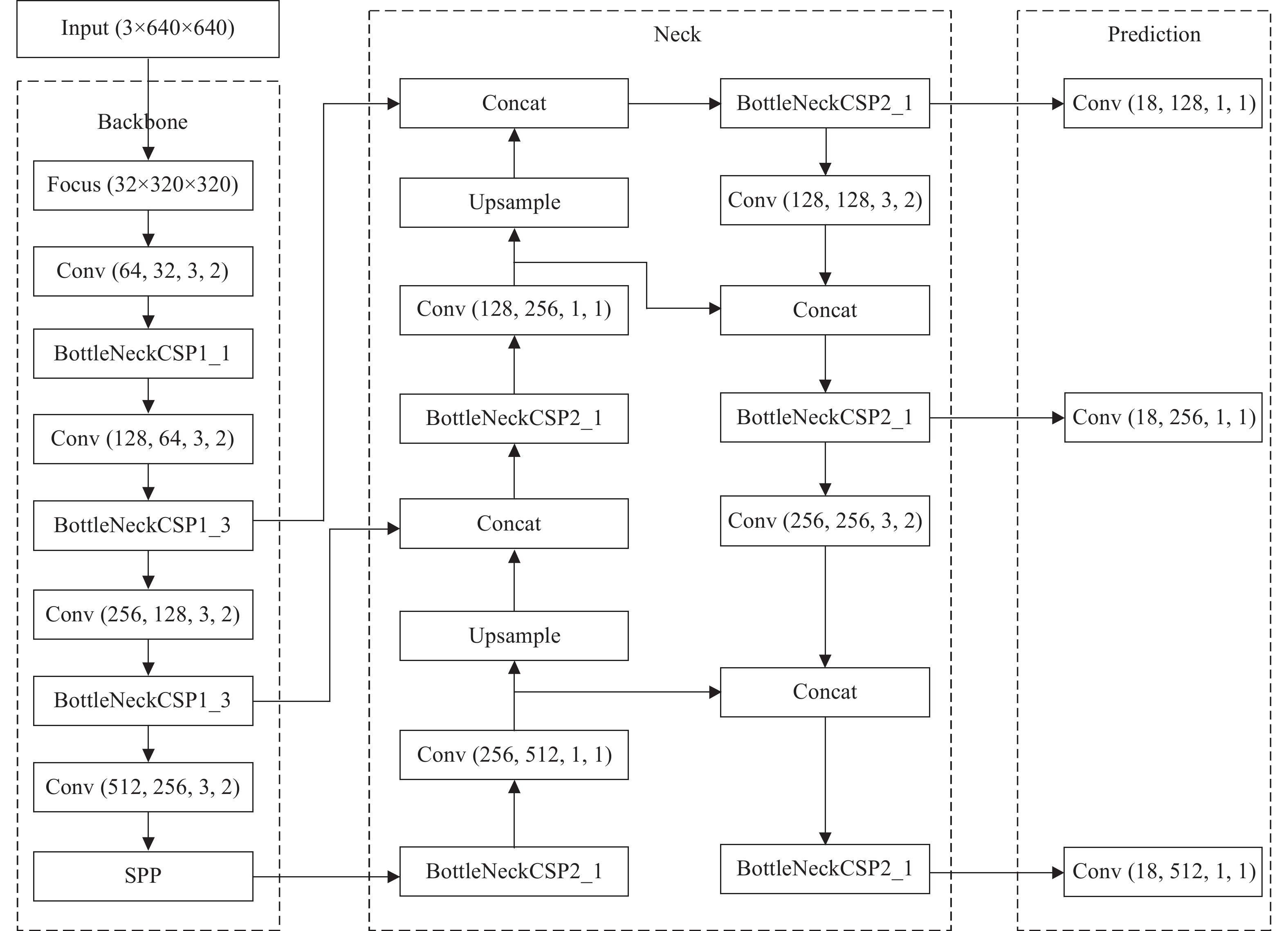

With the rapid development of my country’s remote sensing engineering technology, the resolution of remote sensing images that can be obtained is getting higher and higher, and the image background information is also more complex, which brings great challenges to the accuracy and robustness of traditional target detection methods. With the development of deep learning, the convolutional neural network algorithm has better performance in terms of detection accuracy and robustness than traditional methods. In order to improve the accuracy and robustness of remote sensing image target detection with high resolution and complex background, the remote sensing image target detection algorithm based on convolutional neural network is applied in this field. However, such algorithms usually have complex models and a large amount of calculation, making it difficult to run efficiently on space and resource-constrained on-board platforms. Aiming at this problem, a convolutional neural network forward inference hardware acceleration architecture based on aerospace-grade FPGA (Field Programmable Gate Array) is proposed, and the YOLOv5s network model is selected as the target algorithm for architecture design. Since the main body of the YOLOv5s network is composed of a large number of convolutional layers, the center of gravity of the accelerator architecture design lies in the convolutional layer. In the design of the architecture, the parallel expansion of input channels and output channels and the optimization strategy of data pipeline control are adopted to effectively improve the real-time processing performance of the inference stage is improved. The experimental results show that when using this processing architecture to accelerate the inference stage of YOLOv5s, the operating frequency of the convolution module can reach 200 MHz, and its computing performance can reach 394.4GOPS (Giga Operations Per Second). The power consumption is 14.662 W, and the average calculation efficiency of the DSP (Digital Signal Processing) calculation matrix is as high as 96.29%. It shows that the use of FPGA for hardware acceleration of convolutional neural networks in resource and power constrained on-board platforms has significant advantages.
