REN Tingling, LUO Bingxian, MIAO Juan, WANG Ronglan, WANG Xin, LIU Siqing. Accuracy Assessment of the TLE-derived Orbital Atmospheric Densities (in Chinese). Chinese Journal of Space Science, 2025, 45(3): 717-728 doi: 10.11728/cjss2025.03.2024-0060
Citation: REN Tingling, LUO Bingxian, MIAO Juan, WANG Ronglan, WANG Xin, LIU Siqing. Accuracy Assessment of the TLE-derived Orbital Atmospheric Densities (in Chinese). Chinese Journal of Space Science, 2025, 45(3): 717-728 doi: 10.11728/cjss2025.03.2024-0060
shu

Accuracy Assessment of the TLE-derived Orbital Atmospheric Densities

doi: 10.11728/cjss2025.03.2024-0060 cstr: 32142.14.cjss.2024-0060
  • 1.

    State Key Laboratory of Space Weather, National Space Science Center, Chinese Academy of Sciences, Beijing 100190

  • 2.

    Key Laboratory of Solar Activity and Space Weather, National Space Science Center, Chinese Academy of Sciences, Beijing 100190

  • 3.

    Key Laboratory of Science and Technology on Environmental Space Situation Awareness, Chinese Academy of Sciences, Beijing 100190

  • 4.

    University of Chinese Academy of Sciences, Beijing 101408

  • Received Date: 2024-04-18
  • Rev Recd Date: 2024-08-20
    • Available Online: 2024-09-09
    Abstract

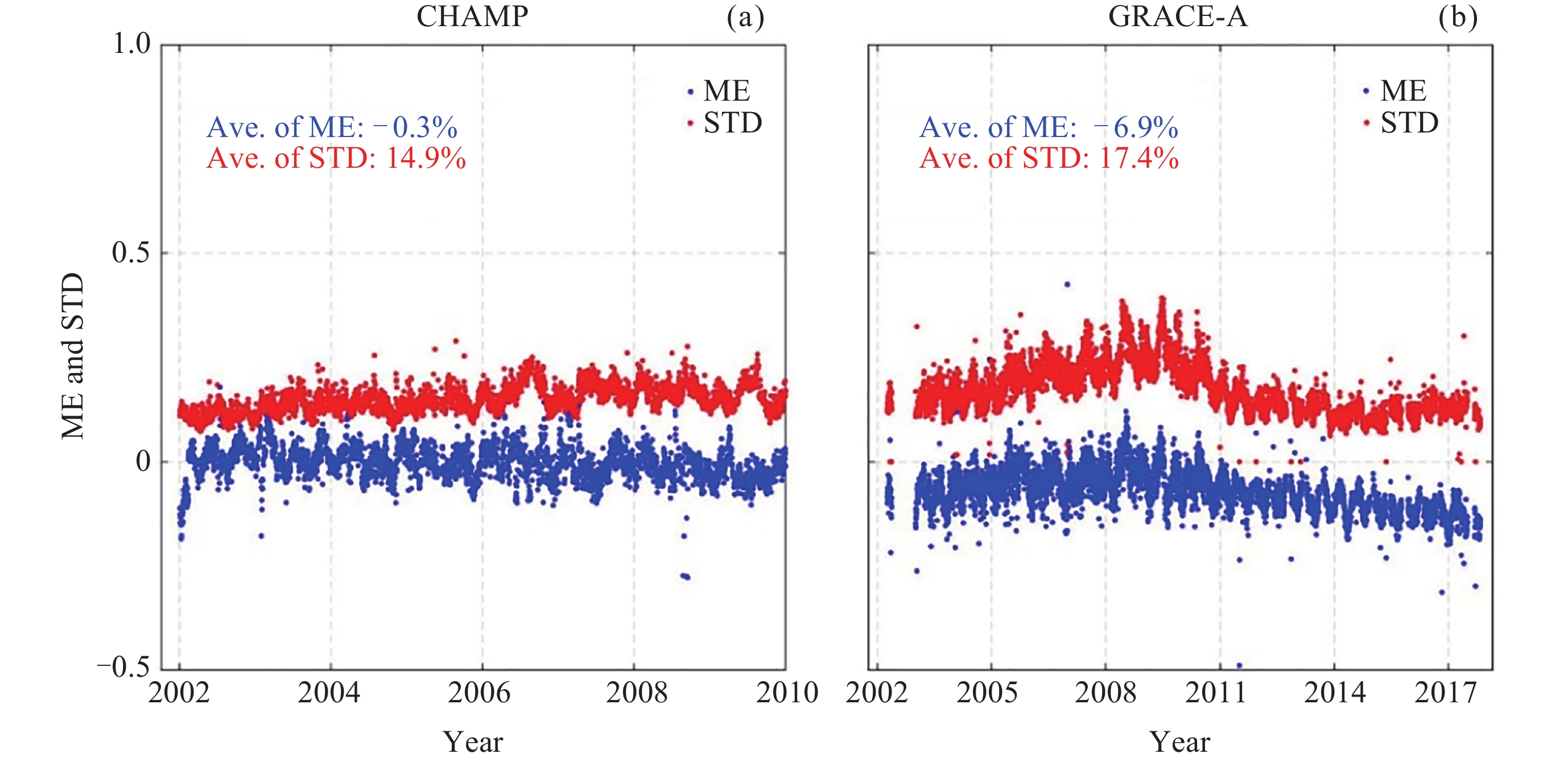

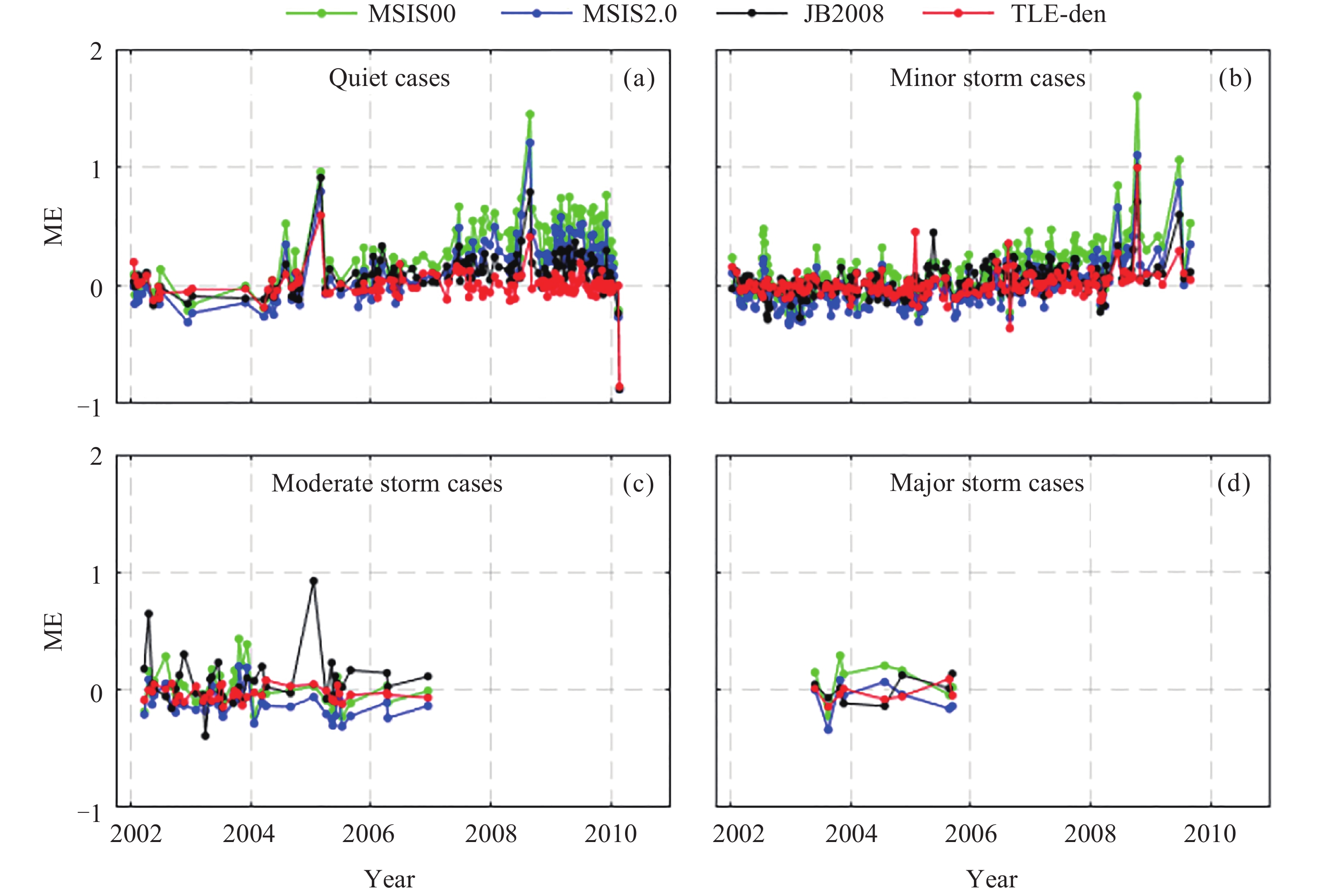

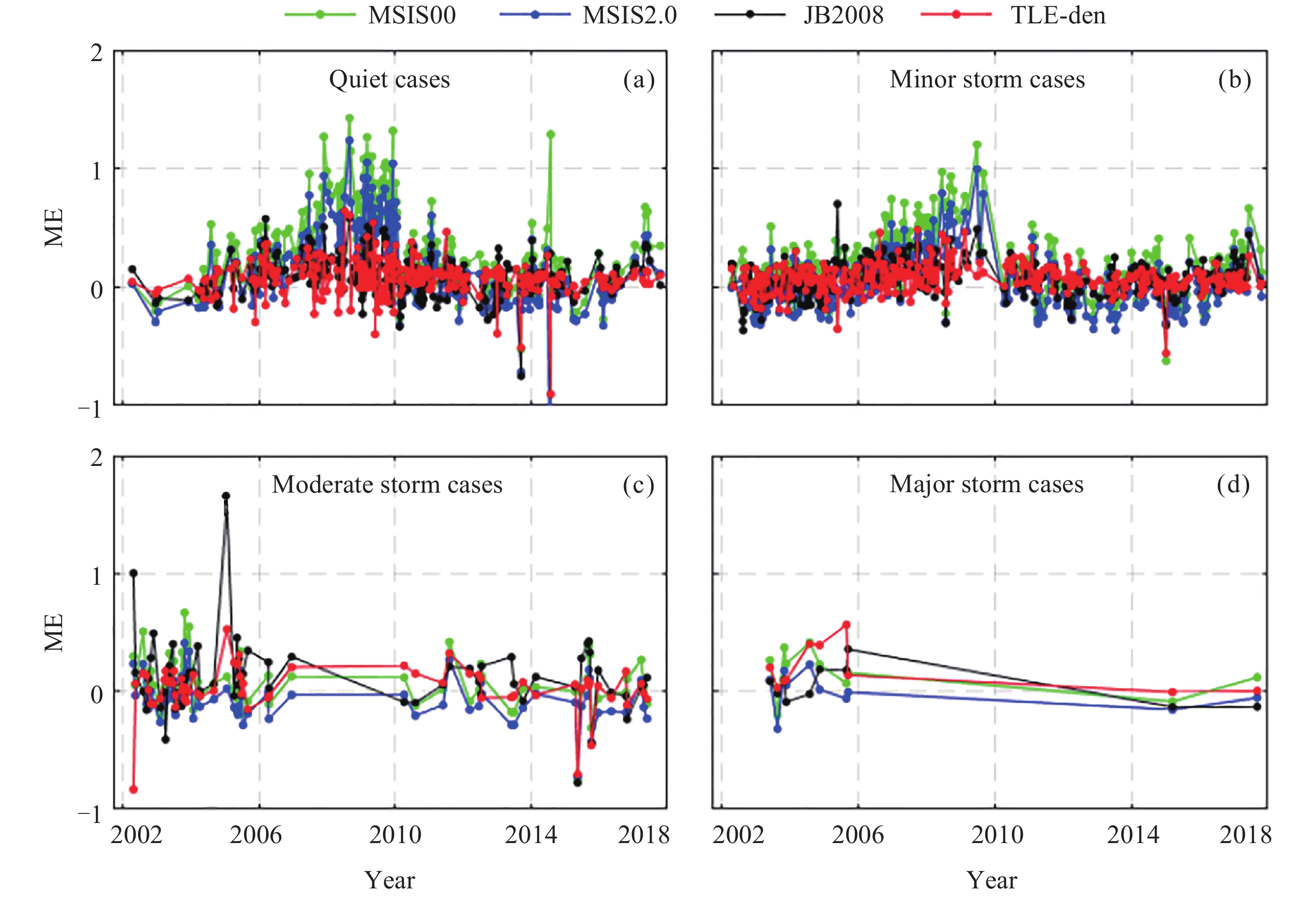

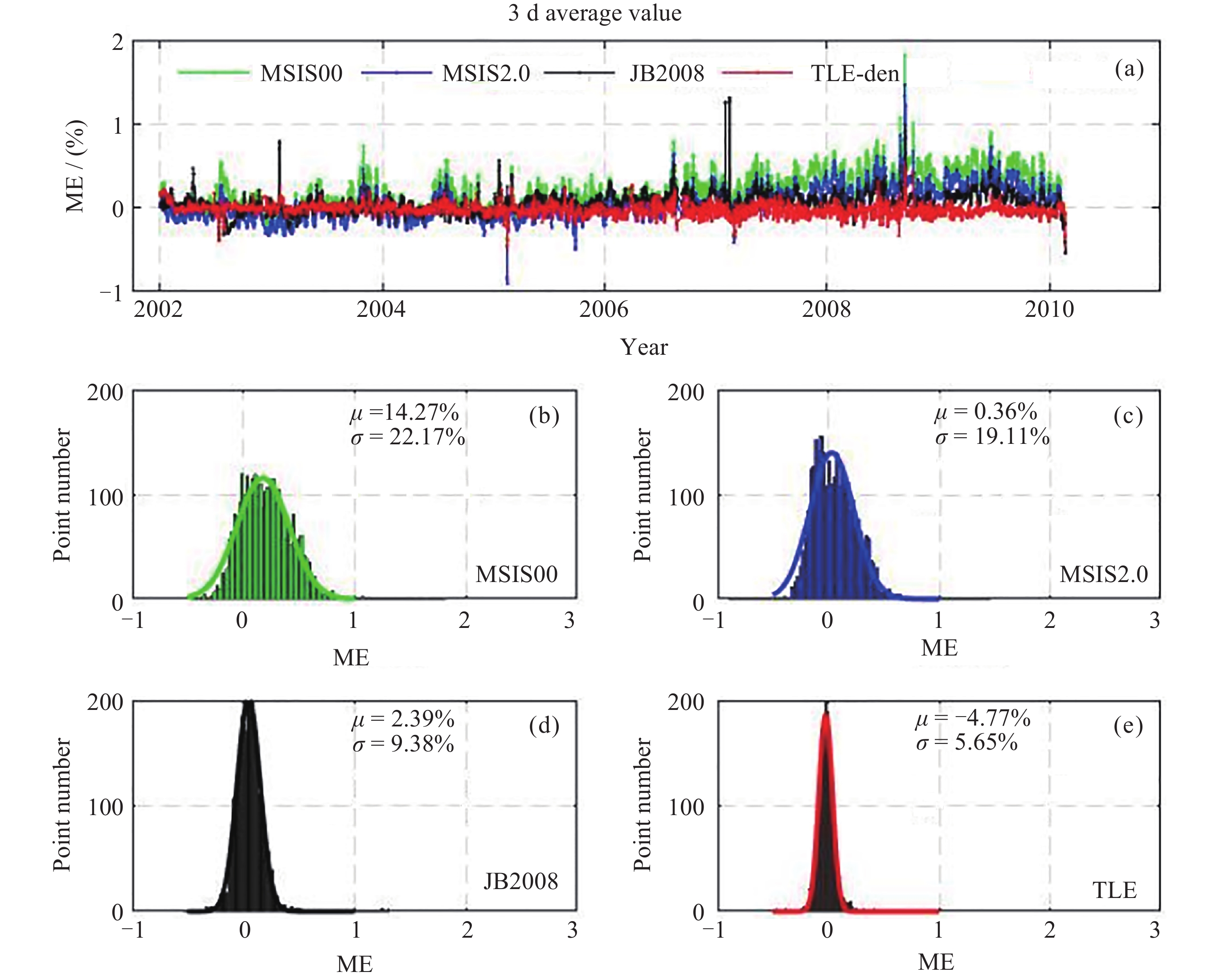

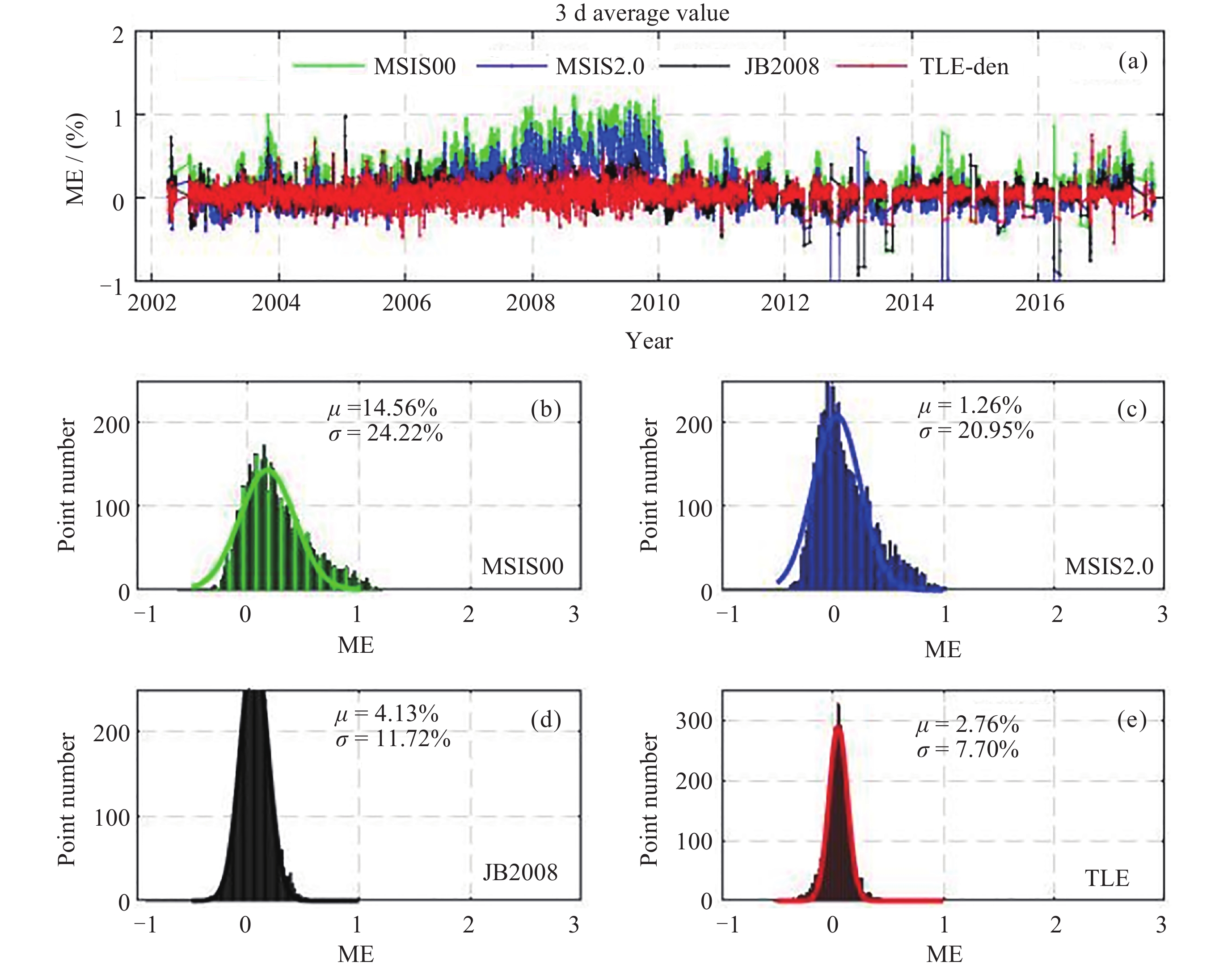

  • In this research, we derived TLE-based atmospheric densities along CHAMP and GRACE-A orbits, and the density errors were calculated based on the high-accuracy accelerometer densities, empirical models errors including NRLMSISE-00, JB2008 and MSIS2.0 were also estimated for comparison. Improvement ratios, which defined as the percentage of TLE density errors smaller than that of empirical models, were given in the subsequent contents, and lay a theoretical foundation for the accuracy and application of the TLE-derived densities. TLE data ranged from 2002 to 2017, and two different kinds of densities, including TLE-averaged and TLE-calibrated densities, were derived. The former ones have a temporal resolution of 3 days, and were independent of the empirical models; the latter ones were calibrated values which relies on the empirical models. Results indicate that the TLE-averaged densities have a general average error smaller than 5%, and a standard deviation no bigger than 8%; the TLE-calibrated densities have the minimum errors during geomagnetic quiet conditions, with the improvement ratios bigger than 80%.



    • FullText(HTML)
  • loading
    • References(27)
  • [1]
    PICONE J M, EMMERT J T, LEAN J L. Thermospheric densities derived from spacecraft orbits: accurate processing of two-line element sets[J]. Journal of Geophysical Research: Space Physics, 2005, 110(A3): A03301
    [2]
    许晓丽, 熊永清. 基于历史TLE的空间目标轨道预报误差演化规律研究[J]. 天文学报, 2019, 60(4): 30-1-30-13

    XU Xiaoli, XIONG Yongqing. Study on orbit prediction error of space objects based on historical TLE[J]. Acta Astronomica Sinica, 2019, 60(4): 30-1-30-13
    [3]
    BOWMAN B R, TOBISKA W K, MARCOS F A, et al. A new empirical thermospheric density model JB2008 using new solar and geomagnetic indices[C]//AIAA/AAS Astrodynamics Specialist Conference and Exhibit. Honolulu: AIAA, 2008
    [4]
    BRUINSMA S, BONIFACE C. The operational and research DTM-2020 thermosphere models[J]. Journal of Space Weather and Space Climate, 2021, 11: 47 doi: 10.1051/swsc/2021032
    [5]
    EMMERT J T, DROB D P, PICONE J M, et al. NRLMSIS 2.0: a whole-atmosphere empirical model of temperature and neutral species densities[J]. Earth and Space Science, 2021, 8(3): e2020EA001321 doi: 10.1029/2020EA001321
    [6]
    任廷领, 苗娟, 刘四清, 等. 利用卫星两行轨道根数反演热层密度[J]. 空间科学学报, 2014, 34(4): 426-433 doi: 10.11728/cjss2014.04.426

    REN Tingling, MIAO Juan, LIU Siqing, et al. Research on thermospheric densities derived from two-line element sets[J]. Chinese Journal of Space Science, 2014, 34(4): 426-433 doi: 10.11728/cjss2014.04.426
    [7]
    GONDELACH D J, LINARES R. Real-time thermospheric density estimation via two-line element data assimilation[J]. Space Weather, 2020, 18(2): e2019SW002356 doi: 10.1029/2019SW002356
    [8]
    EMMERT J T, DHADLY M S, SEGERMAN A M. A globally averaged thermospheric density data set derived from two-line orbital element sets and special perturbations state vectors[J]. Journal of Geophysical Research: Space Physics, 2021, 126(8): e2021JA029455 doi: 10.1029/2021JA029455
    [9]
    DOORNBOS E, KLINKRAD H, VISSER P. Use of two-line element data for thermosphere neutral density model calibration[J]. Advances in Space Research, 2008, 41(7): 1115-1122 doi: 10.1016/j.asr.2006.12.025
    [10]
    BERNSTEIN V, PILINSKI M, SUTTON E. Assessing thermospheric densities derived from orbital drag data[C]//31st AAS/AIAA Space Flight Mechanics Meeting. Austin, Texas: AIAA, 2023
    [11]
    PICONE J M, HEDIN A E, DROB D P, et al. NRLMSISE-00 empirical model of the atmosphere: statistical comparisons and scientific issues[J]. Journal of Geophysical Research: Space Physics, 2002, 107(A12): SIA 15-1-SIA 15-16
    [12]
    PICONE J M, EMMERT J T, LEAN J L. Thermospheric densities derived from spacecraft orbits: Accurate processing of two-line element sets[J]. Journal of Geophysical Research: Space Physics, 2005, 110(A3): A03301
    [13]
    REN T L, LIU S Q, MIAO J, et al. Effects of geomagnetic storms on the accuracy of orbit-derived atmospheric density measurements[J]. Advances in Space Research, 2022, 70(10): 2818-2829 doi: 10.1016/j.asr.2022.09.036
    [14]
    BOWMAN B R. True satellite ballistic coefficient determination for HASDM[C]//AIAA/AAS Astrodynamics Specialist Conference and Exhibit. Monterey: AIAA, 2002
    [15]
    EMMERT J T, MEIER R R, PICONE J M, et al. Thermospheric density 2002-2004: TIMED/GUVI dayside limb observations and satellite drag[J]. Journal of Geophysical Research: Space Physics, 2006, 111(A10): A10S16
    [16]
    LEAN J L, PICONE J M, EMMERT J T, et al. Thermospheric densities derived from spacecraft orbits: application to the Starshine satellites[J]. Journal of Geophysical Research: Space Physics, 2006, 111(A4): A04301
    [17]
    LU Z J, HU W D. Estimation of ballistic coefficients of space debris using the ratios between different objects[J]. Chinese Journal of Aeronautics, 2017, 30(3): 1204-1216 doi: 10.1016/j.cja.2017.03.009
    [18]
    REIGBER C, LÜHR H, SCHWINTZER P. CHAMP mission status[J]. Advances in Space Research, 2002, 30(2): 129-134 doi: 10.1016/S0273-1177(02)00276-4
    [19]
    TAPLEY B D, BETTADPUR S, WATKINS M, et al. The gravity recovery and climate experiment: mission overview and early results[J]. Geophysical Research Letters, 2004, 31(9): L09607
    [20]
    ZAGLAUER A. Swarm satellites status[C]//ESA’s Second Swarm International Science Meeting. Potsdam, Germany: GFZ, 2009
    [21]
    BRUINSMA S, FORBES J M, NEREM R S, et al. Thermosphere density response to the 20-21 November 2003 solar and geomagnetic storm from CHAMP and GRACE accelerometer data[J]. Journal of Geophysical Research: Space Physics, 2006, 111(A6): A06303
    [22]
    CALABIA A, TANG G S, JIN S G. Assessment of new thermospheric mass density model using NRLMSISE-00 model, GRACE, Swarm-C, and APOD observations[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2020, 199: 105207 doi: 10.1016/j.jastp.2020.105207
    [23]
    LEI J H, MATSUO T, DOU X K, et al. Annual and semiannual variations of thermospheric density: EOF analysis of CHAMP and GRACE data[J]. Journal of Geophysical Research: Space Physics, 2012, 117(A1): A01310
    [24]
    BRUINSMA S L, DOORNBOS E, BOWMAN B R. Validation of GOCE densities and evaluation of thermosphere models[J]. Advances in Space Research, 2014, 54(4): 576-585 doi: 10.1016/j.asr.2014.04.008
    [25]
    TOBISKA W K, BOWMAN B R, BOUWER S D, et al. The SET HASDM density database[J]. Space Weather, 2021, 19(4): e2020SW002682 doi: 10.1029/2020SW002682
    [26]
    MATSUO T, RICHMOND A D, NYCHKA D W. Modes of high-latitude electric field variability derived from DE-2 measurements: empirical Orthogonal Function (EOF) analysis[J]. Geophysical Research Letters, 2002, 29(7): 1107
    [27]
    MATSUO T, FORBES J M. Principal modes of thermospheric density variability: empirical orthogonal function analysis of CHAMP 2001-2008 data[J]. Journal of Geophysical Research: Space Physics, 2010, 115(A7): A07309
