JIANG Fang, MAO Tian, FU Liping, WANG Jinsong, HU Xiuqing, ZHANG Xiaoxin, WANG Yungang, JIA Nan, WANG Tianfang. Study of FY-3D Ionospheric Photometer (IPM) Response to the Extreme Magnetic Storm on 11 May 2024 (in Chinese). Chinese Journal of Space Science, 2025, 45(4): 1-10 doi: 10.11728/cjss2025.04.2024-0079
Citation: JIANG Fang, MAO Tian, FU Liping, WANG Jinsong, HU Xiuqing, ZHANG Xiaoxin, WANG Yungang, JIA Nan, WANG Tianfang. Study of FY-3D Ionospheric Photometer (IPM) Response to the Extreme Magnetic Storm on 11 May 2024 (in Chinese). Chinese Journal of Space Science, 2025, 45(4): 1-10 doi: 10.11728/cjss2025.04.2024-0079
shu

Study of FY-3D Ionospheric Photometer (IPM) Response to the Extreme Magnetic Storm on 11 May 2024

doi: 10.11728/cjss2025.04.2024-0079 cstr: 32142.14.cjss.2024-0079
  • 1.

    National Space Science Center, Chinese Academy of Sciences, Beijing 100090

  • 2.

    Beijing Key Laboratory of Space Environment Exploration, Beijing 100090

  • 3.

    Key Laboratory of Environmental Space Situation Awareness Technology, Beijing 100090

  • 4.

    National Satellite Meteorological Center, China Meteorological Administration, Beijing 100090

  • Received Date: 2024-06-18
  • Rev Recd Date: 2024-10-30
    • Available Online: 2024-11-02
    Abstract

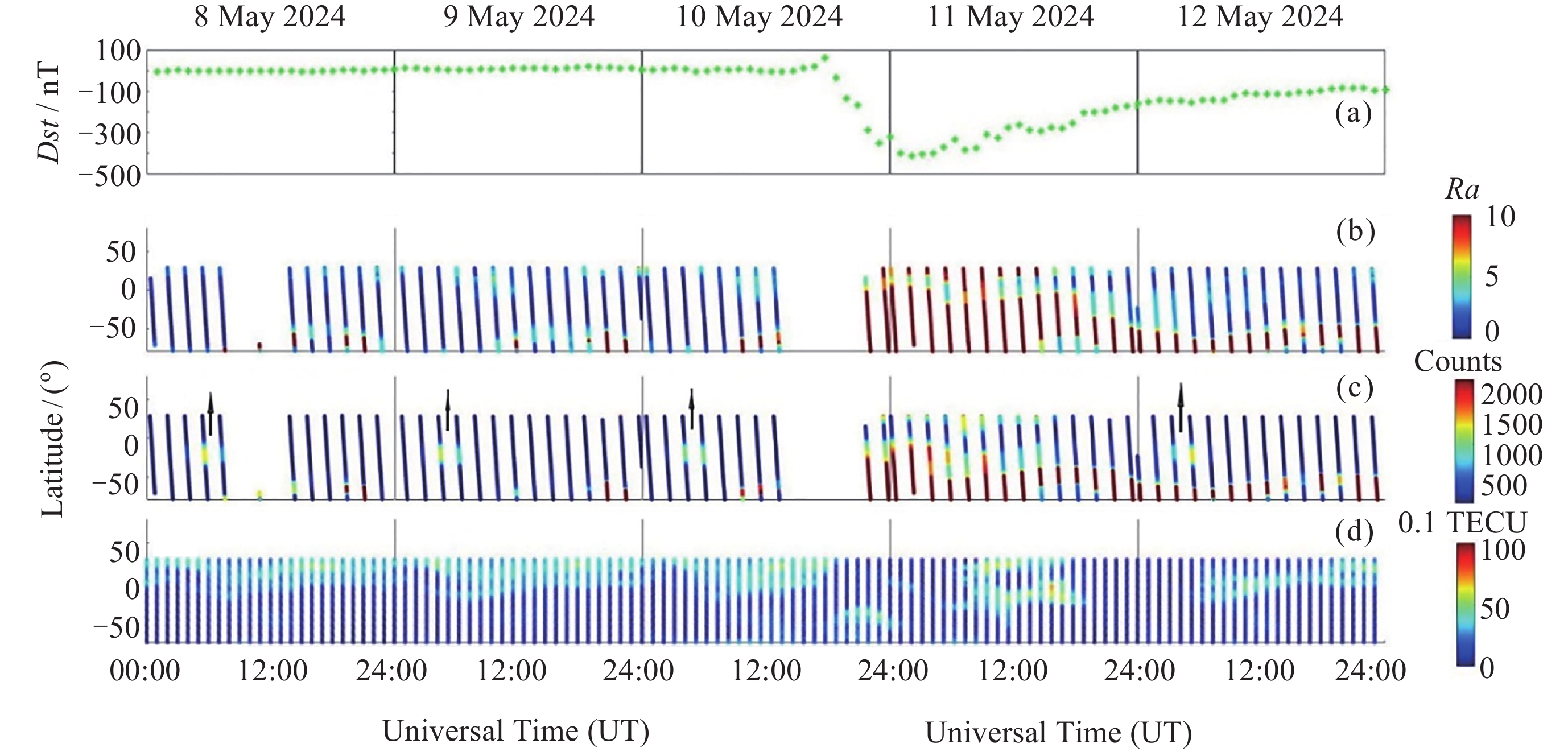

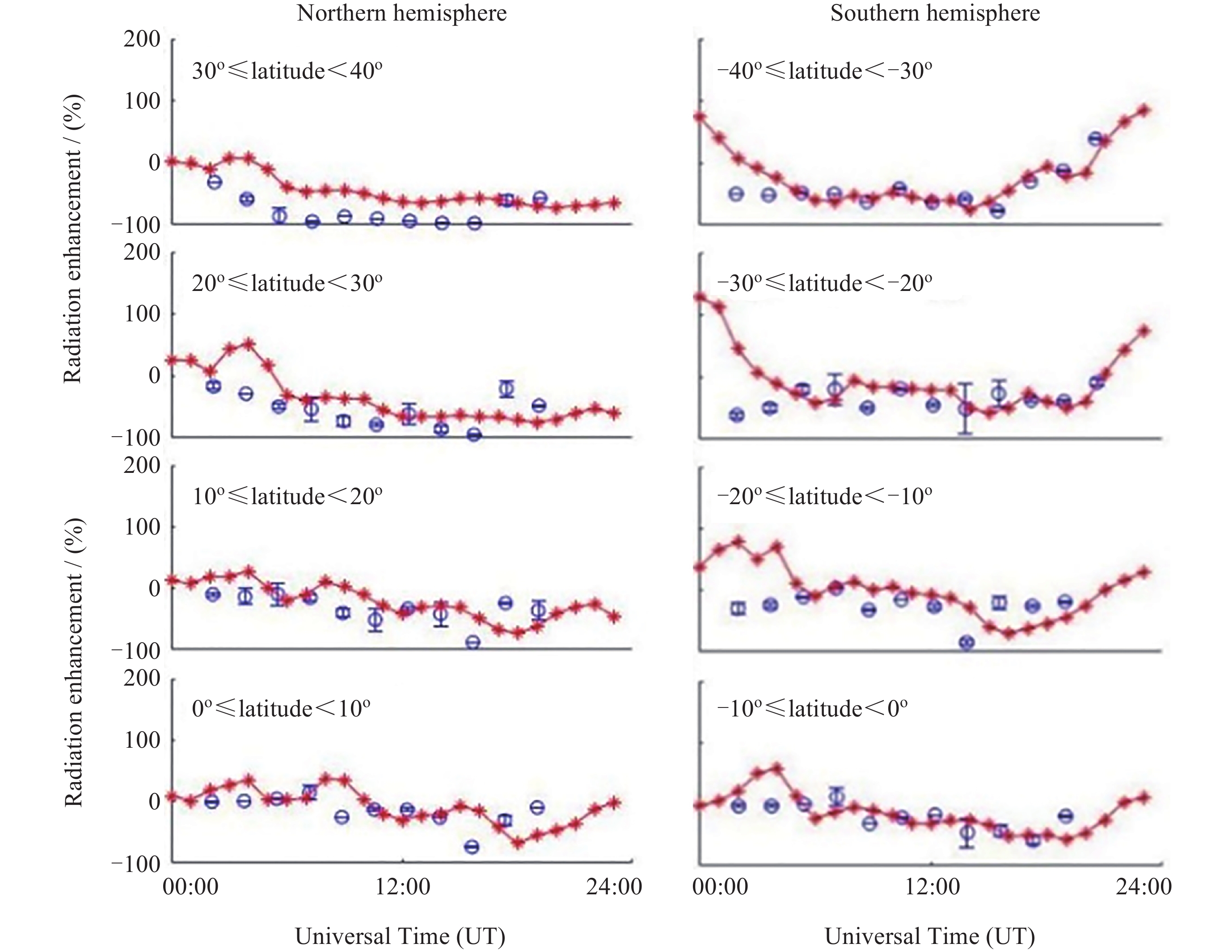

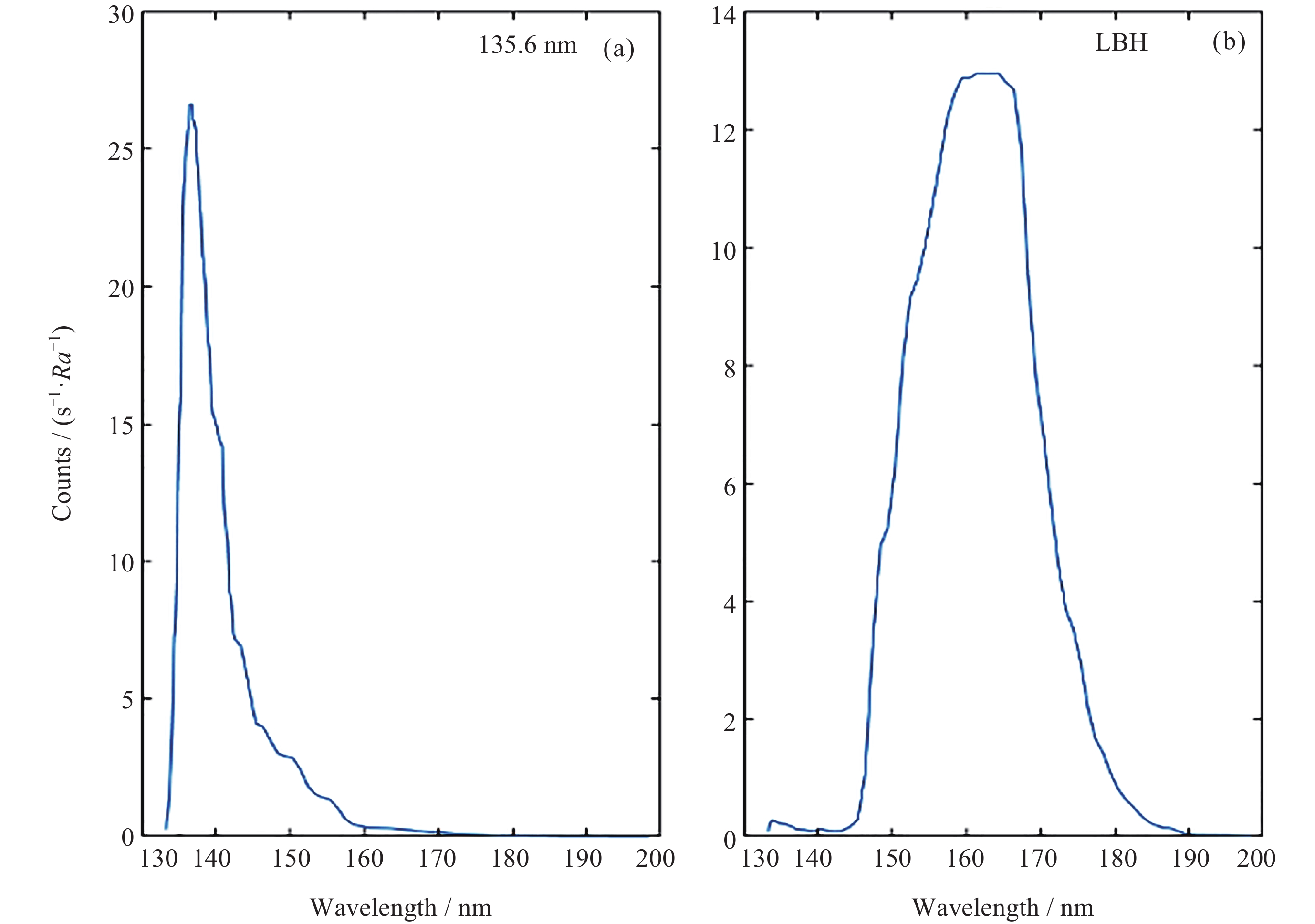

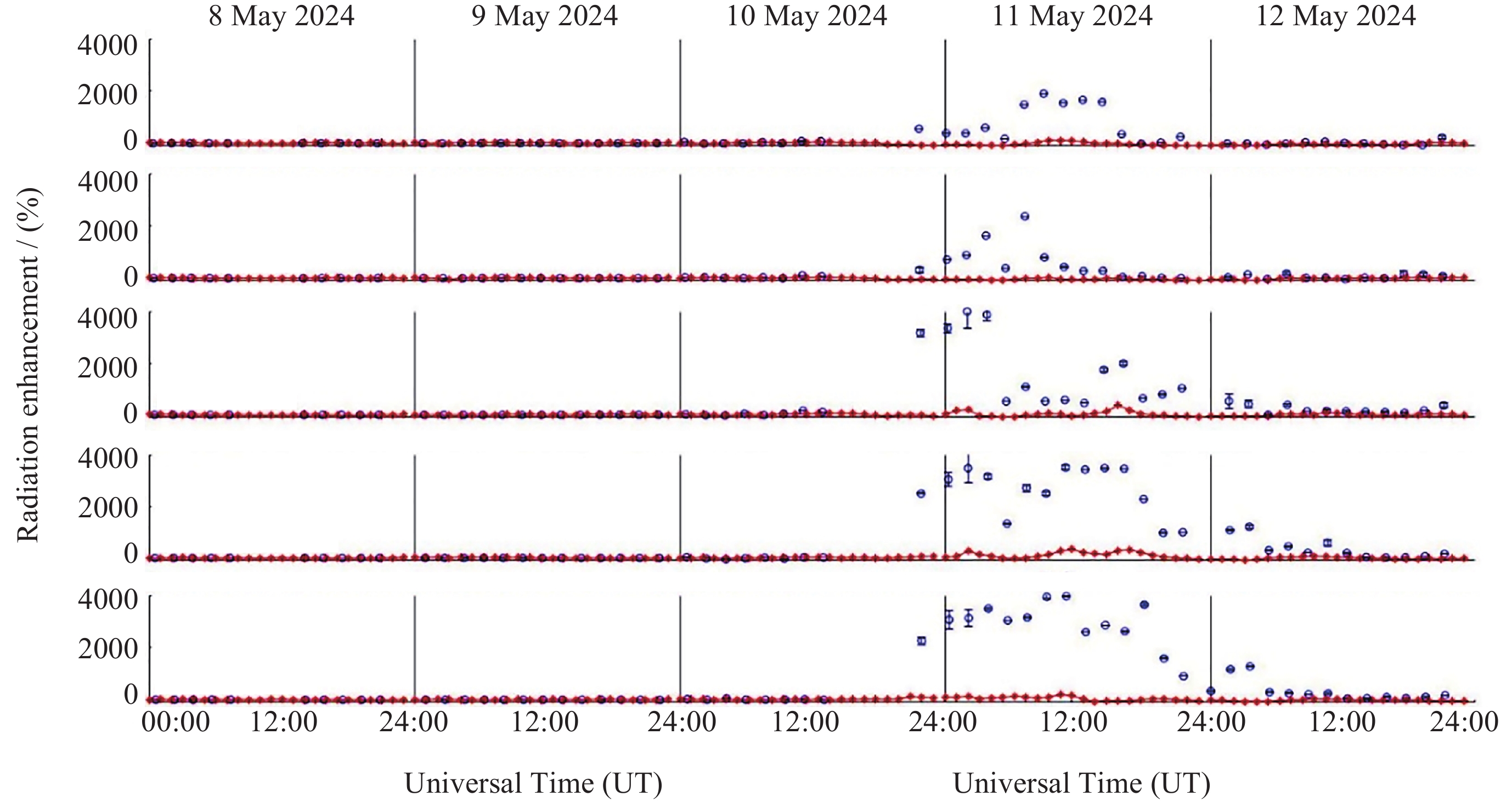

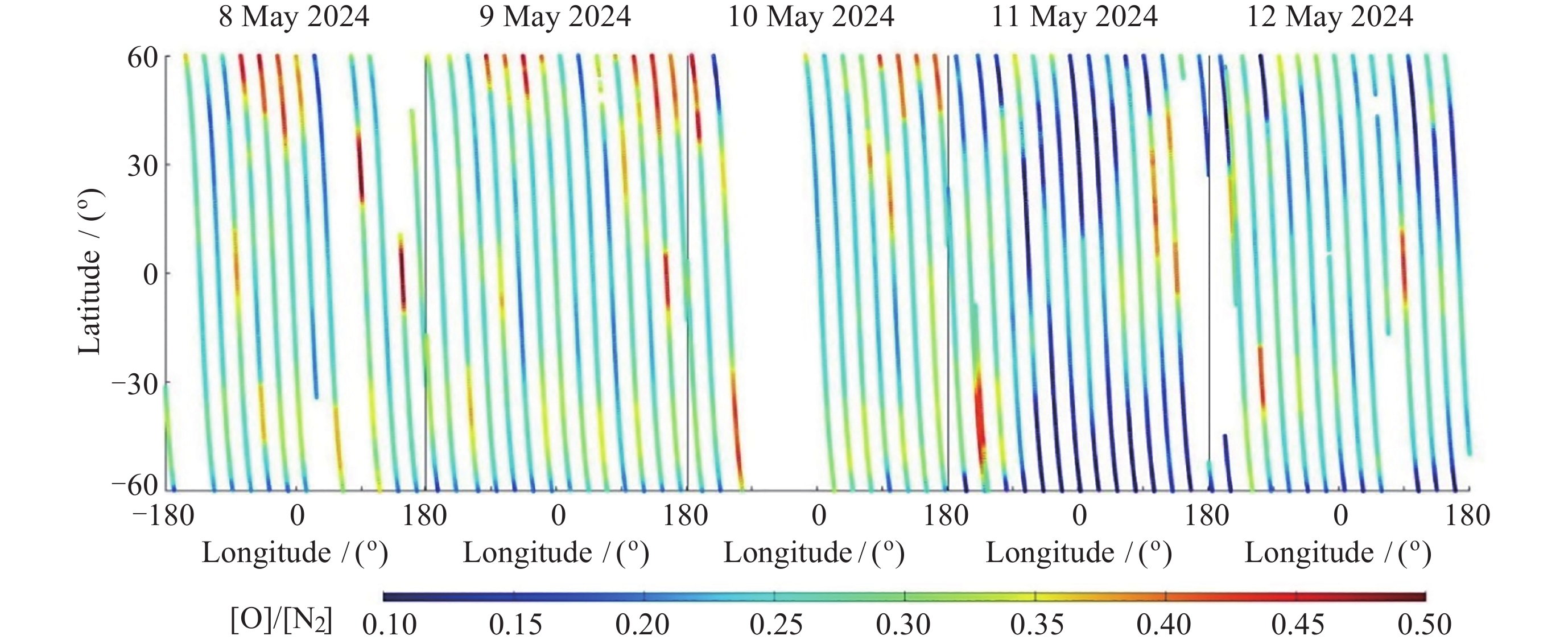

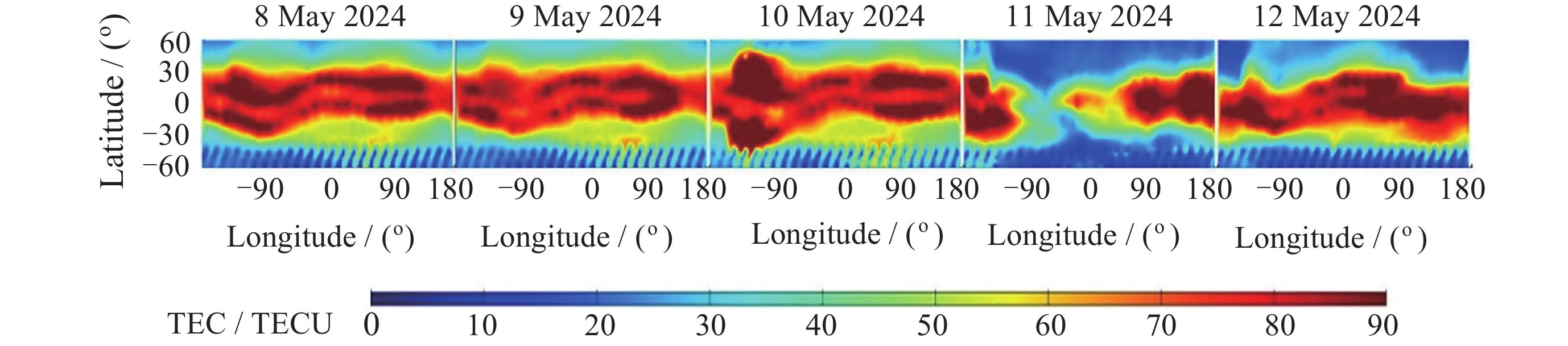

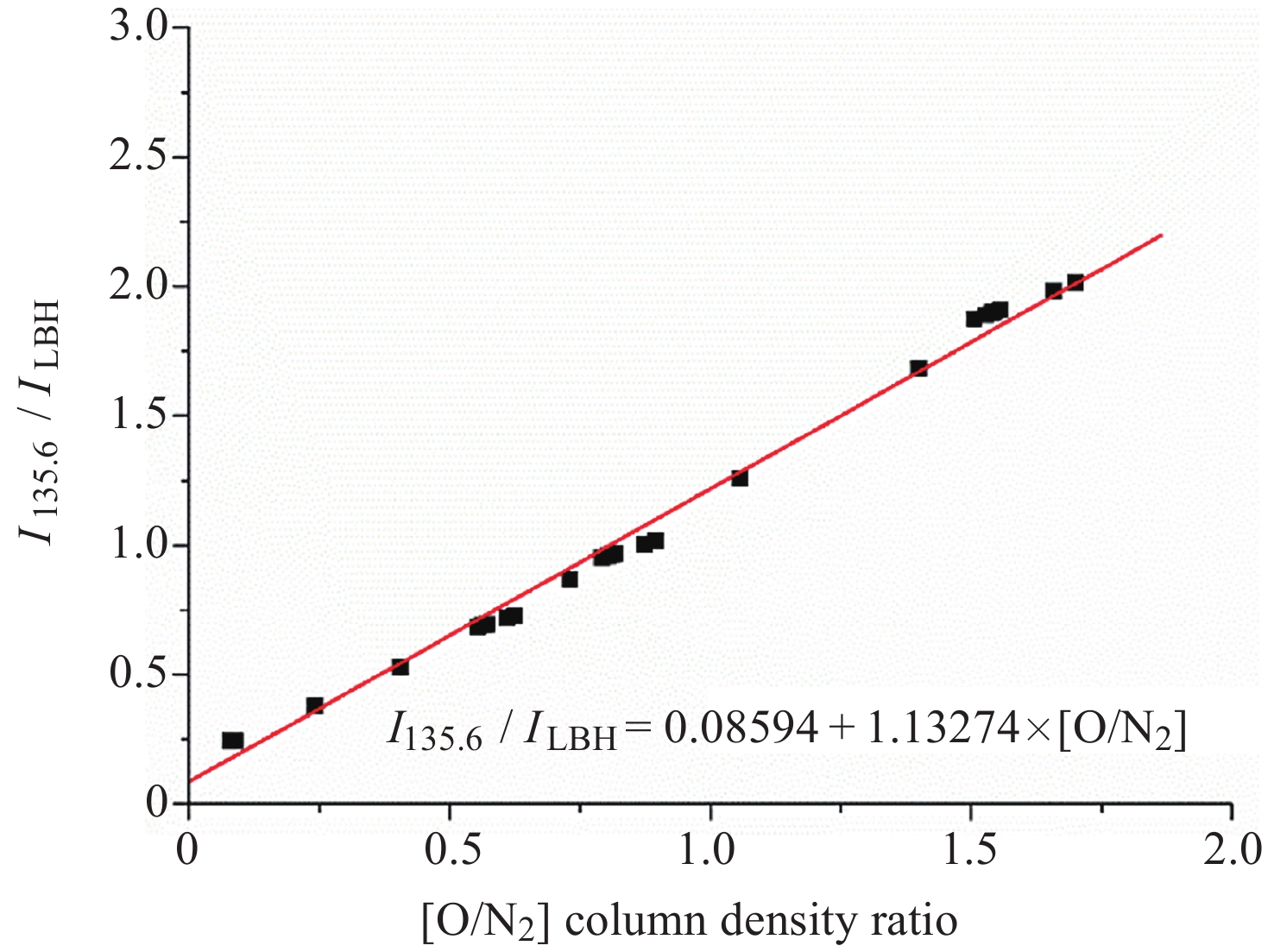

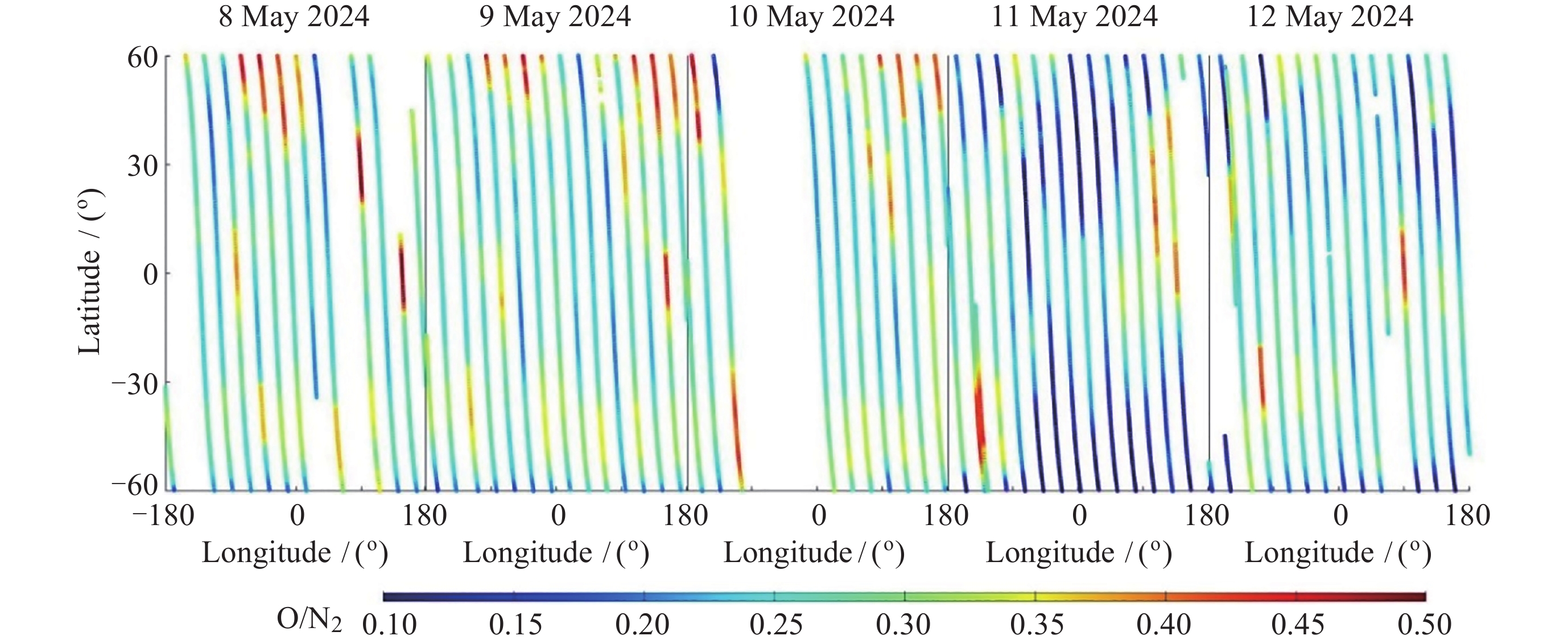

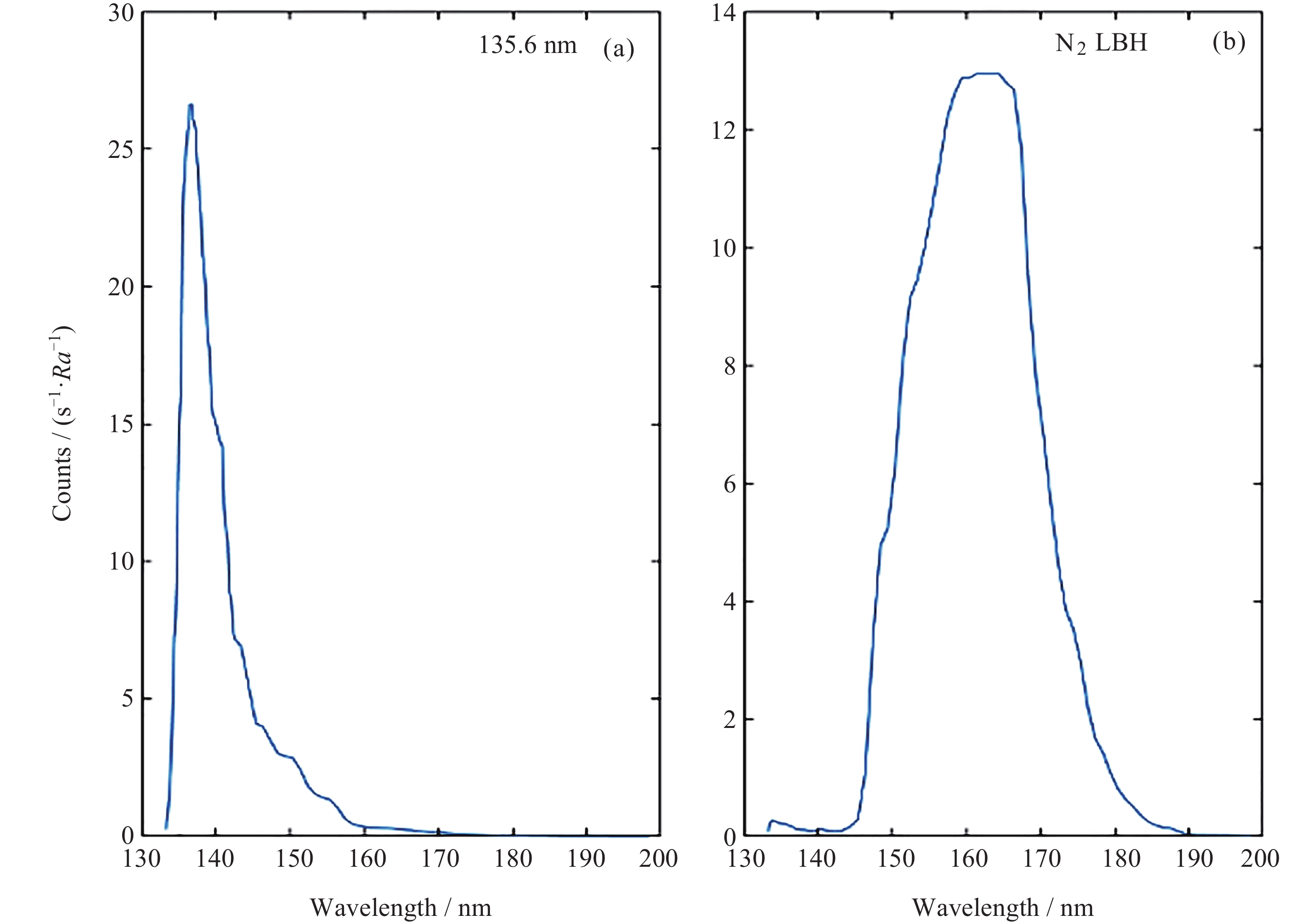

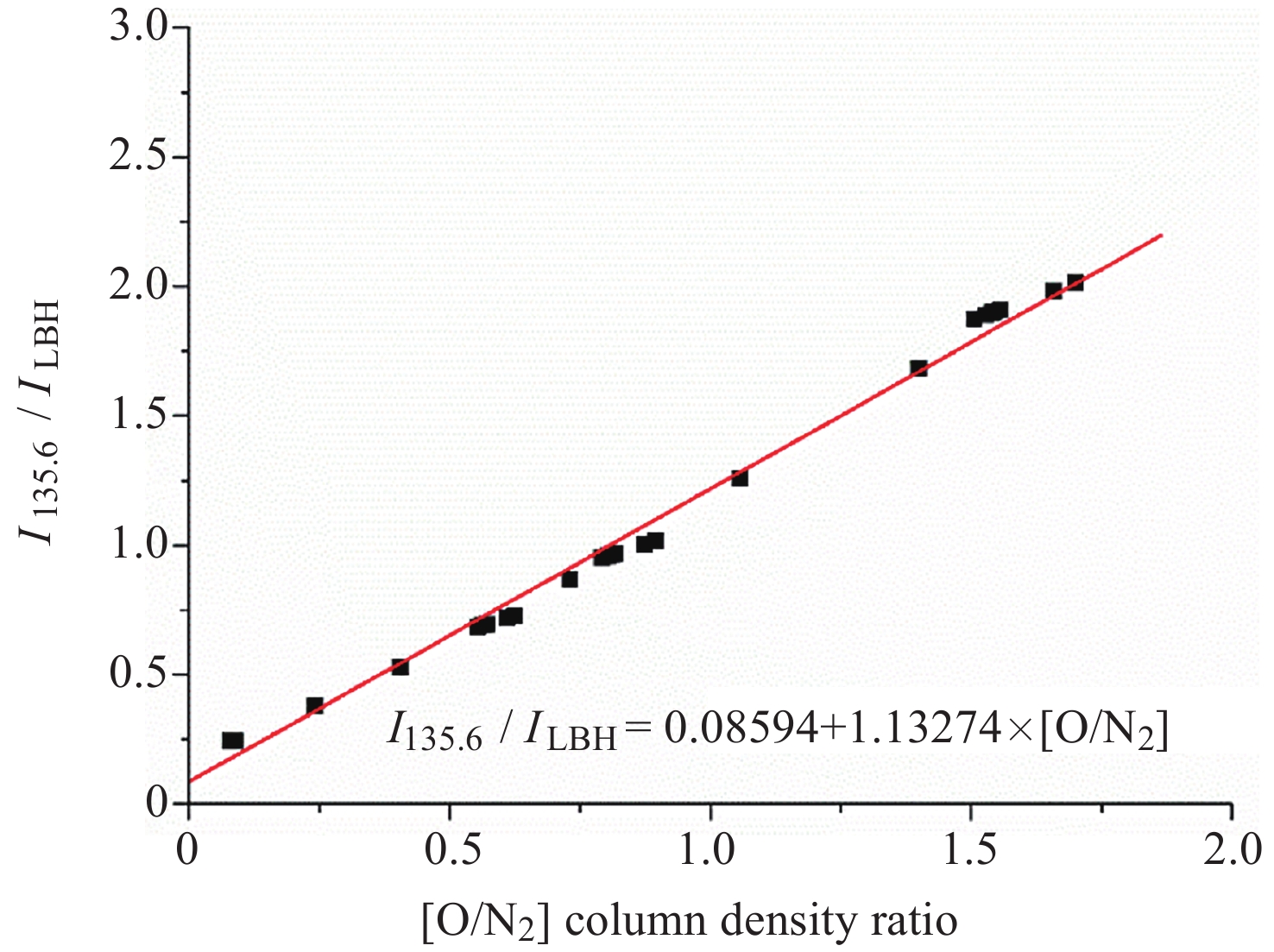

  • With the launch of the FY-3D satellite on 15 November 2017, the Far Ultraviolet Ionospheric Photometer (IPM) on board enables measurements of nighttime 135.6 nm airglow emissions generated by the recombination of O+ ions and electrons, as well as daytime emissions from OI 135.6 nm and N2 LBH due to photoelectron impact on atomic oxygen and molecular nitrogen. These measurements can obtain the key parameters such as nighttime peak electron density NmF2 and daytime O/N2. The paper analyzes the response of IPM data during the extreme magnetic storm event on 11 May 2024. The study results of daytime data indicate that during the event, the O/N2 decreased at all latitudes compared to geomagnetically quiet days. This finding can be used to explain the negative storm effects observed in IGS TEC. the study of nighttime data reveals that during magnetic storms, the intensity of 135.6 nm increases significantly across all latitudes compared to geomagnetically quiet days, with an increase by up to three orders of magnitude. The enhancement persists from the storm main phase through the recovery phase. However, corresponding TEC data does not show such a pronounced increase. Furthermore, the stray light channel measuring radiation contribution above 190 nm wavelength also exhibits a significant increase during magnetic storm days. This further indicates that the enhancement of nighttime 135.6 nm radiation is not solely derived from ionospheric contributions.



    • FullText(HTML)
  • loading
    • References(24)
  • [1]
    AKASOFU S I. Prediction of development of geomagnetic storms using the solar wind-magnetosphere energy coupling function ϵ[J]. Planetary and Space Science, 1981, 29(11): 1151-1158 doi: 10.1016/0032-0633(81)90121-5
    [2]
    CANDER L R, HARALAMBOUS H. On the importance of total electron content enhancements during the extreme solar minimum[J]. Advances in Space Research, 2011, 47(2): 304-311 doi: 10.1016/j.asr.2010.08.026
    [3]
    BURNS A G, KILLEEN T L, CARIGNAN G R, et al. Large enhancements in the O/N2 ratio in the evening sector of the winter hemisphere during geomagnetic storms[J]. Journal of Geophysical Research: Space Physics, 1995, 100(A8): 14661-14671. doi: 10.1029/94JA03235
    [4]
    KONSTANTIN R, MAKSIM K, VLADIMIR K, et al. After-effects of geomagnetic storms: statistical analysis and theoretical explanation[J]. Solar-Terrestrial Physics, 2018, 4(4): 26-32. doi: 10.12737/stp-44201804
    [5]
    STRICKLAND D J, DANIELL R E, CRAVEN J D. Negative ionospheric storm coincident with DE 1-observed thermospheric disturbance on October 14, 1981[J]. Journal of Geophysical Research: Space Physics, 2001, 106(A10): 21049-21062 doi: 10.1029/2000JA000209
    [6]
    HUANG C M, CHEN M Q, LIU J Y. Ionospheric positive storm phases at the magnetic equator close to sunset[J]. Journal of Geophysical Research: Space Physics, 2010, 115(A7): A07315. doi: 10.1029/2009JA014936
    [7]
    KUAI J W, LI Q L, ZHONG J H, et al. The ionosphere at middle and low latitudes under geomagnetic quiet time of December 2019[J]. Journal of Geophysical Research: Space Physics, 2021, 126(6): e2020JA028964. doi: 10.1029/2020JA028964
    [8]
    WAN Q T, MA G Y, MARUYAMA T, et al. Characteristics of ionospheric storm on October 13, 2016 at the Greenwich meridian[J]. Journal of Geophysical Research: Space Physics, 2021, 126(11): e2020JA028823. doi: 10.1029/2020JA028823
    [9]
    Zhang Y L, Paxton Larry, Schaefer Robert. Ionospheric and Thermospheric Contributions in TIMED/GUVI O 135.6 nm Radiances[J]. Journal of Geophysical Research: Space Physics, 2021, 126(9): 1-13
    [10]
    DYMOND K F, THONNARD S E, MCCOY R P, et al. An optical remote sensing technique for determining nighttime F region electron density[J]. Radio Science, 1997, 32(5): 1985-1996 doi: 10.1029/97RS01887
    [11]
    STRICKLAND D J, COX R J, MEIER R R, et al. Global O/N2 derived from DE 1 FUV dayglow data: technique and examples from two storm periods[J]. Journal of Geophysical Research: Space Physics, 1999, 104(A3): 4251-4266 doi: 10.1029/98JA02817
    [12]
    KIL H, LEE W K, SHIM J, et al. The effect of the 135.6 nm emission originated from the ionosphere on the TIMED/GUVI O/N2 ratio[J]. Journal of Geophysical Research: Space Physics, 2013, 118(2): 859-865. doi: 10.1029/2012JA018112
    [13]
    JIANG F, MAO T, ZHANG X X, et al. Observation of thermosphere and ionosphere using the ionosphere PhotoMeter (IPM) on the Chinese meteorological satellite FY-3D[J]. Advances in Space Research, 2020, 66(9): 2151-2167 doi: 10.1016/j.asr.2020.07.027
    [14]
    JIANG F, MAO T, ZHANG X X, et al. The day-glow data application of FY-3D IPM in monitoring O/N2[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2020, 205: 105309 doi: 10.1016/j.jastp.2020.105309
    [15]
    YOUNAS W, KHAN M, AMORY-MAZAUDIER C, et al. Middle and low latitudes hemispheric asymmetries in ∑O/N2 and TEC during intense magnetic storms of solar cycle 24[J]. Advances in Space Research, 2022, 69(1): 220-235 doi: 10.1016/j.asr.2021.10.027
    [16]
    STRICKLAND D J, EVANS J S, PAXTON L J. Satellite remote sensing of thermospheric O/N2 and solar EUV: 1. Theory[J]. Journal of Geophysical Research: Space Physics, 1995, 100(A7): 12217-12226 doi: 10.1029/95JA00574
    [17]
    王大鑫, 付利平, 江芳, 等. 利用FY-3(D)卫星电离层光度计数据反演电离层O/N2[J]. 光谱学与光谱分析, 2021, 41(4): 1004-1010

    WANG Daxin, FU Liping, WANG Fang, et al. Inversion of ionospheric O/N2 by using FY-3D ionospheric photometer data[J]. Spectroscopy and Spectral Analysis, 2021, 41(4): 1004-1010
    [18]
    ZHANG Y, PAXTON L J, KOZYRA J U, et al. Nightside thermospheric FUV emissions due to energetic neutral atom precipitation during magnetic superstorms[J]. Journal of Geophysical Research: Space Physics, 2006, 111(A9): A09307. doi: 10.1029/2005JA011152
    [19]
    TINSLEY B A, ROHRBAUGH R P, RASSOUL H, et al. Spectral characteristics of two types of low latitude aurorae[J]. Geophysical Research Letters, 1984, 11(6): 572-575. doi: 10.1029/GL011i006p00572
    [20]
    MEIER R R, WELLER C S. Observations of equatorial EUV bands: evidence for low-altitude precipitation of ring current helium[J]. Journal of Geophysical Research, 1975, 80(19): 2813-2818. doi: 10.1029/JA080i019p02813
    [21]
    MENDILLO M. Storms in the ionosphere: patterns and processes for total electron content[J]. Reviews of Geophysics, 2006, 44(4): RG4001. doi: 10.1029/2005RG000193
    [22]
    PARESCE F. EUV observations of the equatorial aurora[J]. Journal of Geophysical Research: Space Physics, 1979, 84(A8): 4409-4412. doi: 10.1029/JA084iA08p04409
    [23]
    STEPHAN A W, CHAKRABARTI S, COTTON D M. Evidence of ENA precipitation in the EUV dayglow[J]. Geophysical Research Letters, 2000, 27(18): 2865-2868. doi: 10.1029/2000GL000040
    [24]
    STEPHAN A W, CHAKRABARTI S, DYMOND K F, et al. Far ultraviolet equatorial aurora during geomagnetic storms as observed by the low-resolution airglow and aurora spectrograph[J]. Journal of Geophysical Research: Space Physics, 2001, 106(A12): 30323-30330. doi: 10.1029/2001JA001103
