LIANG Bin, YU Mingxue. Common Mode Error Analysis of GNSS Coordinate Time Series in Northwest China Based on MSSA Algorithm (in Chinese). Chinese Journal of Space Science, 2025, 45(4): 1-12 doi: 10.11728/cjss2025.04.2024-0072
Citation: LIANG Bin, YU Mingxue. Common Mode Error Analysis of GNSS Coordinate Time Series in Northwest China Based on MSSA Algorithm (in Chinese). Chinese Journal of Space Science, 2025, 45(4): 1-12 doi: 10.11728/cjss2025.04.2024-0072
shu

Common Mode Error Analysis of GNSS Coordinate Time Series in Northwest China Based on MSSA Algorithm

doi: 10.11728/cjss2025.04.2024-0072 cstr: 32142.14.cjss.2024-0072
  • 1.

    The First Monitoring Center of China Earthquake Administration, Tianjin 300000

  • 2.

    College of Surveying and Geographic Information, Lanzhou Jiaotong University, Lanzhou 730000

  • Received Date: 2024-05-29
  • Rev Recd Date: 2024-11-01
    • Available Online: 2024-11-02
    Abstract

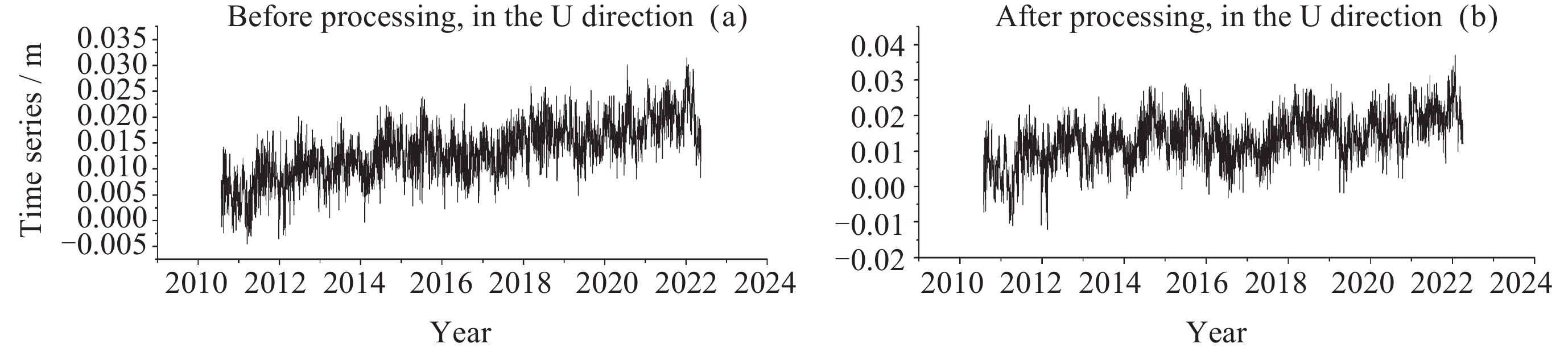

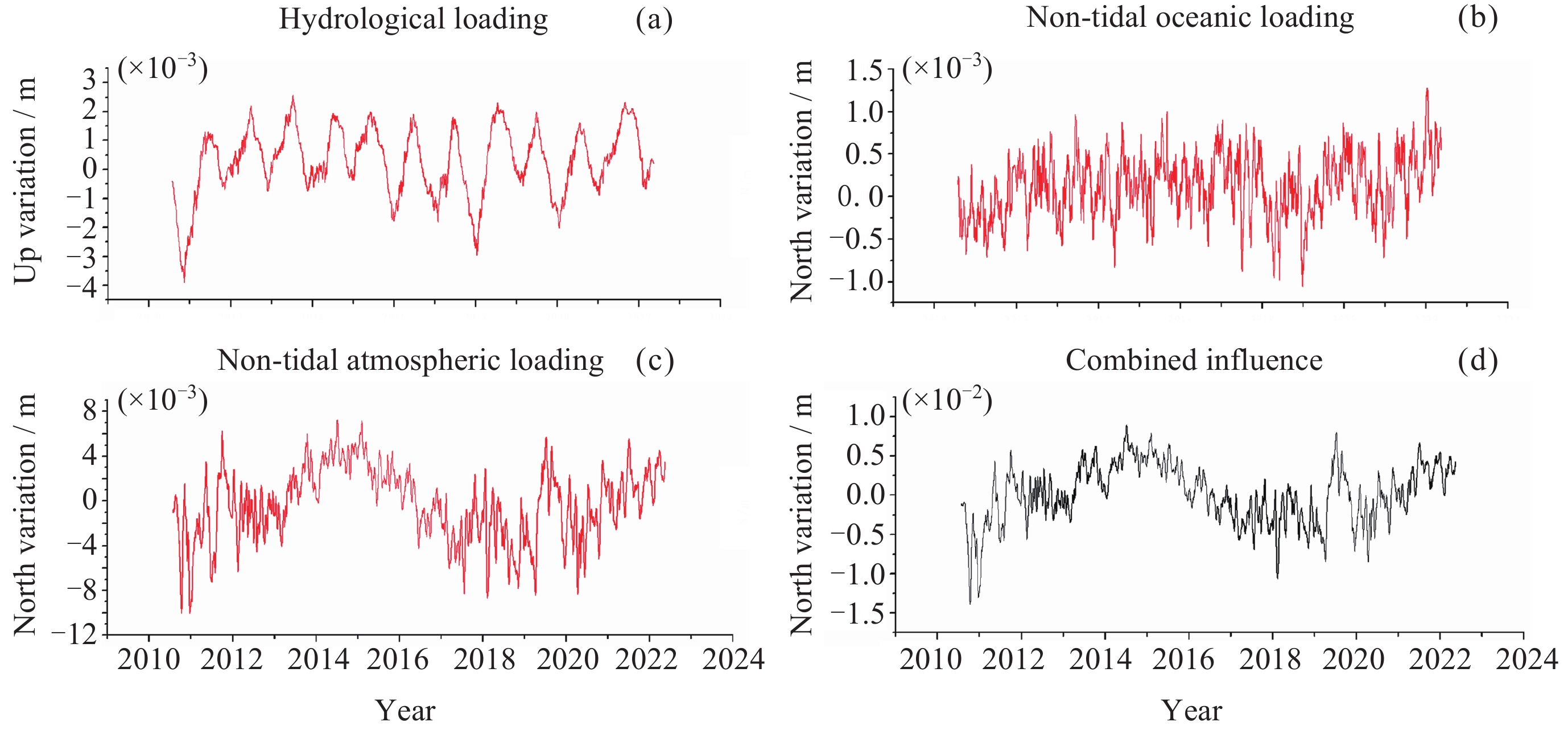

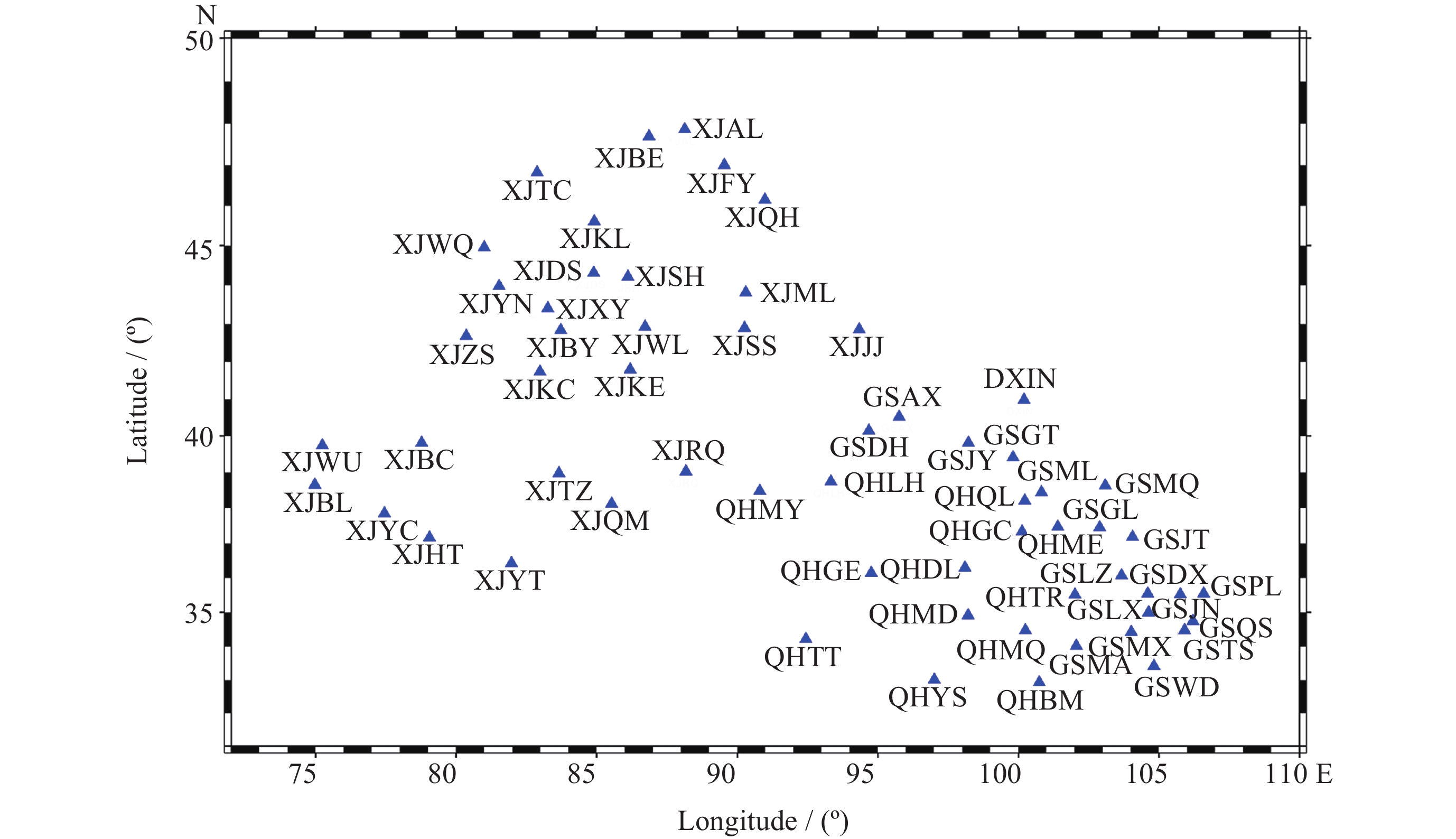

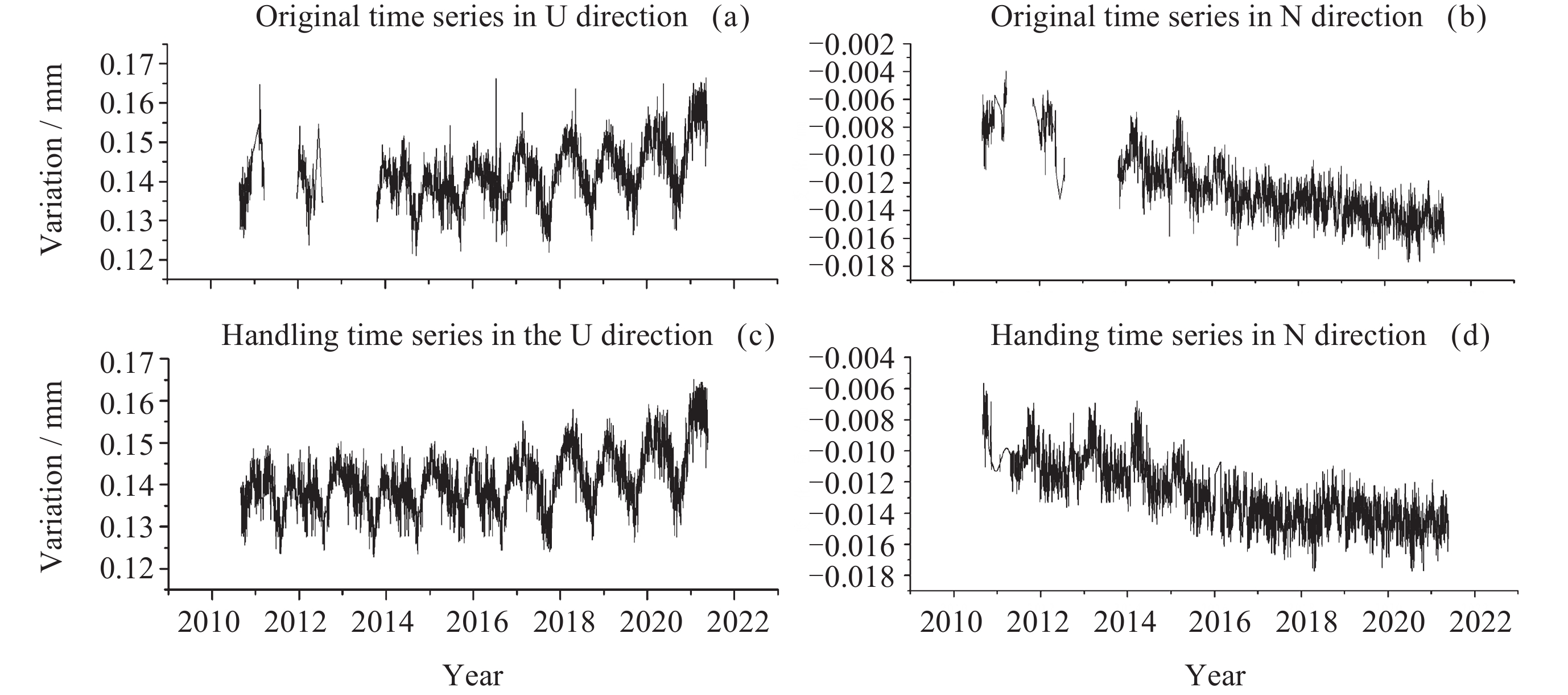

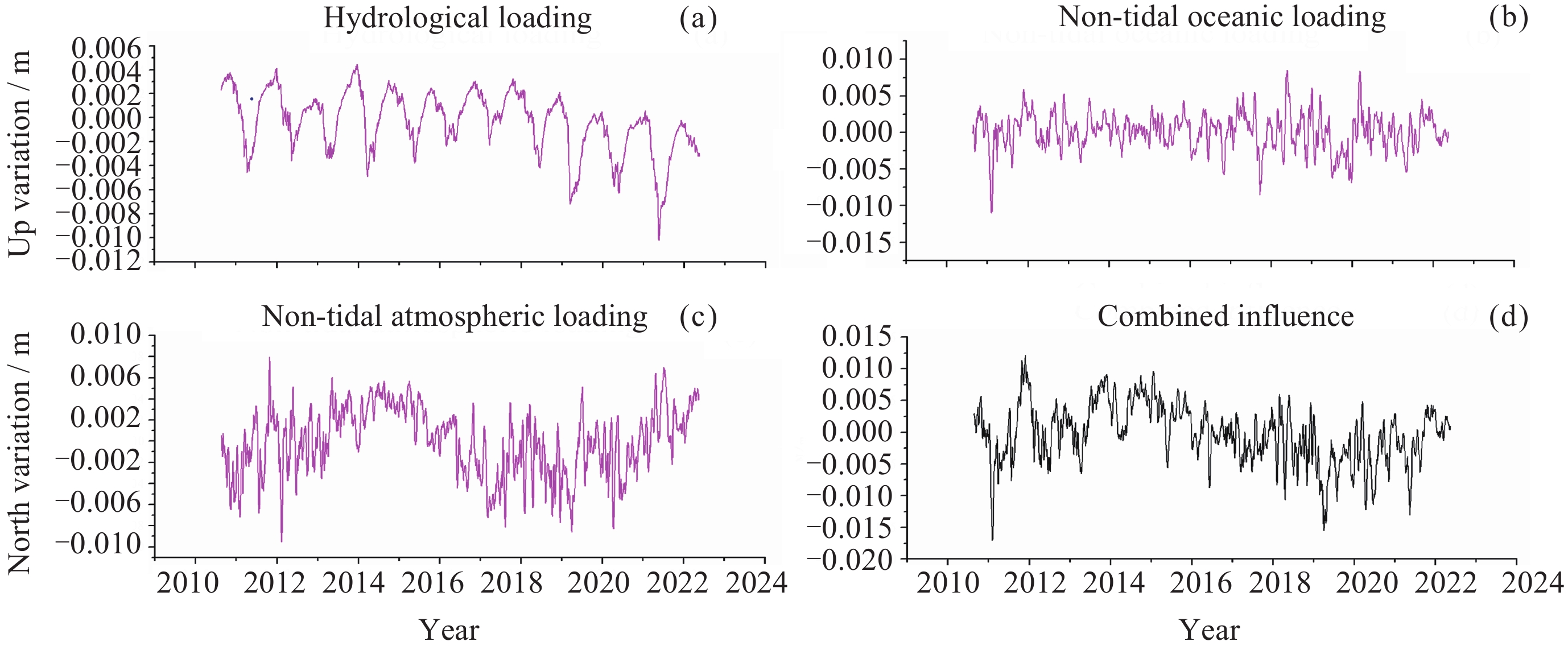

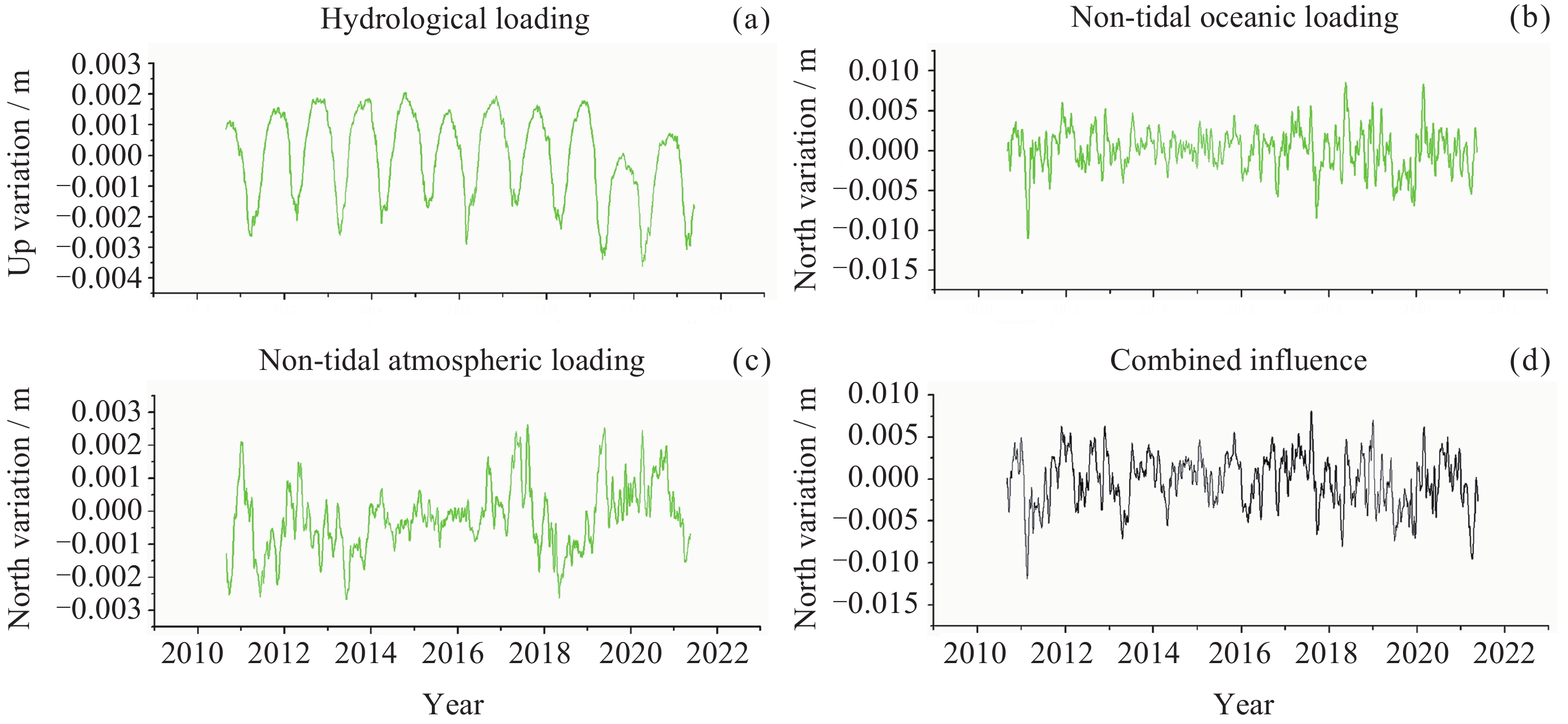

  • Aiming at the problem that the common mode error analysis of the vertical coordinate time series of the Global Navigation Satellite System (GNSS) in Northwest China is not comprehensive and in-depth, the MSSA algorithm is used as the theoretical basis to preprocess the data of 61 stations in the three northwestern provinces (Xinjiang, Gansu, Qinghai) to improve the accuracy and integrity of the data, and on this basis, the common mode error of GNSS coordinate time series in the region is extracted and analyzed. The characteristic source of the Common Mode Error (CME) was investigated by correlation analysis between the extracted CME and the displacement time series caused by Hydrologic Load (HYDL), Non-Tidal Atmospheric Load (NTAL) and Non-Tidal Ocean Load (NTOL). Compared with the sequence before and after the removal of the common mode error, the average accuracy of the residual standard deviation is increased by 27.5%, and the maximum reduction of the station is reduced by 66.7%. The results show that the common mode error in this region is significantly affected by three kinds of surface mass loads: hydrologic load, non-tidal atmospheric load and non-tidal ocean load. Through the extraction and analysis of common mode errors and the research on the source of error characteristics, the GNSS coordinate time series accuracy of the three northwestern provinces can be further improved, so as to provide higher precision data support for seismic displacement and crustal deformation research.



    • FullText(HTML)
  • loading
    • References(20)
  • [1]
    YAN J, DONG D N, BÜRGMANN R, et al. Separation of sources of seasonal uplift in China using independent component analysis of GNSS time series[J]. Journal of Geophysical Research: Solid Earth, 2019, 124(11): 11951-11971 doi: 10.1029/2019JB018139
    [2]
    盛传贞, 甘卫军, 梁诗明, 等. 滇西地区GPS时间序列中陆地水载荷形变干扰的GRACE分辨与剔除[J]. 地球物理学报, 2014, 57(1): 42-52 doi: 10.6038/cjg20140105

    SHENG Chuanzhen, GAN Weijun, LIANG Shiming, et al. Identification and elimination of non-tectonic crustal deformation caused by land water from GPS time series in the western Yunnan province based on GRACE observations[J]. Chinese Journal of Geophysics, 2014, 57(1): 42-52 doi: 10.6038/cjg20140105
    [3]
    廖华, 徐锐, 陈维锋, 等. 汶川地震前后四川区域GPS时序特征演变及统计分析[J]. 地球物理学报, 2013, 56(4): 1237-1245 doi: 10.6038/cjg20130418

    LIAO Hua, XU Rui, CHEN Weifeng, et al. Propertyvariation and statistical analysis of Sichuan GPS time series before and after Wenchuan Earthquake[J]. Chinese Journal of Geophysics, 2013, 56(4): 1237-1245 doi: 10.6038/cjg20130418
    [4]
    杨博, 周伟, 陈阜超, 等. GPS连续站水平位置时间序列共模白噪声识别与估计的欧拉-滤波法[J]. 山东科技大学学报(自然科学版), 2010, 29(3): 26-31,36

    YANG Bo, ZHOU Wei, CHEN Fuchao, et al. The Euler-filter algorithm of recognition and estimation on the common mode white noise of time series for horizontal components of GPS continuous observation stations[J]. Journal of Shandong University of Science and Technology (Natural Science Edition), 2010, 29(3): 26-31,36
    [5]
    杨博, 张风霜, 韩月萍. GPS连续站水平分量时间序列共模误差识别的欧拉-小波法[J]. 大地测量与地球动力学, 2010, 30(3): 100-104 doi: 10.3969/j.issn.1671-5942.2010.03.024

    YANG Bo, ZHANG Fengshuang, HAN Yueping. Euler–wavelet method and its application in identification of common–mode error from time sequences of horizontal components of GPS continuous stations[J]. Journal of Geodesy and Geodynamics, 2010, 30(3): 100-104 doi: 10.3969/j.issn.1671-5942.2010.03.024
    [6]
    王梅, 江在森, 侯贺晟. GPS连续站水平位移分量相关性分析[J]. 大地测量与地球动力学, 2010, 30(2): 19-24 doi: 10.3969/j.issn.1671-5942.2010.02.005

    WANG Mei, JIANG Zaiden, HOU Hesheng. Correlation analysis of continuous GPS horizontal displacement components[J]. Journal of Geodesy and Geodynamics, 2010, 30(2): 19-24 doi: 10.3969/j.issn.1671-5942.2010.02.005
    [7]
    谢树明, 潘鹏飞, 周晓慧. 大空间尺度GPS网共模误差提取方法研究[J]. 武汉大学学报•信息科学版, 2014, 39(10): 1168-1173

    XIE Shuming, PAN Pengfei, ZHOU Xiaohui. Research on common mode error extraction method for large–scale GPS network[J]. Geomatics and Information Science of Wuhan University, 2014, 39(10): 1168-1173
    [8]
    谢树明, 潘鹏飞, 周晓慧. GPS坐标时间序列共模误差空间特性分析[J]. 地理空间信息, 2014, 12(4): 44-45,54 doi: 10.11709/j.issn.1672-4623.2014.04.015

    XIE Shuming, PAN Pengfei, ZHOU Xiaohui. Spatial characteristics analysis of common mode error in GPS coordinate time series[J]. Geospatial Information, 2014, 12(4): 44-45,54 doi: 10.11709/j.issn.1672-4623.2014.04.015
    [9]
    田云锋, 沈正康, 李鹏. 连续GPS观测中的相关噪声分析[J]. 地震学报, 2010, 32(6): 696-704

    TIAN Yunfeng, SHEN Zhengkang, LI Peng. Analysis on correlated noise in continuous GPS observations[J]. Acta Seismologica Sinica, 2010, 32(6): 696-704
    [10]
    TAN W J, CHEN J P, DONG D N, et al. Analysis of the potential contributors to common mode error in Chuandian region of China[J]. Remote Sensing, 2020, 12(5): 751 doi: 10.3390/rs12050751
    [11]
    王丽红, 鲁杨梅, 邱宝贤. GAMIT软件中不同星历对GPS/BDS数据定位的影响[J]. 海洋测绘, 2022, 42(1): 14-17 doi: 10.3969/j.issn.1671-3044.2022.01.004

    WANG Lihong, LU Yangmei, QIU Baoxian. Position affect of GPS/BDS data by GAMIT with different precise ephemeris[J]. Hydrographic Surveying and Charting, 2022, 42(1): 14-17 doi: 10.3969/j.issn.1671-3044.2022.01.004
    [12]
    何月帆, 聂桂根, 武曙光, 等. 不同版本的GAMIT超短基线数据解算精度分析[J]. 测绘工程, 2021, 30(5): 18-22, 31

    HE Yuefan, NIE Guigen, WU Shuguang et al. Ultra–short baseline solution based on different versions of GAMT[J]. Engineering of Surveying and Mapping, 2019, 30(5): 18-22, 31
    [13]
    姜卫平. GNSS基准站网数据处理方法与应用[M]. 武汉: 武汉大学出版社, 2017

    JIANG Weiping. GNSS Reference Station Network Data Processing Method and Application[M]. Wuhan: Wuhan University Press, 2017
    [14]
    侯增楠, 黄征凯, 王琰, 等. 一种改进WVSSA算法的GNSS时间序列降噪方法[J]. 导航定位学报, 2023, 11(4): 97-103

    HOU Zengnan, HUANG Zhengkai, WANG Yan, et al. A noise reduction method for GNSS time series based on improved WVSSA algorithm[J]. Journal of Navigation and Positioning, 2023, 11(4): 97-103
    [15]
    何月帆. 高精度GPS数据处理及时间序列分析[D]. 西安: 长安大学, 2019

    HE Yuefan. High Precision GPS Data Processing and Time Series Analysis[D]. Xi’an: Chang’an University, 2019
    [16]
    钱炜, 岳建平. MSSA在GPS坐标序列分析中的应用[J]. 测绘通报, 2021(9): 49-52,63

    QIAN Wei, YUE Jianping. Application of MSSA in GPS coordinate sequence analysis[J]. Bulletin of Surveying and Mapping, 2021(9): 49-52,63
    [17]
    李爱国, 平书哑, 郭敏. 利用改进3σ法获得残差序列的共模误差提取[J]. 测绘科学, 2023, 48(7): 72-83

    LI Aiguo, PING Shaya, GUO Min. The common mode error extraction of residual series was obtained by improved 3σ method[J]. Science of Surveying and Mapping, 2023, 48(7): 72-83
    [18]
    YUAN P, LI Z, JIANG W P, et al. Influences of environmental loading corrections on the nonlinear variations and velocity uncertainties for the reprocessed global positioning system height time series of the crustal movement observation network of China[J]. Remote Sensing, 2018, 10(6): 958 doi: 10.3390/rs10060958
    [19]
    常航. GPS垂向时序中环境负载效应研究[D]. 西安: 长安大学, 2019

    CHANG Hang. Research on Environmental Loading Effect in GPS Vertical Time Series[D]. Xi’an: Chang’an University, 2019
    [20]
    DILL R, DOBSLAW H. Numerical simulations of global-scale high-resolution hydrological crustal deformations[J]. Journal of Geophysical Research: Solid Earth, 2013, 118(9): 5008-5017 doi: 10.1002/jgrb.50353
