Cosmic Ray Muon Count Dataset from Siziwang Station in Inner Mongolia (2023－2025)

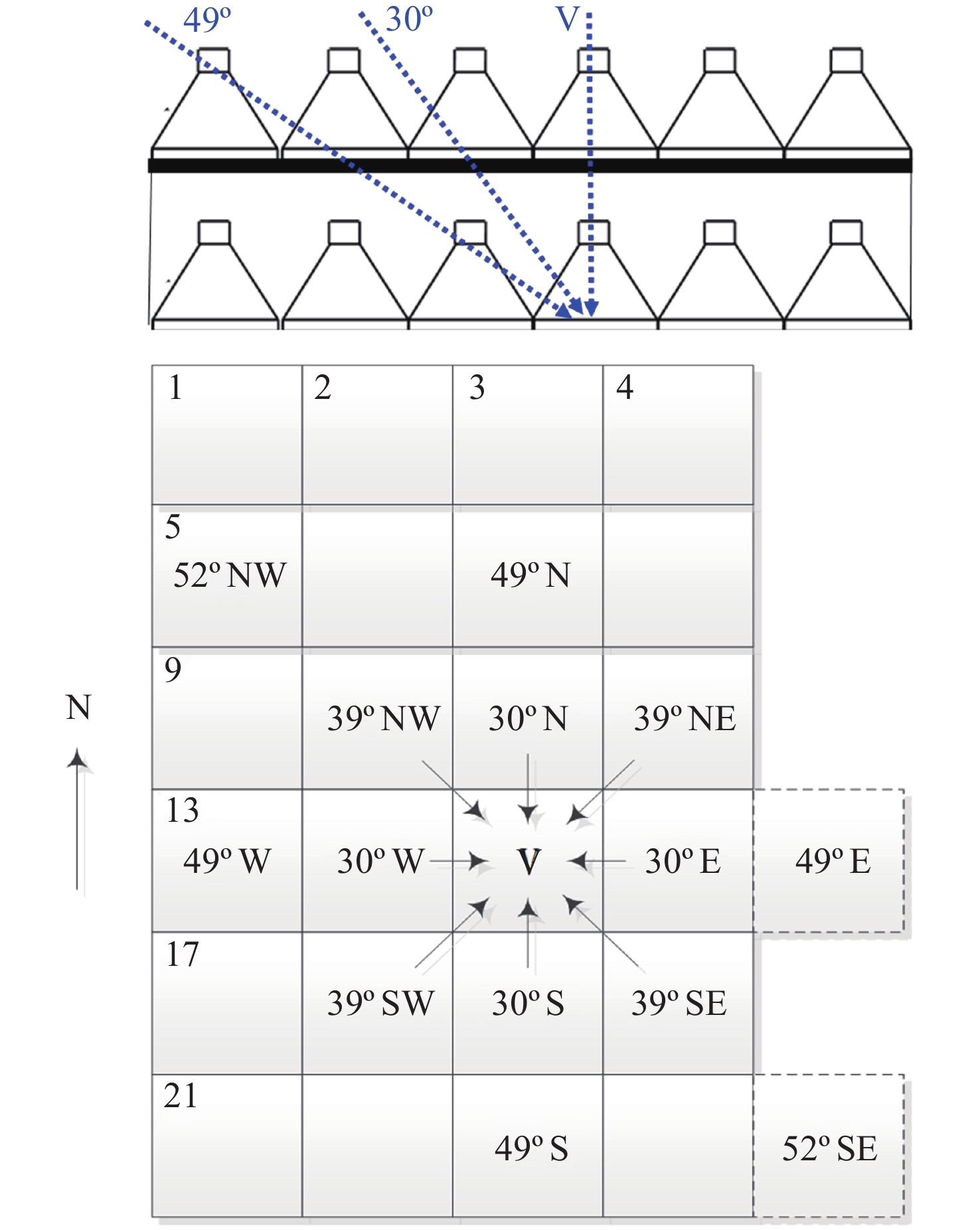

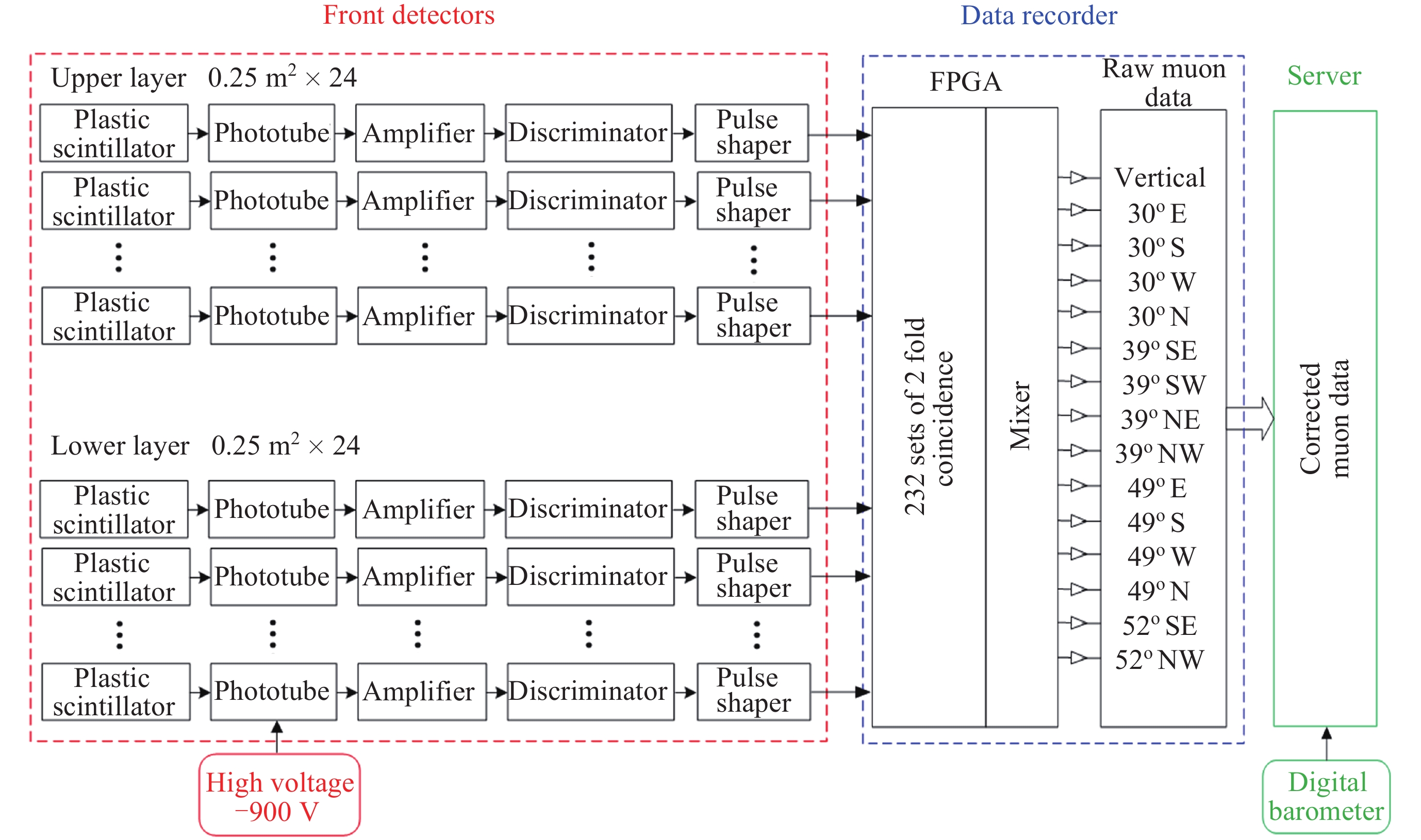

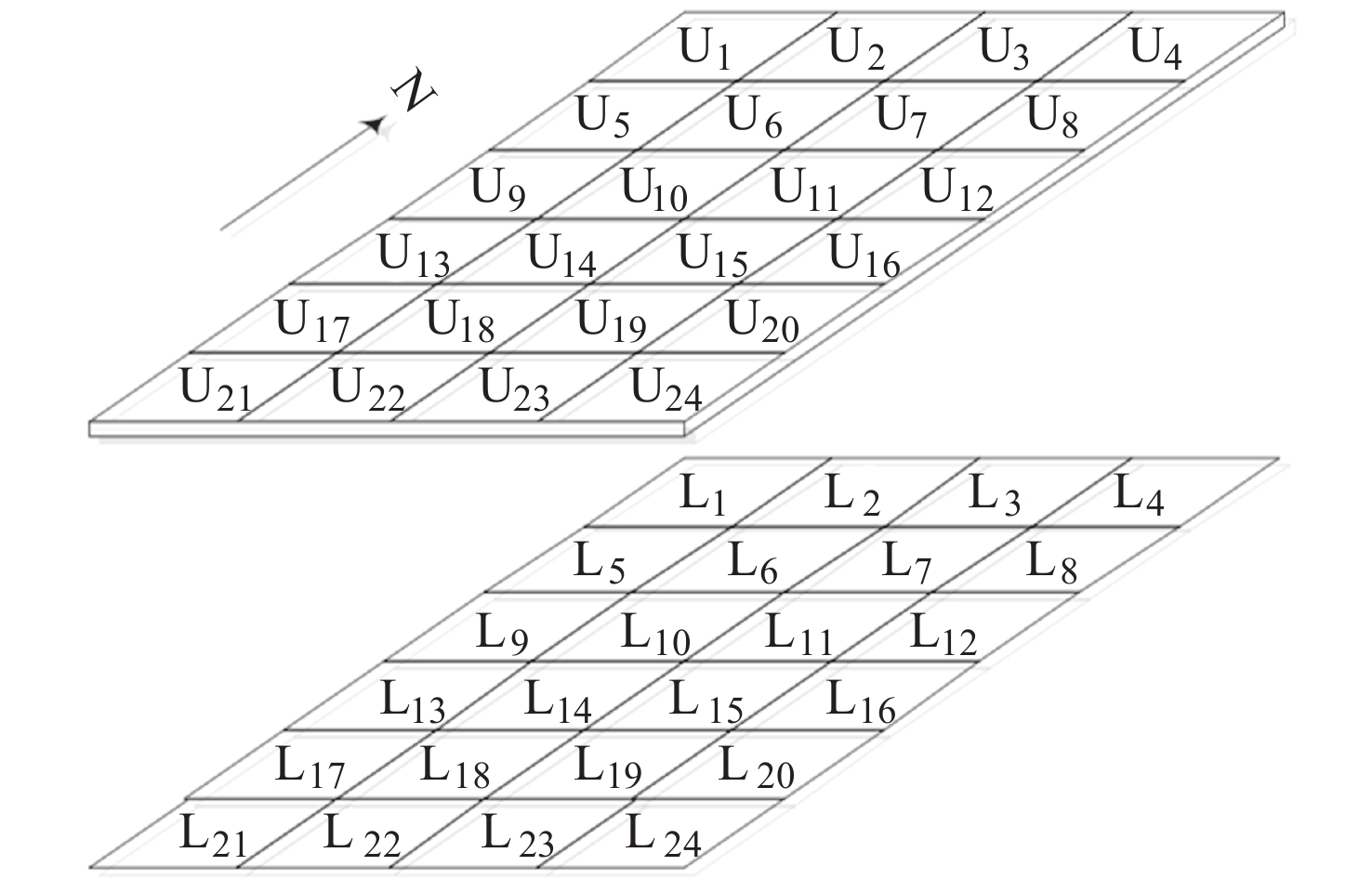

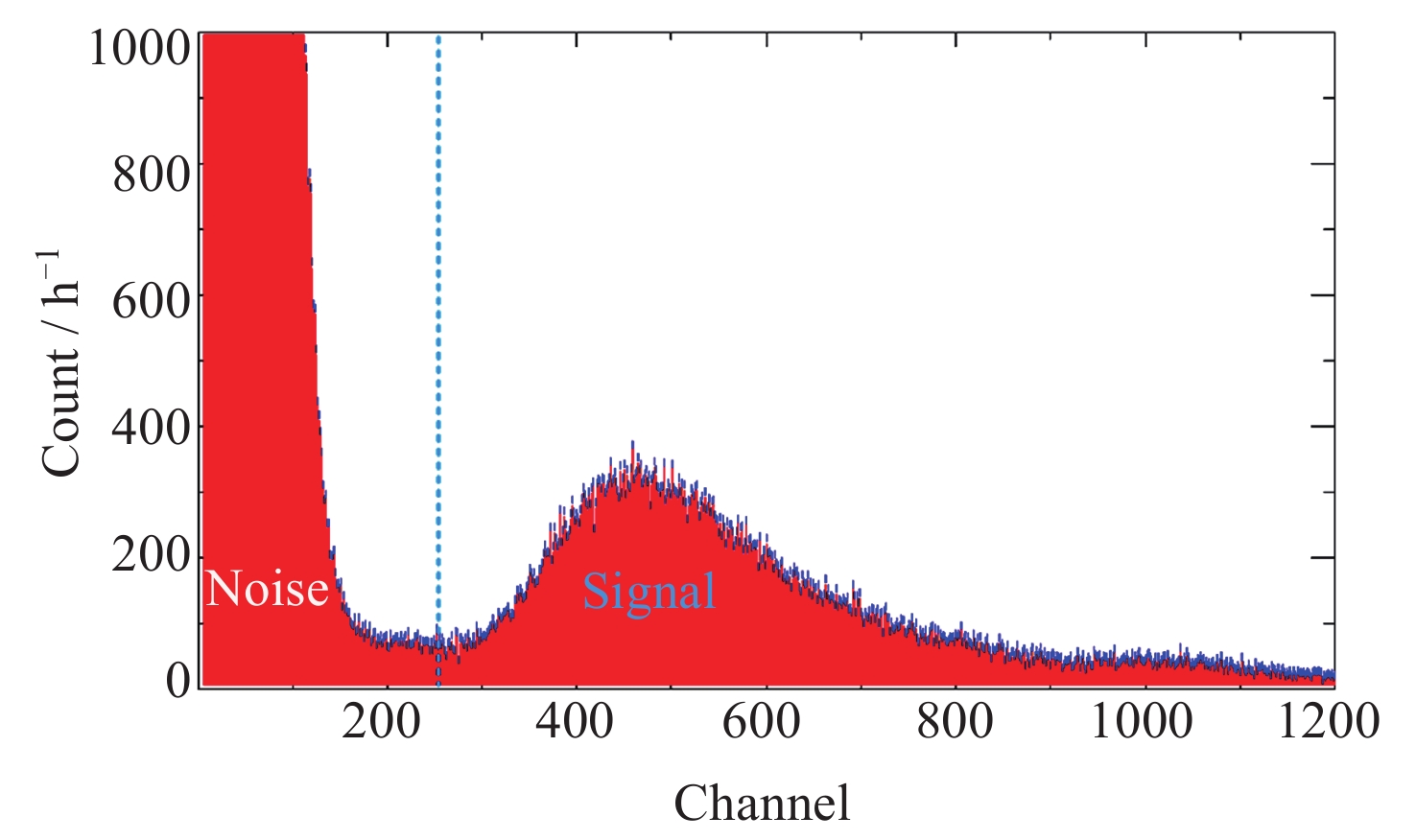

The Muon Telescope at Siziwang Station in Inner Mongolia is used to detect the secondary cosmic ray muons reaching the ground. The Muon Telescope began construction in November 2019, was completed in April 2023, and produced scientific data. The muon telescope consists of a scintillator observation stack, an electronics recorder, a monitoring platform, and a power supply. The scintillator observation stack is composed of 48 detector units, divided into upper and lower layers with 24 units in each layer, arranged in a 6×4 array. In each detector unit, the plastic scintillator has dimensions of 50 cm × 50 cm × 5 cm. The distance between the upper and lower layers is 89 cm. A 5cm-thick layer of lead bricks is laid between the upper and lower layers to filter out low-energy cosmic rays and low-energy particles in the surrounding environment. The detectors have a total area of 6 m². Muon signals generated by the 48 detector units of the Muon Telescope are processed through front-end circuits for amplification, discrimination, and shaping, then sent to the FPGA logic circuit for directional coincidence calculation. This produces raw muon counts in 15 directions. After undergoing barometric correction calculation, a dataset of corrected muon counts in 15 directions is formed, with a temporal resolution of 1 hour. The count rate in the vertical direction is the highest, with the 1-hour count rate being around 600,000 counts and the relative statistical error approximately 0.13%. The muon data can sensitively reflect diurnal variations, long-term variations of cosmic rays, and short-term Forbush decrease perturbations induced by coronal mass ejections. Spanning from May 2023 to April 2025, this dataset covers the high-activity phase of the 25th solar activity cycle. It provides valuable data resources for research on solar eruptions, their interplanetary disturbance propagation, and geomagnetic response processes, while also supporting space weather early warning efforts.
