LIU Ziqian, LI Hui, WANG Chi. Chinese Geomagnetic Index Based on Chinese Meridian Project Geomagnetic Data (in Chinese). Chinese Journal of Space Science, 2026, 46(5): 1-17 doi: 10.11728/cjss2026.05.2025-0200
Citation: LIU Ziqian, LI Hui, WANG Chi. Chinese Geomagnetic Index Based on Chinese Meridian Project Geomagnetic Data (in Chinese). Chinese Journal of Space Science, 2026, 46(5): 1-17 doi: 10.11728/cjss2026.05.2025-0200
shu

Chinese Geomagnetic Index Based on Chinese Meridian Project Geomagnetic Data

doi: 10.11728/cjss2026.05.2025-0200 cstr: 32142.14.cjss.2025-0200
  • 1.

    State Key Laboratory of Solar Activity and Space Weather, National Space Science Center, Chinese Academy of Science, Beijing 100190

  • 2.

    University of Chinese Academy of Sciences, Beijing 100049

  • Received Date: 2025-11-26
  • Rev Recd Date: 2026-03-16
    • Available Online: 2026-03-19
    Abstract

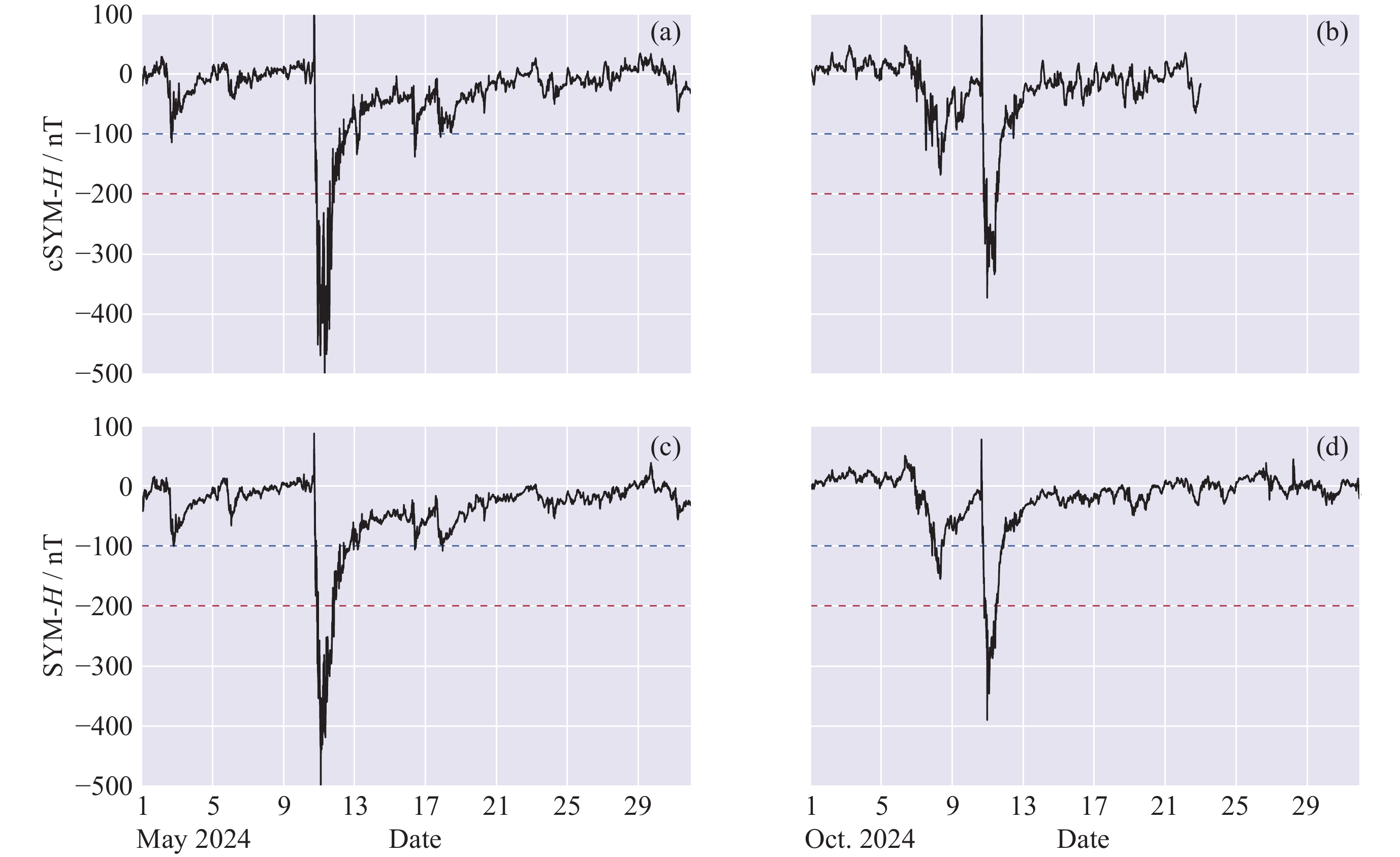

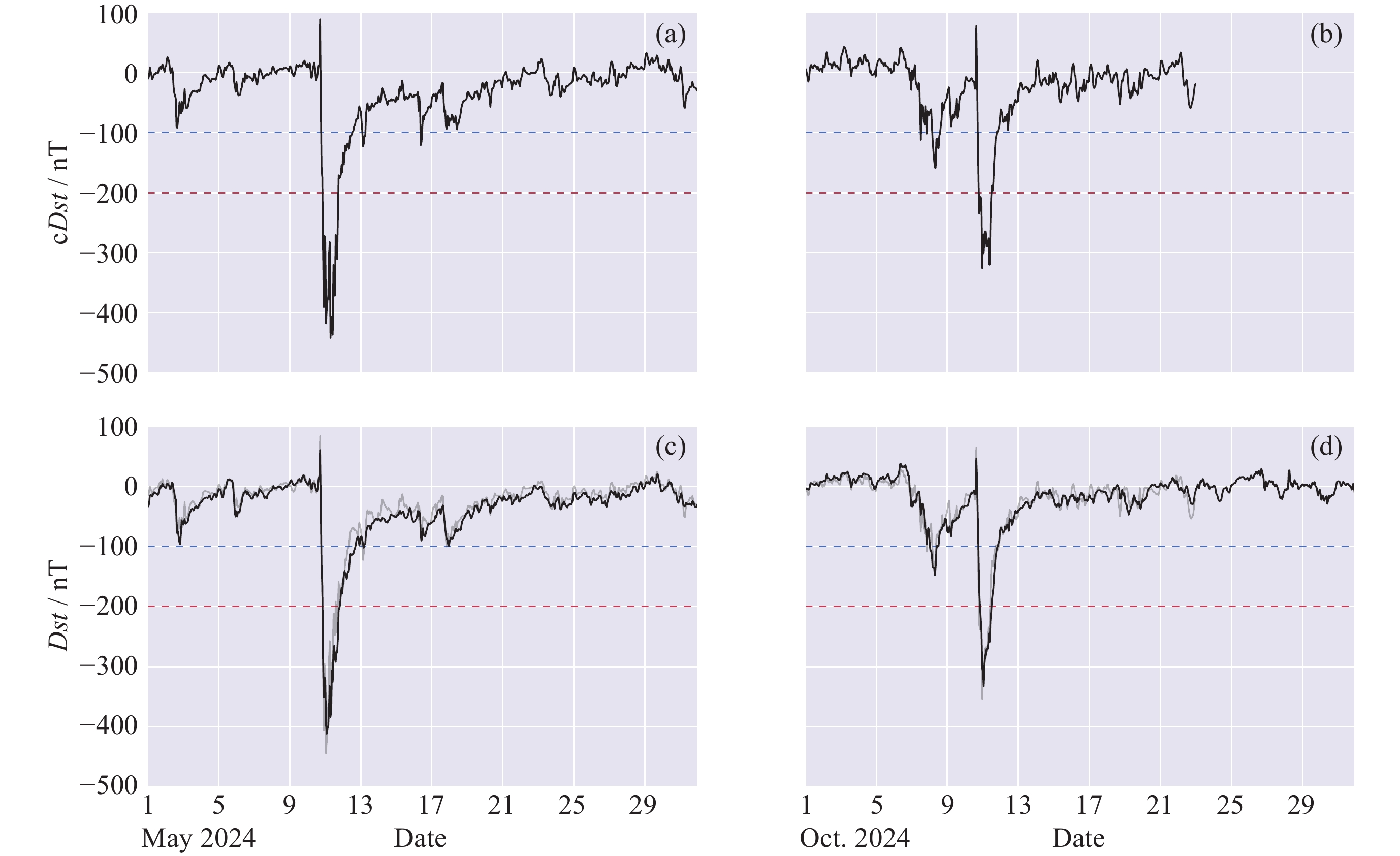

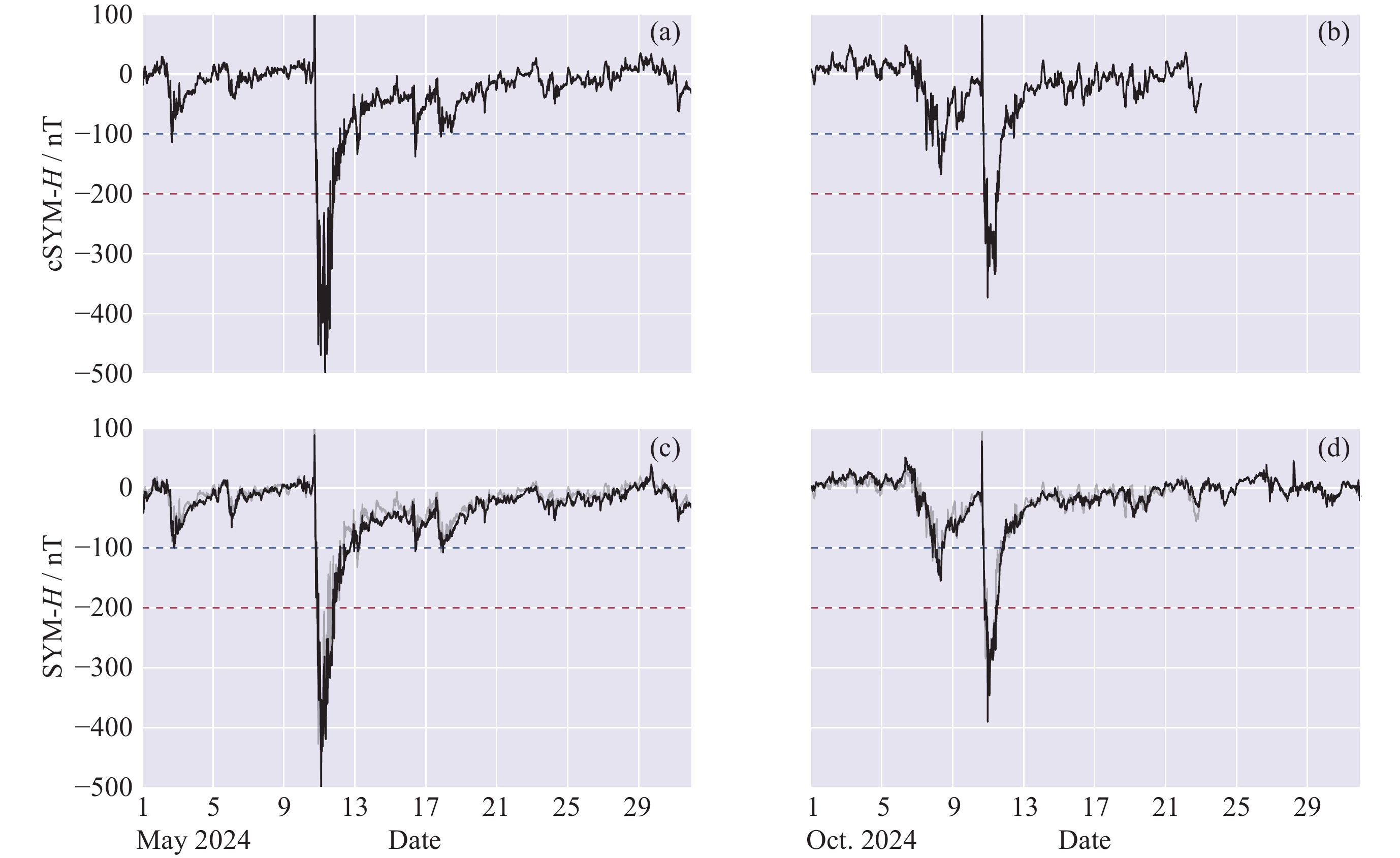

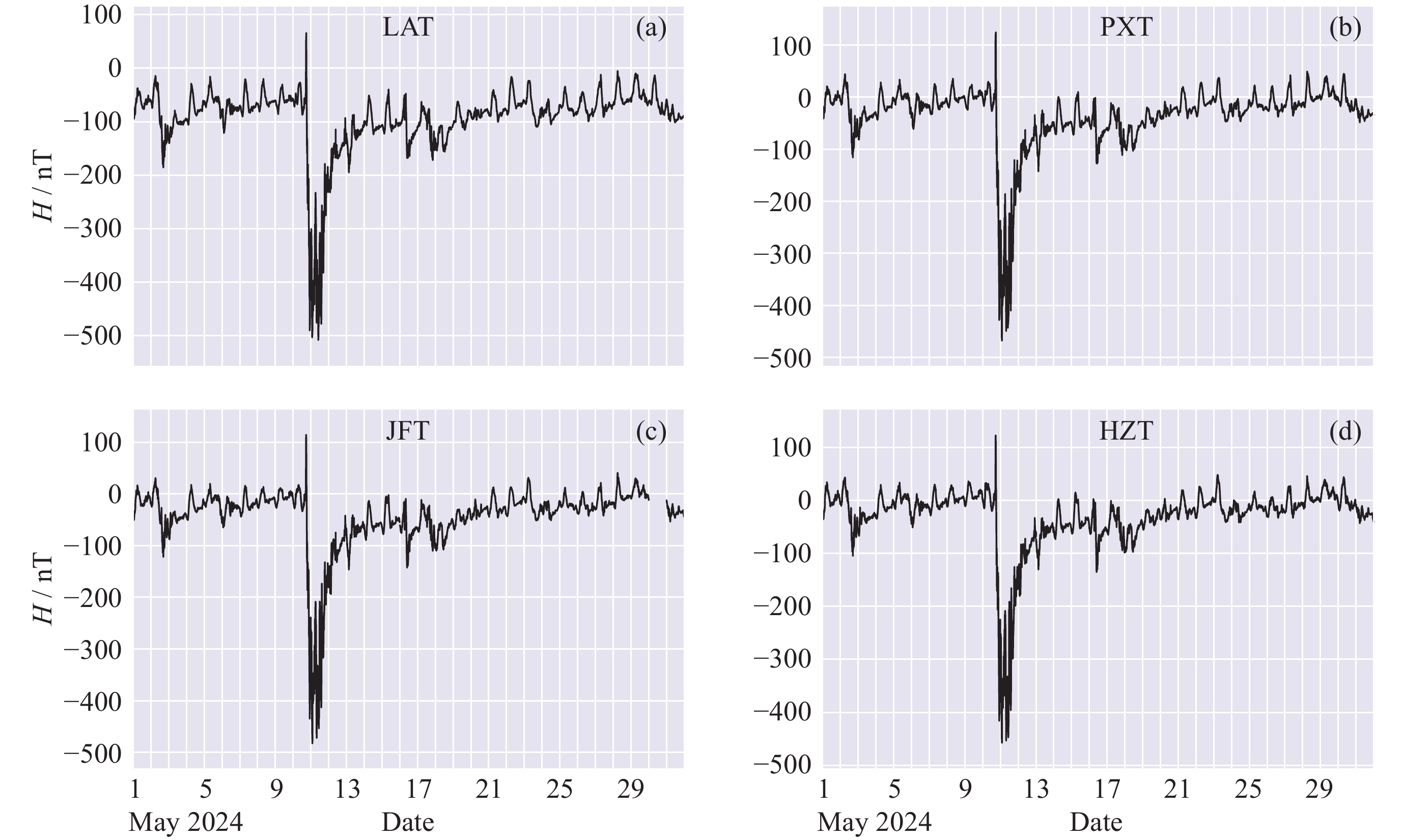

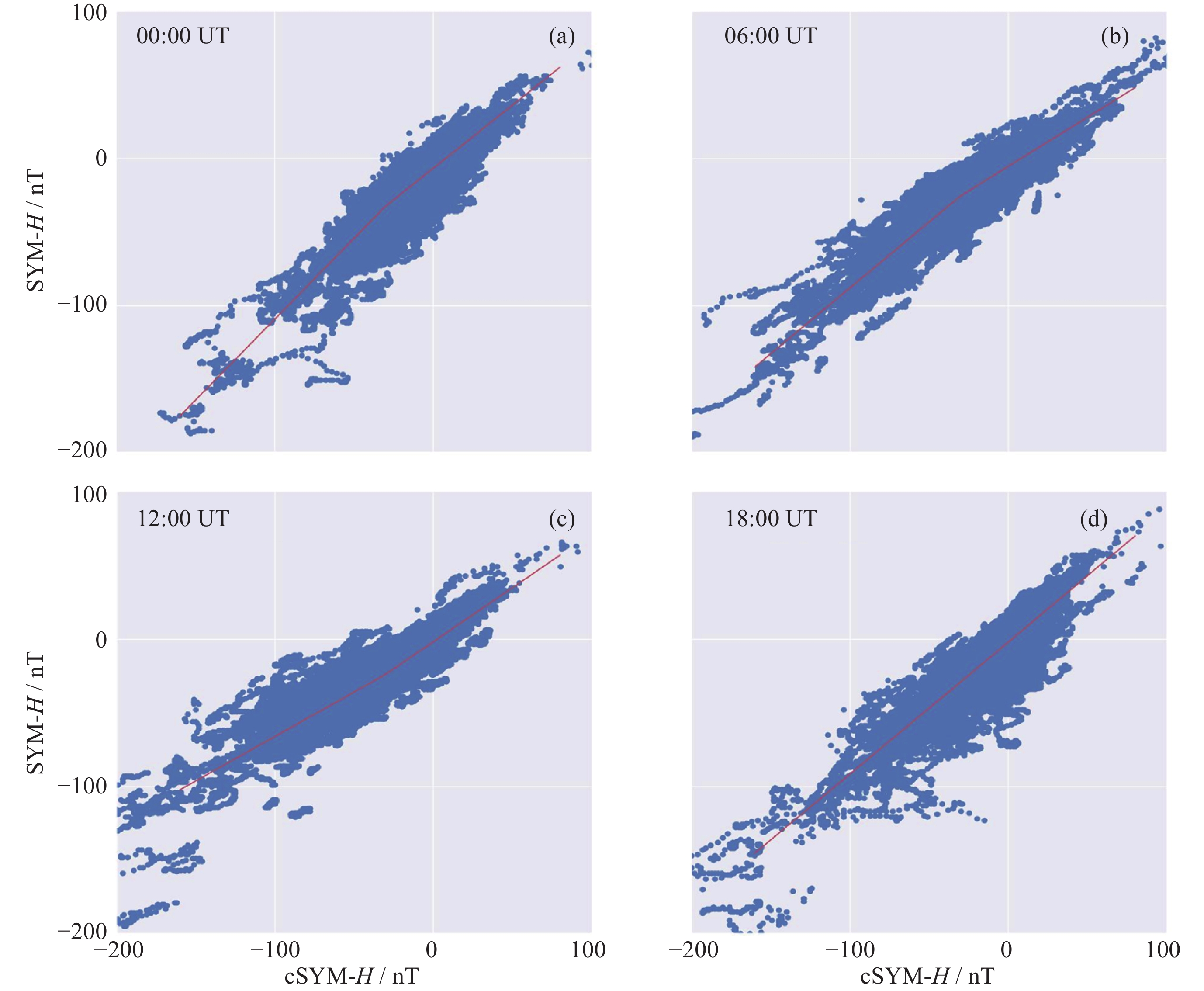

  • The great disturbances of the horizontal component of the geomagnetic field in mid-low latitudes caused by the ring current in the Earth’s magnetosphere can be characterized by the Disturbance Storm Time (Dst) index and the symmetric H component (SYM-H) index. The Dst index and SYM-H index are important indicators for measuring geomagnetic activity, which can clearly reflect the commencement and intensity of geomagnetic storms. Due to the asymmetry of ring current during geomagnetic storms, there are significant differences in the geomagnetic disturbance intensity in different regions. As global geomagnetic index, Dst index and SYM-H index may not accurately describe the geomagnetic disturbance situation in China. We uses geomagnetic data from four stations in Lhasa, Chengdu, Wuhan, and Hangzhou of the Chinese Meridian Project from 2010 to 2024 to calculate the Chinese geomagnetic index (cDst index, cSYM-H index), and compares and analyzes them with the global geomagnetic index (Dst index, SYM-H index). The results indicate that the two types of Chinese geomagnetic index can more accurately describe the characteristics of geomagnetic disturbances in China, and their differences from the global geomagnetic index show a dawn-dusk dependence: The absolute value of the Chinese geomagnetic index is greater than the global geomagnetic index when China is located on the dusk side, and is less when China is on the dawn side. Correspondingly, the number of Chinese geomagnetic disturbances is more than geomagnetic storms when China is located on the dusk side, and is less when China is on the dawn side. The physical mechanism of these phenomena is closely related to the dawn-dusk asymmetry of the ring current. Meanwhile, based on the Chinese geomagnetic index, the global geomagnetic index can be effectively obtained, and the results are in good agreement. Therefore, when the global geomagnetic index cannot be obtained, high-quality supplementary data can be provided.



    • FullText(HTML)
  • loading
    • References(36)
  • [1]
    DONNER R V, BALASIS G, STOLBOVA V, et al. Recurrence-based quantification of dynamical complexity in the earth’s magnetosphere at geospace storm timescales[J]. Journal of Geophysical Research: Space Physics, 2019, 124(1): 90-108 doi: 10.1029/2018ja025318
    [2]
    CHANG T. Low-dimensional behavior and symmetry breaking of stochastic systems near criticality―can these effects be observed in space and in the laboratory?[J]. IEEE Transactions on Plasma Science, 1992, 20(6): 691-694 doi: 10.1109/27.199515
    [3]
    CONSOLINI G, ALBERTI T, DE MICHELIS P. On the forecast horizon of magnetospheric dynamics: a scale-to-scale approach[J]. Journal of Geophysical Research: Space Physics, 2018, 123(11): 9065-9077 doi: 10.1029/2018ja025952
    [4]
    KLIMAS A J, VASSILIADIS D, BAKER D N, et al. The organized nonlinear dynamics of the magnetosphere[J]. Journal of Geophysical Research: Space Physics, 1996, 101(A6): 13089-13113 doi: 10.1029/96ja00563
    [5]
    VALDIVIA J A, ROGAN J, MUÑOZ V, et al. The magnetosphere as a complex system[J]. Advances in Space Research, 2005, 35(5): 961-971 doi: 10.1016/j.asr.2005.03.144
    [6]
    WATKINS N W, FREEMAN M P, CHAPMAN S C, et al. Testing the SOC hypothesis for the magnetosphere[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2001, 63(13): 1435-1445 doi: 10.1016/s1364-6826(00)00245-5
    [7]
    DAGLIS I A, THORNE R M, BAUMJOHANN W, et al. The terrestrial ring current: origin, formation, and decay[J]. Reviews of Geophysics, 1999, 37(4): 407-438 doi: 10.1029/1999RG900009
    [8]
    BOTHMER V, DAGLIS I A. Space Weather: Physics and Effects[M]. Berlin: Springer, 2007. DOI: 10.1007/978-3-540-34578-7
    [9]
    SUGIURA M. Hourly values of equatorial DstDst for the IGY[J]. Annals of the International Geophysical Year, 1964, 35: 49
    [10]
    KOTZÉ P B. Hermanus magnetic observatory: a historical perspective of geomagnetism in southern Africa[J]. History of Geo- and Space Sciences, 2018, 9(2): 125-131 doi: 10.5194/hgss-9-125-2018
    [11]
    MINAMOTO Y. Availability and access to data from Kakioka magnetic observatory, Japan[J]. Data Science Journal, 2013, 12: G30-G35 doi: 10.2481/dsj.G-040
    [12]
    LOVE J J, FINN C A. The USGS geomagnetism program and its role in space weather monitoring[J]. Space Weather, 2011, 9(7): S07001 doi: 10.1029/2011SW000684
    [13]
    LOEWE C A, PRÖLSS G W. Classification and mean behavior of magnetic storms[J]. Journal of Geophysical Research: Space Physics, 1997, 102(A7): 14209-14213 doi: 10.1029/96JA04020
    [14]
    GONZALEZ W D, JOSELYN J A, KAMIDE Y, et al. What is a geomagnetic storm?[J]. Journal of Geophysical Research: Space Physics, 1994, 99(A4): 5771-5792 doi: 10.1029/93JA02867
    [15]
    DAGLIS I A. Ring current dynamics[J]. Space Science Reviews, 2006, 124(1/2/3/4): 183-202 doi: 10.1007/s11214-006-9104-z
    [16]
    BOROVSKY J E, SHPRITS Y Y. Is the DstDst index sufficient to define all geospace storms?[J]. Journal of Geophysical Research: Space Physics, 2017, 122(11): 11543-11547 doi: 10.1002/2017ja024679
    [17]
    KAMIDE Y, BAUMJOHANN W, DAGLIS I A, et al. Current understanding of magnetic storms: storm-substorm relationships[J]. Journal of Geophysical Research: Space Physics, 1998, 103(A8): 17705-17728 doi: 10.1029/98JA01426
    [18]
    LANZEROTTI L J. Comment on “Great magnetic storms” by Tsurutani et al.[J]. Geophysical Research Letters, 1992, 19(19): 1991-1992 doi: 10.1029/92GL02238
    [19]
    GANUSHKINA N, JAYNES A, LIEMOHN M. Space weather effects produced by the ring current particles[J]. Space Science Reviews, 2017, 212(3): 1315-1344 doi: 10.1007/s11214-017-0412-2
    [20]
    WELLING D. Magnetohydrodynamic models of B and their use in GIC estimates[M]//GANNON J L, SWIDINSKY A, XU Z H. Geomagnetically Induced Currents from the Sun to the Power Grid. Washington: American Geophysical Union, 2019: 43-65. DOI: 10.1002/9781119434412.ch3
    [21]
    LUCAS G M, LOVE J J, KELBERT A, et al. A 100-year geoelectric hazard analysis for the U. S. high-voltage power grid[J]. Space Weather, 2020, 18(2): e2019SW002329 doi: 10.1029/2019SW002329
    [22]
    NGWIRA C M, PULKKINEN A, WILDER V, et al. Extended study of extreme geoelectric field event scenarios for geomagnetically induced current applications[J]. Space Weather, 2013, 11(3): 121-131 doi: 10.1002/swe.20021
    [23]
    OUGHTON E J, SKELTON A, HORNE R B, et al. Quantifying the daily economic impact of extreme space weather due to failure in electricity transmission infrastructure[J]. Space Weather, 2017, 15(1): 65-83 doi: 10.1002/2016SW001491
    [24]
    PULKKINEN A, BERNABEU E, EICHNER J, et al. Generation of 100-year geomagnetically induced current scenarios[J]. Space Weather, 2012, 10(4): S04003 doi: 10.1029/2011SW000750
    [25]
    WOODROFFE J R, MORLEY S K, JORDANOVA V K, et al. The latitudinal variation of geoelectromagnetic disturbances during large (DstDst≤–100 nT) geomagnetic storms[J]. Space Weather, 2016, 14(9): 668-681 doi: 10.1002/2016SW001376
    [26]
    ASTAFYEVA E, YASYUKEVICH Y, MAKSIKOV A, et al. Geomagnetic storms, super-storms, and their impacts on GPS-based navigation systems[J]. Space Weather, 2014, 12(7): 508-525 doi: 10.1002/2014SW001072
    [27]
    BASU S, BASU S, MACKENZIE E, et al. Specification of the occurrence of equatorial ionospheric scintillations during the main phase of large magnetic storms within solar cycle 23[J]. Radio Science, 2010, 45(5): RS5009 doi: 10.1029/2009RS004343
    [28]
    BOWMAN B R, TOBISKA W K, MARCOS F A, et al. A new empirical thermospheric density model JB2008 using new solar and geomagnetic indices[C]//Proceedings of the AIAA/AAS Astrodynamics Specialist Conference and Exhibit. Honolulu: AIAA, 2008: AIAA 2008-6438. DOI: 10.2514/6.2008-6438
    [29]
    GUO J P, FENG X S, FORBES J M, et al. On the relationship between thermosphere density and solar wind parameters during intense geomagnetic storms[J]. Journal of Geophysical Research: Space Physics, 2010, 115(A12): A12335 doi: 10.1029/2010JA015971
    [30]
    OLIVEIRA D M, ZESTA E. Satellite orbital drag during magnetic storms[J]. Space Weather, 2019, 17(11): 1510-1533 doi: 10.1029/2019SW002287
    [31]
    RANGARAJAN G. Indices of geomagnetic activity[M]//JACOBS J A. Geomagnetism. London: Academic Press, 1989: 323-384
    [32]
    SICILIANO F, CONSOLINI G, TOZZI R, et al. Forecasting SYM-H index: a comparison between long short-term memory and convolutional neural networks[J]. Space Weather, 2021, 19(2): e2020SW002589 doi: 10.1029/2020SW002589
    [33]
    VICHARE G, THOMAS N, SHIOKAWA K, et al. Spatial gradients in geomagnetic storm time currents observed by Swarm multispacecraft mission[J]. Journal of Geophysical Research: Space Physics, 2019, 124(2): 982-995 doi: 10.1029/2018JA025692
    [34]
    WANLISS J A, SHOWALTER K M. High-resolution global storm index: DstDst versus SYM-H[J]. Journal of Geophysical Research: Space Physics, 2006, 111(A2): A02202 doi: 10.1029/2005JA011034
    [35]
    KOZYRA J U, LIEMOHN M W. Ring current energy input and decay[J]. Space Science Reviews, 2003, 109(1/2/3/4): 105-131 doi: 10.1023/B:SPAC.0000007516.10433.ad
    [36]
    YU Y Q, RIDLEY A J, WELLING D T, et al. Including gap region field-aligned currents and magnetospheric currents in the MHD calculation of ground-based magnetic field perturbations[J]. Journal of Geophysical Research: Space Physics, 2010, 115(A8): A08207 doi: 10.1029/2009JA014869
