LI Min, ZHU Yajun, LIU Weijun, YUAN Wei, XU Jiyao. Retrieval and Analysis of OH (3-1) Rotational Temperature at Xinglong Station (in Chinese). Chinese Journal of Space Science, 2026, 46(5): 1-10 doi: 10.11728/cjss2026.05.2026-0043
Citation: LI Min, ZHU Yajun, LIU Weijun, YUAN Wei, XU Jiyao. Retrieval and Analysis of OH (3-1) Rotational Temperature at Xinglong Station (in Chinese). Chinese Journal of Space Science, 2026, 46(5): 1-10 doi: 10.11728/cjss2026.05.2026-0043
shu

Retrieval and Analysis of OH (3-1) Rotational Temperature at Xinglong Station

doi: 10.11728/cjss2026.05.2026-0043 cstr: 32142.14.cjss.2026-0043
  • 1.

    State Key Laboratory of Solar Activity and Space Weather, National Space Science Center, Chinese Academy of Sciences, Beijing 100190

  • 2.

    University of Chinese Academy of Sciences, Beijing 100049

  • Received Date: 2026-02-24
  • Rev Recd Date: 2026-06-13
    • Available Online: 2026-06-16
    Abstract

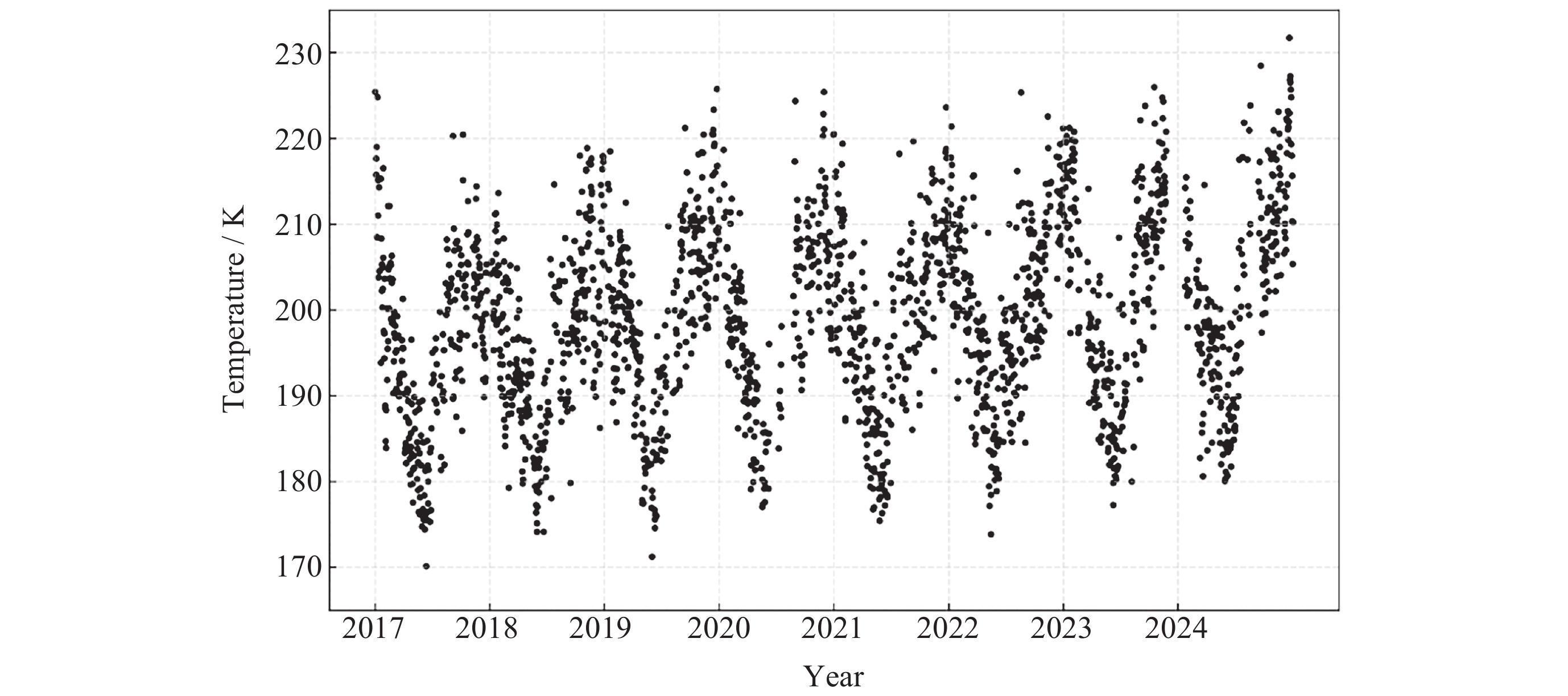

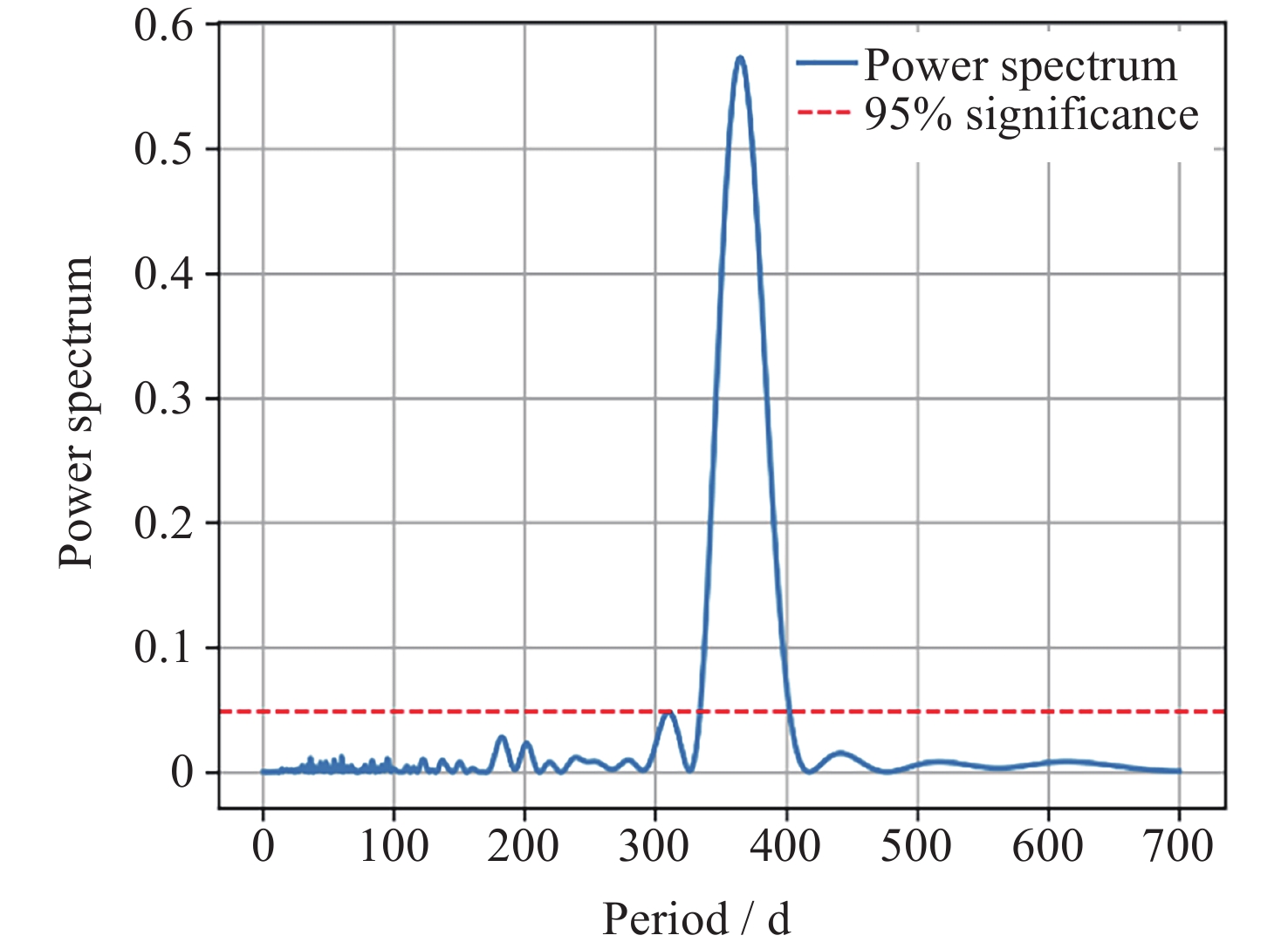

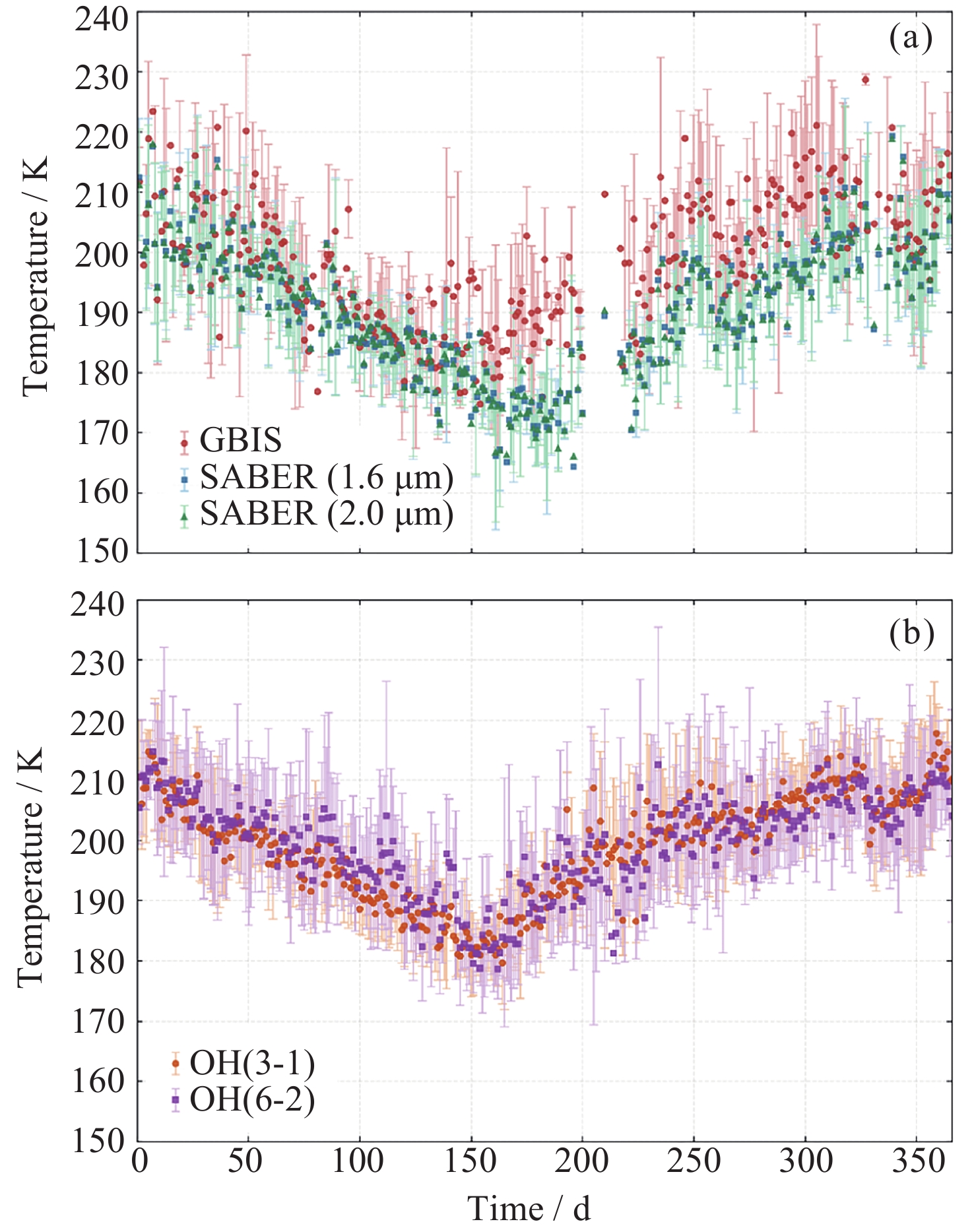

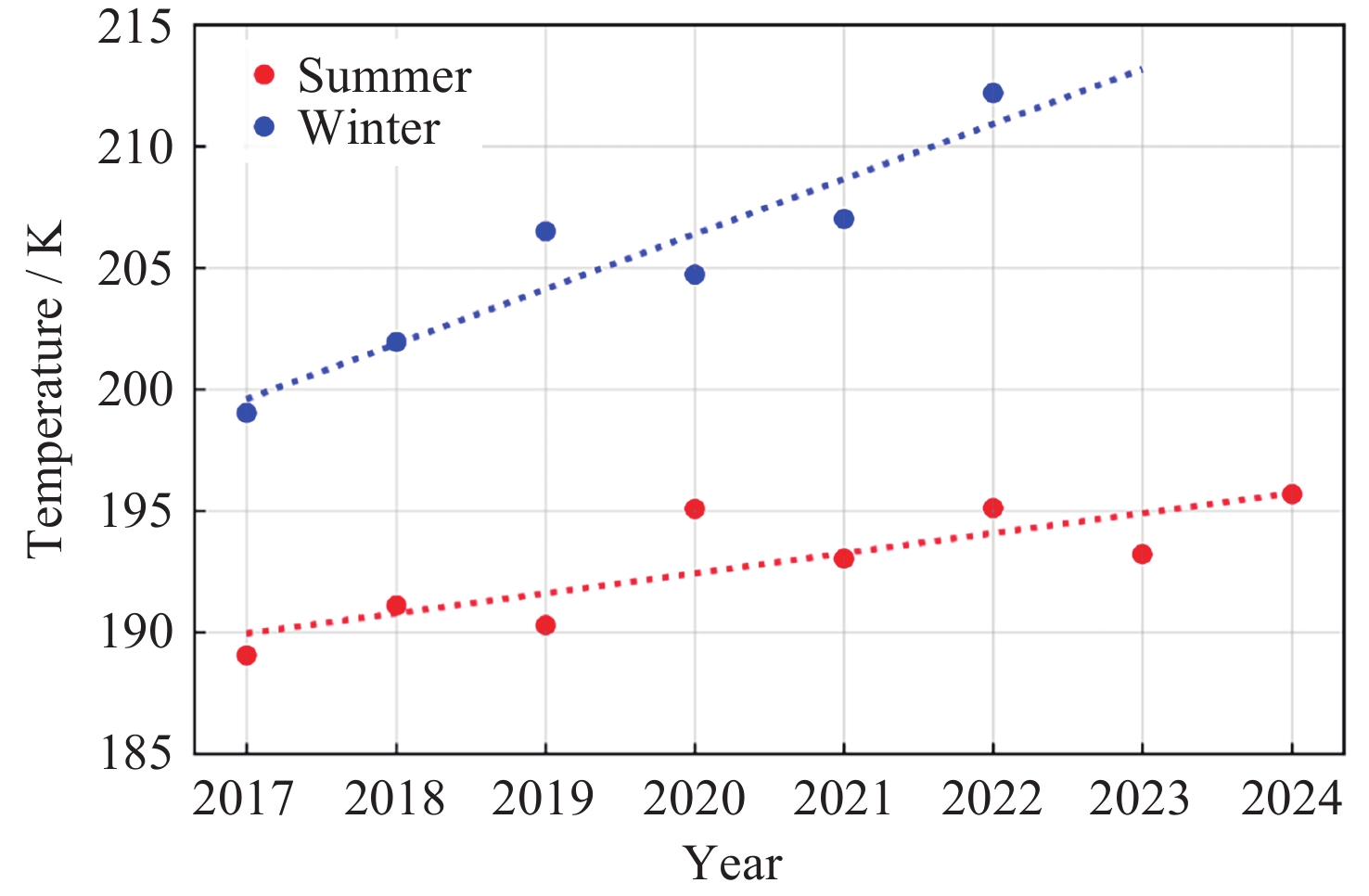

  • Mesopause is a key region that responds to solar activity and wave perturbations originating from the lower atmosphere. Temperature in this region is an essential parameter for understanding the dynamical processes and climate change in the middle and upper atmosphere. Rotational temperature of OH airglow is widely used to monitor long-term temperature variations near the mesopause. To investigate the long-term temperature variability in this region, OH (3-1) airglow spectra obtained by a Ground-Based Infrared Spectrometer (GBIS) at Xinglong Station (40°24'N, 117°35'E), China, from 2017 to 2024 were analyzed. The OH rotational temperature was retrieved using a multispectral global optimization fitting algorithm. The reliability of the retrieved temperatures was verified through comparisons with independent measurements from the TIMED satellite and the co-located SpectroMeter of Atmospheric RadiaTion (SMART), showing overall good agreement. The results indicate that the average of annual OH (3-1) rotational temperature during 2017–2024 was 199.3 K and exhibited pronounced seasonal variability, characterized by higher temperatures in winter and lower temperatures in summer. Lomb-Scargle spectral analysis identified the annual oscillation as the dominant periodic component, with an average amplitude of approximately 11.6 K. Furthermore, the interannual variation of the annual mean temperature showed good agreement with changes in solar activity, while both summer and winter mean temperatures exhibited increasing trends throughout the study period, with winter temperatures increasing more rapidly than summer temperatures. These findings suggest that the temperature variability in the mesopause region above Xinglong is jointly influenced by solar activity and atmospheric dynamical processes. The long-term OH (3-1) rotational temperature observations presented in this study demonstrate the capability of GBIS measurements for monitoring long-term temperature variations in the mesopause region and provide valuable observational evidence for understanding the response of the middle and upper atmosphere to external forcing and dynamical processes.



    • FullText(HTML)
  • loading
    • References(27)
  • [1]
    BAKER D J, STAIR-JR A T. Rocket measurements of the altitude distributions of the hydroxyl airglow[J]. Physica Scripta, 1988, 37(4): 611 doi: 10.1088/0031-8949/37/4/021
    [2]
    BITTNER M, OFFERMANN D, GRAEF H H. Mesopause temperature variability above a midlatitude station in Europe[J]. Journal of Geophysical Research: Atmospheres, 2000, 105(D2): 2045-2058 doi: 10.1029/1999JD900307
    [3]
    BITTNER M, OFFERMANN D, GRAEF H H, et al. An 18-year time series of OH rotational temperatures and middle atmosphere decadal variations[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2002, 64(8/9/10/11): 1147-1166 doi: 10.1016/s1364-6826(02)00065-2
    [4]
    OFFERMANN D, HOFFMANN P, KNIELING P, et al. Long-term trends and solar cycle variations of mesospheric temperature and dynamics[J]. Journal of Geophysical Research: Atmospheres, 2010, 115(D18): D18127 doi: 10.1029/2009jd013363
    [5]
    FRENCH W J R, MULLIGAN F J, KLEKOCIUK A R. Analysis of 24 years of mesopause region OH rotational temperature observations at Davis, Antarctica-Part 1: long-term trends[J]. Atmospheric Chemistry and Physics, 2020, 20(11): 6379-6394 doi: 10.5194/acp-20-6379-2020
    [6]
    KALICINSKY C, KNIELING P, KOPPMANN R, et al. Long-term dynamics of OH* temperatures over central Europe: trends and solar correlations[J]. Atmospheric Chemistry and Physics, 2016, 16(23): 15033-15047 doi: 10.5194/acp-16-15033-2016
    [7]
    KALICINSKY C, KIRCHHOFF S, KNIELING P, et al. Long-term variations in the mesopause region derived from OH*(3, 1) rotational temperature observations at Wuppertal, Germany, from 1988-2022[J]. Advances in Space Research, 2024, 73(7): 3398-3407 doi: 10.1016/j.asr.2023.08.045
    [8]
    BITTNER M, OFFERMANN D, BUGAEVA I V, et al. Long period/large scale oscillations of temperature during the DYANA campaign[J]. Journal of Atmospheric and Terrestrial Physics, 1994, 56(13/14): 1675-1700 doi: 10.1016/0021-9169(94)90004-3
    [9]
    KALICINSKY C, REISCH R, KNIELING P. Ground-based observations of periodic temperature fluctuations in the mesopause region with periods longer than 2 d[J]. Atmospheric Chemistry and Physics, 2026, 26(4): 2531-2544. doi: 10.5194/acp-26-2531-2026
    [10]
    SINGH R P, PALLAMRAJU D, SURYAWANSHI P, et al. Studies of atmospheric waves by ground-based observations of OH(3-1) emission and rotational temperature using PRL airglow InfraRed spectrograph (PAIRS)[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2023, 244: 106039 doi: 10.1016/j.jastp.2023.106039
    [11]
    ZHU Y J, XU J Y, YUAN W, et al. First experiment of spectrometric observation of hydroxyl emission and rotational temperature in the mesopause in China[J]. Science China Technological Sciences, 2012, 55(5): 1312-1318 doi: 10.1007/s11431-012-4824-7
    [12]
    XU J Y, GAO H, SMITH A K, et al. Using TIMED/SABER nightglow observations to investigate hydroxyl emission mechanisms in the mesopause region[J]. Journal of Geophysical Research: Atmospheres, 2012, 117(D2): D02301 doi: 10.1029/2011jd016342
    [13]
    SCHMIDT C, HÖPPNER K, BITTNER M. A ground-based spectrometer equipped with an InGaAs array for routine observations of OH(3-1) rotational temperatures in the mesopause region[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2013, 102: 125-139 doi: 10.1016/j.jastp.2013.05.001
    [14]
    SAU S, TERRA P, BRUM C G M, et al. Retrieval of rotational temperatures from the Arecibo observatory Ebert-Fastie spectrometer and their inter-comparison with Co-located K-Lidar and SABER measurements[J]. Earth and Space Science, 2024, 11(2): e2023EA003323 doi: 10.1029/2023EA003323
    [15]
    MIES F H. Calculated vibrational transition probabilities of OH(X2Π)[J]. Journal of Molecular Spectroscopy, 1974, 53(2): 150-188 doi: 10.1016/0022-2852(74)90125-8
    [16]
    PERMINOV V I, SEMENOV A I, MEDVEDEVA I V, et al. Variability of mesopause temperature from the hydroxyl airglow observations over mid-latitudinal sites, Zvenigorod and Tory, Russia[J]. Advances in Space Research, 2014, 54(12): 2511-2517 doi: 10.1016/j.asr.2014.01.027
    [17]
    KIRAN, SINGH R P. Vertical wave characteristics in the MLT region and its seasonal variations using OH(3-1) brightness and rotational temperature from Ahmedabad (23°N, 72.6°E)[J]. Advances in Space Research, 2025, 75(7): 5484-5498 doi: 10.1016/j.asr.2025.01.017
    [18]
    OBERHEIDE J, OFFERMANN D, RUSSELL-III J M, et al. Intercomparison of kinetic temperature from 15 μm CO2 limb emissions and OH*(3, 1) rotational temperature in nearly coincident air masses: SABER, GRIPS[J]. Geophysical research letters, 2006, 33(14): L14811
    [19]
    LIU W J, XU J Y, SMITH A K, et al. Comparison of rotational temperature derived from ground-based OH airglow observations with TIMED/SABER to evaluate the Einstein coefficients[J]. Journal of Geophysical Research: Space Physics, 2015, 120(11): 10069-10082 doi: 10.1002/2015JA021886
    [20]
    KALICINSKY C, REISCH R, KNIELING P, et al. Determination of time-varying periodicities in unequally spaced time series of OH* temperatures using a moving Lomb-Scargle periodogram and a fast calculation of the false alarm probabilities[J]. Atmospheric Measurement Techniques, 2020, 13(2): 467-477 doi: 10.5194/amt-13-467-2020
    [21]
    OFFERMANN D, JARISCH M, DONNER M, et al. OH temperature re-analysis forced by recent variance increases[J]. Journal of atmospheric and solar-terrestrial physics, 2006, 68(17): 1924-1933 doi: 10.1016/j.jastp.2006.03.007
    [22]
    HOLTON J R. The influence of gravity wave breaking on the general circulation of the middle atmosphere[J]. Journal of the Atmospheric Sciences, 1983, 40(10): 2497-2507 doi: 10.1175/1520-0469(1983)040<2497:tiogwb>2.0.co;2
    [23]
    GARCIA R R, SOLOMON S. The effect of breaking gravity waves on the dynamics and chemical composition of the mesosphere and lower thermosphere[J]. Journal of Geophysical Research: Atmospheres, 1985, 90(D2): 3850-3868 doi: 10.1029/JD090iD02p03850
    [24]
    ROBLE R G, DICKINSON R E. How will changes in carbon dioxide and methane modify the mean structure of the mesosphere and thermosphere?[J]. Geophysical Research Letters, 1989, 16(12): 1441-1444 doi: 10.1029/GL016i012p01441
    [25]
    SOLOMON S C, LIU H L, MARSH D R, et al. Whole atmosphere climate change: dependence on solar activity[J]. Journal of Geophysical Research: Space Physics, 2019, 124(5): 3799-3809 doi: 10.1029/2019JA026678
    [26]
    OFFERMANN D, DONNER M, KNIELING P, et al. Middle atmosphere temperature changes and the duration of summer[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2004, 66(6/7/8/9): 437-450 doi: 10.1016/j.jastp.2004.01.028
    [27]
    SCHMIDT C, KÜCHELBACHER L, WÜST S, et al. OH airglow observations with two identical spectrometers: benefits of increased data homogeneity in the identification of variations induced by the 11-year solar cycle, the QBO, and other factors[J]. Atmospheric Measurement Techniques, 2023, 16(19): 4331-4356 doi: 10.5194/amt-16-4331-2023
